Automatic Level Control Component Views

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

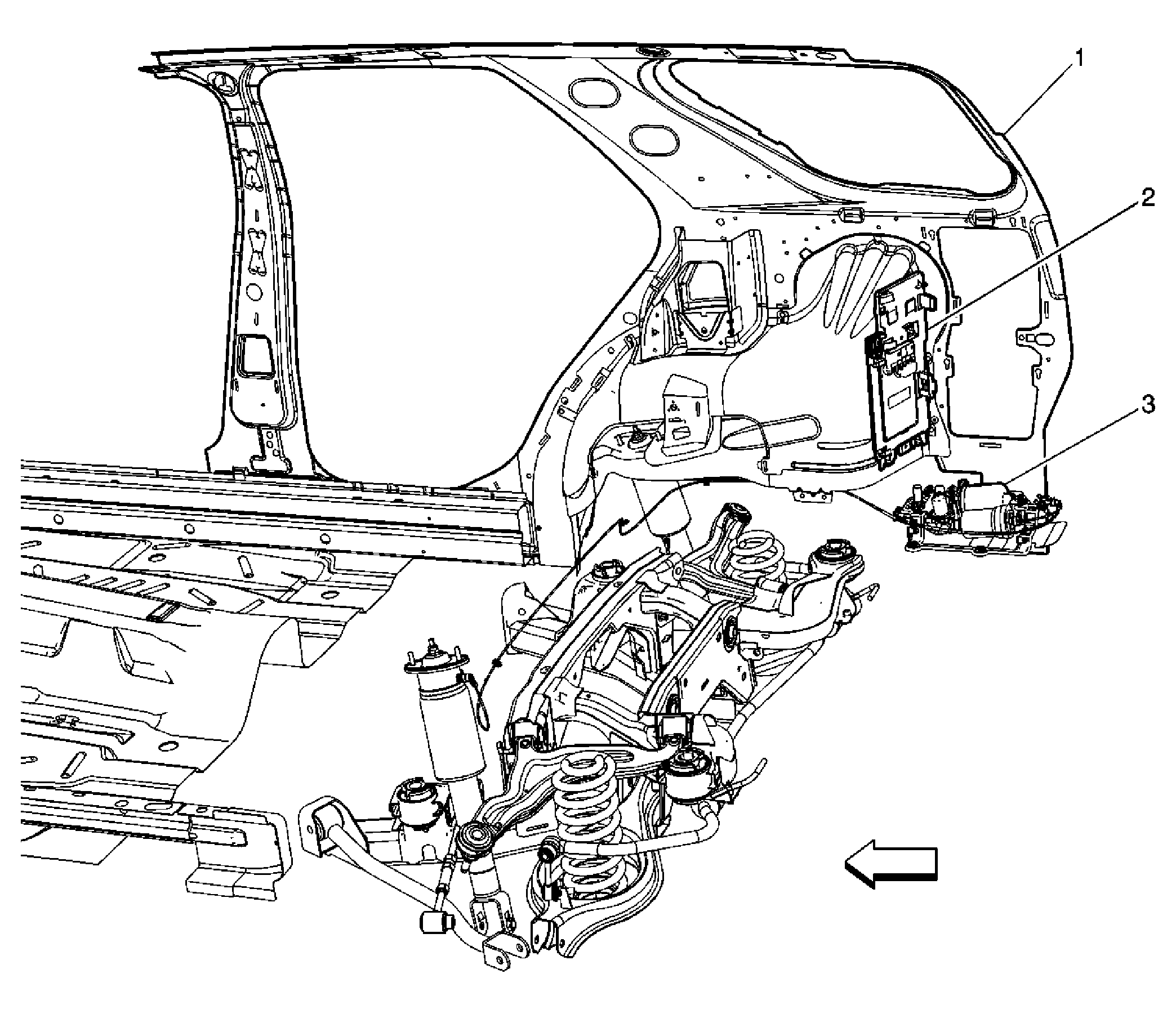

Fig 1: Automatic Level Control Right Rear Of Vehicle Component View
GM1847651Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inner Frame - RH
2 Electronic Suspension Control (ESC) Module (F55)
3 Automatic Level Control (ALC) Compressor (F55)
