Power Window Schematics

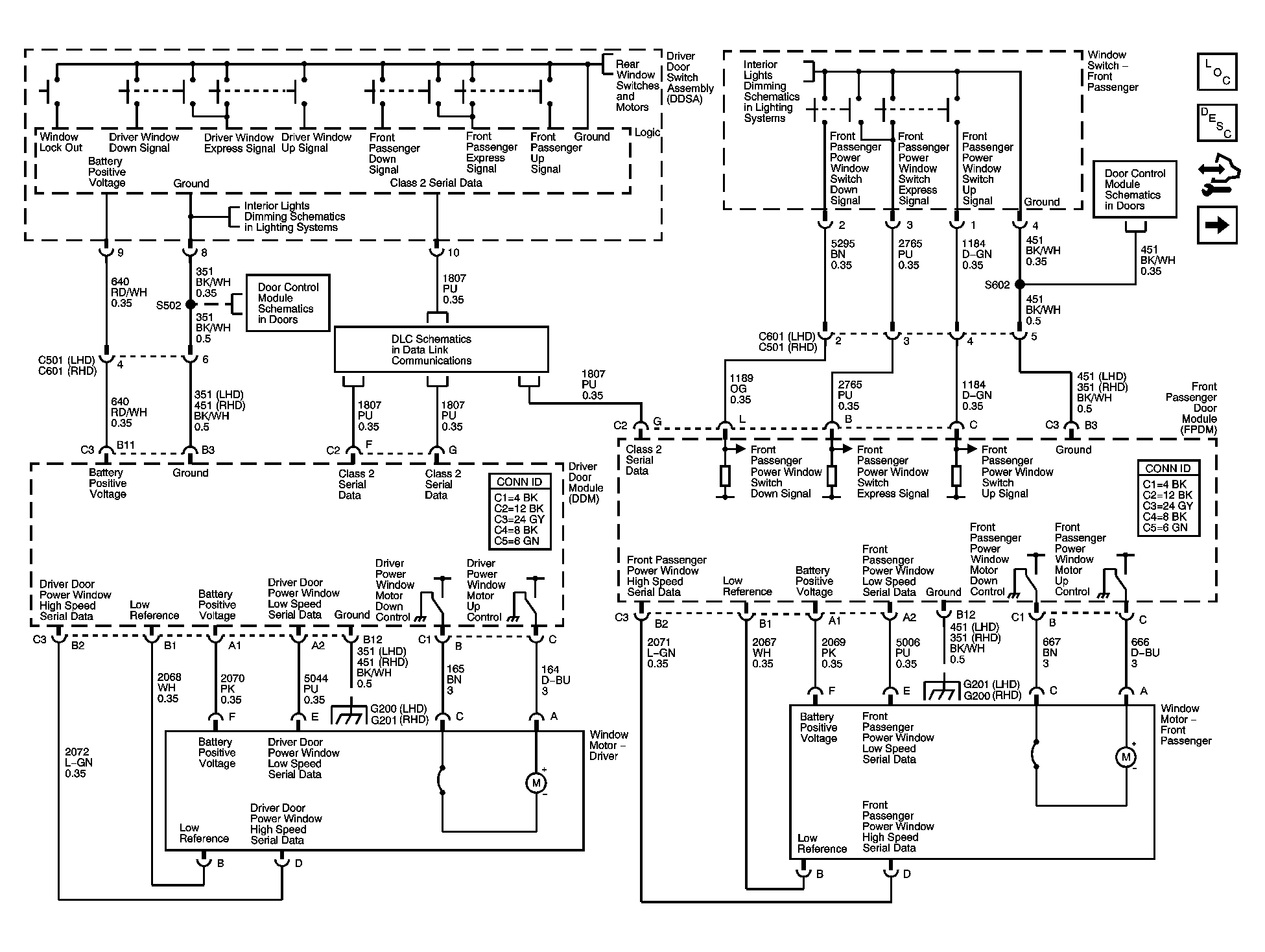

Fig 1: Schematics - Front Power Window Switches and Motors
GM1471112Courtesy of GENERAL MOTORS CORP.

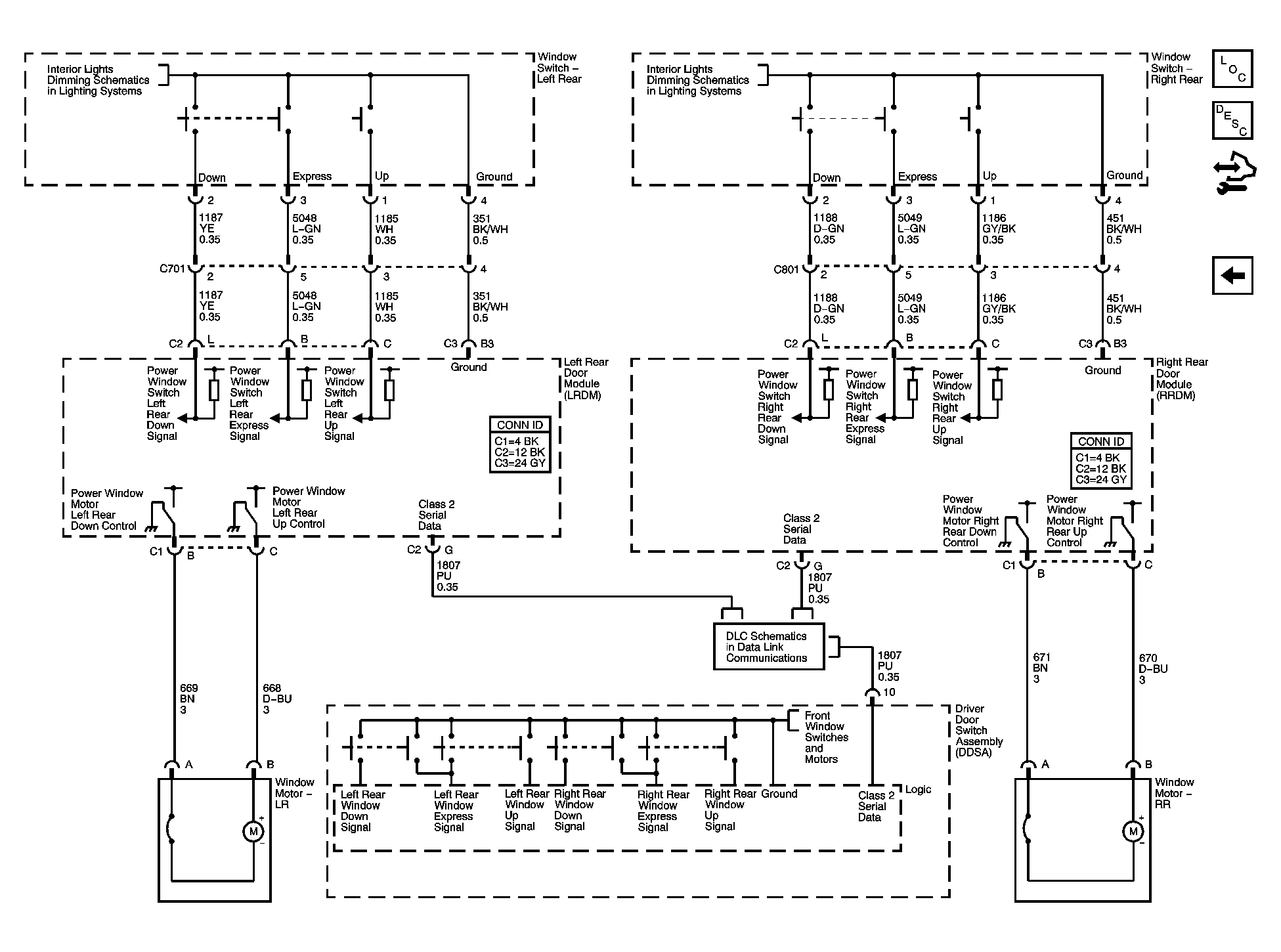

Fig 2: Schematics - Rear Power Window Switches and Motors
GM1471115Courtesy of GENERAL MOTORS CORP.
