ABS Schematics

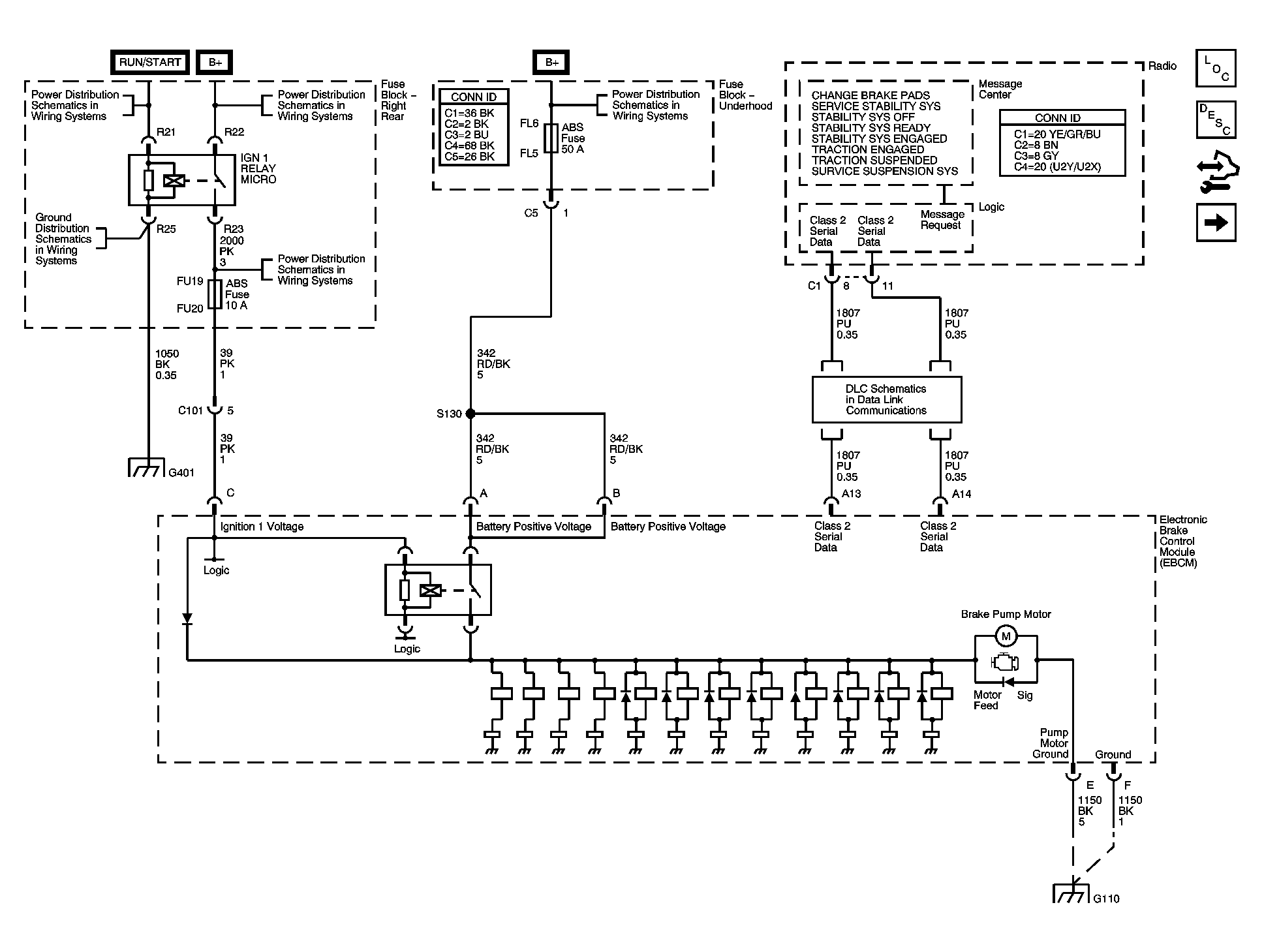

Fig 1: Schematic - Power, Ground, Serial Data and DIC

Courtesy of GENERAL MOTORS CORP.

Fig 2: Schematic - Vehicle Stability Enhancement System (JL4)

Courtesy of GENERAL MOTORS CORP.

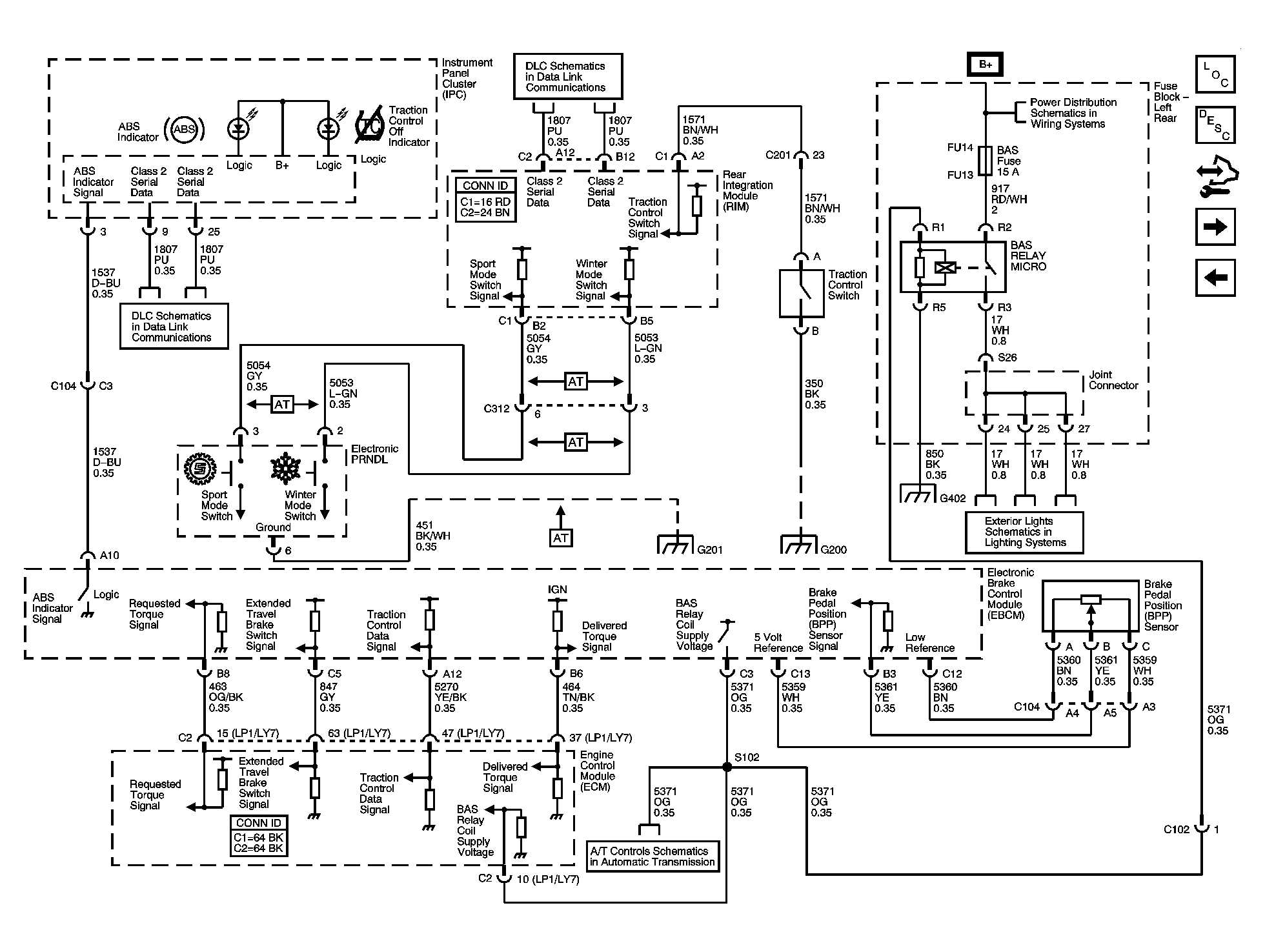

Fig 3: Schematic - BPP Sensor, Switches and Indicators - 2.8L/3.6L (LP1/LY7)

Courtesy of GENERAL MOTORS CORP.

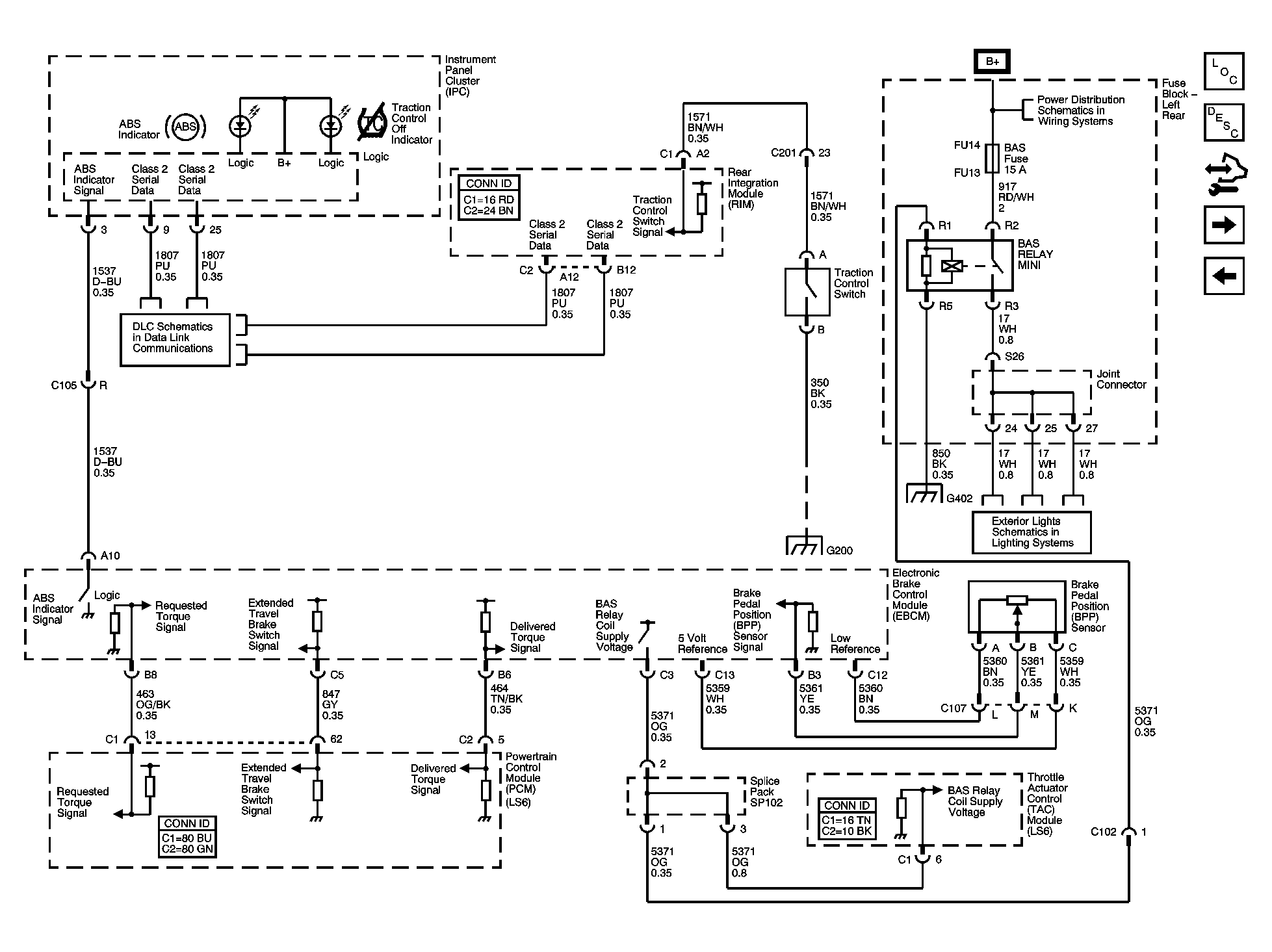

Fig 4: Schematic - BPP Sensor, Switches and Indicators - 5.7L (LS6)

Courtesy of GENERAL MOTORS CORP.

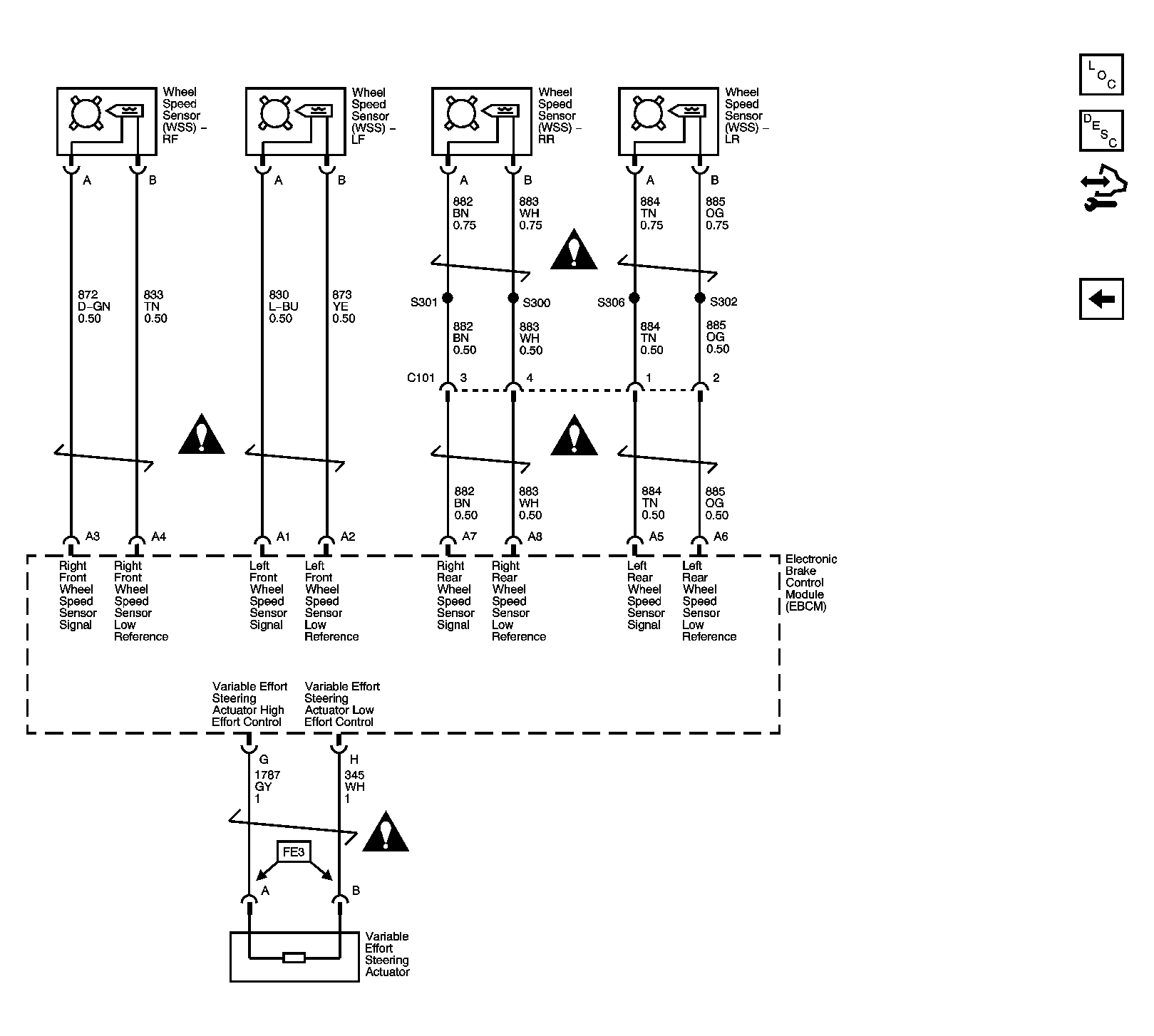

Fig 5: Schematic - Wheel Speed Sensors and Variable Effort Steering Actuator

Courtesy of GENERAL MOTORS CORP.
