Automatic Transmission Internal Connector End Views

1-2 Shift Solenoid (1-2 SS) Valve Connector, Wiring Harness Side

GM168428Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336698
  • Conn 2F M/P 150.2 P2S (GRN)
Pin Wire Color Circuit No. Function
A RED 839 Ignition 1 Voltage
B LT GRN 1222 1-2 Shift Solenoid Valve Control
2-3 Shift Solenoid (2-3 SS) Valve Connector, Wiring Harness Side

GM168428Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162202
  • Conn 2F M/P 150.2 P2S (BLU)
Pin Wire Color Circuit No. Function
A RED 839 Ignition 1 Voltage
B YEL 1223 2-3 Shift Solenoid Valve Control
Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid Valve Connector, Wiring Harness Side

GM168428Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162202
  • Conn 2F M/P 150.2 P2S (BLU)
Pin Wire Color Circuit No. Function
A WHT 1135 Ignition 1 Voltage
B TAN 418 TCC PWM Solenoid Valve Control
Pressure Control (PC) Solenoid Valve Connector, Wiring Harness Side

GM168421Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12146800
  • Conn 2F M/P 480 SPL (NAT)
Pin Wire Color Circuit No. Function
A PPL 1228 PC Solenoid Valve High Control
B LT BLU 1229 PC Solenoid Valve Low Control
Transmission Fluid Temperature (TFT) Sensor Connector, Wiring Harness Side

GM168428Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162201
  • Conn 2F M/P 150.2 P2S (NAT)
Pin Wire Color Circuit No. Function
A BRN 1227 TFT Sensor Signal
B GRY 452 Low Reference
Automatic Transmission Input Shaft Speed Sensor (AT ISS) Connector, Wiring Harness Side

GM333035Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047781
  • Conn 3F M/P 150.2 P2S (BLK)
Pin Wire Color Circuit No. Function
A BLK 1230 AT ISS High Signal
B - - Not Used
C DK GRN 1231 AT ISS Low Signal
Internal Mode Switch (IMS) Connector, Wiring Harness Side

GM73215Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12146095
  • Conn 6F M/P 150.2 P2S (NAT)
Pin Wire Color Circuit No. Function
A - - Not Used
B DK
GRN/WHT		 772 Transmission Range Switch Signal B
C BLK/WHT 1050 Ground
D YEL/BLK 773 Transmission Range Switch Signal C
E GRY/WHT 776 Transmission Range Switch Signal P
F RED/BLK 771 Transmission Range Switch Signal A

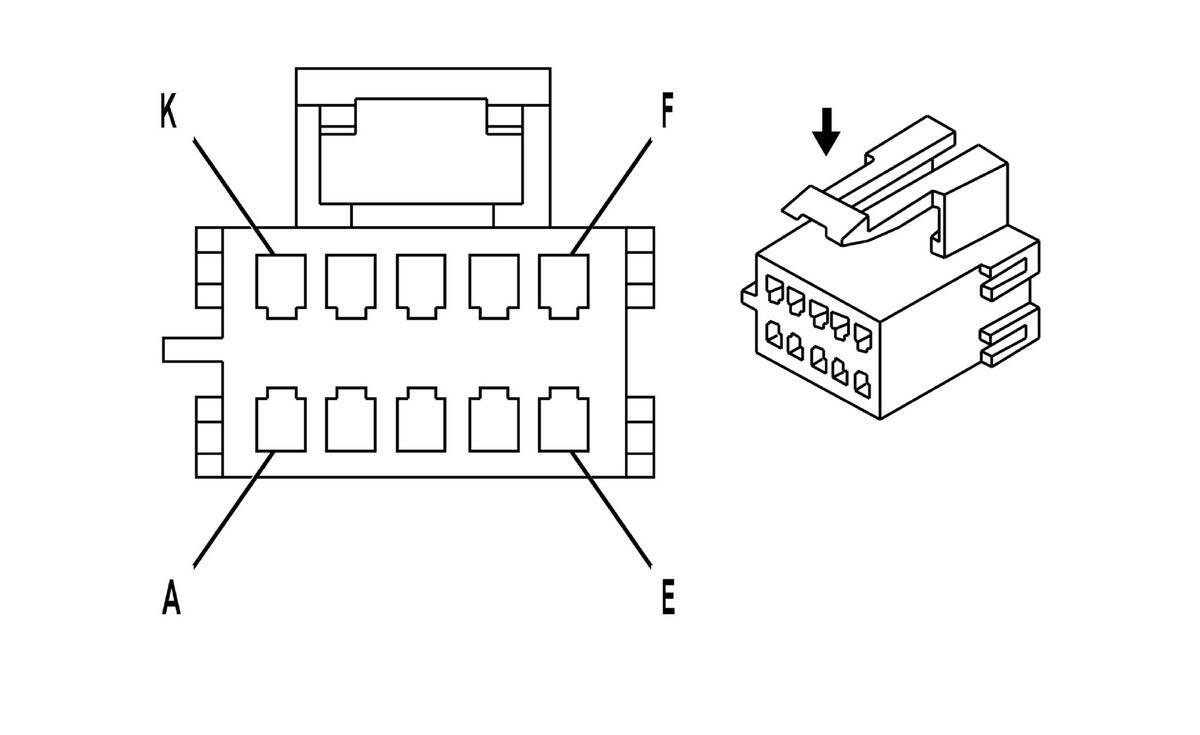

Inline Connector, Automatic Transmission Wiring Harness Assembly Side

GM603055Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15324054
  • Conn 10F M/P 150 (BLK)
Pin Wire Color Circuit No. Function
A RED 839 Ignition 1 Voltage
B LT GRN 1222 1-2 Shift Solenoid Valve Control
C YEL 1223 2-3 Shift Solenoid Valve Control
D DK
GRN/WHT		 772 Transmission Range Switch Signal B
E BLK/WHT 1050 Ground
F YEL/BLK 773 Transmission Range Switch Signal C
G GRY/WHT 776 Transmission Range Switch Signal P
H RED/BLK 771 Transmission Range Switch Signal A

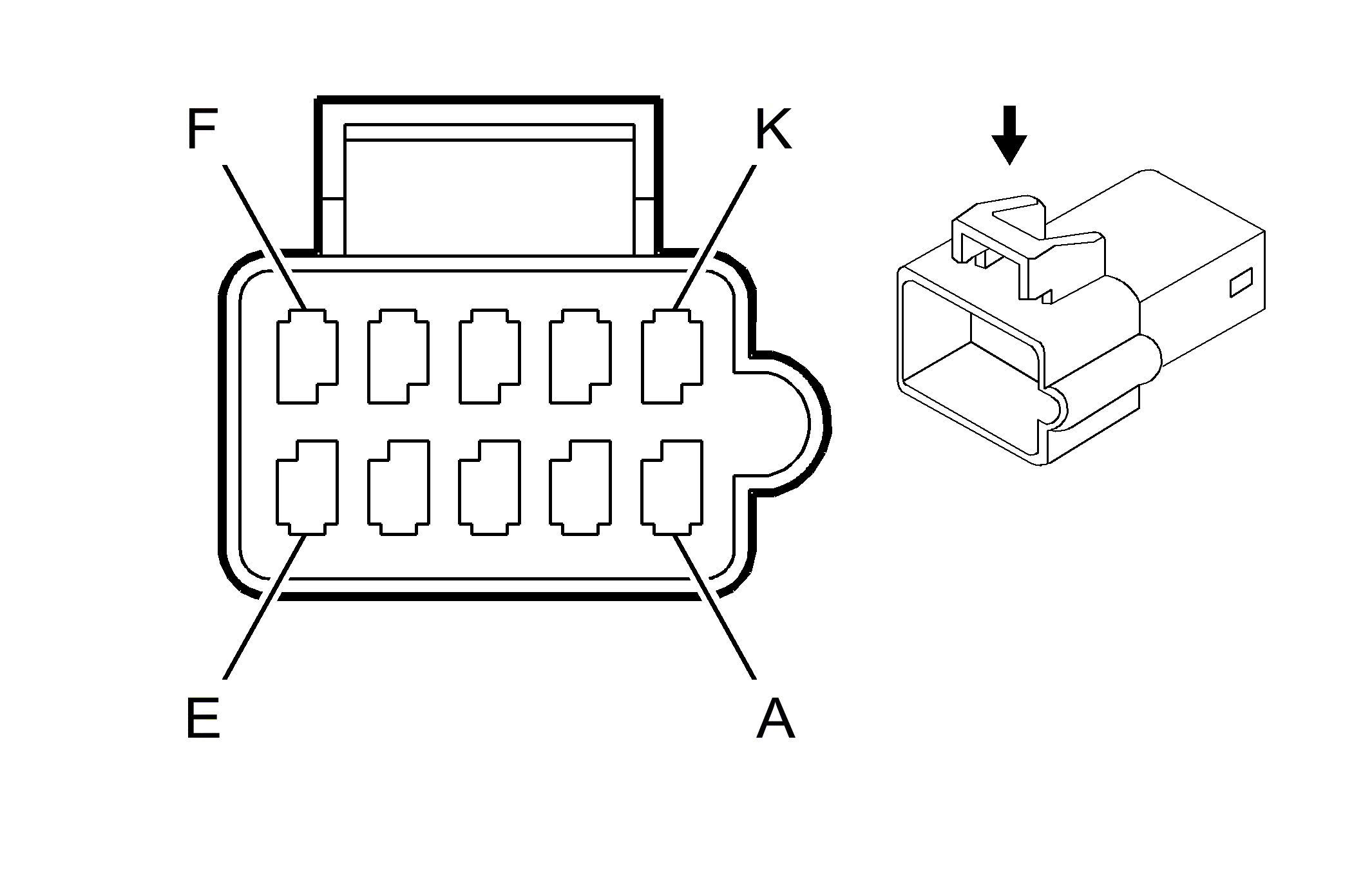

Inline Connector, Automatic Transmission Wiring Extension Harness Assembly Side

GM603056Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15324056
  • Conn 10M M/P 150 (BLU)
Pin Wire Color Circuit No. Function
A RED 839 Ignition 1 Voltage
B LT GRN 1222 1-2 Shift Solenoid Valve Control
C YEL 1223 2-3 Shift Solenoid Valve Control
D DK
GRN/WHT		 772 Transmission Range Switch Signal B
E BLK/WHT 1050 Ground
F YEL/BLK 773 Transmission Range Switch Signal C
G GRY/WHT 776 Transmission Range Switch Signal P
H RED/BLK 771 Transmission Range Switch Signal A
