Installation Procedure

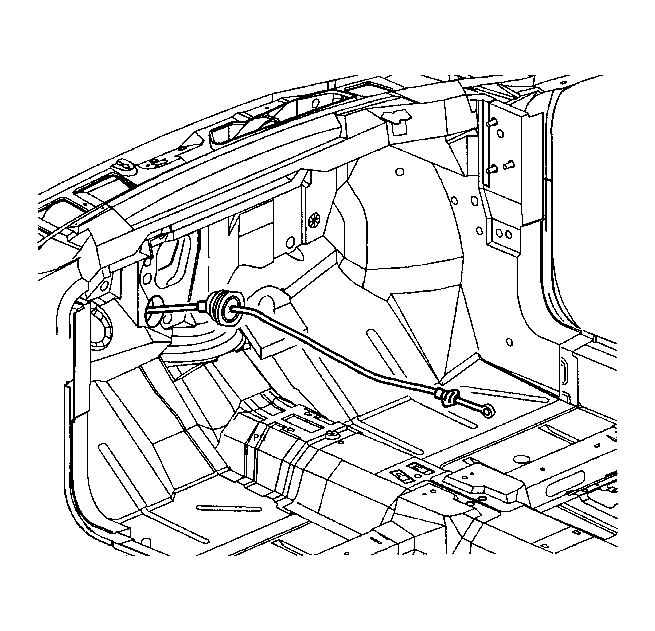

    Fig 1: View Of Shift Cable & Grommet
    GM294270Courtesy of GENERAL MOTORS CORP.
  1. Install the shift cable through the cowl panel and seat the grommet.
    2. Fig 2: View Of Transmission Shift Cable & Tabs
    GM746113Courtesy of GENERAL MOTORS CORP.
  2. Slide the transaxle range selector cable (2) fully into the bracket until it snaps into place.
    3. Fig 3: View Of Transmission Shift Cable & Linear Shift Assembly
    GM746114Courtesy of GENERAL MOTORS CORP.
  3. Connect the transaxle range selector cable terminal to the shift lever pin.
    4. Fig 4: View Of Transmission Shift Cable Clip
    GM746116Courtesy of GENERAL MOTORS CORP.
  4. Install the retainer to the transaxle range selector cable mechanism.
  5. Install the left closeout/insulator panel. Refer to Closeout/Insulator Panel Replacement - Left in Instrument Panel, Gages and Console.

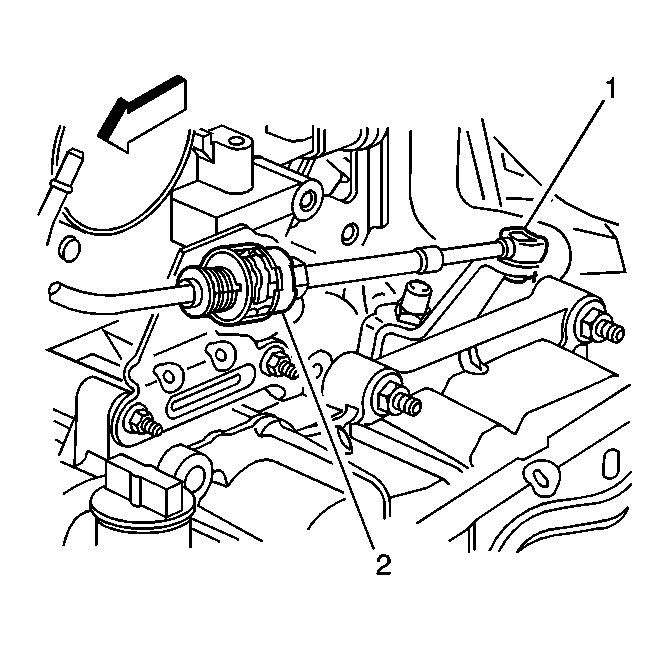

    6. Fig 5: Identifying Manual Shift Lever & Shift Cable
    GM599655Courtesy of GENERAL MOTORS CORP.
  6. Insert the transaxle range selector cable (2) into the bracket.
  7. Connect the transaxle range selector cable terminal to the transaxle manual shift lever pin (1).
  8. Install the retainer to the transaxle range selector cable mechanism.
  9. Adjust the automatic transmission range selector cable. Refer to Automatic Transmission Range Selector Cable Adjustment .
