Installation Procedure
Courtesy of GENERAL MOTORS CORP.

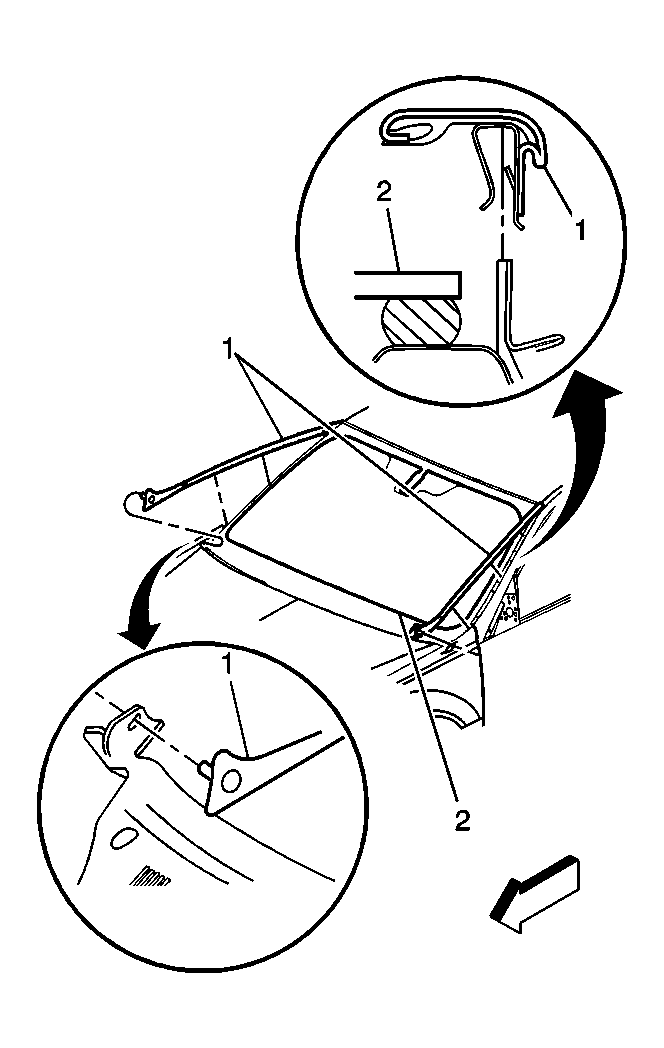

- Insert the top of the side reveal molding (1) into the end of the upper reveal molding (2).
- Align the side reveal molding retainer clips to the windshield pillar flange.
- Press down on the side reveal molding (1) to engage the retainer clips.
- Tuck the rubber extension under the fender.
Courtesy of GENERAL MOTORS CORP.
- Reset the retainer by pushing the stud from the backside.
- Insert the retainer through the rubber extension.
- Press the center stud flush with the retainer in order to lock in place.
