Fuel Hose/Pipes Routing Diagram

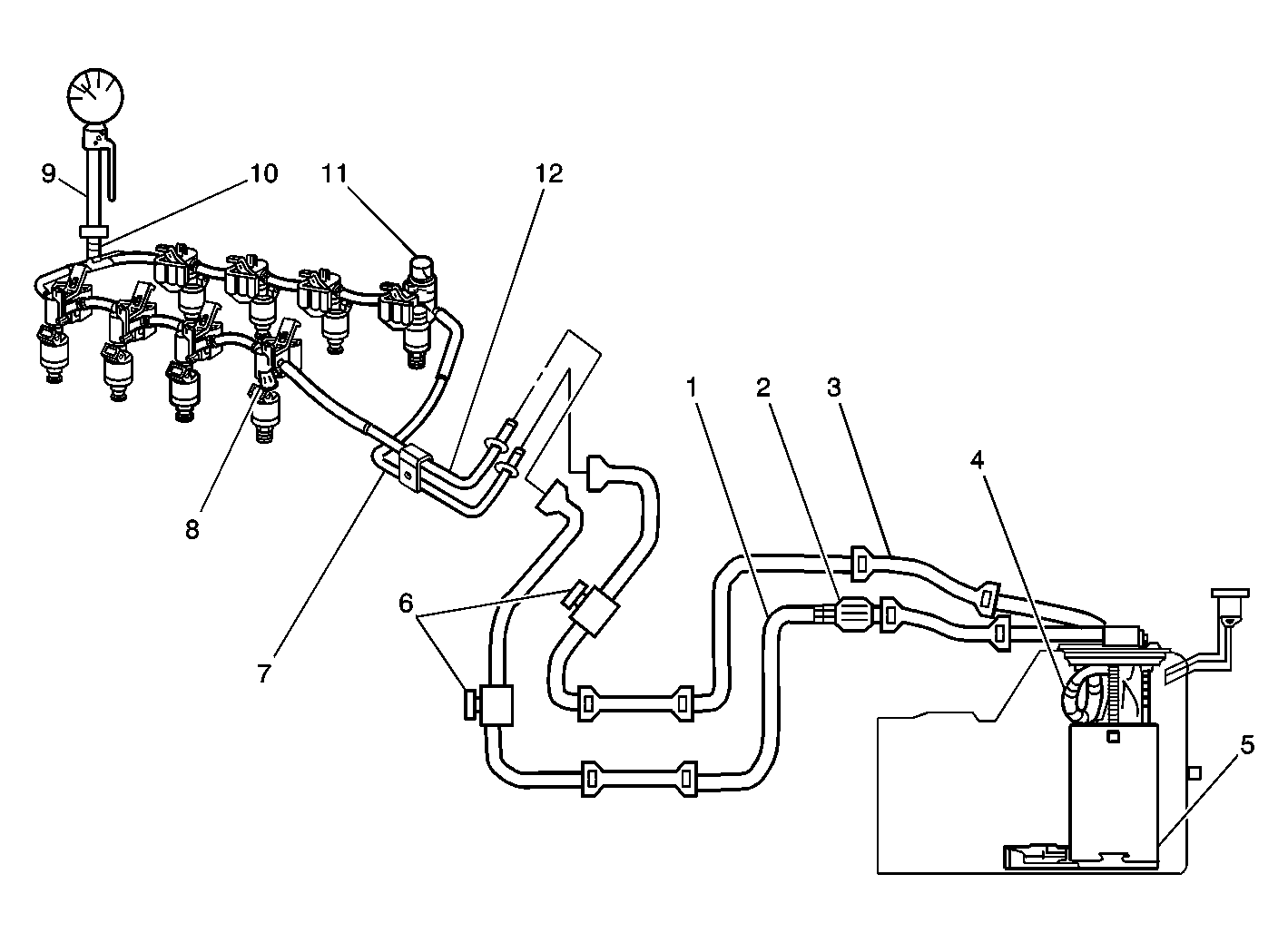

Fig 1: Fuel Hose/Pipes Routing Diagram

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Feed Hose
2	Fuel Filter
3	Fuel Return Hose
4	Fuel Flex Hose
5	Fuel Sender Assembly
6	Fuel Shut-Off Valves
7	Fuel Rail Return Pipe
8	Fuel Injector
9	Fuel Pressure Gage
10	Fuel Pressure Gage Fitting
11	Fuel Pressure Regulator
12	Fuel Rail Feed Pipe
