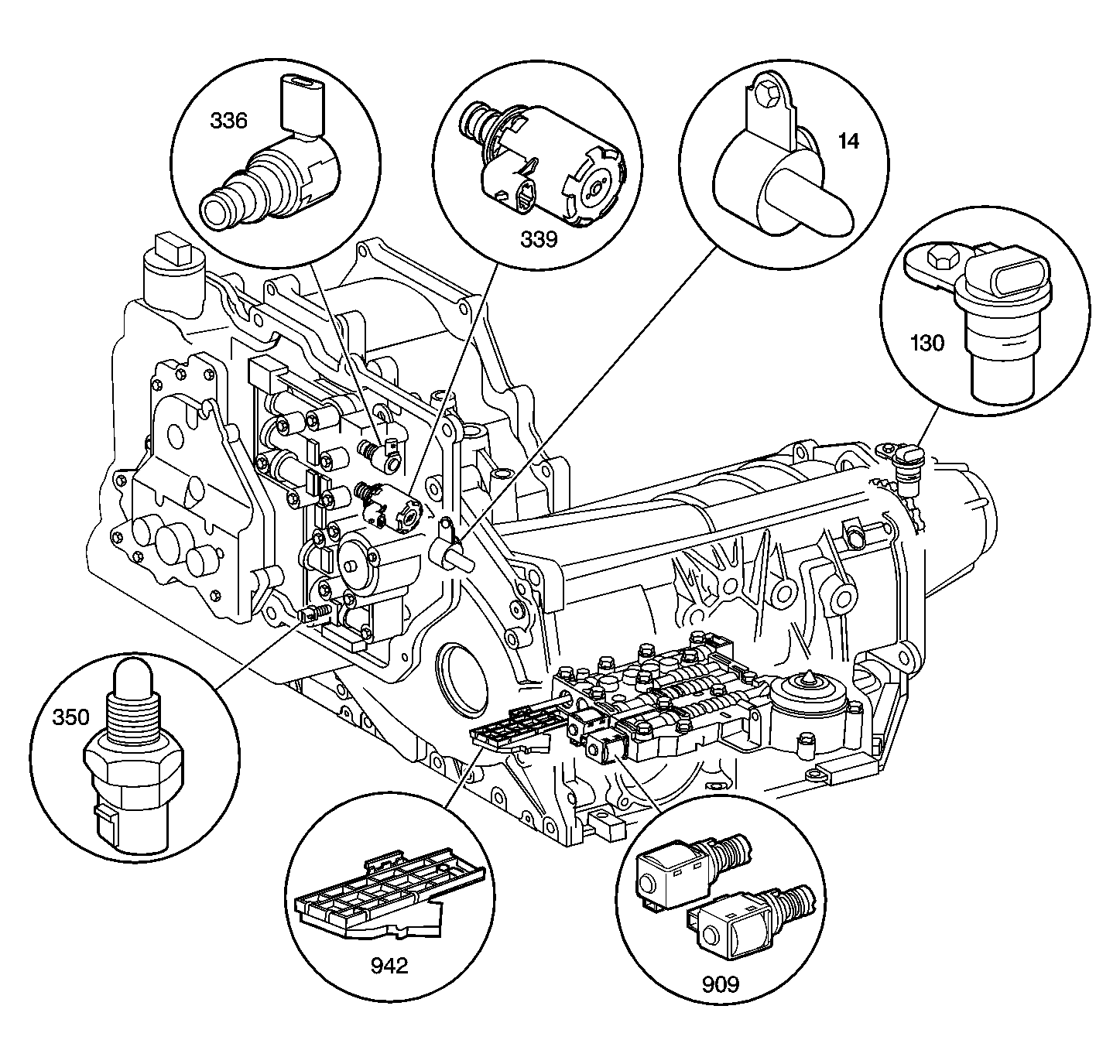

Automatic Transmission Electronic Component Views
| Callout | Component Name |
|---|---|
| 14 | Automatic Transmission Input (Shaft) Speed Sensor (ISS) |
| 130 | Vehicle Speed Sensor (VSS) |
| 336 | Torque Converter Clutch (TCC) Solenoid Valve |
| 339 | Pressure Control Solenoid (PCS) Valve |
| 350 | Automatic Transmission Fluid Temperature (TFT) Sensor |
| 909 | 1-2 and 2-3 Shift Solenoid (1-2 SS) (2-3 SS) Valves |
| 942 | Internal Mode Switch (IMS) |
