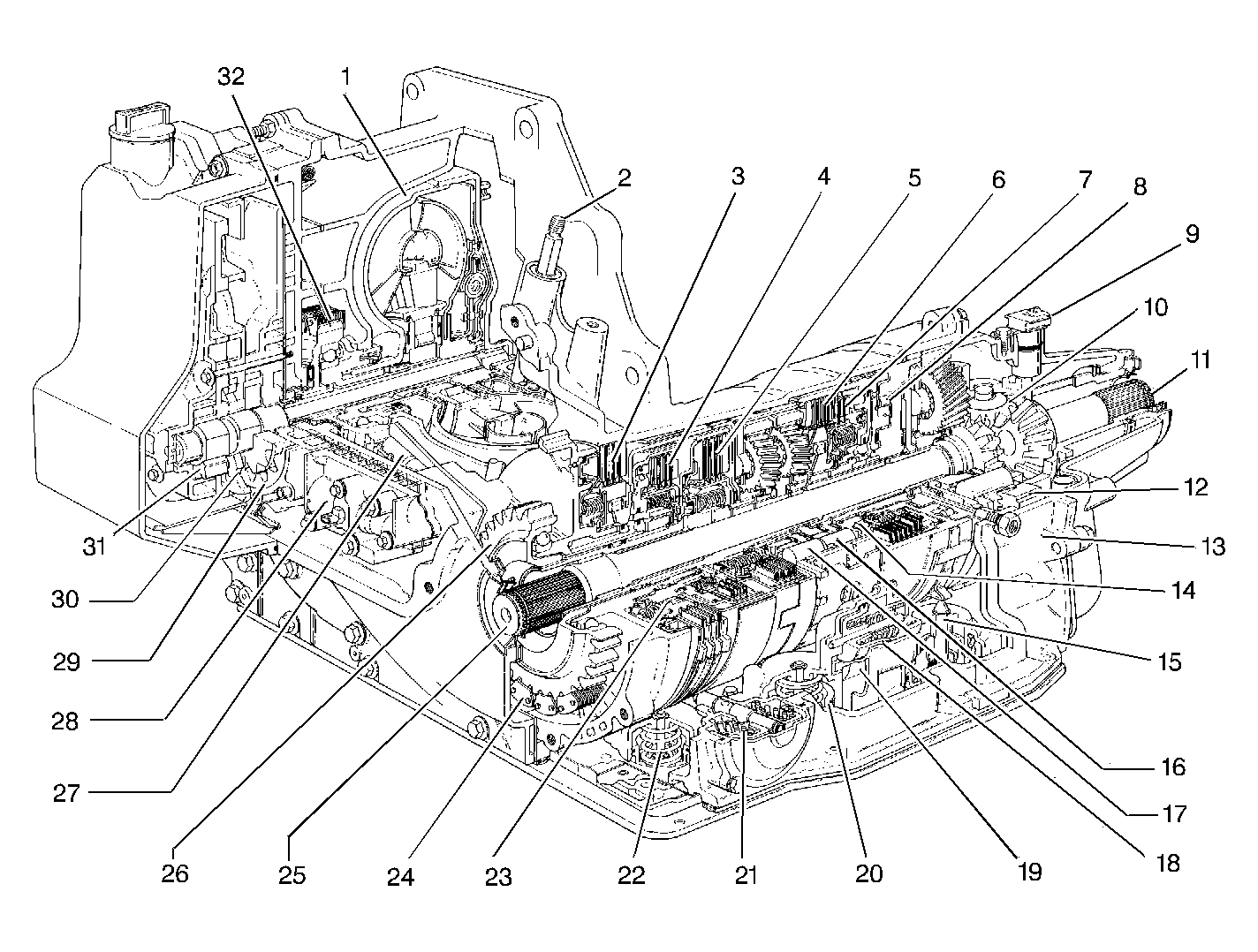

Component Locations
| Callout | Component Name |
|---|---|
| 1 | Torque Converter Assembly |
| 2 | Manual Shaft |
| 3 | 2nd Clutch |
| 4 | Reverse Clutch |
| 5 | 3rd Clutch |
| 6 | Forward Clutch |
| 7 | Coast Clutch |
| 8 | Low Roller Clutch Assembly |
| 9 | Output Speed Sensor Assembly |
| 10 | Differential Assembly |
| 11 | Output Shaft (Differential Side Gear) |
| 12 | Final Drive Assembly |
| 13 | Lube Fitting |
| 14 | Forward Sprag Clutch Assembly |
| 15 | Low/Reverse Servo Assembly |
| 16 | Input Planetary Gear Set |
| 17 | Reaction Planetary Gear Set |
| 18 | Reverse Accumulator |
| 19 | Forward Accumulator |
| 20 | 1-2 Accumulator |
| 21 | 4th Servo |
| 22 | 3-4 Accumulator |
| 23 | 2nd Sprag Clutch Assembly |
| 24 | Drive Link Assembly |
| 25 | Output Shaft |
| 26 | Driven Sprocket |
| 27 | Input Speed Sensor Assembly |
| 28 | Upper Control Valve Body Assembly |
| 29 | Secondary Pump Assembly |
| 30 | Primary Pump Assembly |
| 31 | Scavenge Pump Assembly |
| 32 | Drive Sprocket |

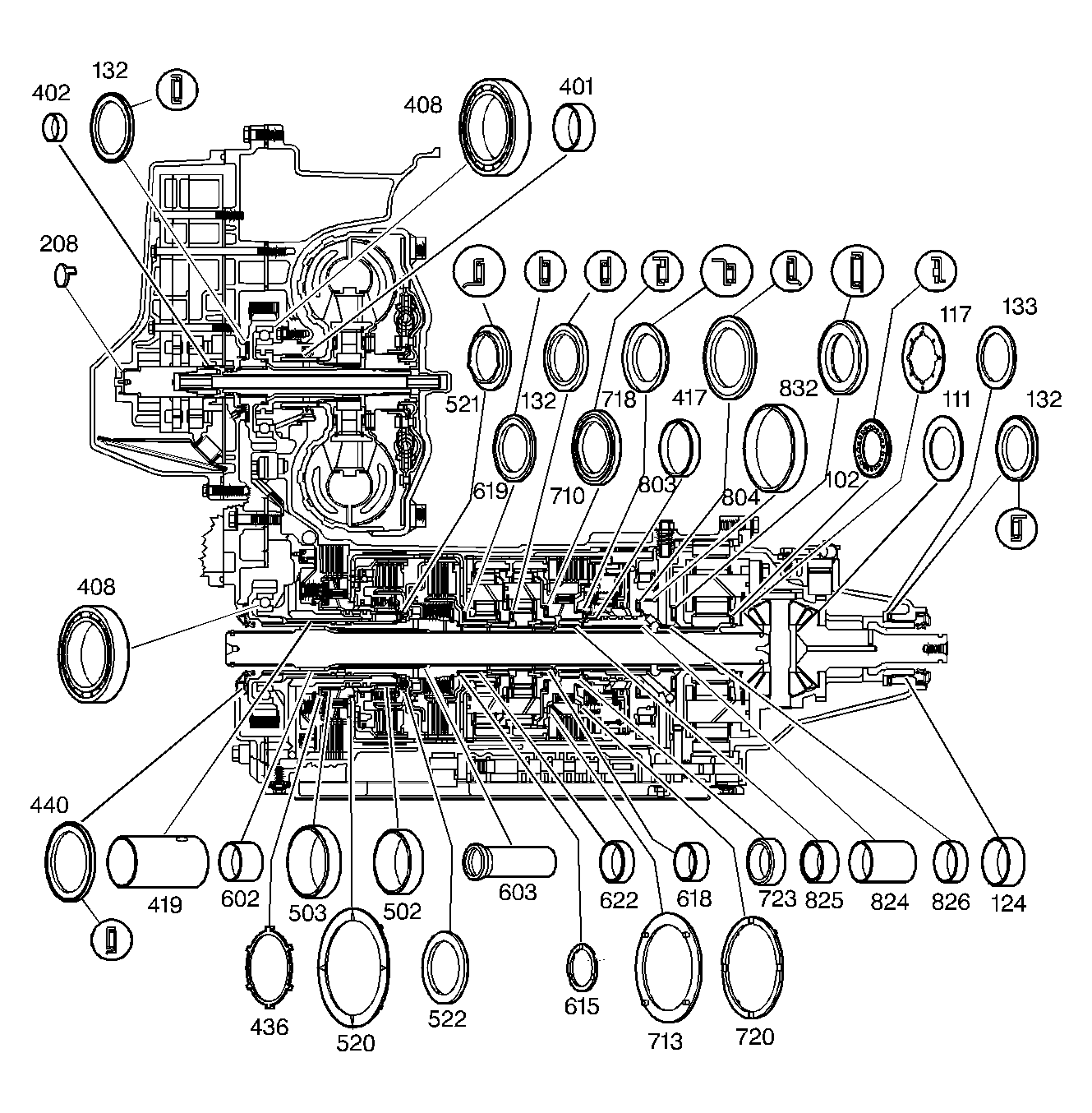

| Callout | Component Name |
|---|---|
| 102 | Final Drive Sun Gear/Final Drive Carrier Thrust Bearing |
| 111 | Right Differential Thrust Washer |
| 117 | Left Differential Thrust Washer |
| 124 | Case Extension Bushing |
| 132 | Thrust Bearing Assembly |
| 132 | Thrust Bearing Assembly |
| 132 | Thrust Bearing Assembly |
| 133 | Differential Carrier/Case Extension Selective Thrust Washer |
| 208 | Oil Pump Driven Shaft Thrust Washer |
| 401 | Converter Hub Bushing |
| 402 | Front Stator Shaft Bushing |
| 408 | Ball Bearing (2) |
| 417 | Thrust Bearing |
| 419 | Oil Transfer Sleeve |
| 436 | Support/Reverse Clutch Thrust Washer |
| 440 | Thrust Bearing |
| 502 | Small Bushing |
| 503 | Large Bushing |
| 520 | 2nd Clutch Outer Race Washer |
| 521 | Thrust Bearing |
| 522 | Driven Sprocket Support Selective Thrust Washer |
| 602 | Input Shaft Bushing |
| 603 | Input Shaft/Oil Transfer Sleeve |
| 615 | Input Shaft/3rd Hub Thrust Washer |
| 618 | Hub Bushing |
| 619 | Thrust Bearing Assembly |
| 622 | Reaction Sun Gear Bushing |
| 710 | Thrust Bearing Assembly |
| 713 | Flange to Outer Race Thrust Washer |
| 718 | Flange/Forward Clutch Housing Thrust Bearing |
| 720 | Race/Coast Clutch Hub Thrust Washer |
| 723 | Input Flange Bushing |
| 803 | Small Housing Bushing |
| 804 | Large Housing Bushing |
| 824 | Oil Transfer Sleeve |
| 825 | Left Support/Sun Shaft Bushing |
| 826 | Right Support/Sun Shaft Bushing |
| 832 | Forward Clutch Support/Park Gear Thrust Bearing |

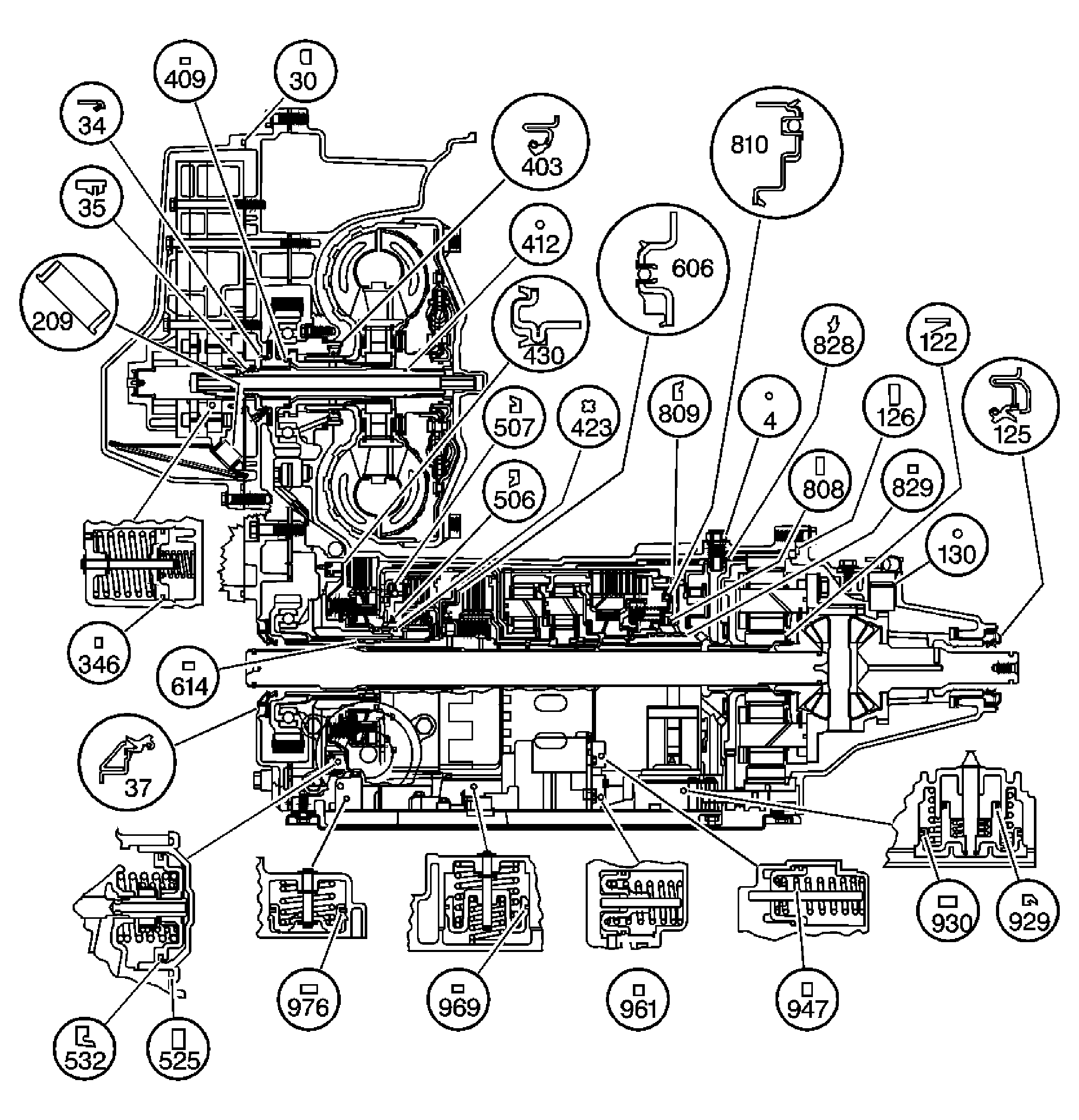

| Callout | Component Name |
|---|---|
| 4 | Connector, O-Ring Cooler (Return) |
| 30 | Gasket, Side Cover to Case Cover |
| 34 | Seal, Case Cover to Drive Sprocket |
| 35 | Seal, Case Cover to Turbine Shaft |
| 37 | Seal, Axle Case Cover |
| 122 | Seal, Final Drive Sun Gear |
| 125 | Seal, Axle to Case Extension |
| 126 | Seal, Case Extension to Case |
| 130 | Sensor, Speed Output Assembly |
| 209 | Seal, Filter |
| 346 | Seal, 2-3 Accumulator Piston |
| 403 | Seal, Converter Hub Assembly |
| 409 | Ring, Drive Sprocket Oil Seal |
| 412 | Seal, O-Ring |
| 423 | Ring, 4 Lobe Seal (2) |
| 430 | Piston Assembly, 2nd Clutch |
| 506 | Seal (Inner) |
| 507 | Seal (Outer) |
| 525 | Seal, Servo Cover |
| 532 | Seal, 4th Servo Piston |
| 606 | Piston Assembly, 3rd Clutch |
| 614 | Ring, Oil Seal (2) |
| 808 | Forward Clutch Piston Seal (Inner) |
| 809 | Forward Clutch Piston Seal (Outer) |
| 810 | Piston Assembly, Coast Clutch |
| 828 | Seal, Cooler Return |
| 829 | Ring, Oil Seal (Support/Housing) (3) |
| 929 | Seal, Low/Reverse Servo (Small) |
| 930 | Seal, Low/Reverse Servo (Large) |
| 947 | Seal, Reverse Accumulator |
| 961 | Seal, Forward Accumulator |
| 969 | Seal, 1-2 Accumulator |
| 976 | Seal, 3-4 Accumulator |
