Disassembled Views

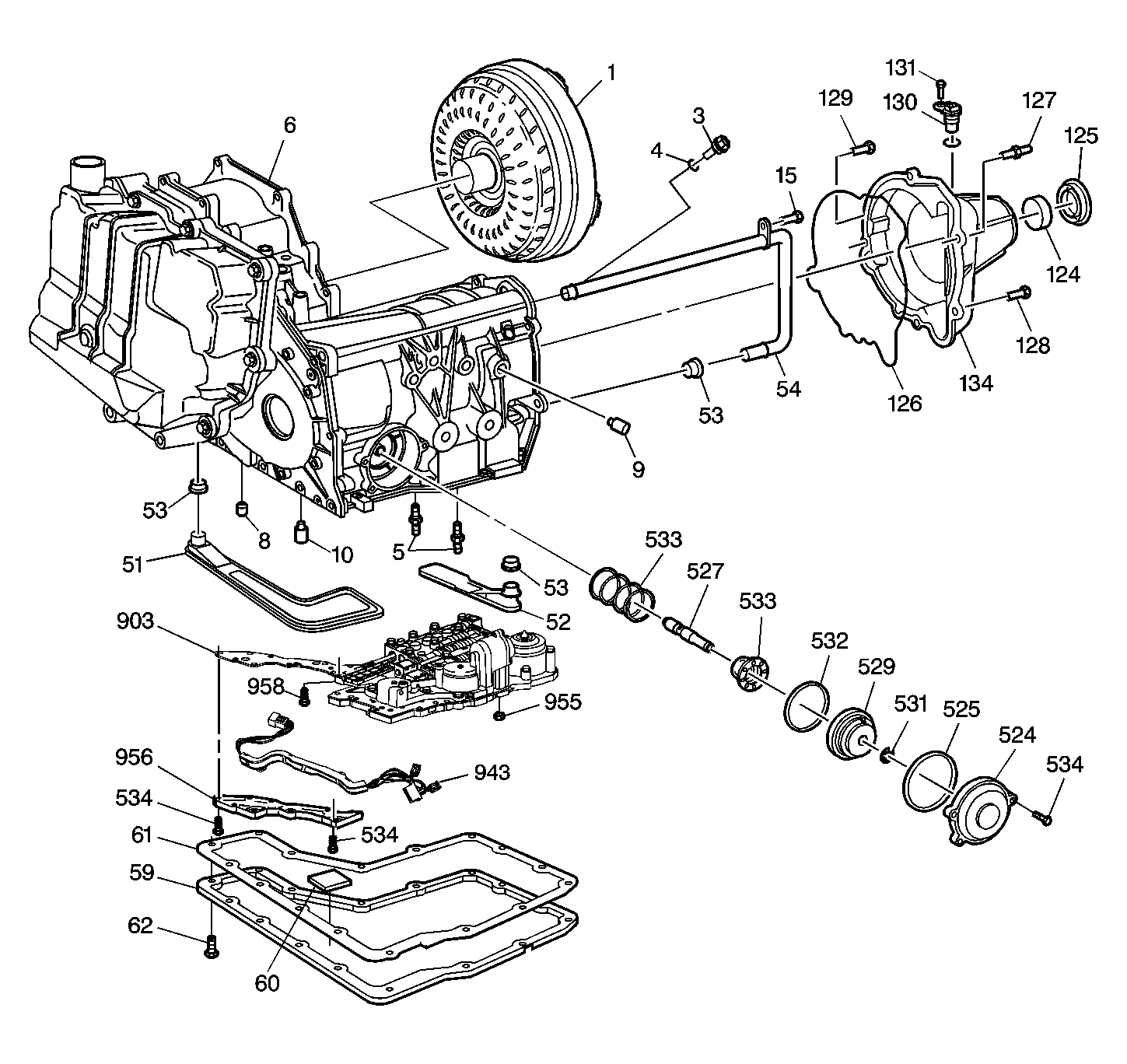

| Callout | Component Name |
|---|---|
| 1 | Torque Converter Assembly |
| 3 | Quick Disconnect Cooler Connector (1, 19 mm) |
| 4 | Quick Disconnect Cooler Connector O-Ring |
| 5 | Stud, Case to Forward Clutch Support (2, 13 mm) |
| 6 | Transmission Case |
| 8 | Plug, Oil Drain - Bottom Pan to Case Cover |
| 9 | Pin, Anchor (Low/Reverse Band) |
| 10 | Pin, Anchor (4th Band) |
| 15 | Bolt (4, 8 mm) |
| 51 | Screen, Scavenge (Left) |
| 52 | Screen, Scavenge (Right) |
| 53 | Seal, Scavenge Tube and Screens |
| 53 | Seal, Scavenge Tube and Screens |
| 53 | Seal, Scavenge Tube and Screens |
| 54 | Tube, Scavenge |
| 59 | Pan Transaxle Oil |
| 60 | Magnet, Chip Collector |
| 61 | Gasket, Oil Pan |
| 62 | Bolt, Bottom Pan to Case (16, 10 mm) |
| 124 | Bushing, Case Extension |
| 125 | Seal, Axle to Case Extension |
| 126 | Seal, Case Extension to Case |
| 127 | Stud, Case Extension to Case (1, 15 mm) |
| 128 | Bolt, Case Extension to Case (4, 13 mm) |
| 129 | Bolt, Case Extension to Case (1, 10 mm) |
| 130 | Sensor, Speed Output Assembly |
| 131 | Bolt, Output Speed Sensor (1) |
| 134 | Extension, Transmission Case |
| 524 | Cover, 4th Servo |
| 525 | Seal, Servo Cover |
| 527 | Pin, 4th Servo |
| 529 | Piston, 4th Servo |
| 531 | Ring, Snap |
| 532 | Seal, 4th Servo Piston |
| 533 | Spring and Retainer Assembly, 4th Servo |
| 533 | Spring and Retainer Assembly, 4th Servo |
| 534 | Bolt, (23, 10 mm) |
| 534 | Bolt, (23, 10 mm) |
| 534 | Bolt (23, 10 mm) |
| 903 | Channel Plate, Control Valve Body and Accumulator Housing Assembly |
| 943 | Extension Wiring Harness |
| 955 | Nut, Channel Plate to Case (2, 10 mm) |
| 956 | Plate, Oil Transfer |
| 958 | Bolt, Channel Plate to Case (2, 10 mm) |

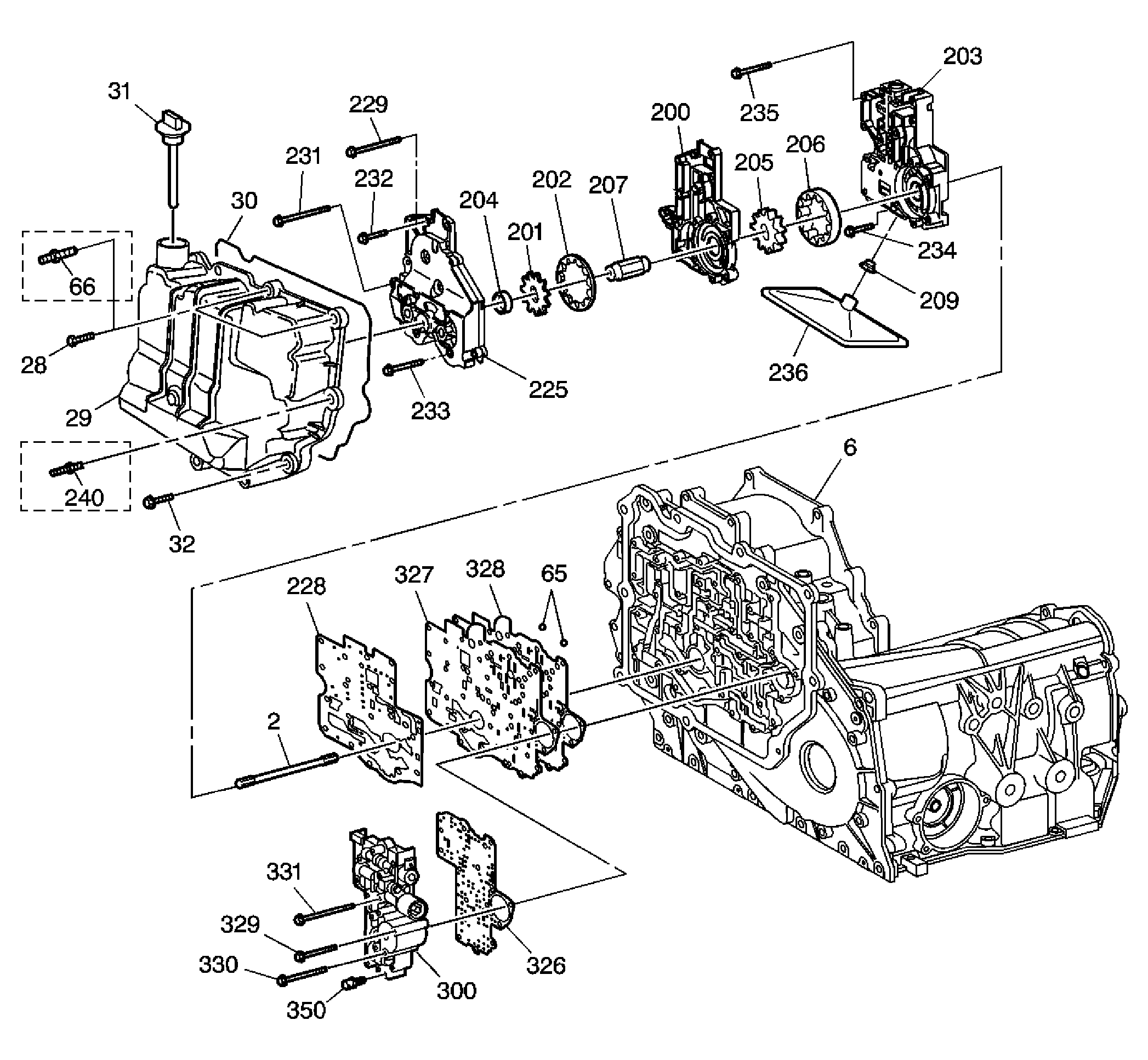

| Callout | Component Name |
|---|---|
| 2 | Oil Pump Driven Shaft |
| 6 | Transmission Case |
| 28 | Side Cover To Case Cover Bolt (8, 15 mm) |
| 29 | Side Cover |
| 30 | Side Cover To Case Cover Gasket |
| 31 | Fluid Level Indicator |
| 32 | Side Cover To Case Cover Bolt (1, 13 mm) |
| 65 | Checkball (10) |
| 66 | Side Cover To Case Cover Stud - Model Dependent |
| 200 | Primary Pump Body |
| 201 | Primary Pump Drive Gear |
| 202 | Primary Pump Driven Gear |
| 203 | Secondary Pump Body |
| 204 | Scavenge Pump Bushing |
| 205 | Secondary Pump Drive Gear |
| 206 | Secondary Pump Driven Gear |
| 207 | Oil Pump Driven Shaft |
| 209 | Filter Seal |
| 225 | Scavenge Pump Body Assembly |
| 228 | Secondary Pump Body To Spacer Plate Gasket |
| 229 | Bolt (4, 8 mm) |
| 231 | Pump Assembly To Case Bolt (2, 8 mm) |
| 232 | Pump Assembly To Case Cover Bolt (5, 8 mm) |
| 233 | Pump Assembly To Case Cover Bolt (5, 8 mm) |
| 234 | Secondary Pump To Case Cover Bolt (1, 8 mm) |
| 235 | Secondary Pump To Case Bolt |
| 236 | Transmission Oil Filter |
| 240 | Stud, Auxiliary Control Valve Body Cover - Model Dependent |
| 300 | Upper Control Valve Body Assembly |
| 326 | Valve Body To Spacer Plate Gasket |
| 327 | Case Cover Assembly Spacer Plate |
| 328 | Spacer Plate To Case Cover Gasket |
| 329 | Upper Valve Body To Case Cover Bolt (9, 8 mm) |
| 330 | Upper Valve Body To Case Cover Bolt (2, 8 mm) |
| 331 | Bolt (6, 8 mm) |
| 350 | Temperature Sensor (1, 17 mm) |

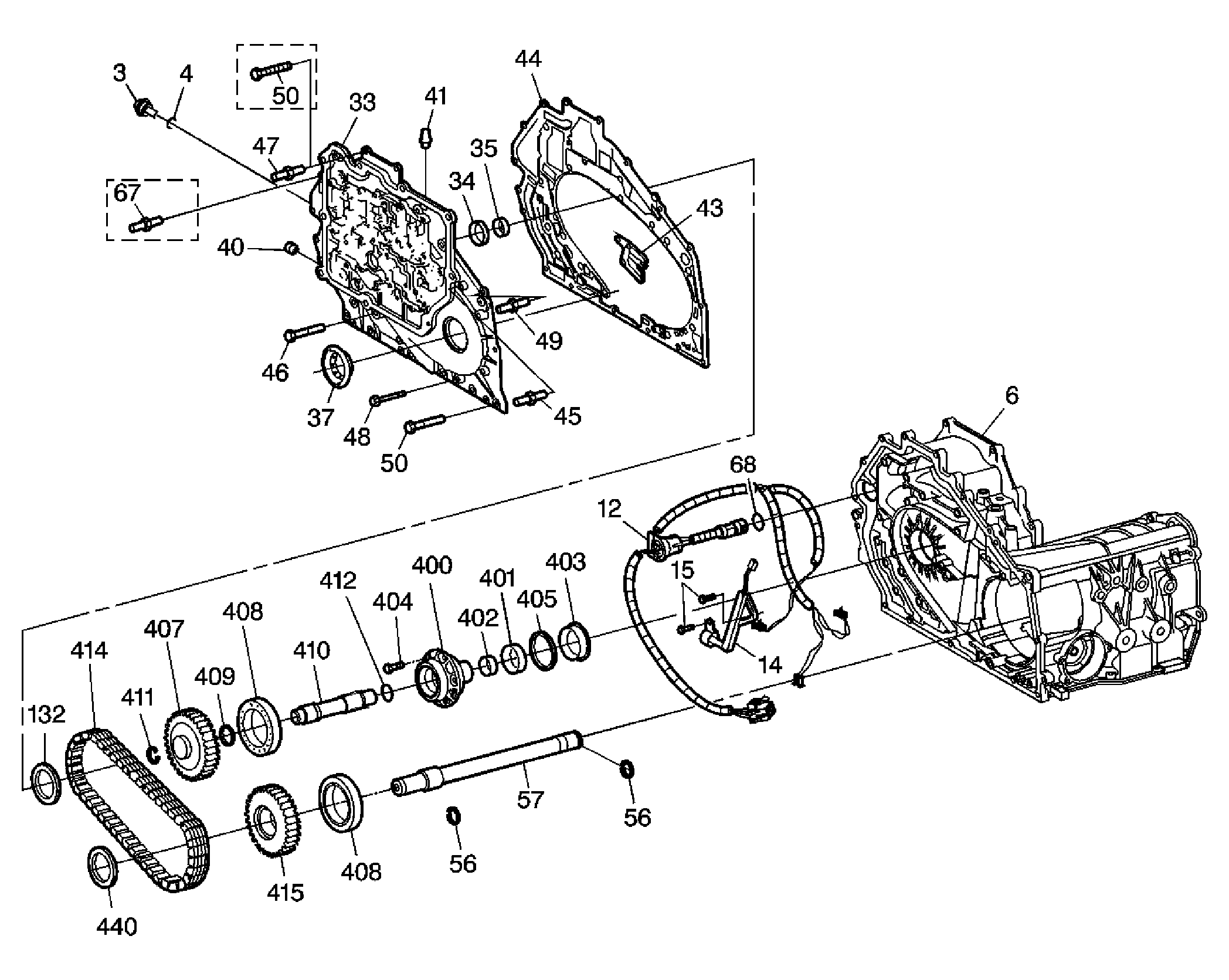

| Callout | Component Name |
|---|---|
| 3 | Quick Disconnect Cooler Connector (1, 19 mm) |
| 4 | Quick Disconnect Cooler Connector O-Ring |
| 6 | Transmission Case |
| 12 | Wiring Harness Assembly |
| 14 | Input Speed Sensor Assembly |
| 15 | Bolt (4, 8 mm) |
| 33 | Transmission Case Cover |
| 34 | Case Cover to Drive Sprocket Seal |
| 35 | Case Cover to Turbine Shaft Seal |
| 37 | Case Cover Axle Seal |
| 40 | Case Cover Oil Test Plug - #40 TORX® |
| 41 | Transmission Vent Adapter |
| 43 | Sprocket Support to Case Cover Gasket |
| 44 | Case to Case Cover Gasket |
| 45 | Case Cover to Case Stud (1, 13 mm) |
| 46 | Case Cover to Case Bolt (8, 10 mm) |
| 47 | Case Cover to Case Stud (2, 13 mm) |
| 48 | Case Cover to Driven Sprocket Support Bolt (3, 10 mm) |
| 49 | Case Cover to Case Stud (1, 10 mm) |
| 50 | Case Cover to Case Bolt (11, 13 mm) |
| 50 | Case Cover to Case Bolt (11, 13 mm) |
| 56 | Output Shaft Snap Ring (3) |
| 56 | Output Shaft Snap Ring (3) |
| 57 | Output Shaft |
| 67 | Case Cover to Case Stud (1, 13 mm) - Model Dependent |
| 68 | Wiring Harness Assembly O-ring |
| 132 | Thrust Bearing |
| 400 | Drive Sprocket Support |
| 401 | Converter Hub Bushing |
| 402 | Front Stator Shaft Bushing |
| 403 | Converter Hub Assembly Seal Assembly |
| 404 | Drive Sprocket Support to Case Bolt (6, 8 mm) |
| 405 | Drive Sprocket Support to Case Seal |
| 407 | Drive Sprocket |
| 408 | Ball Bearing (2) |
| 408 | Ball Bearing (2) |
| 409 | Drive Sprocket Oil Seal Ring |
| 410 | Turbine Shaft |
| 411 | Snap Ring |
| 412 | O-Ring Seal |
| 414 | Drive Link Assembly |
| 415 | Driven Sprocket |
| 440 | Bearing, Thrust |

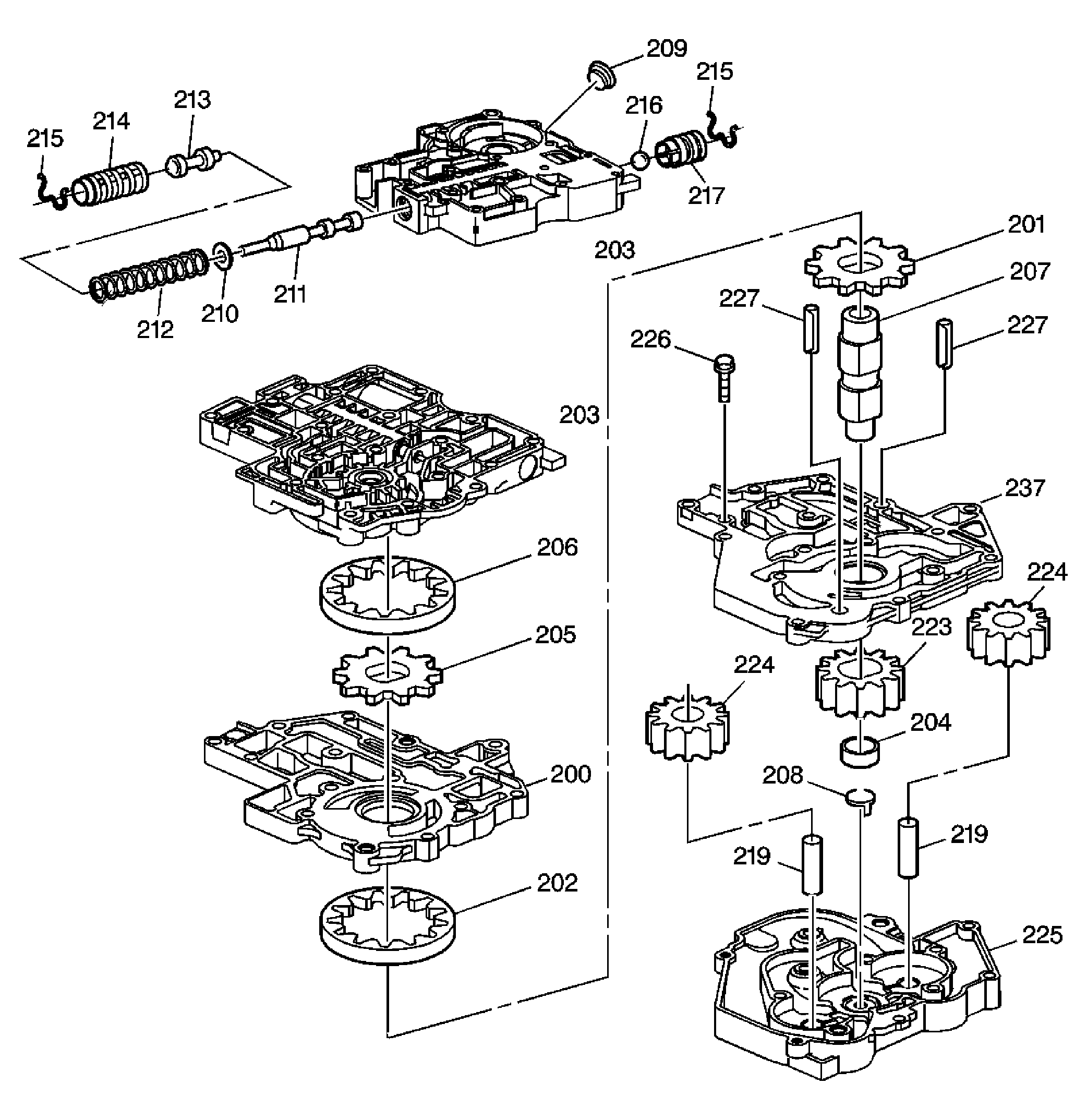

| Callout | Component Name |
|---|---|
| 200 | Primary Pump Body |
| 201 | Primary Pump Drive Gear |
| 202 | Primary Pump Driven Gear |
| 203 | Secondary Pump Body |
| 203 | Secondary Pump Body |
| 204 | Scavenge Pump Bushing |
| 205 | Secondary Pump Drive Gear |
| 206 | Secondary Pump Driven Gear |
| 207 | Oil Pump Driven Shaft Assembly |
| 208 | Oil Pump Driven Shaft Thrust Washer |
| 209 | Filter Seal |
| 210 | Pressure Regulator Spring Retainer |
| 211 | Pressure Regulator Valve |
| 212 | Pressure Regulator Valve Spring |
| 213 | Pressure Regulator Boost Valve |
| 214 | Pressure Regulator Boost Valve Sleeve |
| 215 | Retainer Clip (2) |
| 215 | Retainer Clip (2) |
| 216 | Secondary Pump Cut-Off Ball |
| 217 | Pump Ball Seat |
| 219 | Scavenge Driven Gear Pin |
| 219 | Scavenge Driven Gear Pin |
| 223 | Scavenge Pump Drive Gear |
| 224 | Scavenge Pump Driven Gear (2) |
| 224 | Scavenge Pump Driven Gear (2) |
| 225 | Scavenge Pump Body |
| 226 | Pump Cover to Scavenge Cover Bolt (2) |
| 227 | Dowel Bushings (2) |
| 227 | Dowel Bushings (2) |
| 237 | Scavenge Pump Cover |

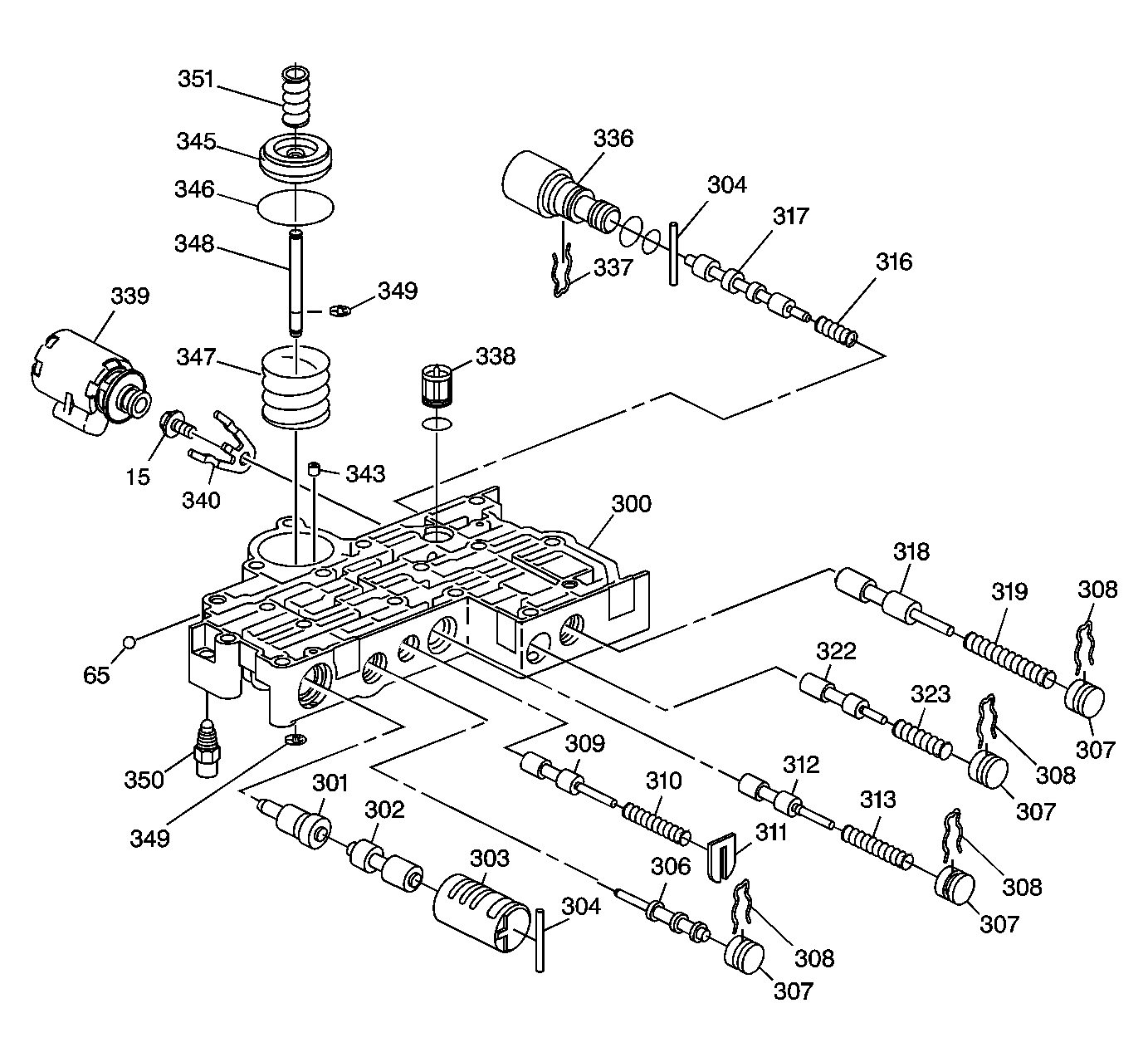

| Callout | Component Name |
|---|---|
| 15 | PC Solenoid Clamp Bolt |
| 65 | Oil Hole Plug Ball |
| 300 | Upper Control Valve Body |
| 301 | Accumulator Boost Valve |
| 302 | 1-2/3-4 Accumulator Valve |
| 303 | 1-2/3-4 Accumulator Valve Bushing |
| 304 | Coiled Spring Pin (2) |
| 304 | Coiled Spring Pin (2) |
| 306 | 2-3 Accumulator Valve |
| 307 | Bore Plug (4) |
| 307 | Bore Plug (4) |
| 307 | Bore Plug (4) |
| 307 | Bore Plug (4) |
| 308 | Retainer Clip (4) |
| 308 | Retainer Clip (4) |
| 308 | Retainer Clip (4) |
| 308 | Retainer Clip (4) |
| 309 | Actuator Feed Limit Valve |
| 310 | Actuator Feed Limit Spring |
| 311 | Spring Retainer Plate |
| 312 | Converter Feed Limit Valve |
| 313 | Converter Feed Limit Spring |
| 316 | Converter Clutch Control Spring |
| 317 | Converter Clutch Control Valve |
| 318 | Converter Regulator Valve |
| 319 | Converter Clutch Regulator Spring |
| 322 | TCC Enable Valve |
| 323 | TCC Enable Valve Spring |
| 336 | TCC Pressure Solenoid |
| 337 | Spring Retainer Clip |
| 338 | Pressure Control Solenoid Filter and Seal |
| 339 | Pressure Control Solenoid (PCS) |
| 340 | PC Solenoid Clamp (PCS Clamp) |
| 343 | Orificed Cup Plug |
| 345 | 2-3 Accumulator Piston |
| 346 | 2-3 Accumulator Piston Seal |
| 347 | 2-3 Accumulator Piston Spring |
| 348 | 2-3 Accumulator Pin |
| 349 | Snap Ring |
| 349 | Snap Ring |
| 350 | Temperature Sensor |
| 351 | 2-3 Accumulator Piston Cushion Spring |

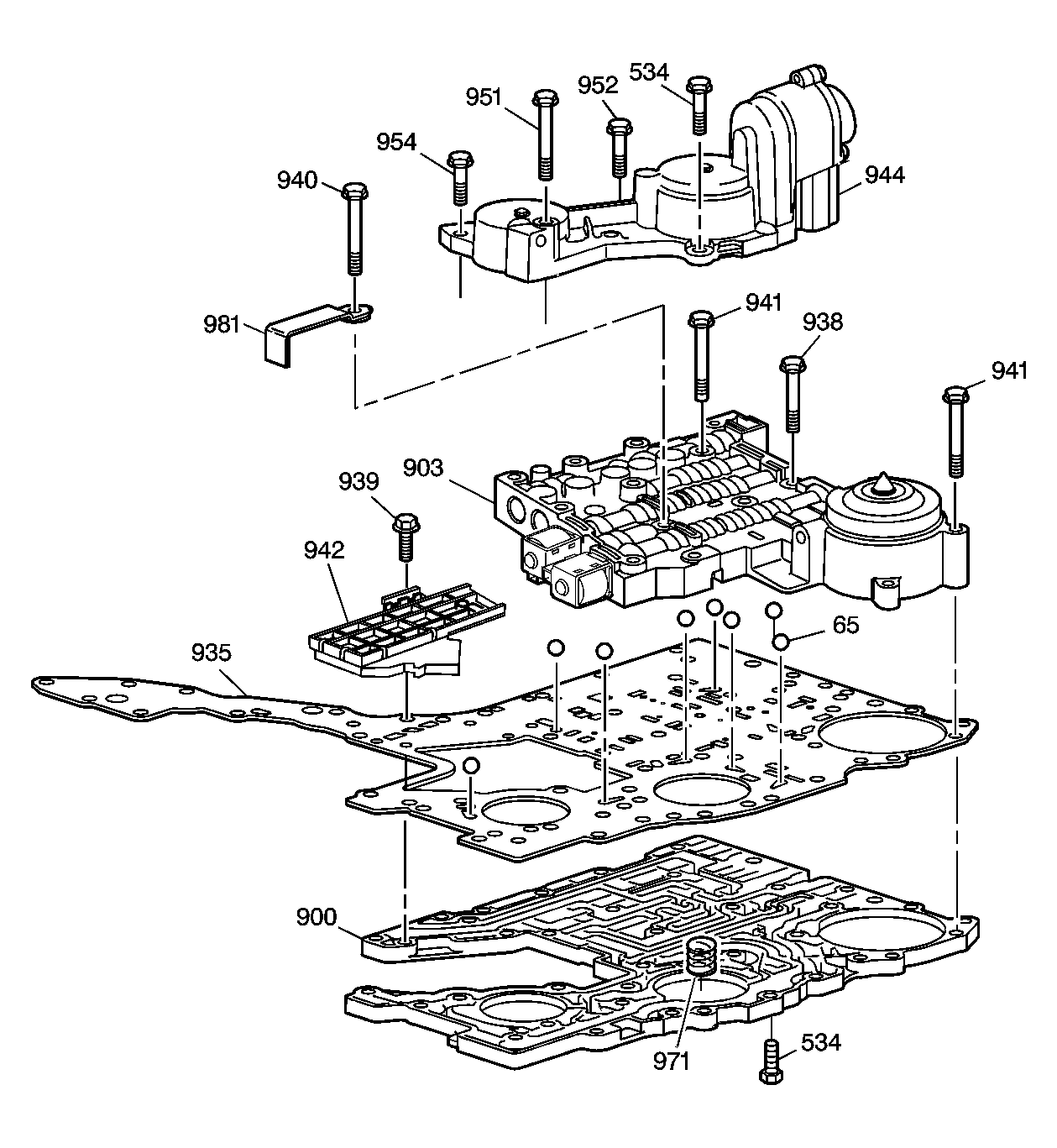

| Callout | Component Name |
|---|---|
| 65 | Checkballs (8) |
| 534 | Channel Plate to LCVB Bolt (1, 10 mm) - Channel Plate to Accumulator Housing Bolt (3, 10 mm) - Accumulator Housing to Channel Plate Bolt (1, 10 mm) |
| 534 | Channel Plate to LCVB Bolt (1, 10 mm) - Channel Plate to Accumulator Housing Bolt (3, 10 mm) - Accumulator Housing to Channel Plate Bolt (1, 10 mm) |
| 900 | Lower Channel Plate |
| 903 | Channel Plate/Control Valve and Housing Assembly |
| 935 | Space/Gasket Plate Assembly |
| 938 | LCVB to Channel Plate Bolt (5, 10 mm) |
| 939 | Spacer Plate Support to Channel Plate Bolt (3, 8 mm) |
| 940 | LCVB to Channel Plate Bolt (2, 10 mm) |
| 941 | LCVB to Channel Plate Bolt (8, 10 mm) |
| 941 | LCVB to Channel Plate Bolt (8, 10 mm) |
| 942 | Internal Mode Switch (IMS) |
| 944 | Accumulator Housing |
| 951 | Accumulator Assembly to Channel Plate Bolt (1, 10 mm) |
| 952 | Accumulator Assembly to Channel Plate Bolt (3, 10 mm) |
| 954 | Accumulator Assembly to Channel Plate Bolt (1, 10 mm) |
| 971 | 1-2 Accumulator Inner Spring Assembly |
| 981 | Pressure Control Solenoid Valve Fluid Filter Retainer |

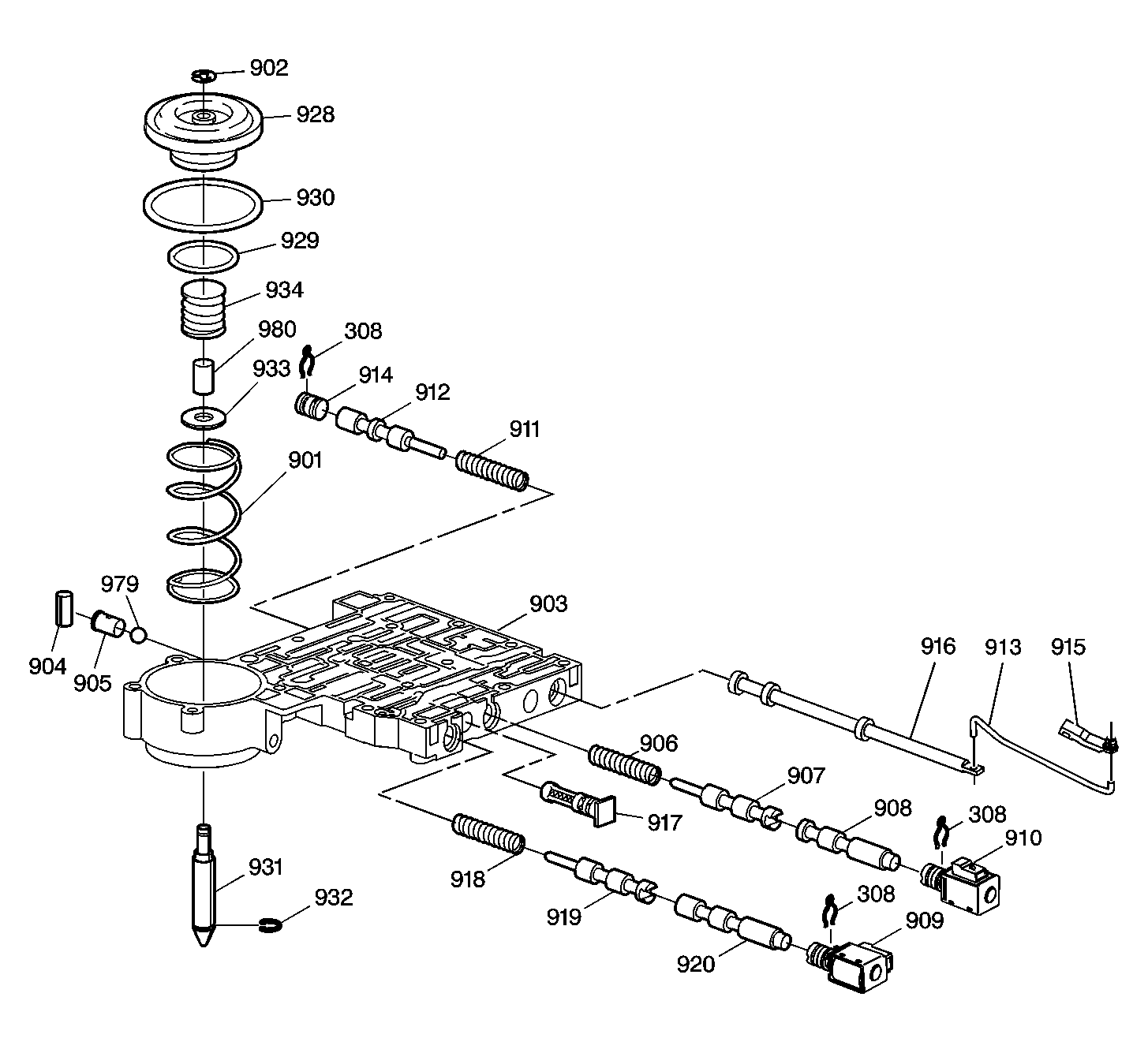

| Callout | Component Name |
|---|---|
| 308 | Retainer Clip (3) |
| 308 | Retainer Clip (3) |
| 308 | Retainer Clip (3) |
| 901 | Return Spring |
| 902 | Retaining Ring |
| 903 | Lower Control Valve Body |
| 904 | Spring Retainer |
| 905 | Ball Check Capsule |
| 906 | 2-3 Shift Valve Spring |
| 907 | 2-3 Shift Valve C |
| 908 | 2-3 Shift Valve D |
| 909 | 1-2 Shift Solenoid Valve |
| 910 | 2-3 Shift Solenoid Valve |
| 911 | 3-4 Shift Valve Spring |
| 912 | 3-4 Shift Valve |
| 913 | Manual Valve Link |
| 914 | Bore Plug |
| 915 | Manual Valve Link Retainer |
| 916 | Manual Valve |
| 917 | Solenoid Screen Assembly |
| 918 | 1-2 Shift Valve Spring |
| 919 | 1-2 Shift Valve A |
| 920 | 1-2 Shift Valve B |
| 928 | Low/Reverse Servo Piston |
| 929 | Low/Reverse Servo Seal (Small) |
| 930 | Low/Reverse Servo Seal (Large) |
| 931 | Low/Reverse Servo Apply Pin |
| 932 | Retaining Ring |
| 933 | Servo Cushion Spring Washer |
| 934 | Servo Cushion Spring |
| 979 | Ball (0.375 Diameter) |
| 980 | Low/Reverse Cushion Sleeve |

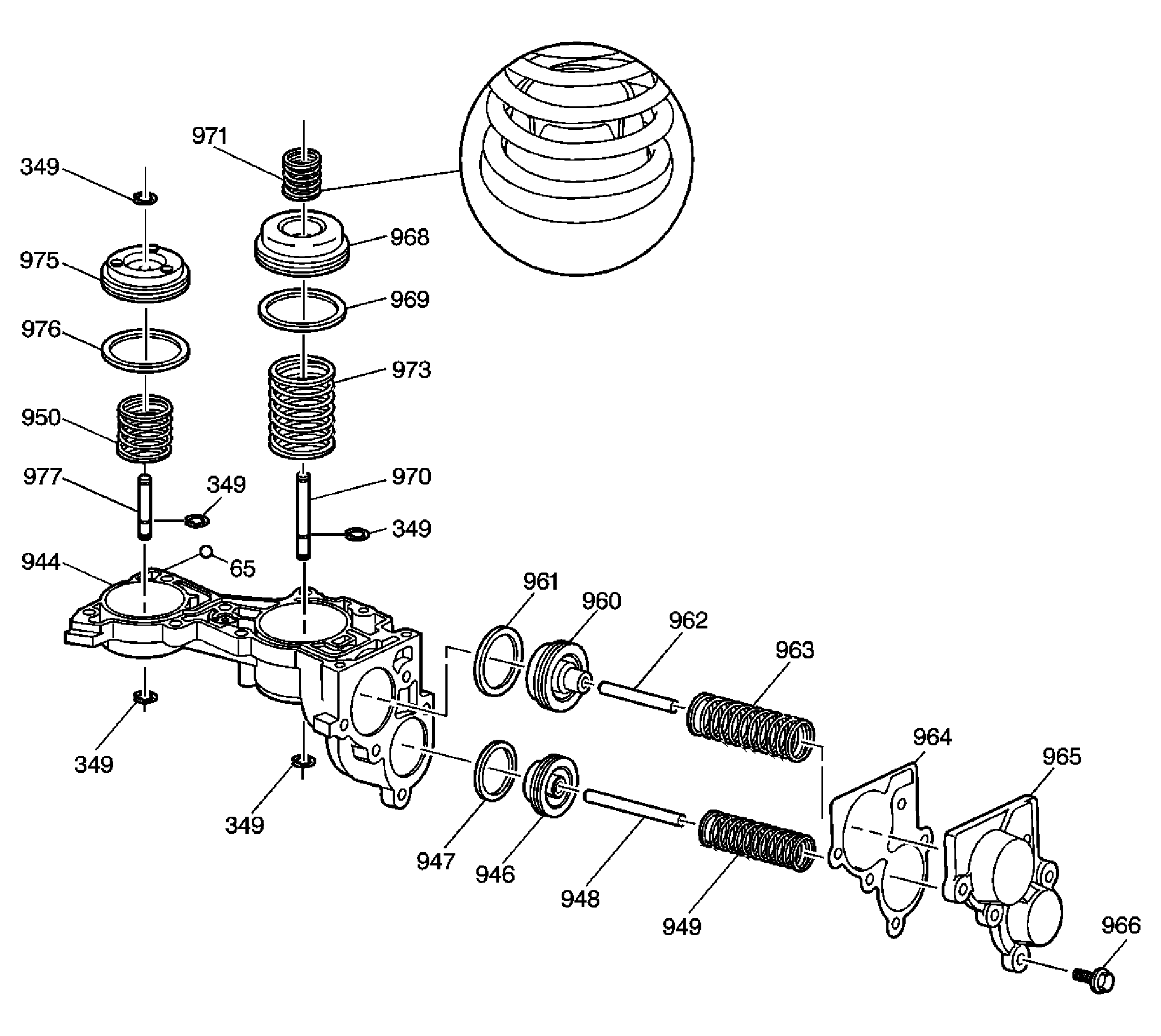

| Callout | Component Name |
|---|---|
| 65 | Oil Hole Ball Plug (Staked in Casting) |
| 349 | Snap Ring (5) |
| 349 | Snap Ring (5) |
| 349 | Snap Ring (5) |
| 349 | Snap Ring (5) |
| 349 | Snap Ring (5) |
| 944 | Accumulator Housing |
| 946 | Reverse Accumulator Piston |
| 947 | Reverse Accumulator Piston Seal |
| 948 | Reverse Accumulator Pin |
| 949 | Reverse Accumulator Spring |
| 950 | 3-4 Accumulator Spring |
| 960 | Forward Accumulator Piston |
| 961 | Forward Accumulator Seal |
| 962 | Forward Accumulator Pin |
| 963 | Forward Accumulator Spring |
| 964 | Accumulator Housing Cover Gasket |
| 965 | Accumulator Housing Cover |
| 966 | Accumulator Cover Bolt (5, 8 mm) |
| 968 | 1-2 Accumulator Piston |
| 969 | 1-2 Accumulator Piston Seal |
| 970 | 1-2 Accumulator Pin |
| 971 | 1-2 Accumulator Inner Spring Assembly |
| 973 | 1-2 Accumulator Spring |
| 975 | 3-4 Accumulator Piston |
| 976 | 3-4 Accumulator Piston Seal |
| 977 | 3-4 Accumulator Pin |

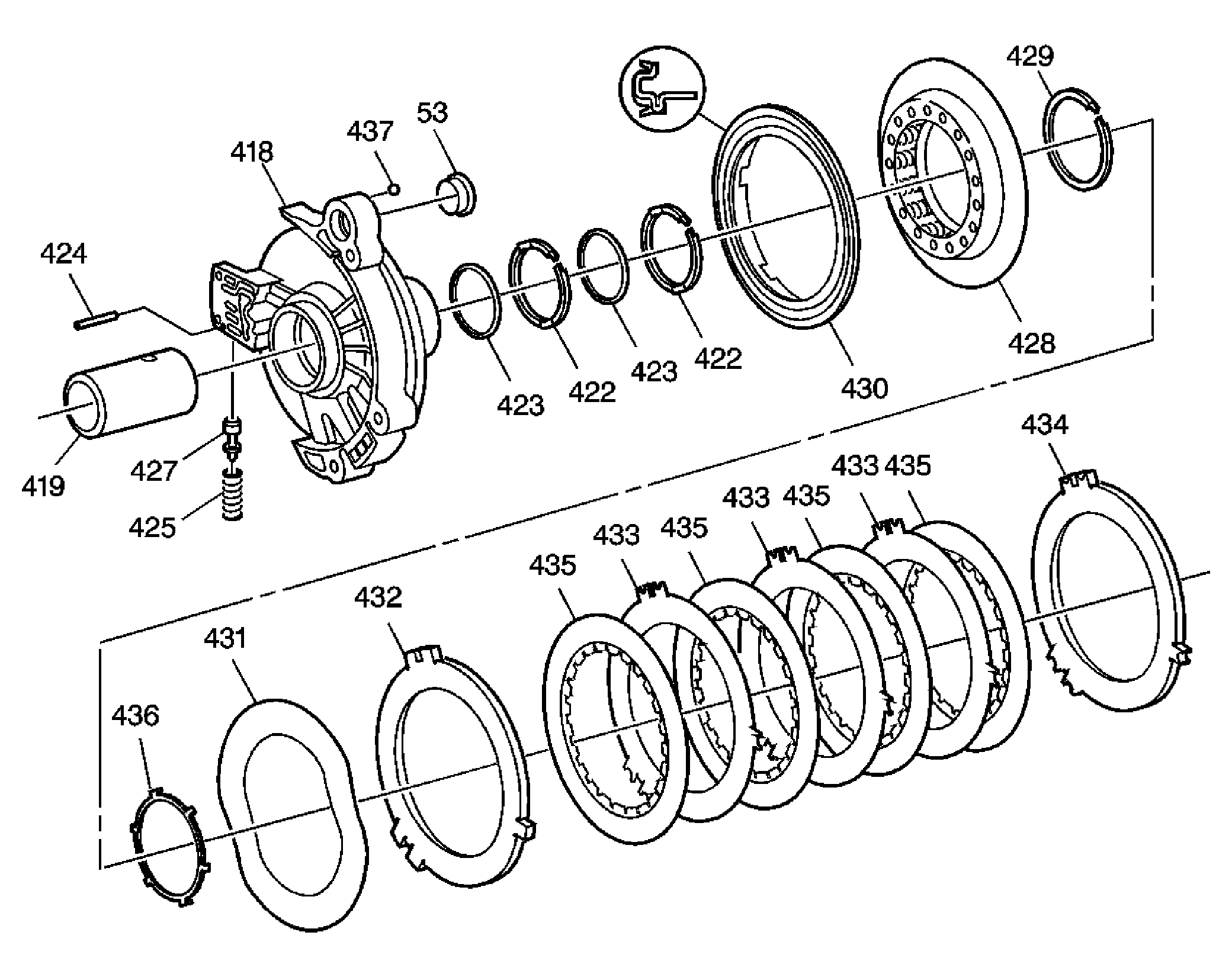

| Callout | Component Name |
|---|---|
| 53 | Scavenger Tube Seal |
| 418 | Driven Sprocket Support |
| 419 | Oil Transfer Sleeve |
| 422 | Oil Ring (2) |
| 422 | Oil Ring (2) |
| 423 | 4 Lobe Seal Ring (2) |
| 423 | 4 Lobe Seal Ring (2) |
| 424 | Spring Pin |
| 425 | 3rd Clutch Exhaust Valve Spring |
| 427 | 3rd Clutch Exhaust Valve |
| 428 | 2nd Clutch Return Spring and Retainer Assembly |
| 429 | 2nd Clutch/Driven Sprocket Snap Ring |
| 430 | 2nd Clutch Piston Assembly |
| 431 | 2nd Clutch Waved Plate |
| 432 | 2nd Clutch Apply Plate |
| 433 | 2nd Clutch Steel Plate (3) |
| 433 | 2nd Clutch Steel Plate (3) |
| 433 | 2nd Clutch Steel Plate (3) |
| 434 | 2nd Clutch Backing Plate |
| 435 | 2nd Clutch Fiber Plate (4) |
| 435 | 2nd Clutch Fiber Plate (4) |
| 435 | 2nd Clutch Fiber Plate (4) |
| 435 | 2nd Clutch Fiber Plate (4) |
| 436 | Support/Reverse Clutch Thrust Washer |
| 437 | 0.1875 Diameter Checkball |

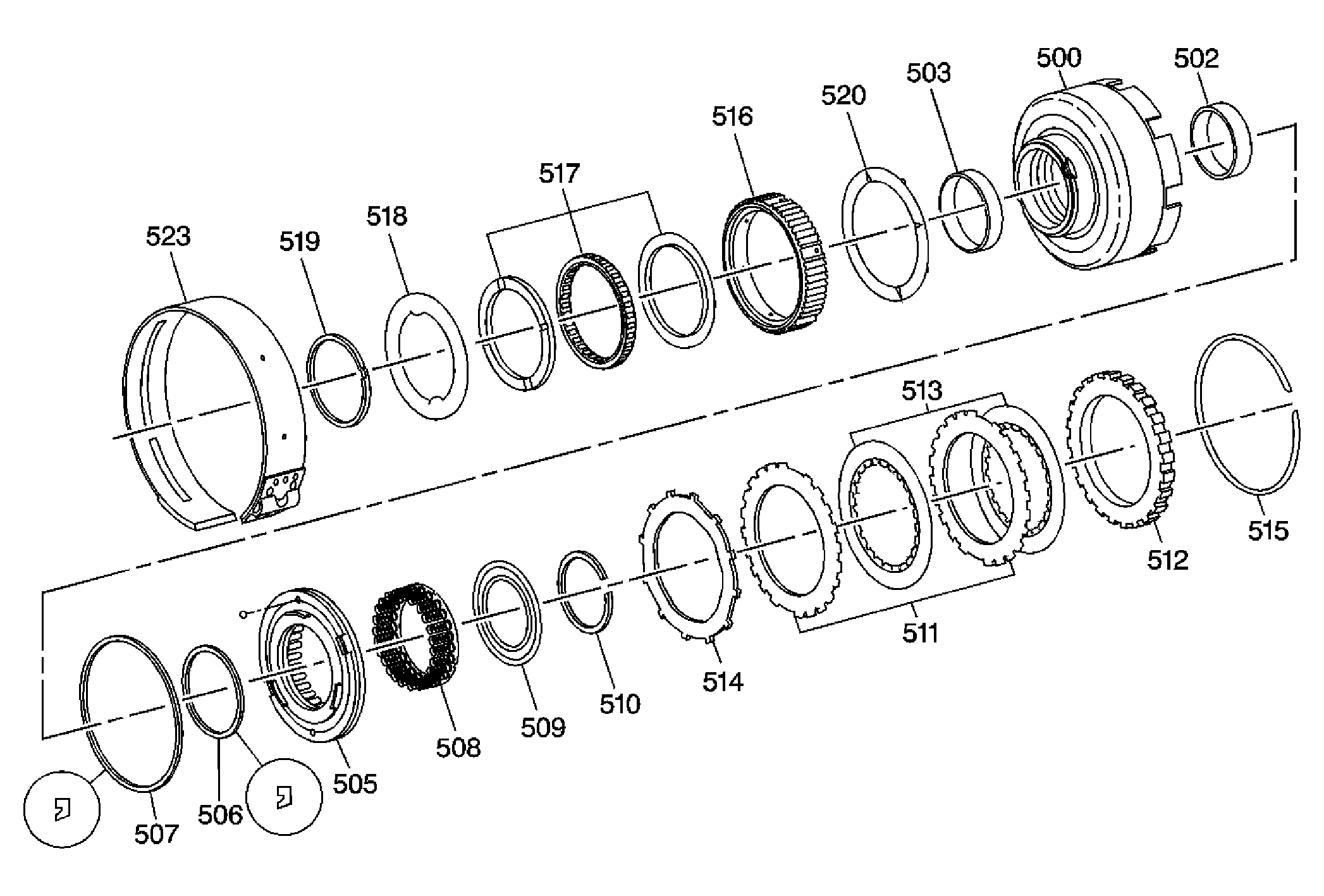

| Callout | Component Name |
|---|---|
| 500 | Reverse Clutch Housing and Race Assembly |
| 502 | Bushing (Small) |
| 503 | Bushing (Large) |
| 505 | Reverse Clutch Piston Assembly |
| 506 | Seal (Inner) |
| 507 | Seal (Outer) |
| 508 | Spring and Retainer Assembly |
| 509 | Snap Ring Retainer |
| 510 | Return Spring Snap Ring |
| 511 | Reverse Clutch Plate (Steel) (2) |
| 512 | Reverse Clutch Backing Plate (Selective) |
| 513 | Reverse Clutch Plate Assembly (Fiber) (2) |
| 514 | Waved Plate (Apply) |
| 515 | Snap Ring |
| 516 | 2nd Sprag Race (Outer) |
| 517 | 2nd Sprag Clutch Assembly |
| 518 | 2nd Sprag Clutch Retainer |
| 519 | Locking Ring |
| 520 | 2nd Clutch Outer Race Washer |
| 523 | 4th Band |

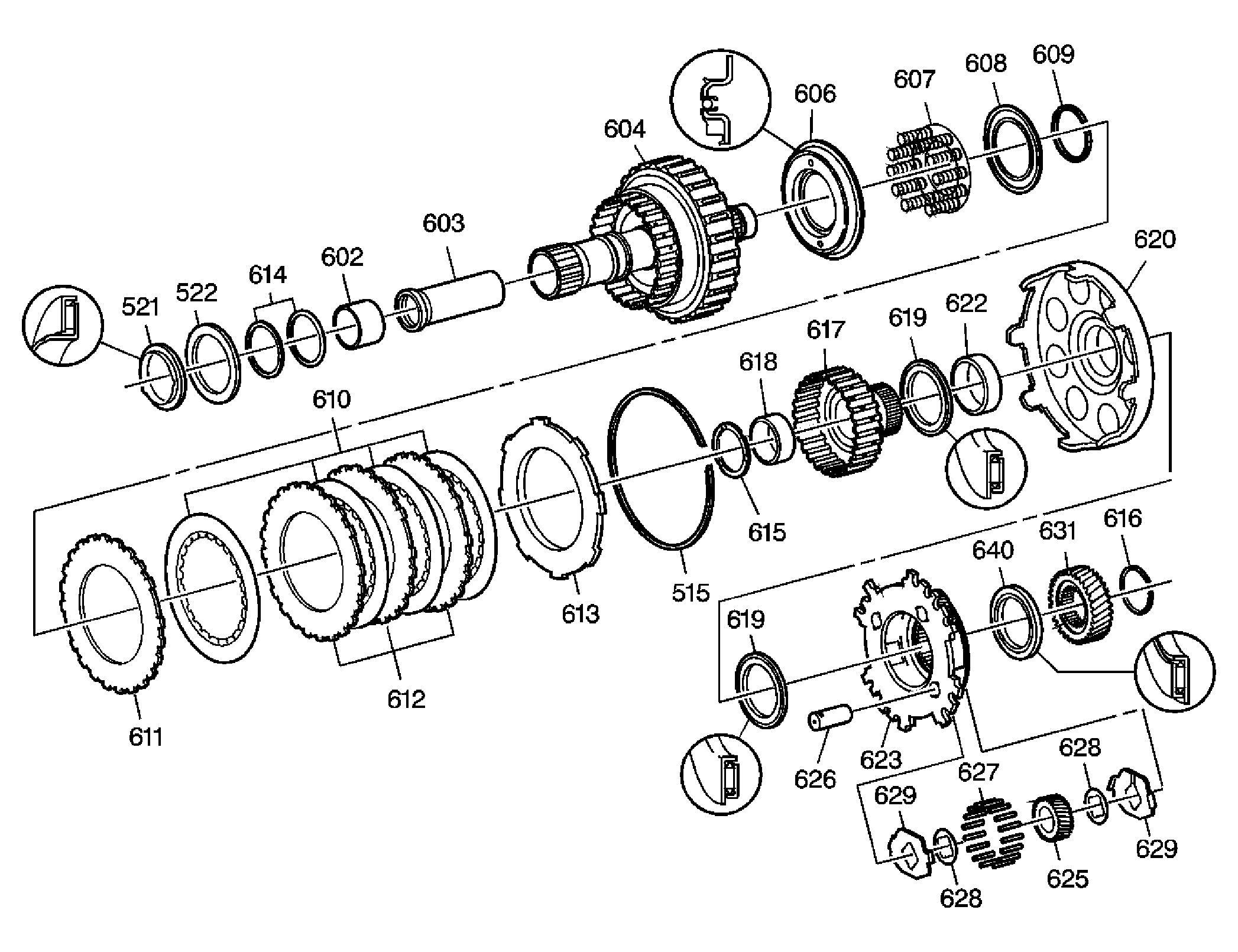

| Callout | Component Name |
|---|---|
| 515 | Snap Ring |
| 521 | Thrust Bearing Assembly |
| 522 | Driven Sprocket Support Thrust Washer (Selective) |
| 602 | Input Shaft Bushing |
| 603 | Input Shaft/Oil Transfer Sleeve |
| 604 | 3rd Clutch Housing |
| 606 | 3rd Clutch Piston Assembly |
| 607 | Spring and Retainer Assembly |
| 608 | Snap Ring Retainer |
| 609 | Return Spring Snap Ring |
| 610 | 3rd Clutch Plate Assembly (Fiber) (4) |
| 611 | 3rd Clutch Apply Plate (Steel) |
| 612 | 3rd Clutch Plate (Steel) (3) |
| 613 | 3rd Clutch Backing Plate |
| 614 | Oil Seal Ring (2) |
| 615 | Input Shaft/3rd Hub Thrust Washer |
| 616 | Input Shaft/Input Sun Gear Snap Ring |
| 617 | 3rd Clutch Hub |
| 618 | Hub Bushing |
| 619 | Hub/Gear and Shell Thrust Bearing Assembly (2) |
| 619 | Hub/Gear and Shell Thrust Bearing Assembly (2) |
| 620 | Reaction Sun Gear and Shell Assembly |
| 622 | Reaction Sun Gear Bushing |
| 623 | Reaction Carrier |
| 625 | Planet Pinion (4) |
| 626 | Planet Pinion Pin (4) |
| 627 | Roller Bearing Needle (68) |
| 628 | Steel Pinion Thrust Washer (8) |
| 628 | Steel Pinion Thrust Washer (8) |
| 629 | Bronze Pinion Thrust Washer (8) |
| 629 | Bronze Pinion Thrust Washer (8) |
| 631 | Input Sun Gear |
| 640 | Input Sun Gear to Reaction Carrier Thrust Bearing |

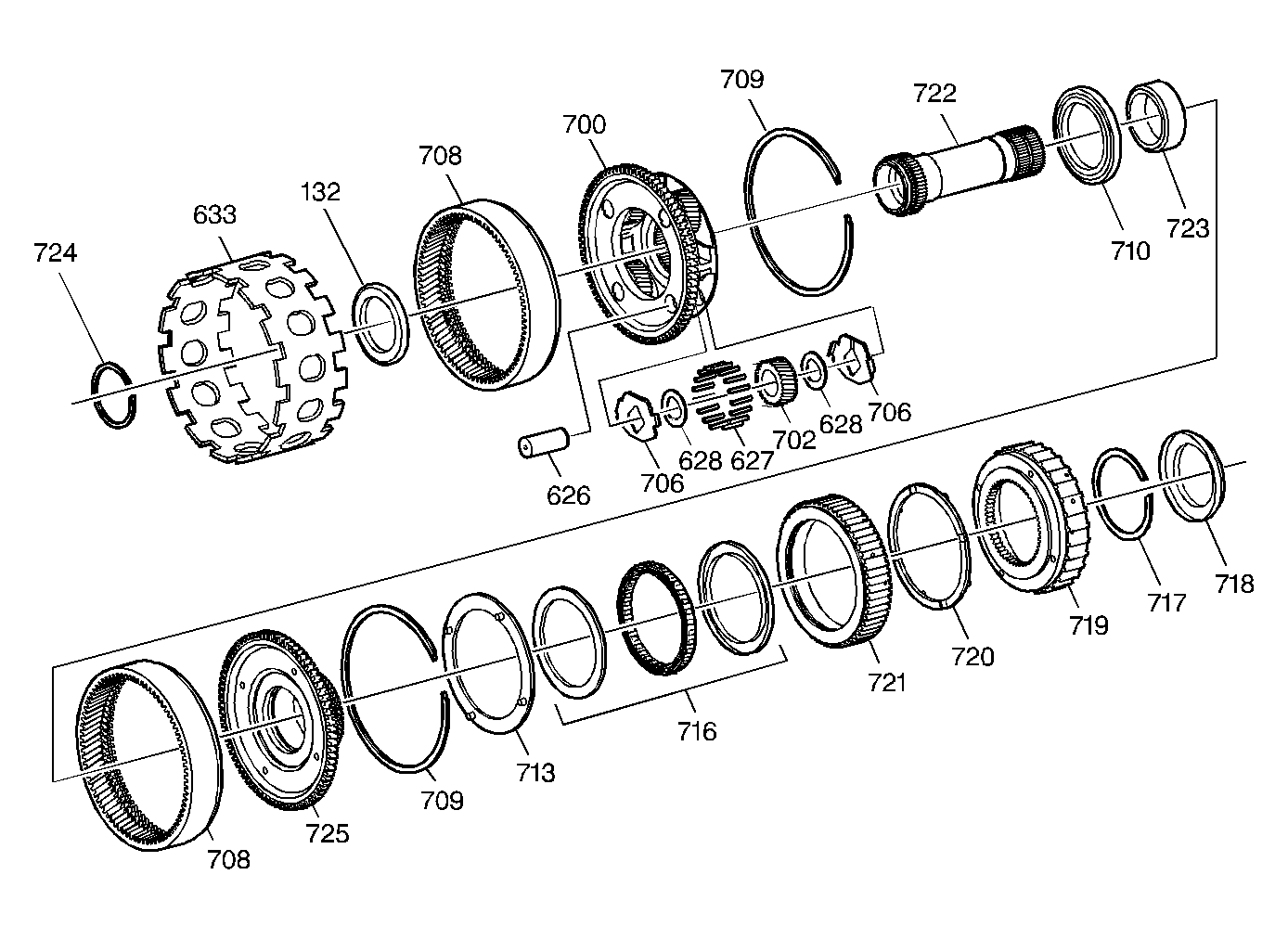

| Callout | Component Name |
|---|---|
| 132 | Thrust Bearing Assembly |
| 626 | Planet Pinion Pin (4) |
| 627 | Roller Bearing Needle (68) |
| 628 | Steel Pinion Thrust Washer (8) |
| 628 | Steel Pinion Thrust Washer (8) |
| 633 | Reaction Carrier Shell |
| 700 | Input Carrier Assembly |
| 702 | Planet Pinions (4) |
| 706 | Bronze Thrust Washer (8) |
| 706 | Bronze Thrust Washer (8) |
| 708 | Internal Gear (2) |
| 708 | Internal Gear (2) |
| 709 | Snap Ring (2) |
| 709 | Snap Ring (2) |
| 710 | Thrust Bearing Assembly |
| 713 | Thrust Washer (Flange To Outer Race) |
| 716 | Forward Clutch Sprag Assembly |
| 717 | Snap Ring (Coast Clutch Hub Retainer) |
| 718 | Thrust Bearing (Flange/Forward Clutch Housing) |
| 719 | Coast Clutch Hub |
| 720 | Thrust Washer (Race/Coast Clutch Hub) |
| 721 | Forward Sprag Race (Outer) |
| 722 | Final Drive Sun Gear Shaft |
| 723 | Input Flange Bushing |
| 724 | Snap Ring (Final Drive Shaft/Input Carrier) |
| 725 | Input Internal Gear Flange |

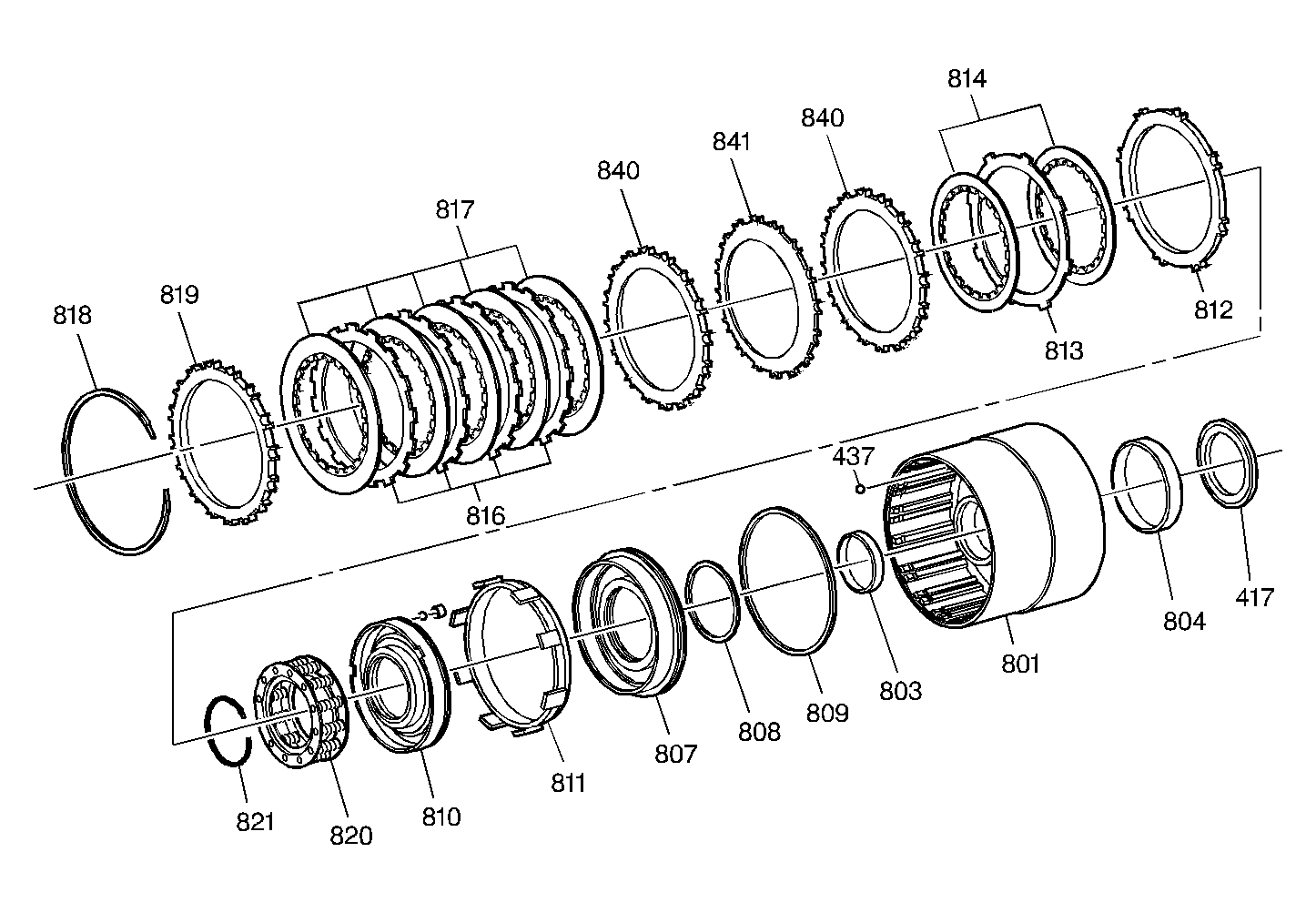

| Callout | Component Name |
|---|---|
| 417 | Thrust Bearing |
| 437 | 0.1875 Diameter Checkball |
| 801 | Forward and Coast Clutch Housing |
| 803 | Housing Bushing (Small) |
| 804 | Housing Bushing (Large) |
| 807 | Forward Clutch Piston |
| 808 | Seal (Inner) |
| 809 | Seal (Outer) |
| 810 | Coast Clutch Piston Assembly |
| 811 | Forward Clutch Ring (Apply) |
| 812 | Coast Clutch Plate (Apply) |
| 813 | Coast Clutch Plate (Steel) |
| 814 | Coast Clutch Plate (Fiber) (2) |
| 816 | Forward Clutch Plate (Steel) (4) |
| 817 | Forward Clutch Plate (Fiber) (5) |
| 818 | Snap Ring (Forward Clutch Backing Plate) |
| 819 | Forward Clutch Backing Plate |
| 820 | Forward Clutch Release Spring Assembly |
| 821 | Snap Ring (Forward Return Spring Assembly/Housing) |
| 840 | Forward and Coast Clutch Plate (2) |
| 840 | Forward and Coast Clutch Plate (2) |
| 841 | Forward and Coast Clutch Plate (Belleville) |

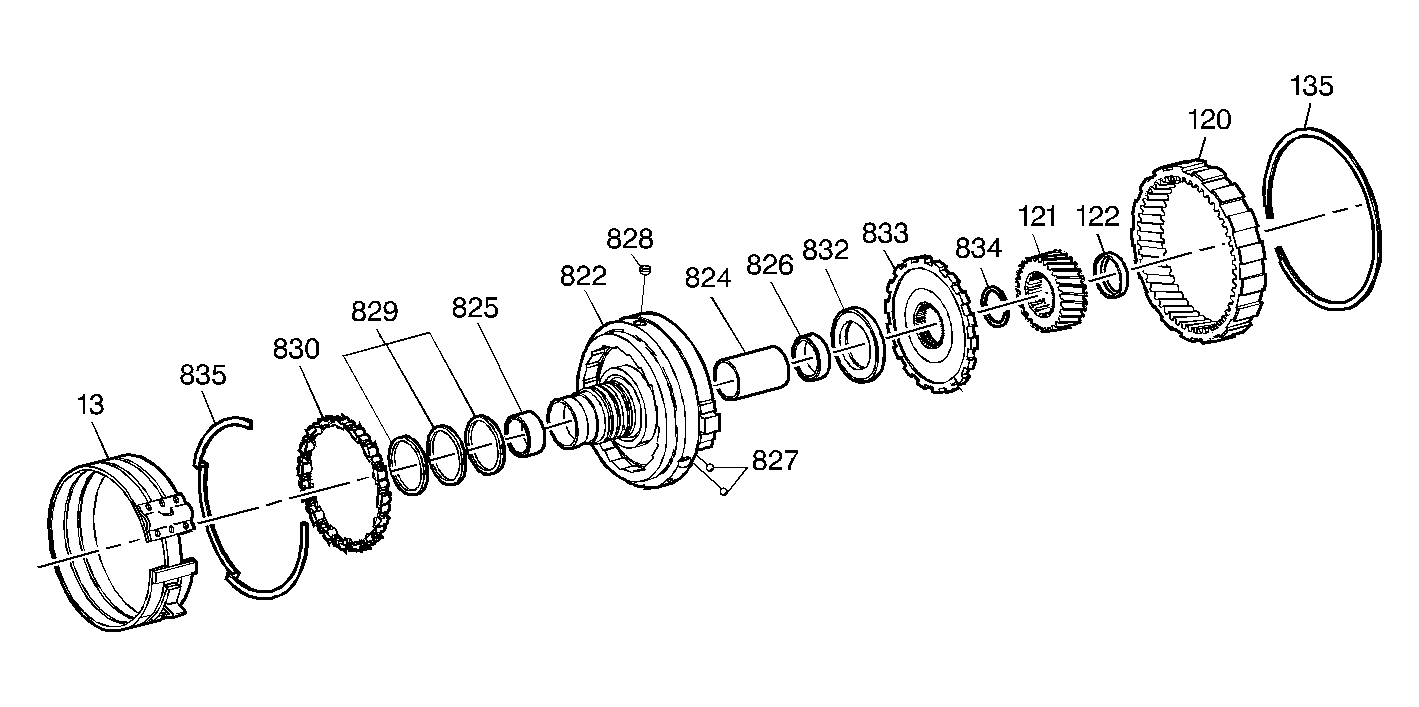

| Callout | Component Name |
|---|---|
| 13 | Low/Reverse Band |
| 120 | Final Drive Internal Gear |
| 121 | Final Drive Sun Gear |
| 122 | Final Drive Sun Gear Seal |
| 135 | Snap Ring |
| 822 | Forward/Coast Clutch Support |
| 824 | Oil Transfer Sleeve |
| 825 | Left Support/Sun Shaft Bushing |
| 826 | Right Support/Sun Shaft Bushing |
| 827 | Oil Hole Plug Ball (2) |
| 828 | Cooler Return Seal |
| 829 | Support/Housing Oil Seal Ring |
| 830 | Low Roller Clutch Assembly |
| 832 | Forward Clutch Support/Park Gear Thrust Bearing |
| 833 | Parking Lock Gear |
| 834 | Final Drive Shaft to Park Gear Snap Ring |
| 835 | Support/Case Fretting Ring |

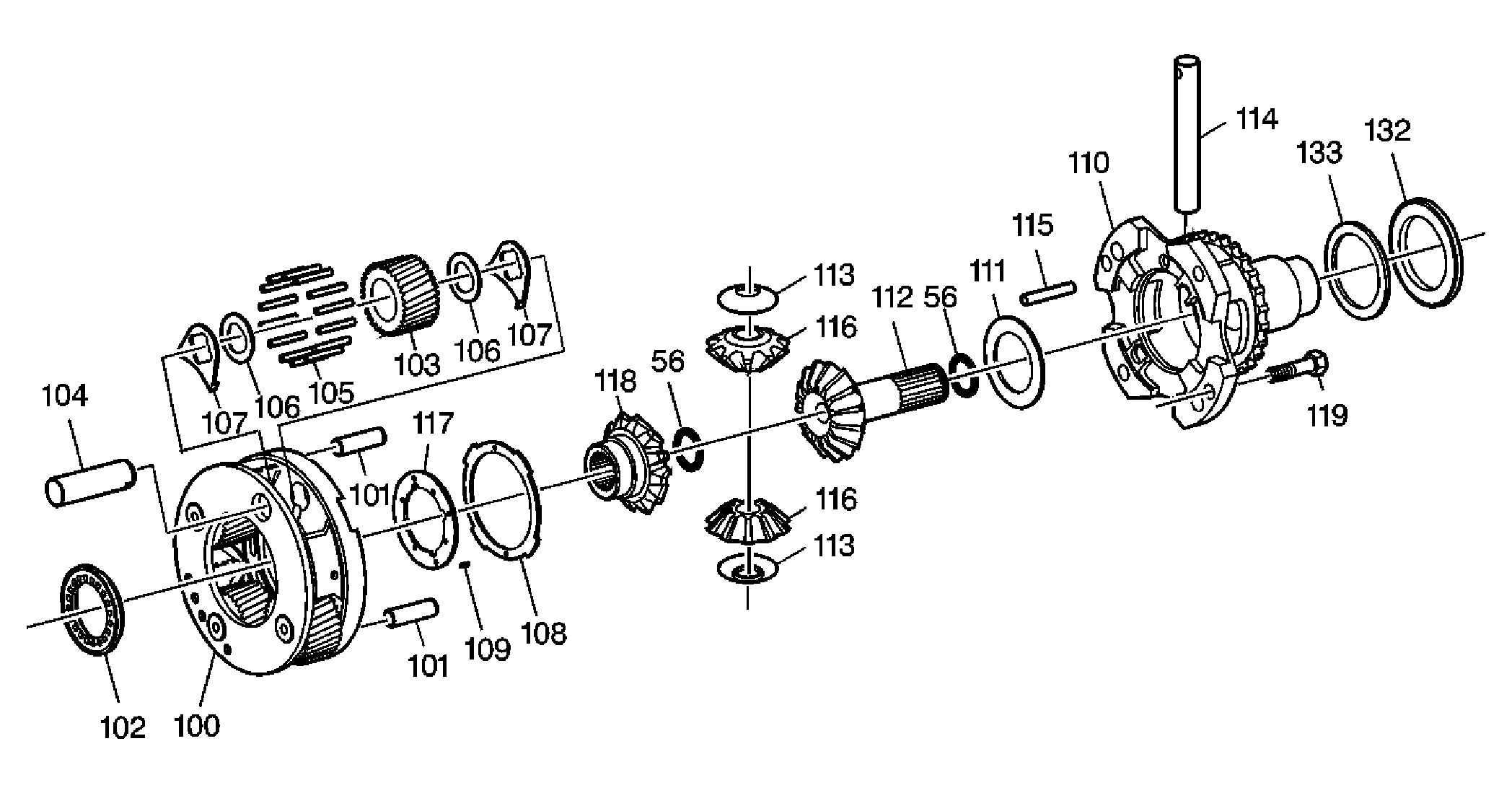

| Callout | Component Name |
|---|---|
| 56 | Output Shaft Snap Ring |
| 56 | Output Shaft Snap Ring |
| 100 | Final Drive Carrier |
| 101 | Differential Carrier Dowel (2) |
| 101 | Differential Carrier Dowel (2) |
| 102 | Sun Gear/Carrier Thrust Bearing |
| 103 | Final Drive Planet Pinion (4) |
| 104 | Final Drive Planet Pinion Pin (4) |
| 105 | Roller Needle Bearings (76) |
| 106 | Final Drive Pinion Steel Thrust Washers (8) |
| 106 | Final Drive Pinion Steel Thrust Washers (8) |
| 107 | Final Drive Pinion Bronze Thrust Washers (8) |
| 107 | Final Drive Pinion Bronze Thrust Washers (8) |
| 108 | Final Drive Carrier Retainer |
| 109 | Rolled Pin |
| 110 | Differential Carrier |
| 111 | Right Differential Thrust Washer |
| 112 | Right Differential Side Gear |
| 113 | Differential Pinion Thrust Washer (2) |
| 113 | Differential Pinion Thrust Washer (2) |
| 114 | Differential Pinion Shaft |
| 115 | Differential Pinion Shaft Retaining Pin |
| 116 | Differential Pinion Gears (2) |
| 116 | Differential Pinion Gears (2) |
| 117 | Left Differential Thrust Washer |
| 118 | Left Differential Side Gear |
| 119 | Differential Carrier to Final Drive Carrier Bolt |
| 132 | Thrust Bearing Assembly |
| 133 | Differential Carrier/Case Extension Selective Thrust Washer |

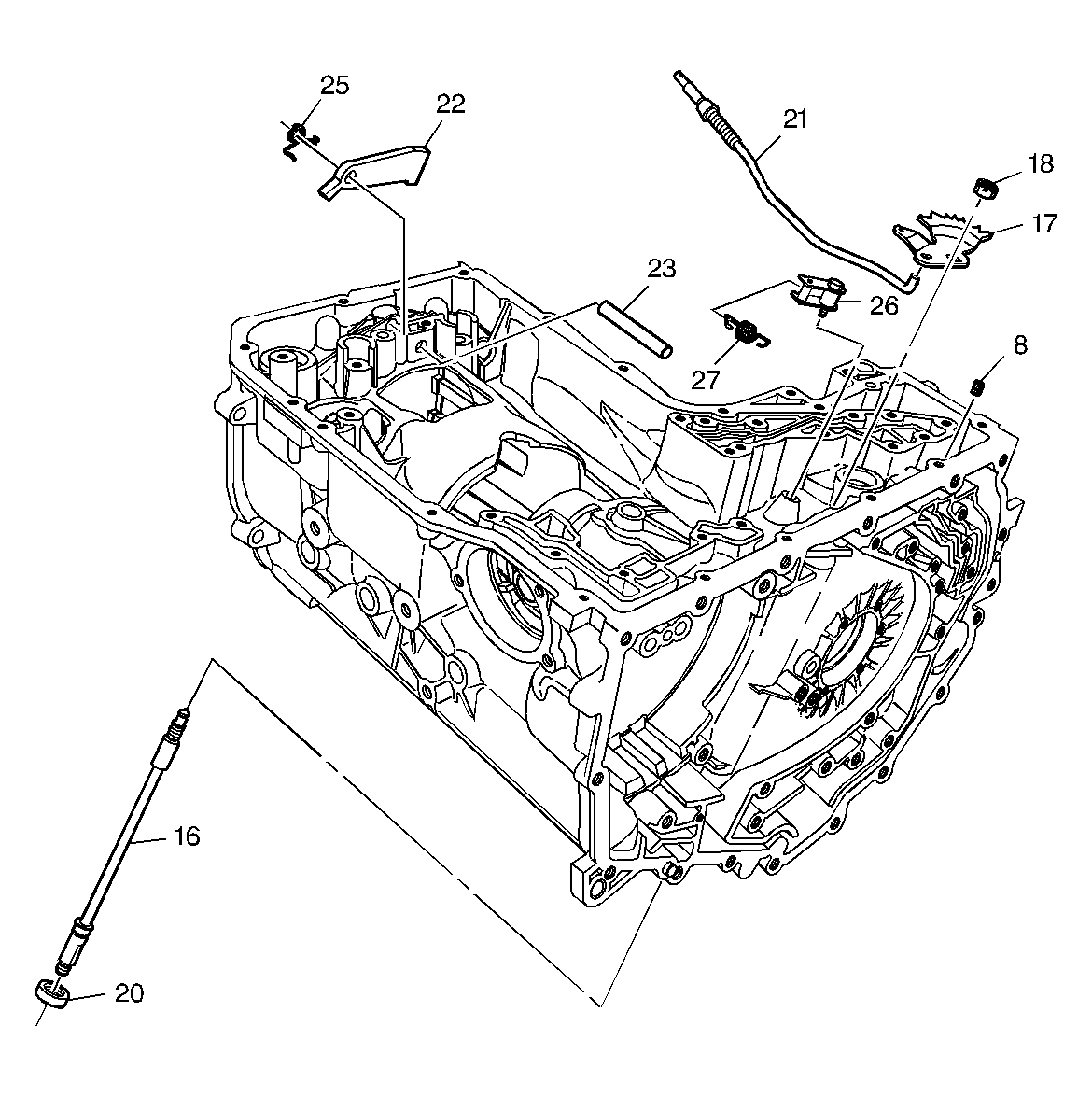

| Callout | Component Name |
|---|---|
| 8 | Drain Plug |
| 16 | Manual Shaft |
| 17 | Inside Detent Lever |
| 18 | Manual Shaft To Detent Lever Nut |
| 20 | Manual Shaft Seal |
| 21 | Park Lock Actuator Assembly |
| 22 | Parking Lock Pawl |
| 23 | Parking Pawl Pivot Pin |
| 25 | Parking Pawl Return Spring |
| 26 | Detent Lever and Roller Assembly |
| 27 | Detent Spring |
