Automatic Transmission Controls Schematics

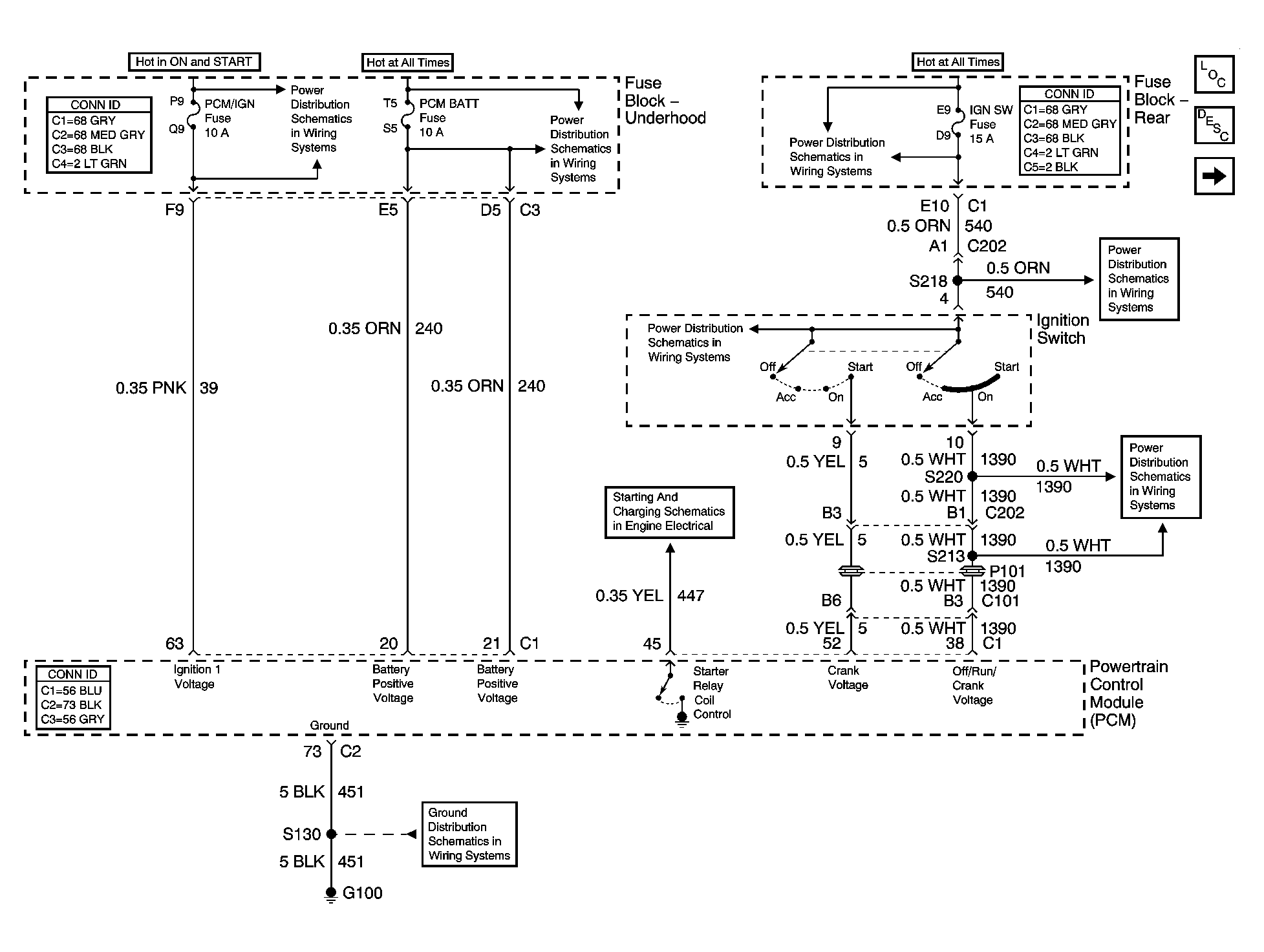

Fig 1: PCM Power and Grounds

Courtesy of GENERAL MOTORS CORP.

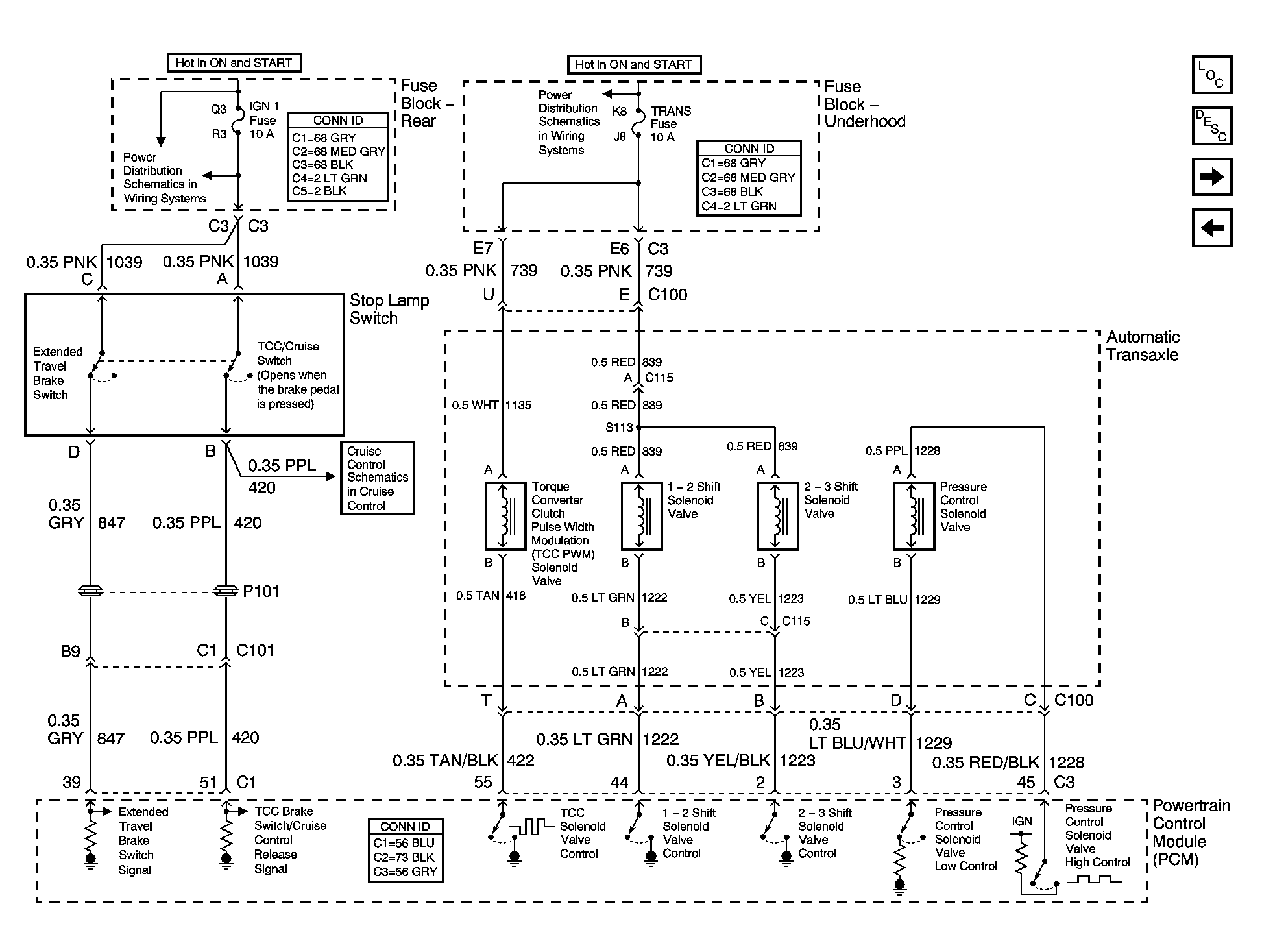

Fig 2: Stop Lamp Switch and Transaxle Solenoids

Courtesy of GENERAL MOTORS CORP.

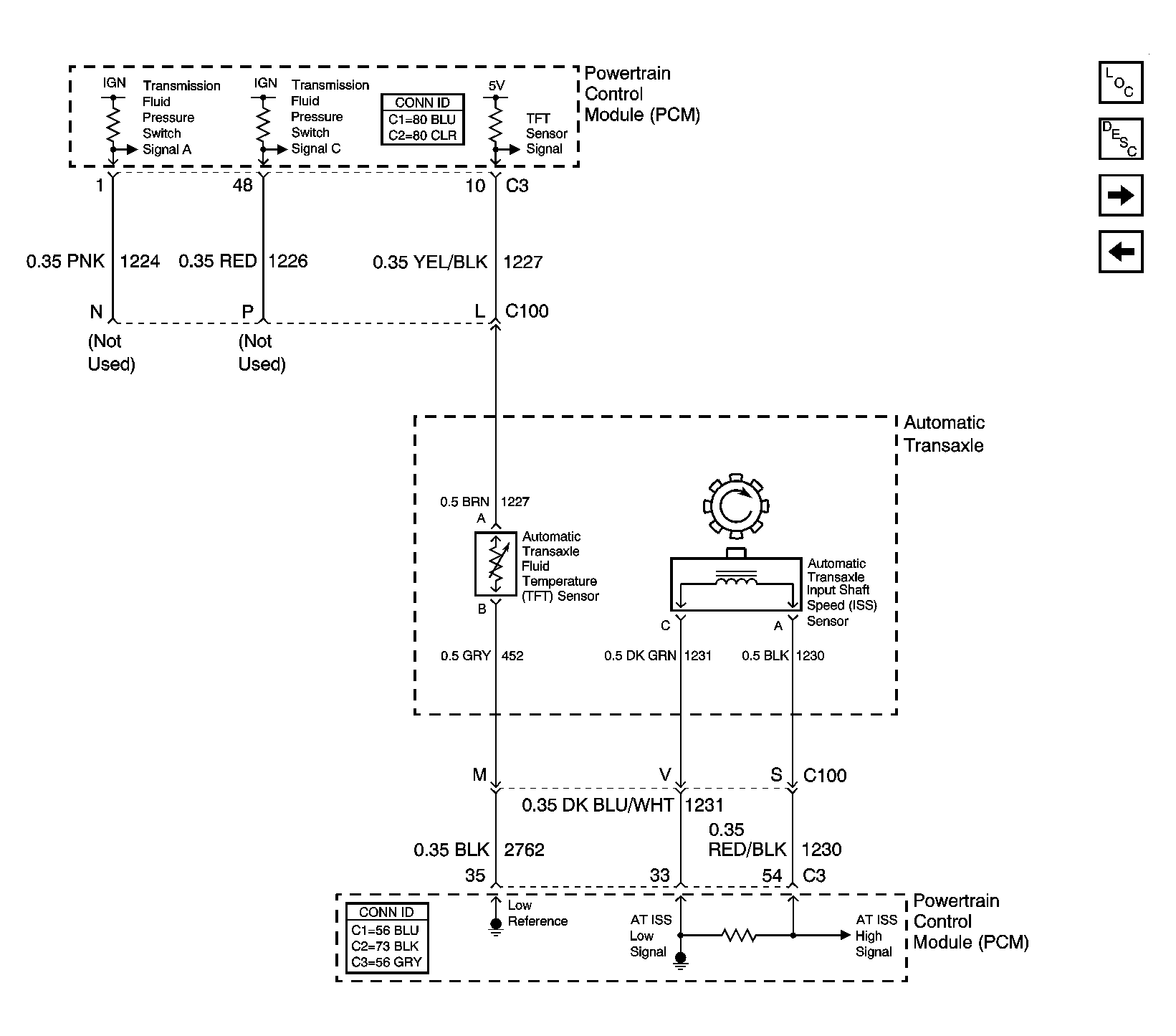

Fig 3: Sensors

Courtesy of GENERAL MOTORS CORP.

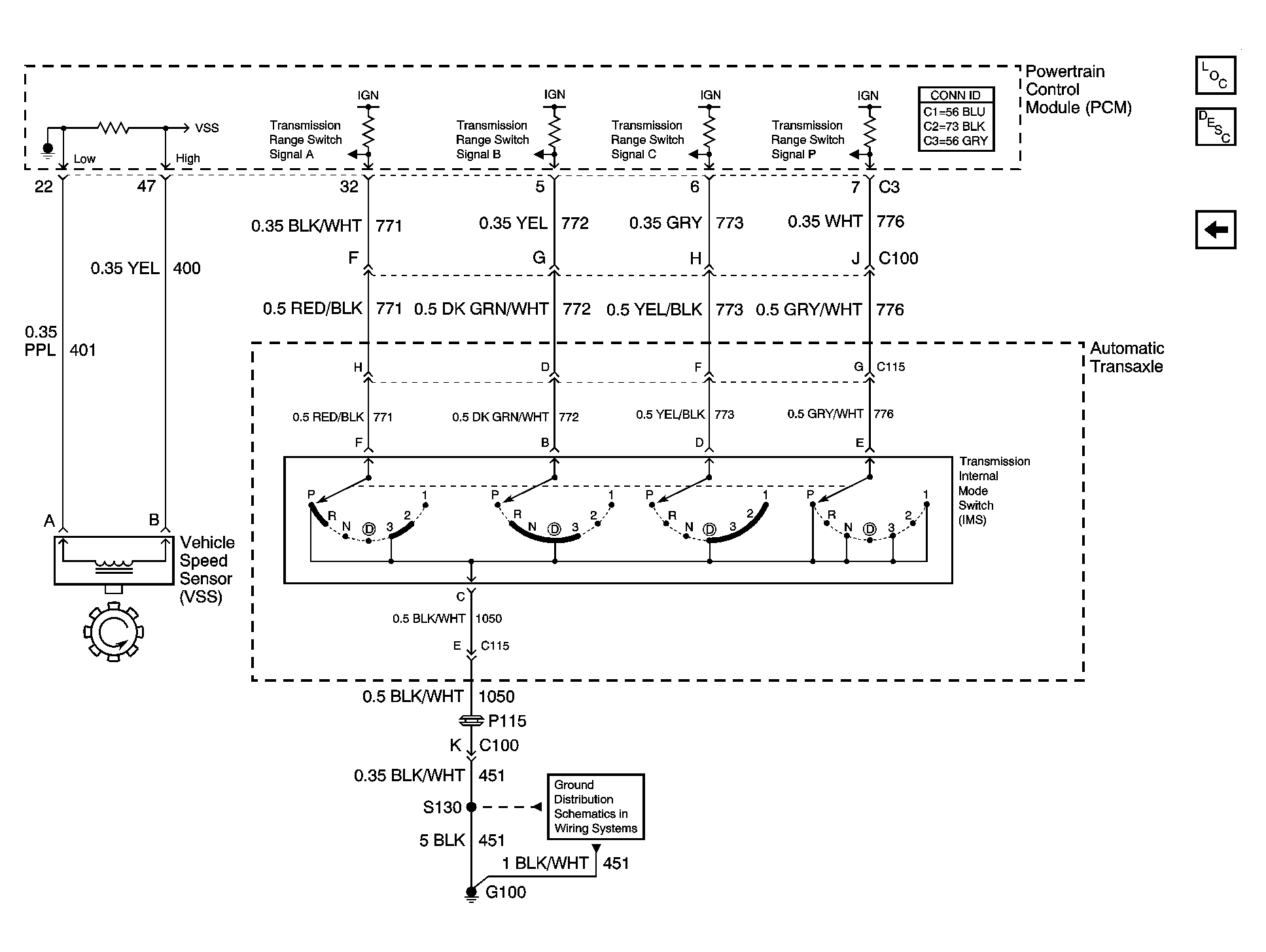

Fig 4: Transmission Internal Mode Switch (IMS) and VSS

Courtesy of GENERAL MOTORS CORP.
