Navigation System Schematics

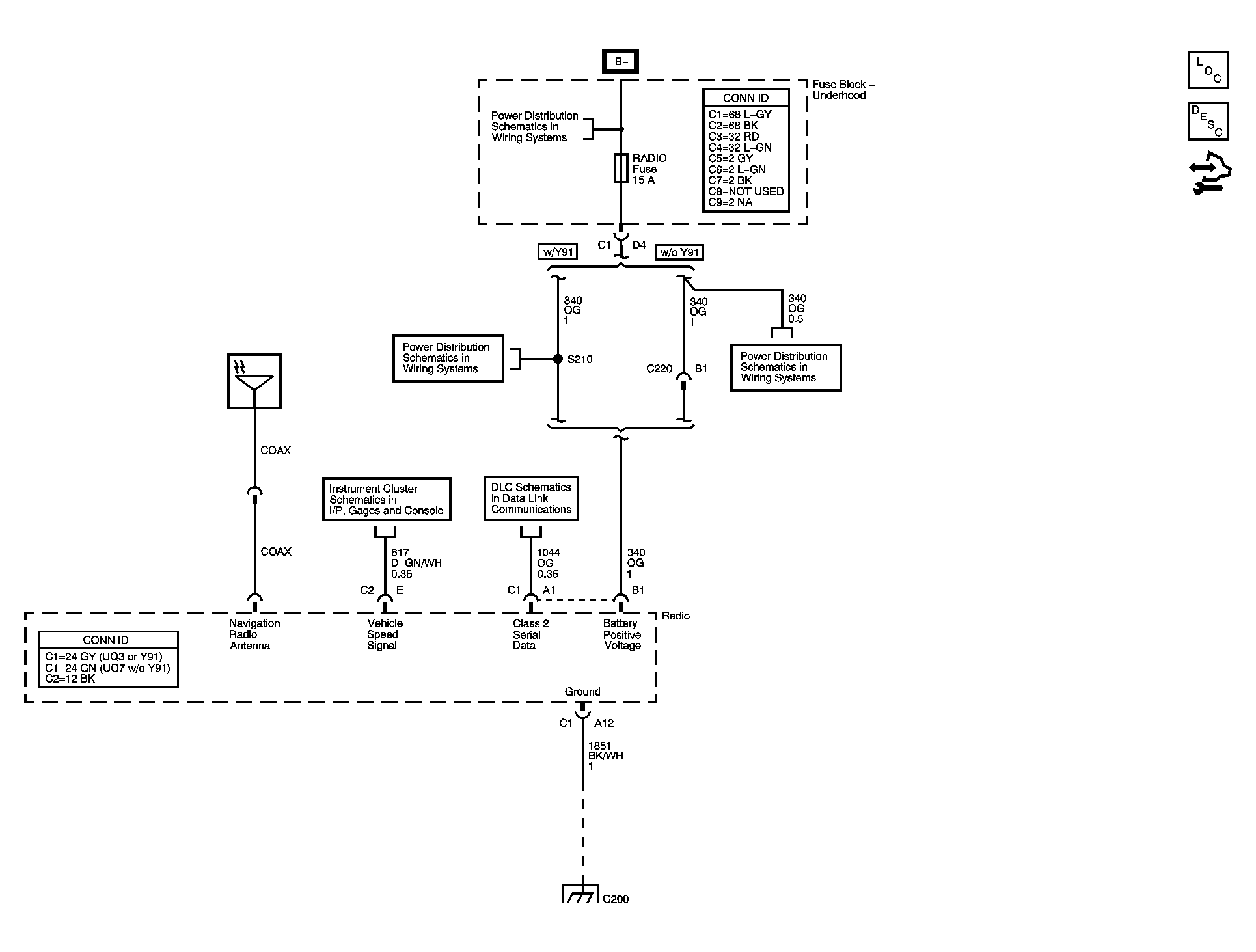

Fig 1: Navigation System Schematics
GM1465181Courtesy of GENERAL MOTORS CORP.
