Adjustable Pedals Component Views

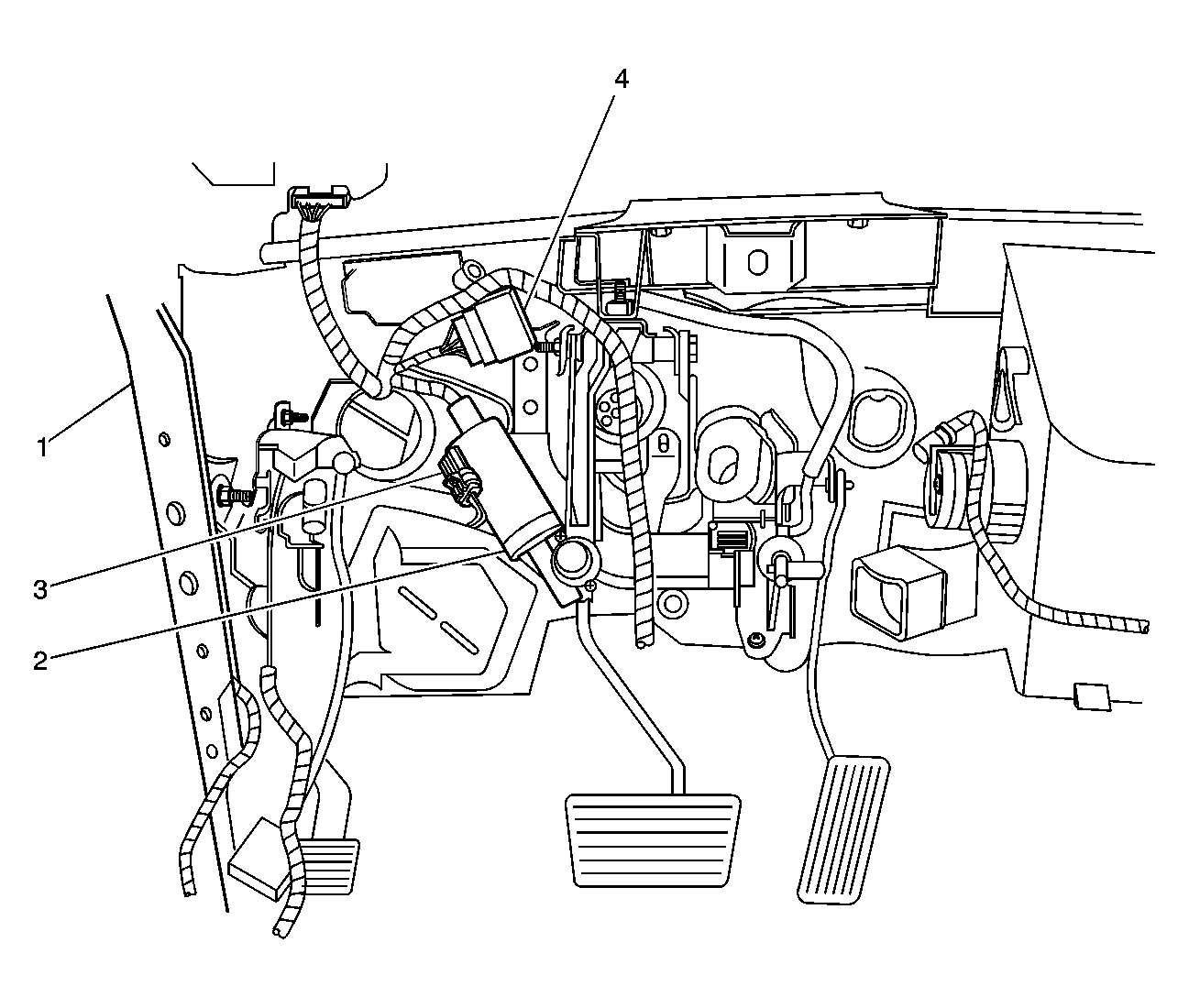

Fig 1: Adjustable Pedals Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A-Pillar
2	Electronic Adjustable Pedals (EAP) Assembly
3	Electronic Adjustable Pedals (EAP) Assembly Connector
4	Electronic Adjustable Pedals (EAP) Relay
