Defogger Schematics

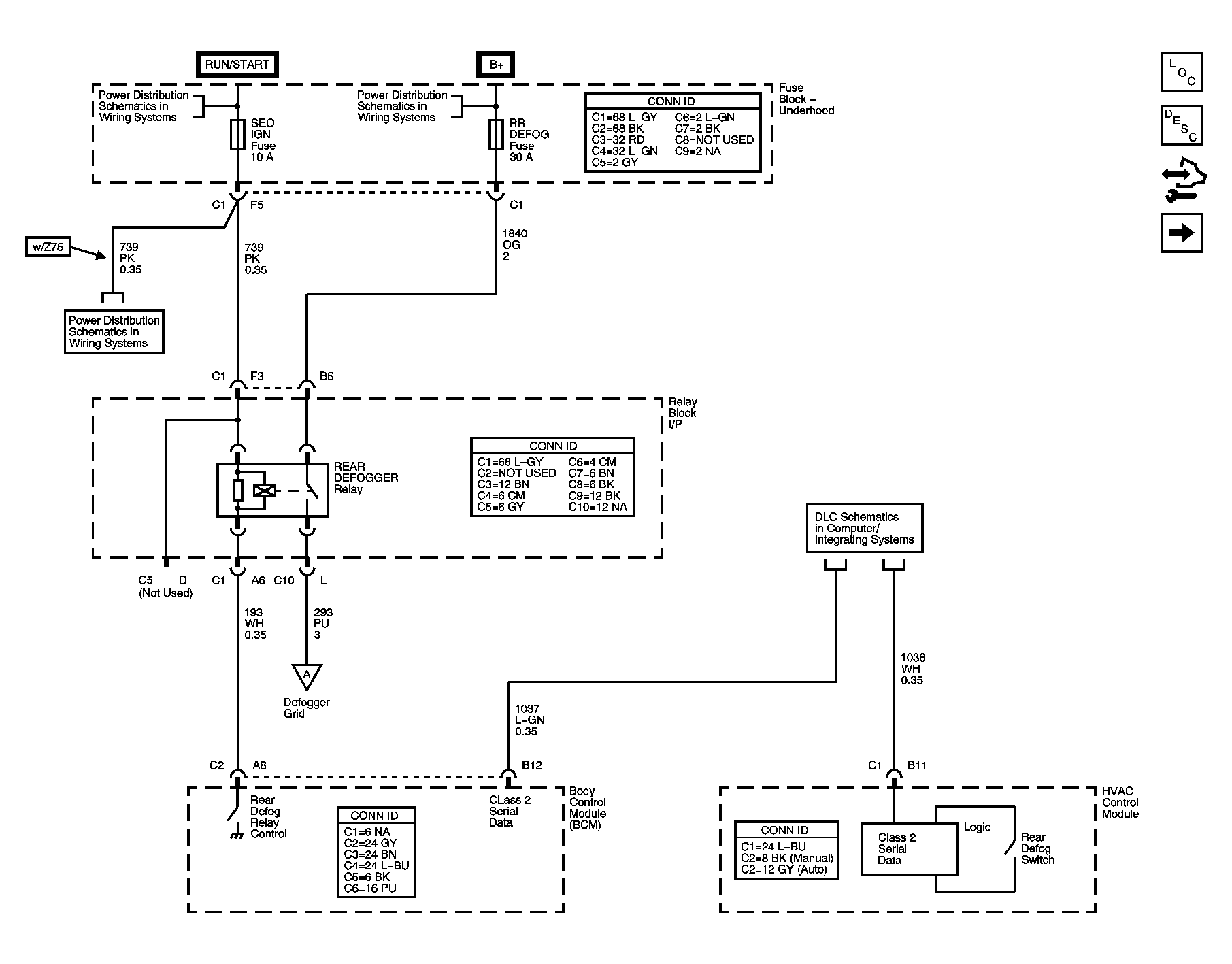

Fig 1: Rear Window Defogger Controls Schematics
GM1464586Courtesy of GENERAL MOTORS CORP.
Fig 2: Defogger Grid and Ground Schematics
GM1464587Courtesy of GENERAL MOTORS CORP.
