Door Lock/Indicator Schematics

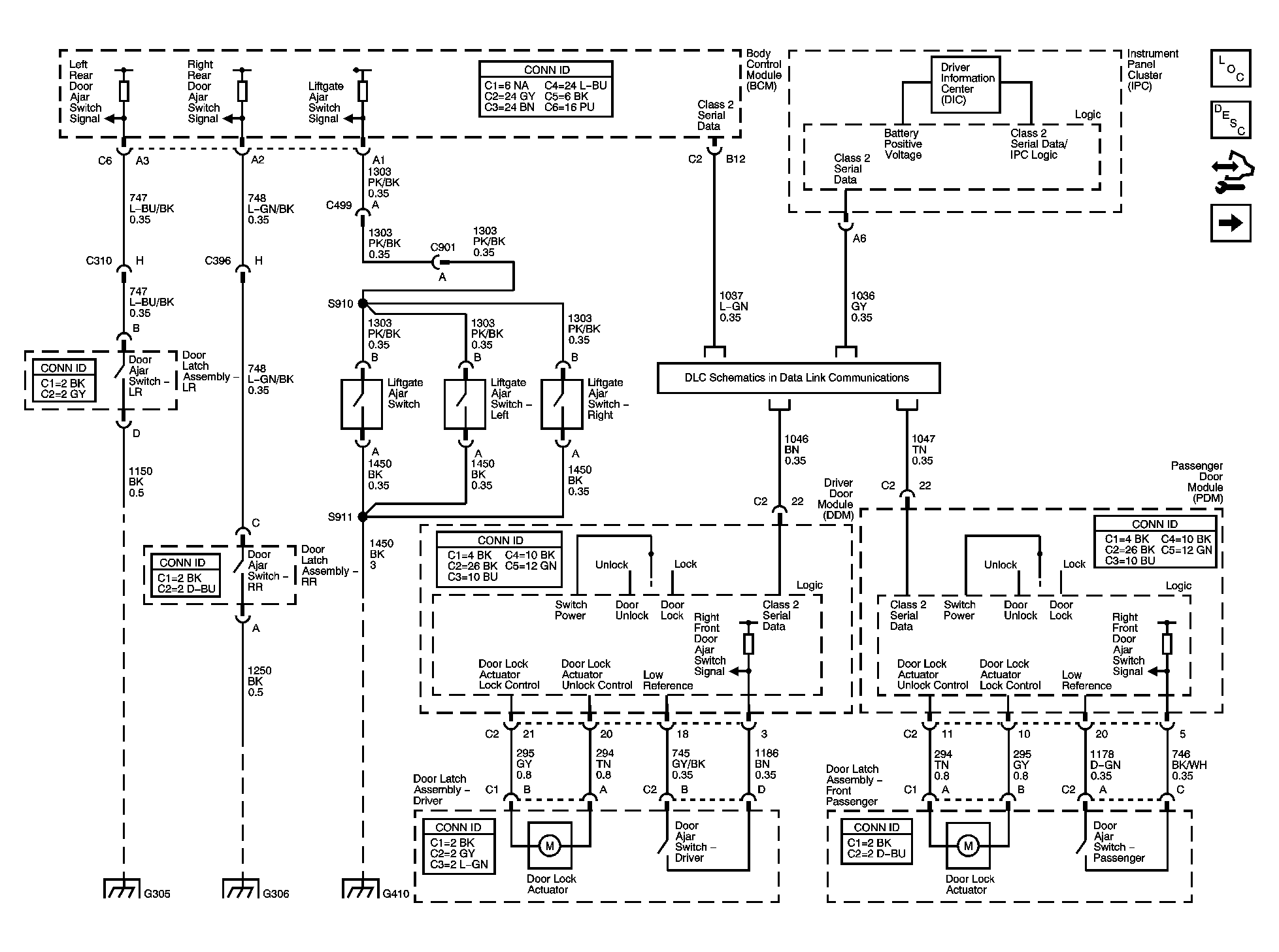

Fig 1: Driver and Front Passenger Locks and Indicator Schematics

Courtesy of GENERAL MOTORS CORP.

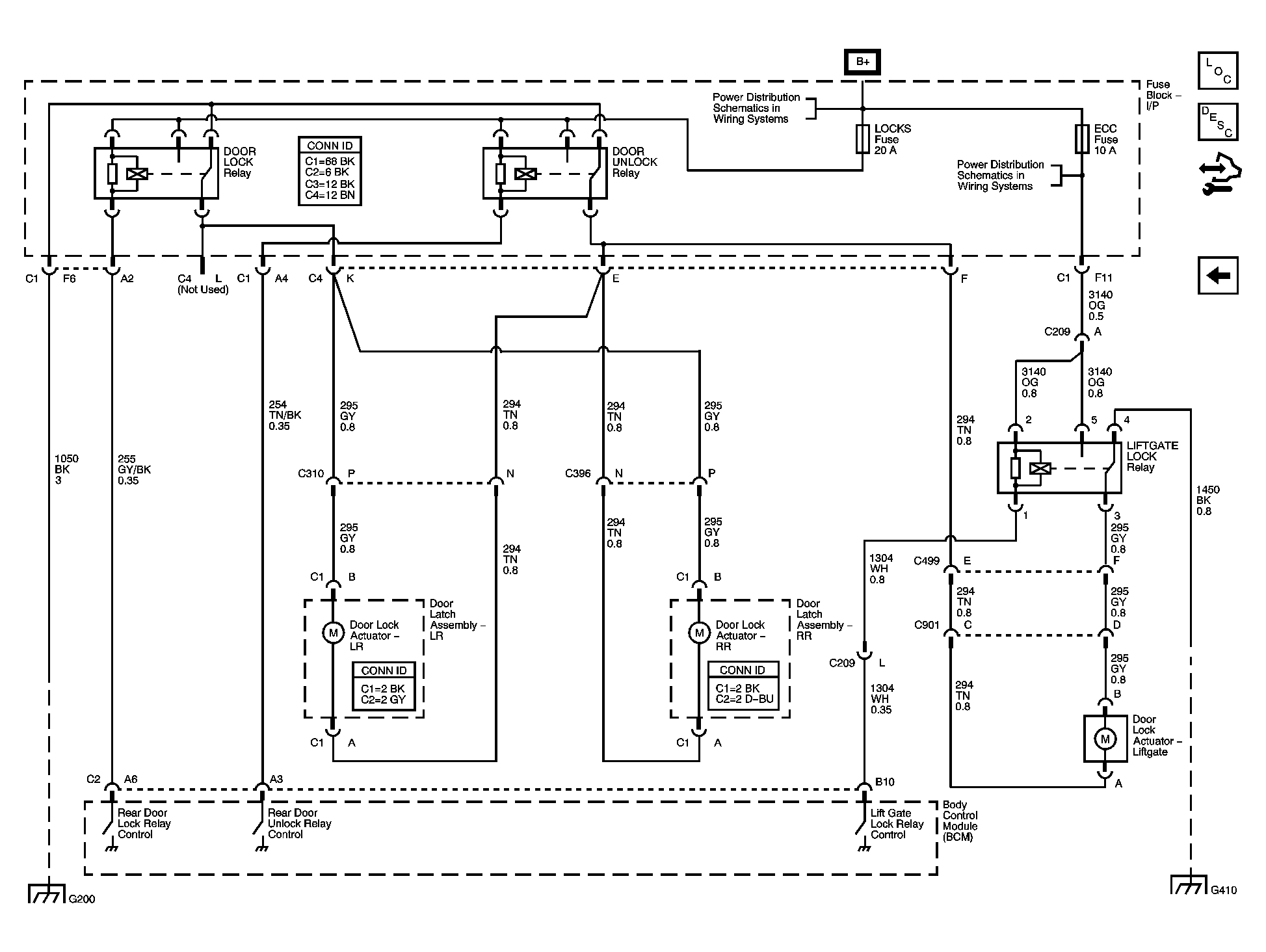

Fig 2: Rear Door and Liftgate Locks Schematics

Courtesy of GENERAL MOTORS CORP.
