Power Window Schematics

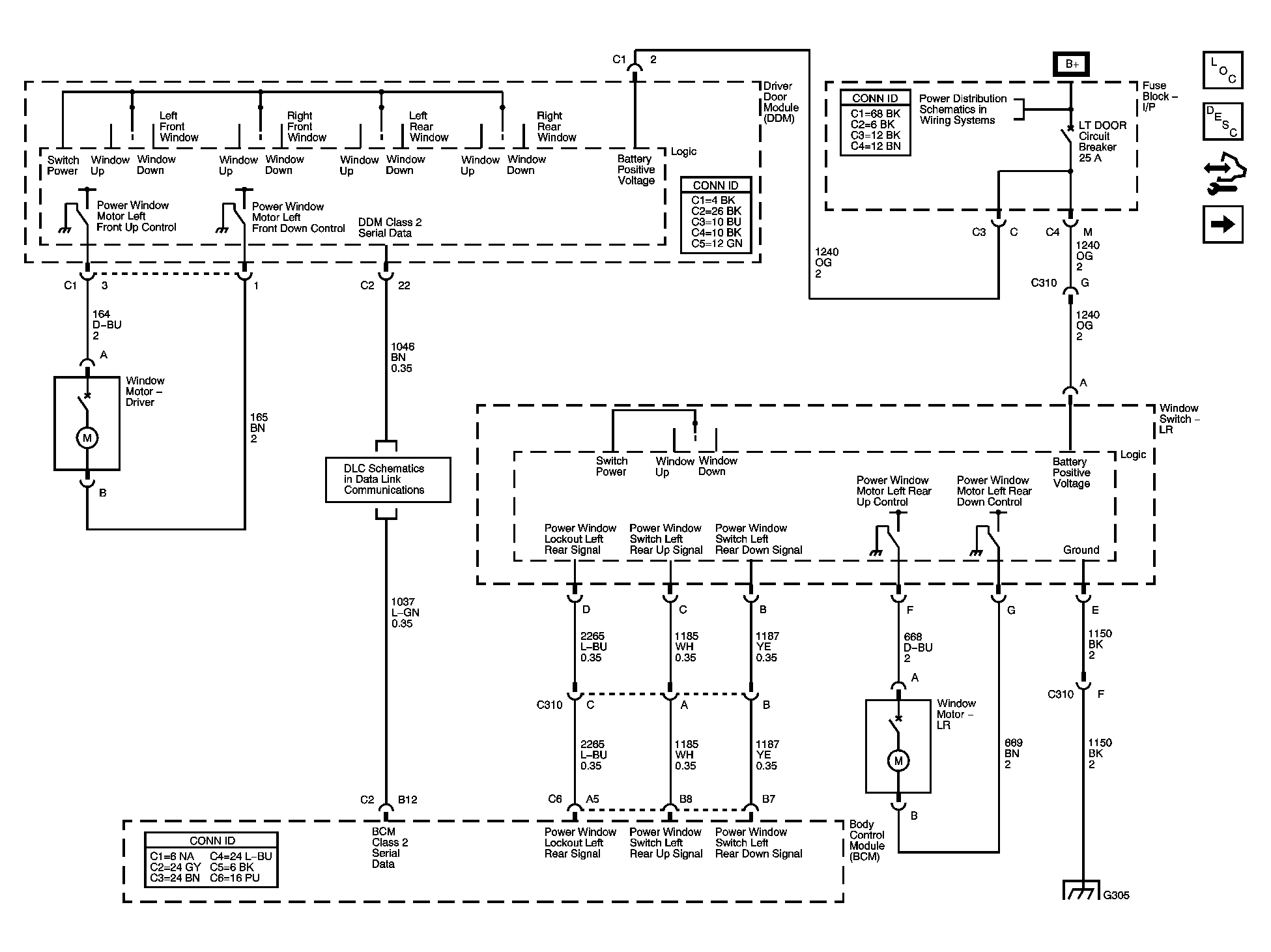

Fig 1: Left Doors Schematics
GM1464145Courtesy of GENERAL MOTORS CORP.

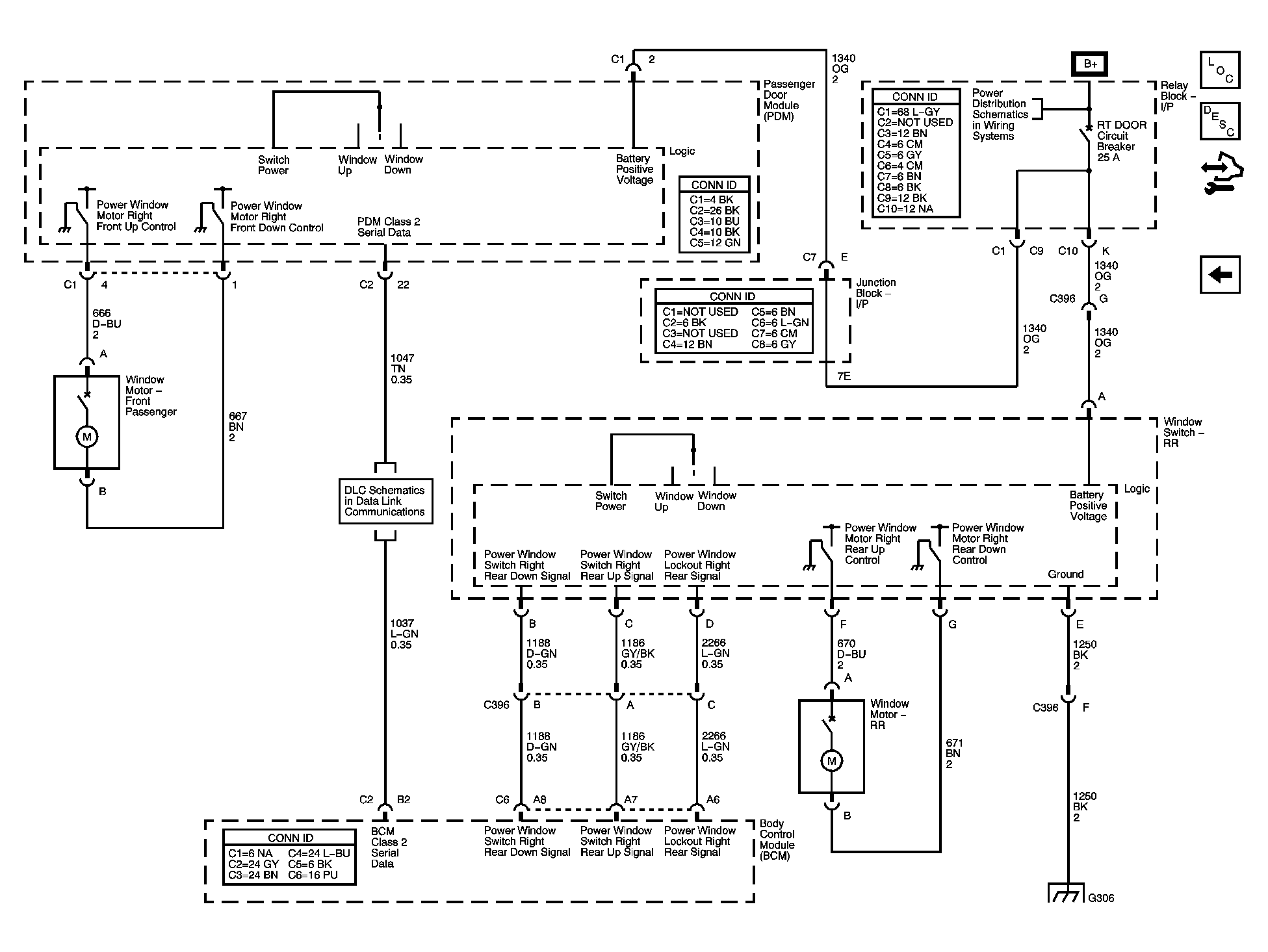

Fig 2: Right Doors Schematics
GM1464146Courtesy of GENERAL MOTORS CORP.
