Keyless Entry Schematics

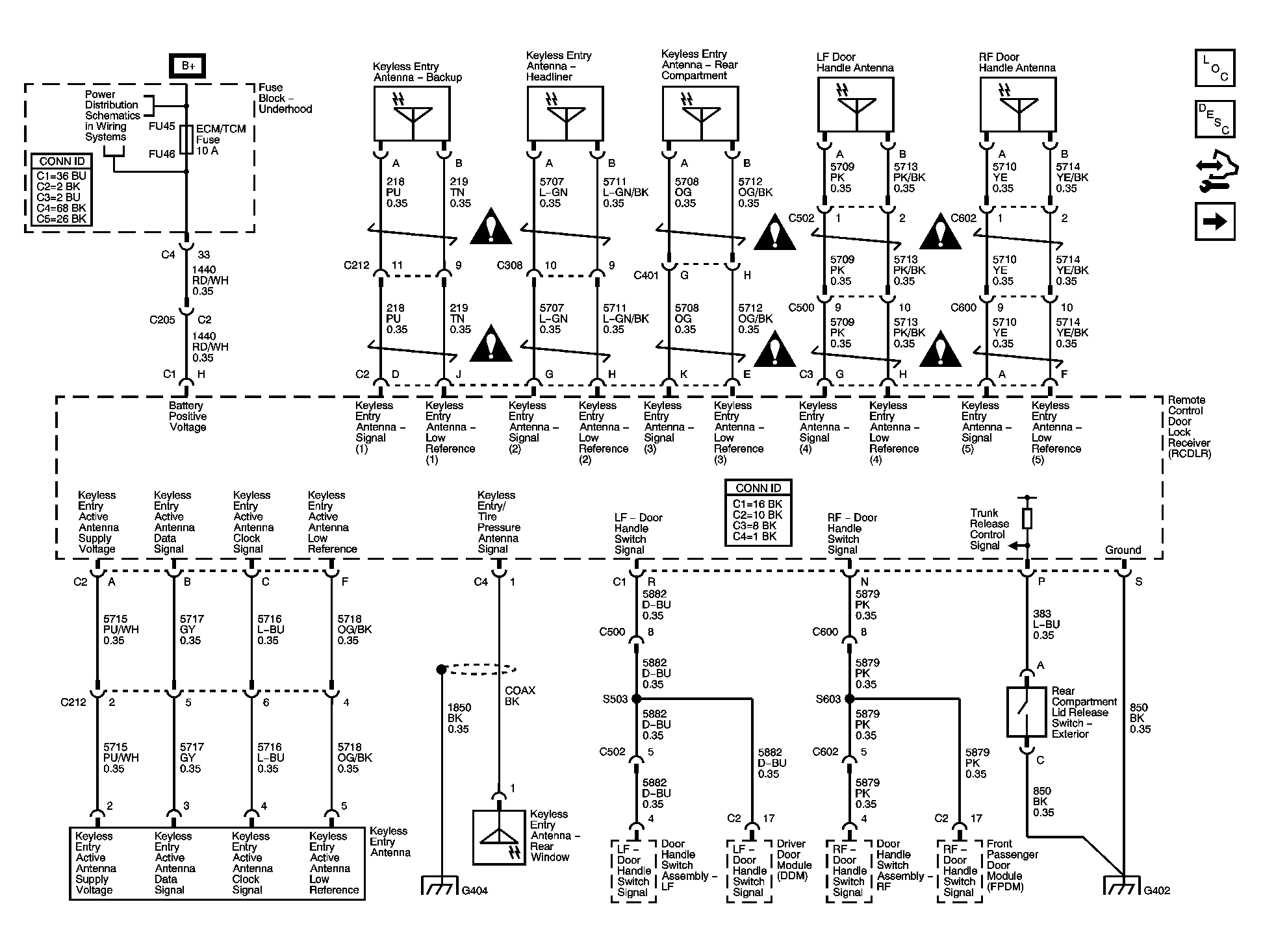

Fig 1: Module Power, Grounds, Antennas and Switches Schematics
GM1388069Courtesy of GENERAL MOTORS CORP.

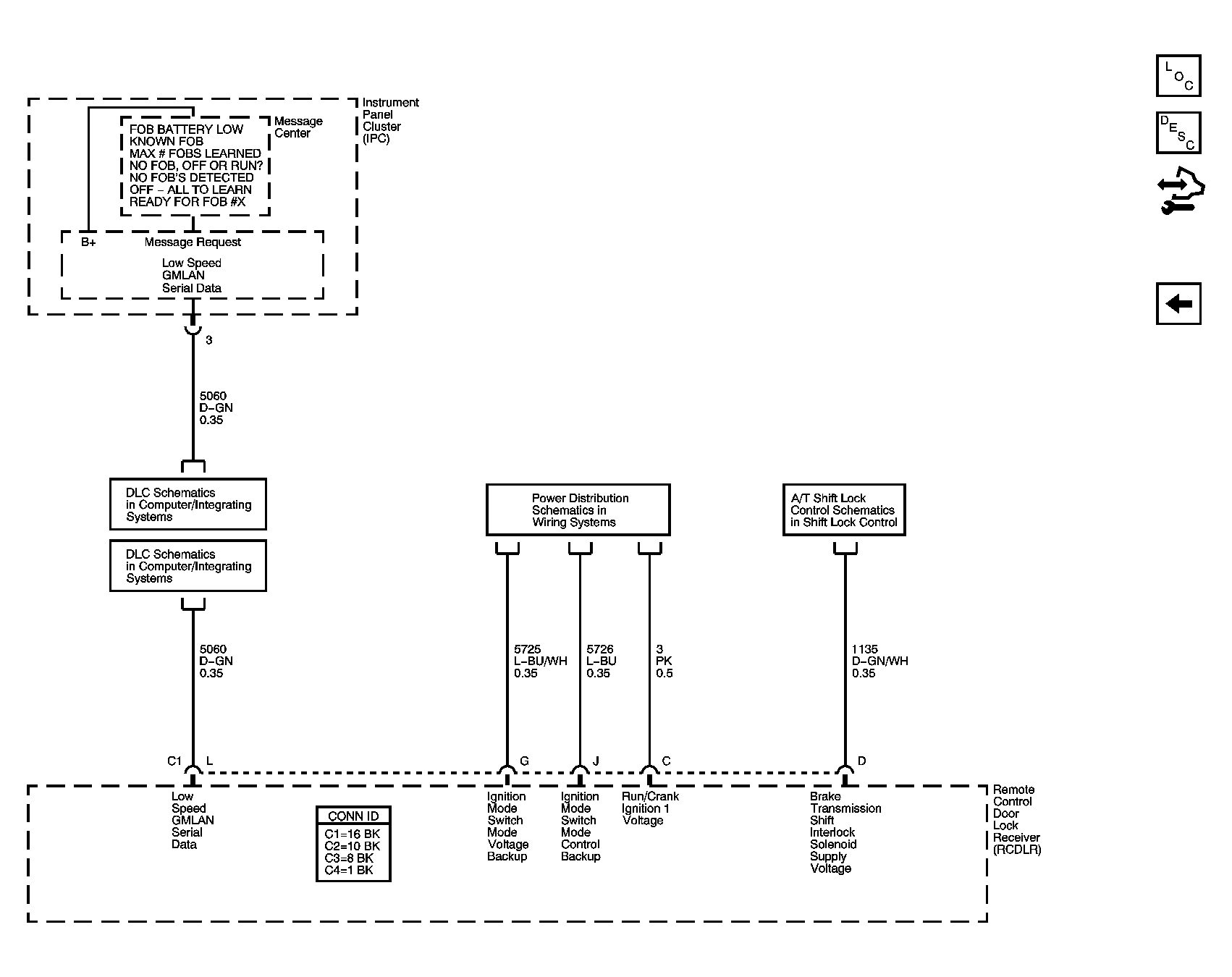

Fig 2: DLC, Instrument Panel Cluster (IPC) Schematics
GM1388075Courtesy of GENERAL MOTORS CORP.
