Door Control Module Schematics

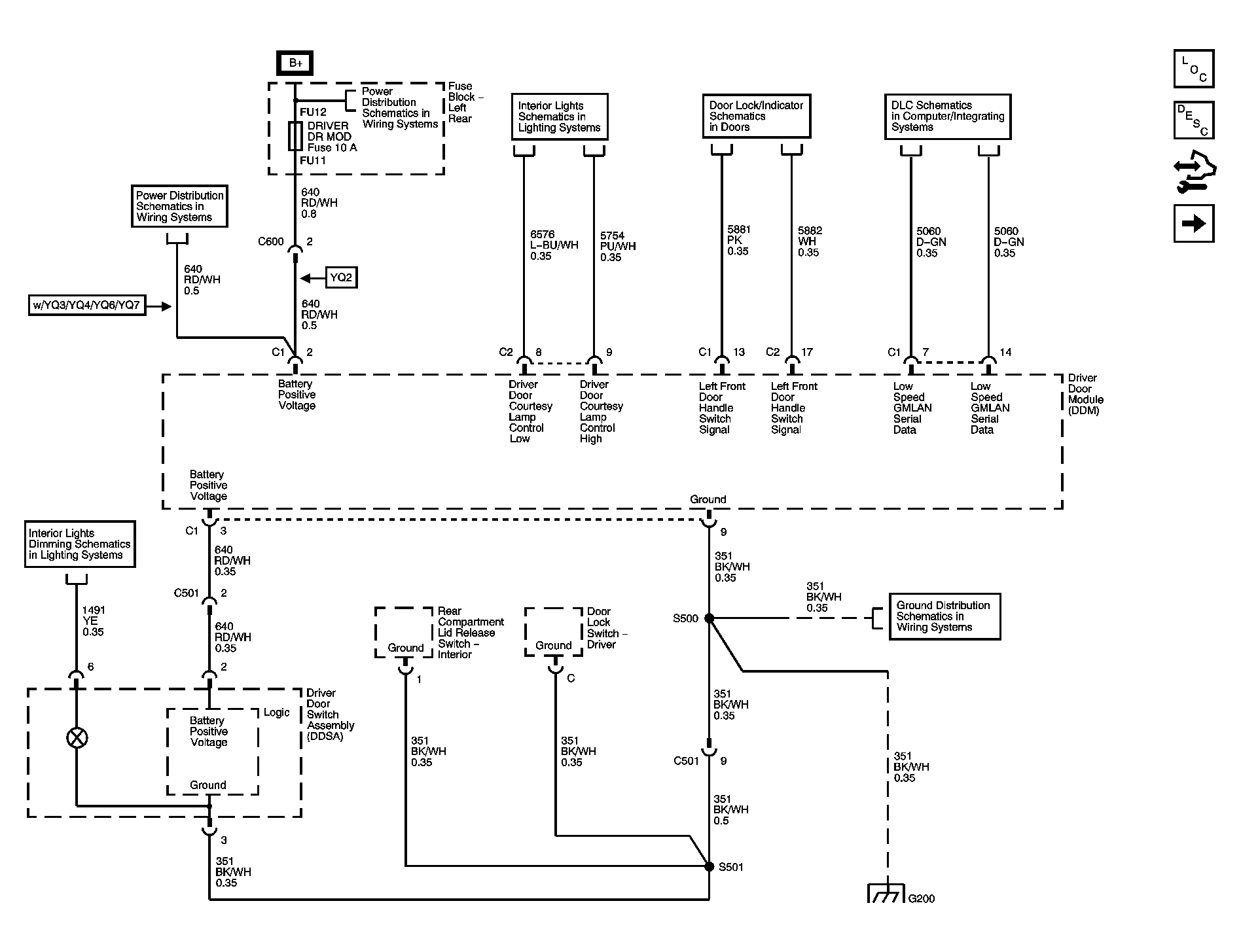

Fig 1: DDM Power, Ground and DLC Schematics

GM1416166

Courtesy of GENERAL MOTORS CORP.

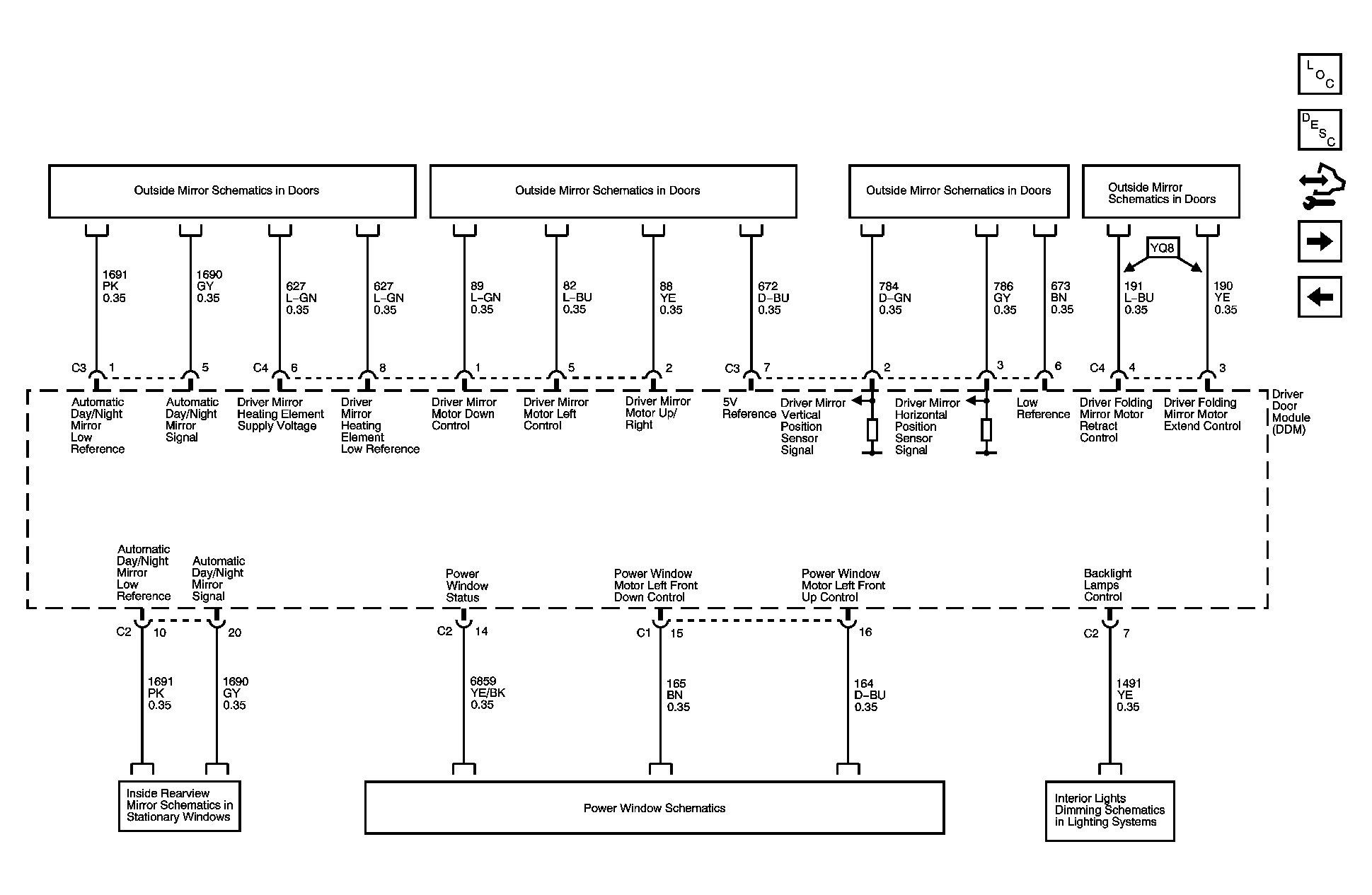

Fig 2: DDM Signals/Controls Schematics 1 of 2

GM1416205

Courtesy of GENERAL MOTORS CORP.

Fig 3: DDM Signals/Controls Schematics 2 of 2

GM1416196

Courtesy of GENERAL MOTORS CORP.

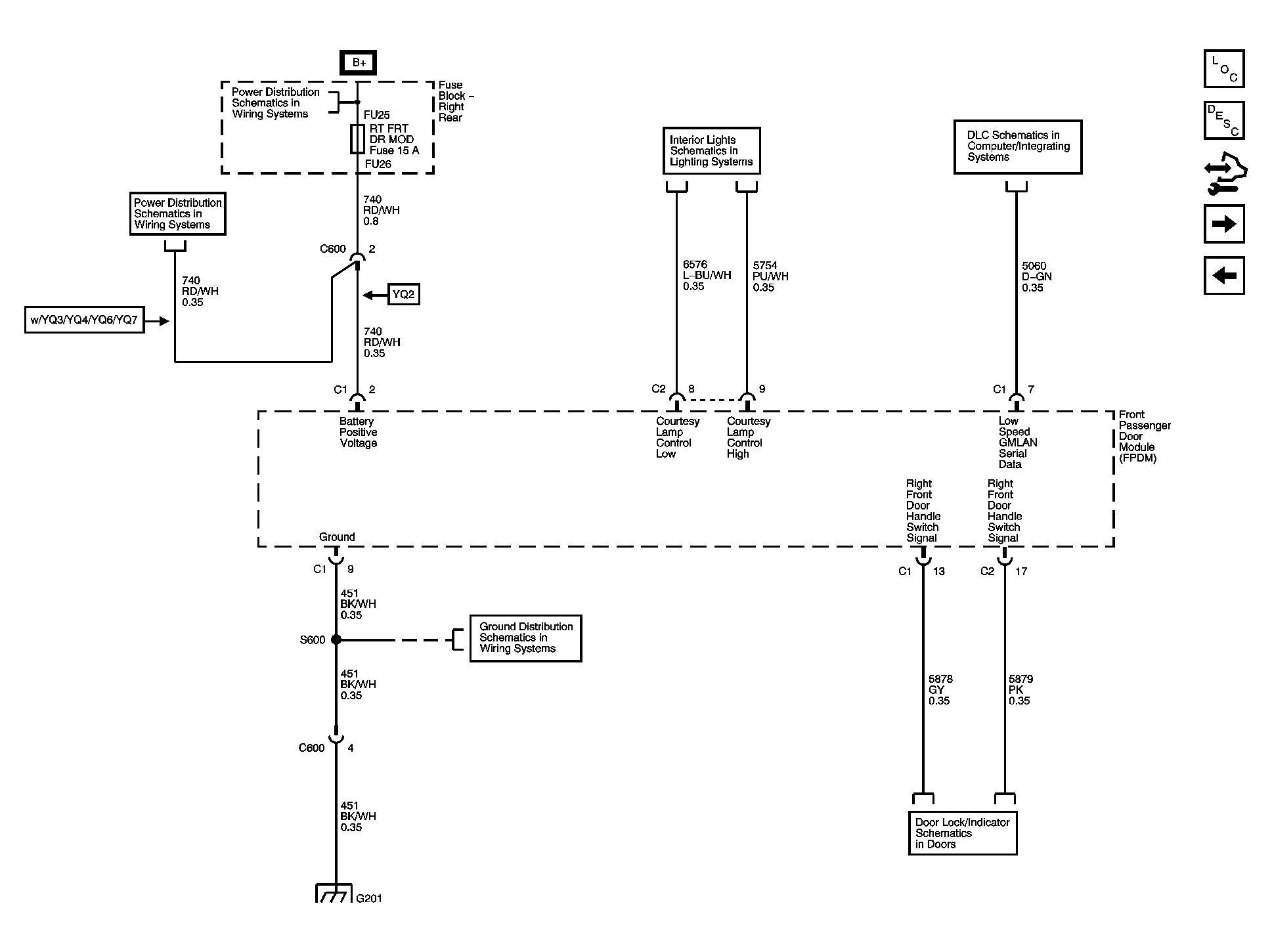

Fig 4: FPDM Power, Ground and DLC Schematics

GM1416171

Courtesy of GENERAL MOTORS CORP.

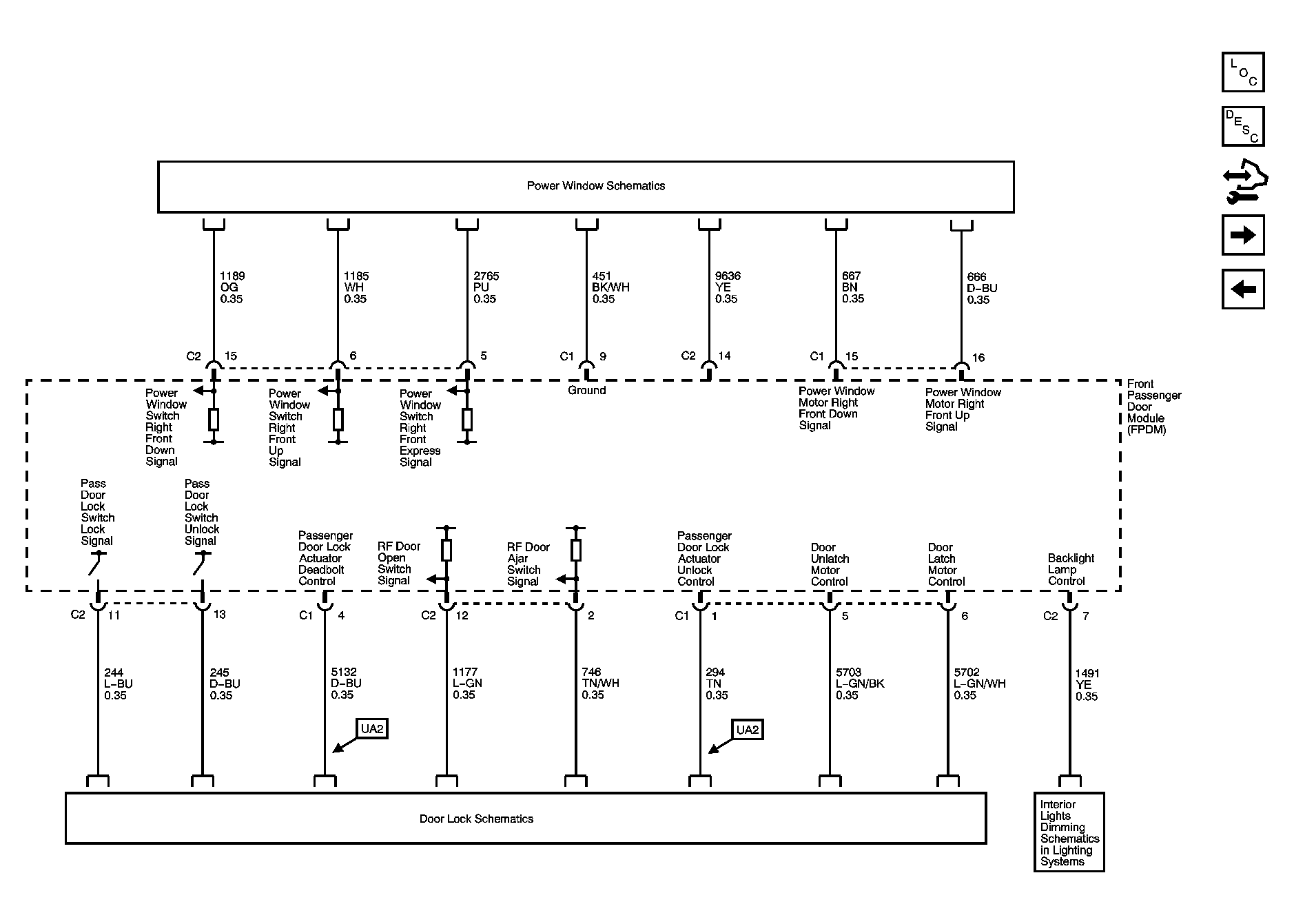

Fig 5: FPDM Signals/Controls Schematics 1 of 2

GM1416186

Courtesy of GENERAL MOTORS CORP.

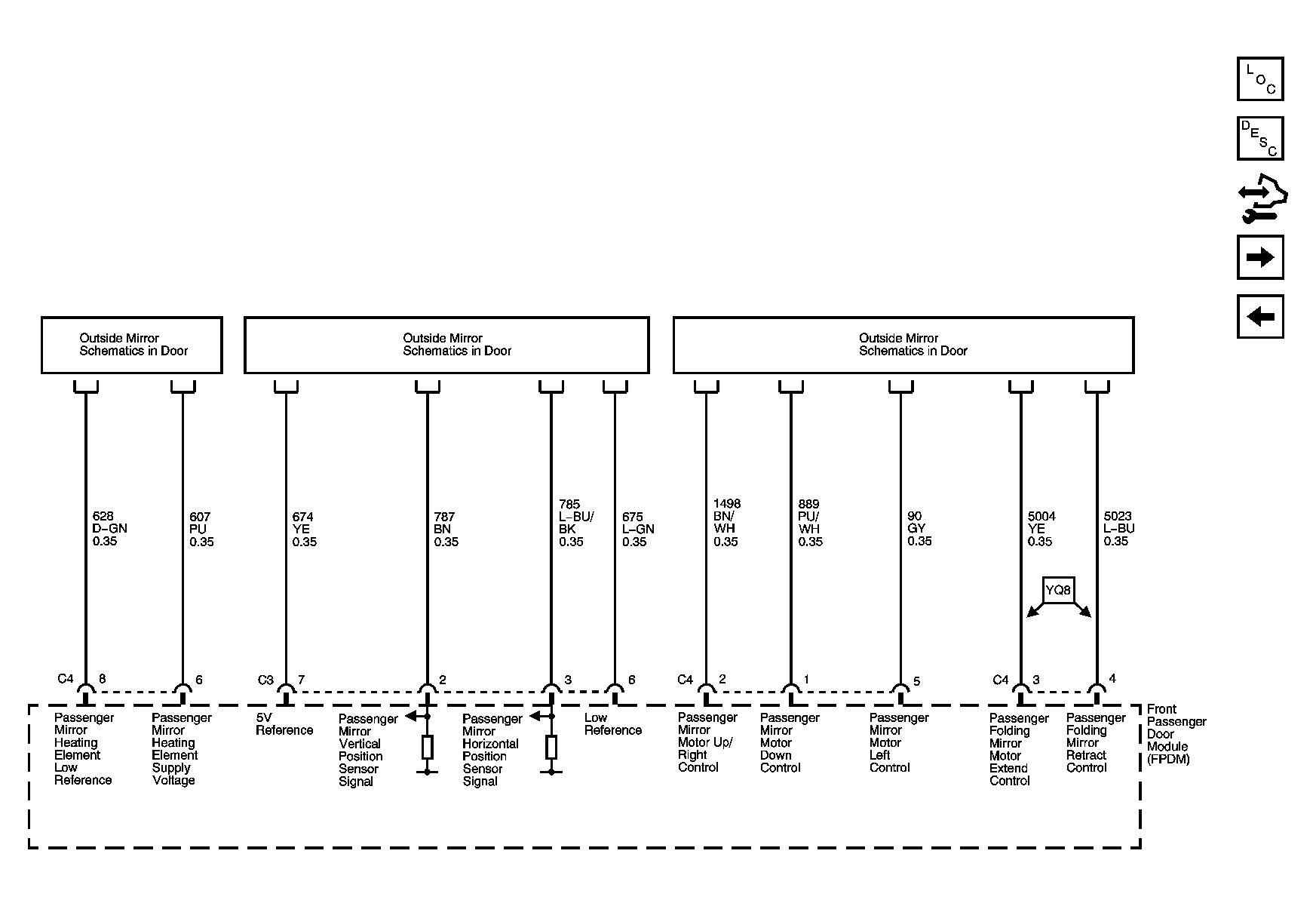

Fig 6: FPDM Signals/Controls Schematics 2 of 2

GM1416180

Courtesy of GENERAL MOTORS CORP.

Fig 7: LRDM Power, Ground and DLC Schematics

GM1416245

Courtesy of GENERAL MOTORS CORP.

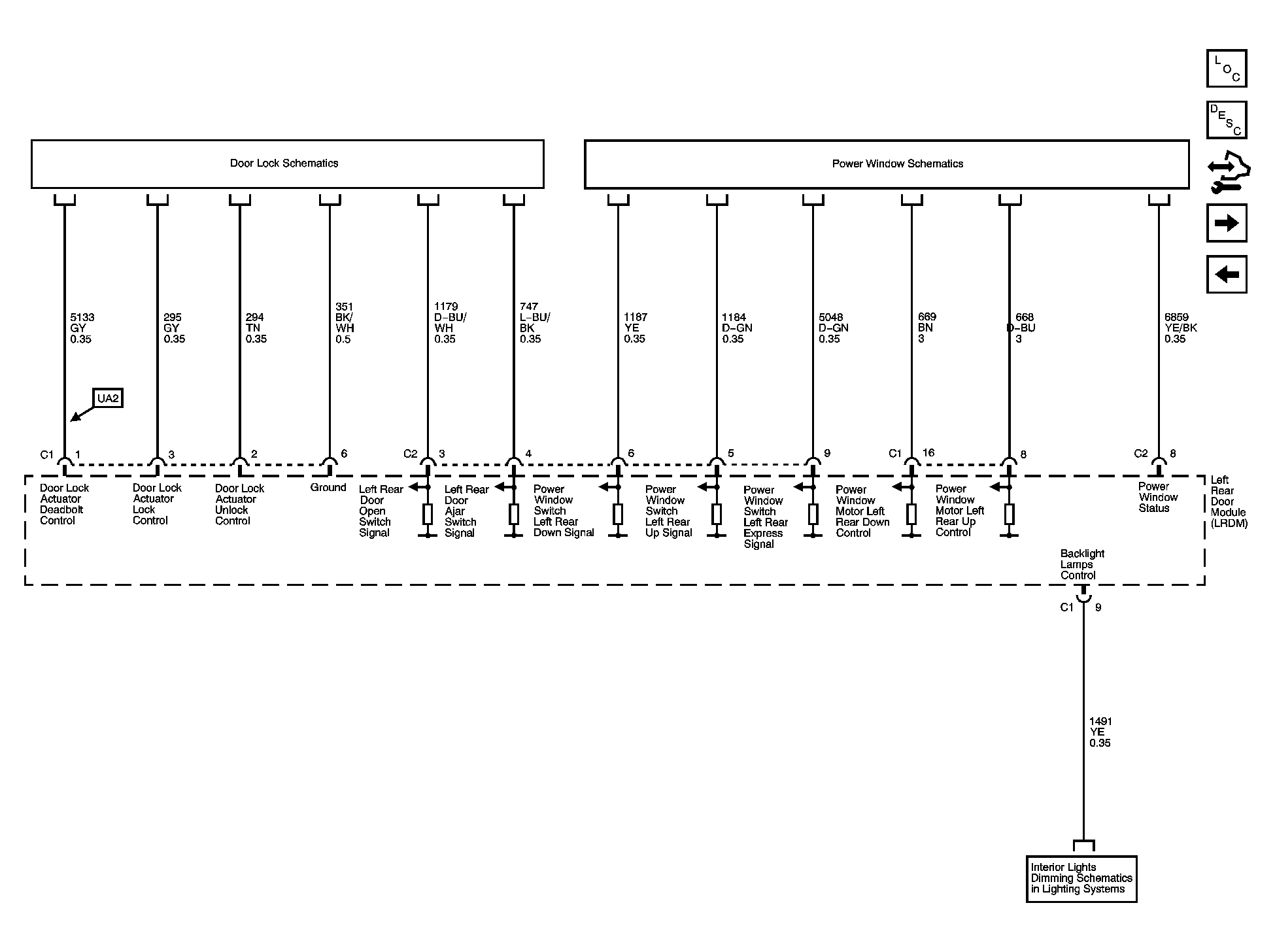

Fig 8: LRDM Signals/Controls Schematics

GM1416235

Courtesy of GENERAL MOTORS CORP.

Fig 9: RRDM Power, Ground and DLC Schematics

GM1416223

Courtesy of GENERAL MOTORS CORP.

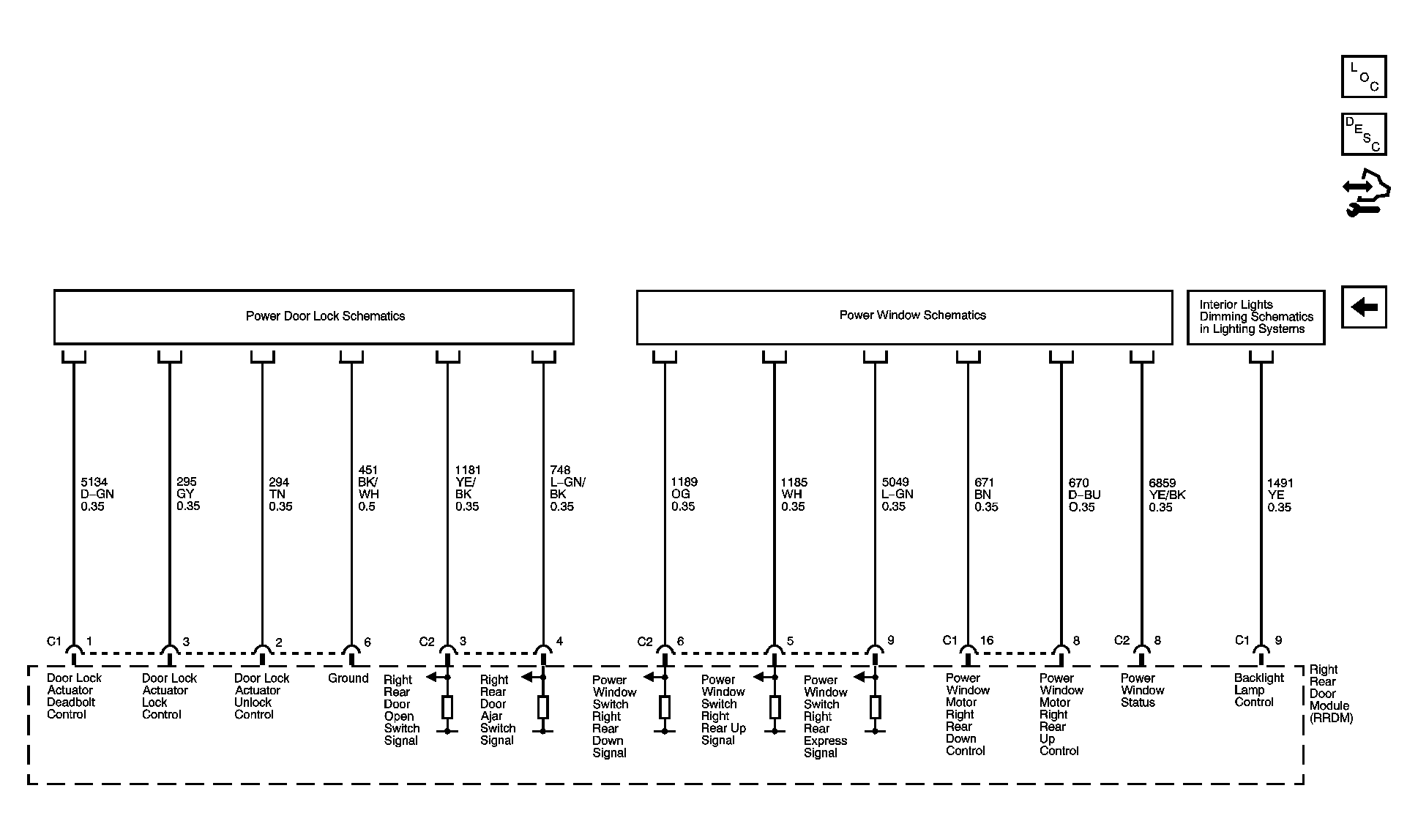

Fig 10: RRDM Signals/Controls Schematics

GM1416211

Courtesy of GENERAL MOTORS CORP.
