Automatic Transmission Shift Lock Control Connector End Views

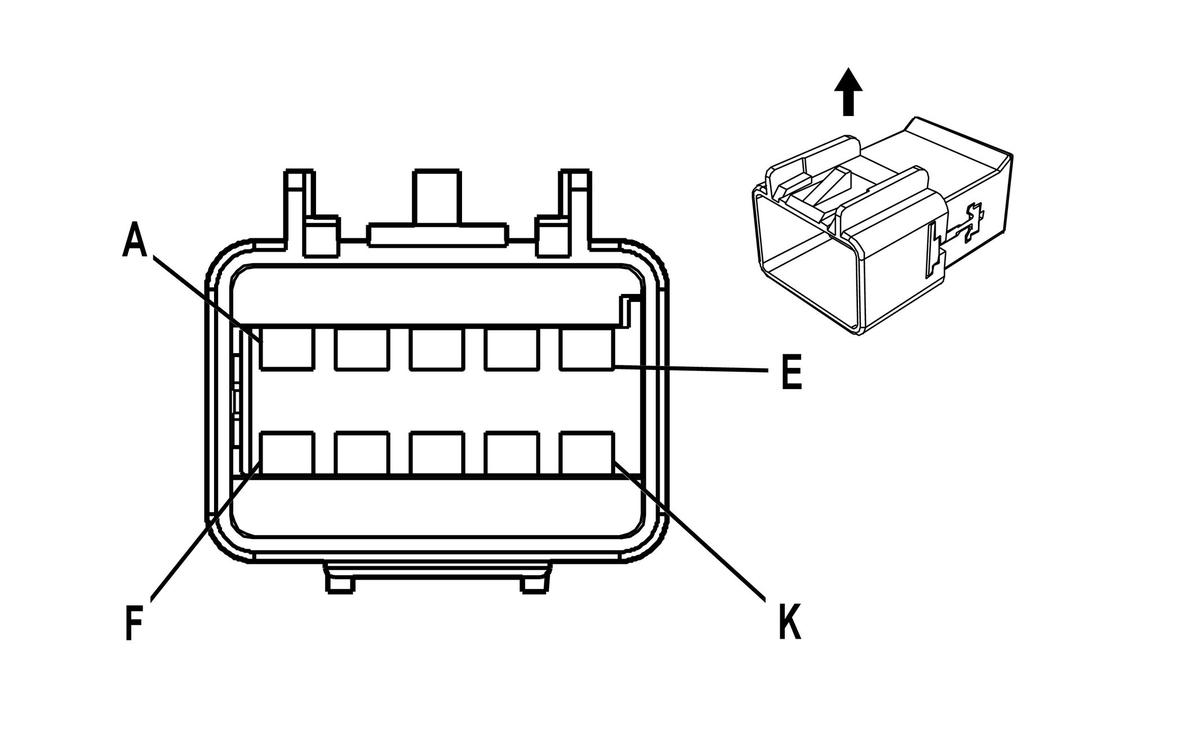

Automatic Transmission Shift Lever Assembly Connector End View

Courtesy of GENERAL MOTORS CORP.				Courtesy of GENERAL MOTORS CORP.
Connector Part Information		OEM: 15332153 Service: 10-Way F GT 150 Series (BK)		Connector Part Information		OEM: 15332158 Service: 10-Way M GT 150 Series (BK)
Terminal Part Information		Terminal: Terminal Seal: Release Tool: Core Crimp: Insulation Crimp: Test Probe:		Terminal Part Information		Terminal: Terminal Seal: Release Tool: Core Crimp: Insulation Crimp: Test Probe:
Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	D-GN/YE	6847	Shift Select Switch Park Supply Voltage	A	PU	6847	Shift Select Switch Park Supply Voltage
B	D-GN	5525	Tap Up/Tap Down Trans Enable Switch	B	PK	5525	Tap Up/Tap Down Trans Enable Switch
C	YE	1491	Backlight Lamps Control	C	D-BU	1491	Backlight Lamps Control
D	BN	41	Run Ignition 3 Voltage	D	D-GN	41	Run Ignition 3 Voltage
E	RD/WH	3940	Battery Positive Voltage	E	RD-GN/WH	3940	Battery Positive Voltage
F	D-GN/WH	1932	Ignition Lock Cylinder Control Actuator Supply Voltage	F	RD	1932	Ignition Lock Cylinder Control Actuator Supply Voltage
G	BK	450	Ground	G	BK	450	Ground
H	PU	5526	TCC Brake Switch	H	PU	5526	TCC Brake Switch
J	-	-	Not Used	J	-	-	Not Used
K	D-GN/WH	1135	A/T Shift Lock Control Solenoid Supply Voltage	K	D-GN/WH	1135	A/T Shift Lock Control Solenoid Supply Voltage
