Installation Procedure

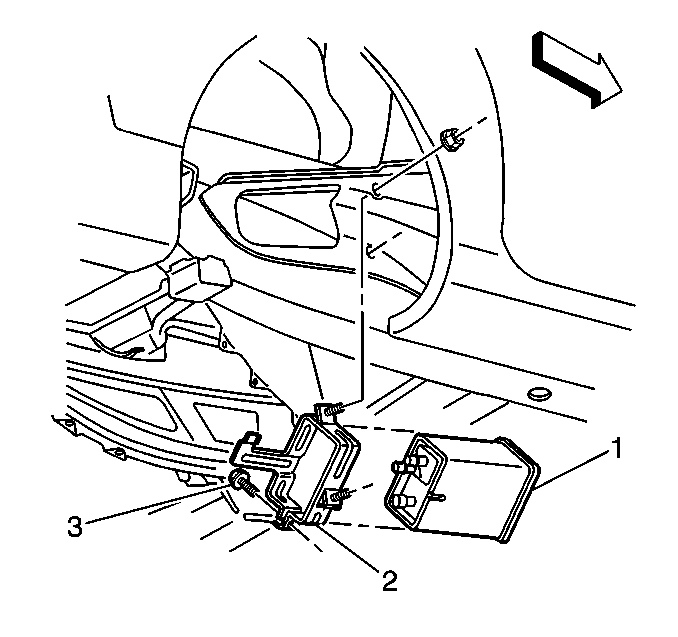

    Fig 1: View Of EVAP Canister
    GM561136Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to the Fastener Notice in Cautions and Notices.
  1. Install the new EVAP canister (1) to the EVAP canister bracket (2).
  2. Install the EVAP canister bracket bolt (3).

    Tighten:  Tighten the EVAP canister bracket bolt to 7 N.m (62 lb in).

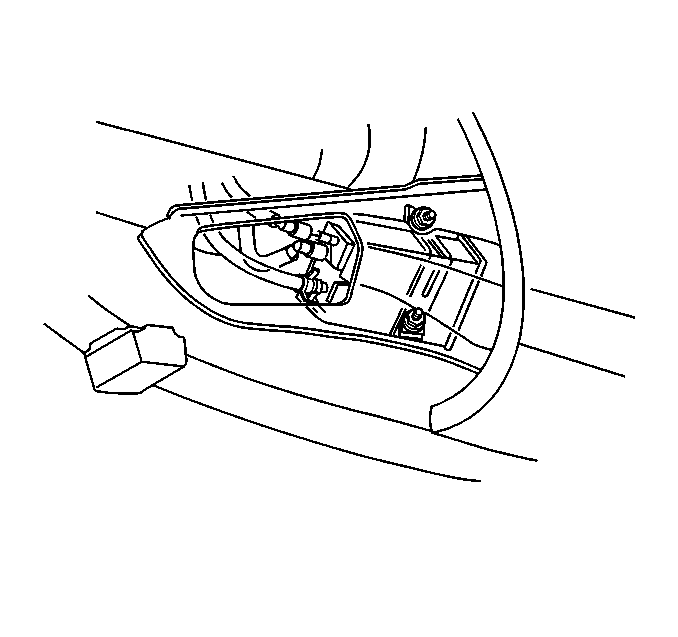

    3. Fig 2: View Of EVAP Canister Purge Pipe
    GM609762Courtesy of GENERAL MOTORS CORP.
  3. Connect the purge pipe at the EVAP canister.

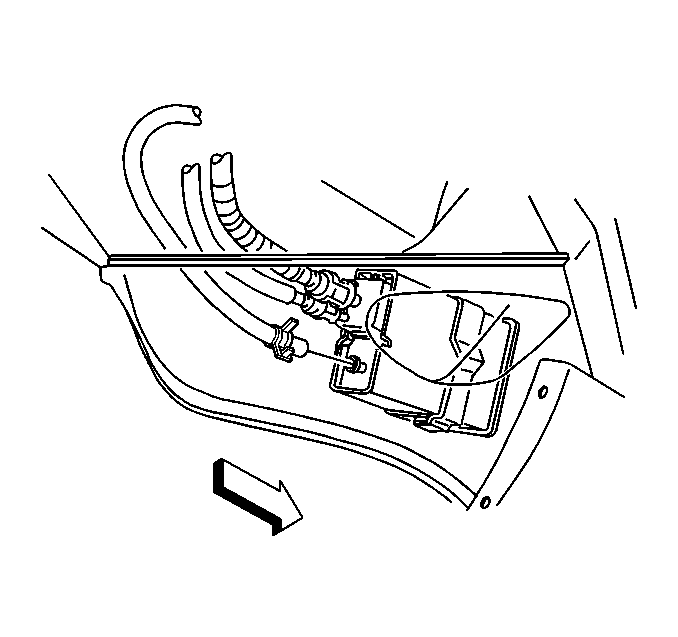

    4. Fig 3: View Of EVAP Canister Vent Hose
    GM561128Courtesy of GENERAL MOTORS CORP.
  4. Connect the vent hose to the EVAP canister.
  5. Install the right fuel tank. Refer to Fuel Tank Replacement - Right .
