Component Location

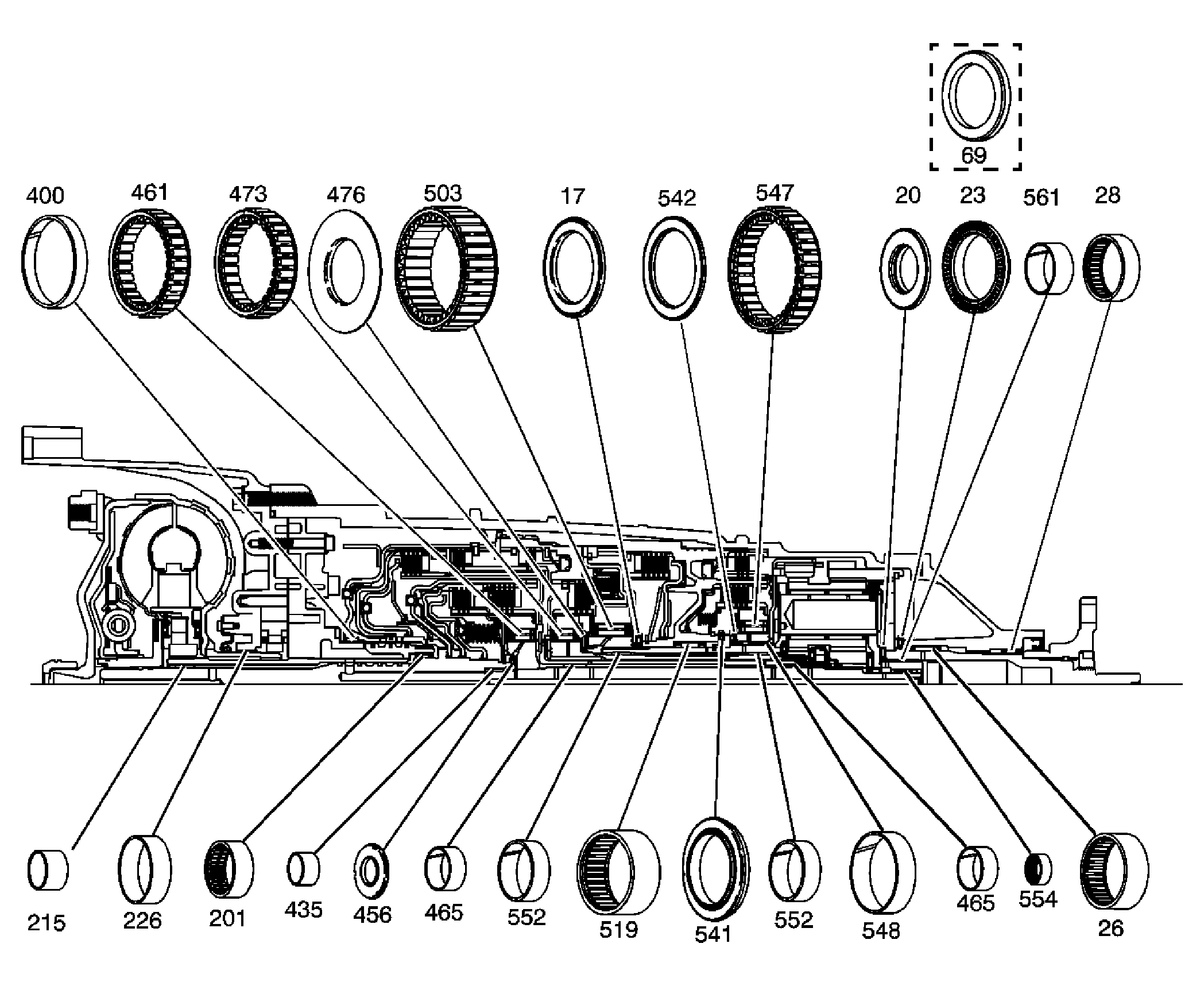

Fig 1: Transmission Bushing & Bearing Locations

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
17	Low Clutch Roller Thrust Bearing
20	Input and Reaction Carrier Thrust Bearing
23	Input and Reaction Carrier Thrust Bearing
26	Output Shaft Bearing
28	Output Shaft Bearing
201	Input Shaft Bearing Assembly
215	Turbine Shaft Bushing
226	Torque Converter Bushing
400	Reverse Clutch Housing Bushing
435	Forward Clutch Bushing
456	Forward Clutch Roller Inner Bearing
461	Forward Clutch Sprag Assembly
465	Input and Reaction Carrier Bushing Assembly - 2
465	Input and Reaction Carrier Bushing Assembly - 2
473	Intermediate Clutch Sprag Assembly
476	Intermediate Clutch Roller Thrust Bearing Assembly
503	Low Clutch Sprag Assembly
519	Input and Reaction Bearing Assembly
541	Input and Reaction Bearing Assembly
542	2nd Clutch Roller Inner Race Bearing Assembly
547	2nd Clutch Sprag Assembly
548	Input and Reaction Carrier Bushing
552	Reaction Carrier Bushing - 2
552	Reaction Carrier Bushing - 2
554	Input and Reaction Bearing Assembly
561	Input and Reaction Carrier Bushing

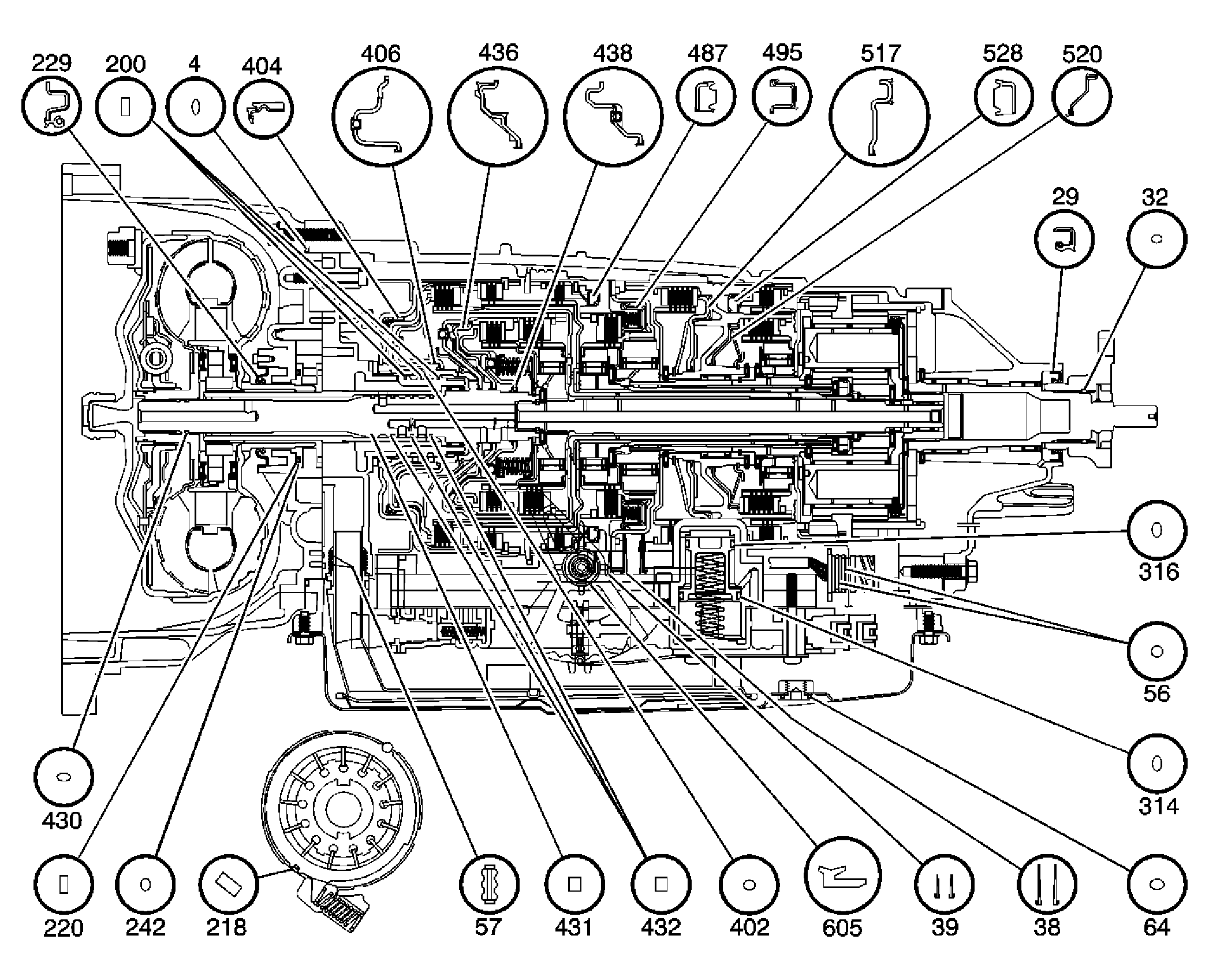

Fig 2: Transmission Seal Locations

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
4	Torque Converter Housing Fluid Seal Assembly
29	Transmission Prop Shaft Flange Seal
32	Transmission Prop Shaft Flange - O-ring Seal
38	Center Support Fluid Passage Sleeve
39	Overdrive Clutch Fluid Passage Sleeve
56	A/Transmission Wiring Harness - O-ring Seal - 2
57	Automatic Transmission Filter Seal - 2
64	Automatic Transmission Fluid Pan Drain Plug Seal
200	Reverse Clutch Housing Fluid Seal Ring - 3
218	Automatic Transmission Fluid Pump Slide Seal
220	Automatic Transmission Fluid Pump Slide Ring
229	Torque Converter Housing Seal
242	Automatic Transmission Fluid Pump Slide O-ring Seal
314	Clutch Accumulator Piston Fluid Seal Ring
316	Clutch Accumulator Piston Fluid Seal Ring
402	Reverse Clutch Piston Inner Seal
404	Reverse Clutch Piston
406	Direct Clutch Piston Assembly
430	Input Shaft - O-Ring Seal
431	Input Shaft Fluid Seal Ring
432	Input Shaft Fluid Seal Ring - 3
436	Forward Clutch Piston Assembly
438	Coast Clutch Piston Assembly
487	Overdrive Clutch Piston Assembly
495	Intermediate Clutch Piston Assembly
517	Low and Reverse Clutch Piston
520	2nd Clutch Piston
528	2nd Coast Clutch Piston Assembly
605	Manual Shift Shaft Seal
