Installation Procedure

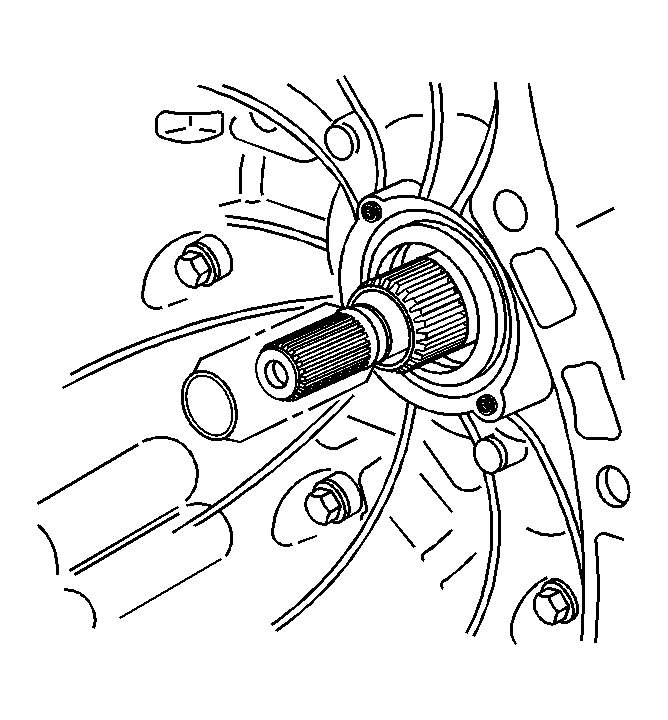

    Fig 1: Installing Input Shaft Seal
    GM848536Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Take care to prevent cutting of the input shaft seal on the input shaft splines.
  1. Install the input shaft seal. Refer to Seal Replacement - Torque Converter .
    2. Fig 2: View Of Torque Converter
    GM792797Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Ensure the torque converter is fully seated into the transmission pump drive gear and turbine shaft.
  2. Install the torque converter. Push the torque converter into position while rotating.
    • The torque converter must be fully seated on the turbine shaft
    • The torque converter must be fully seated in the pump drive gear
  3. Install the transmission to the vehicle. Refer to Transmission Replacement .
