Cadillac
›
2006
›
CTS Base, 2.8 T, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Controls - 2.8L - Introduction (2 Of 2)
›
Schematic and Routing Diagrams
›
Engine Controls Schematics
›
Controlled/Monitored Subsystem References Schematics
Controlled/Monitored Subsystem References Schematics

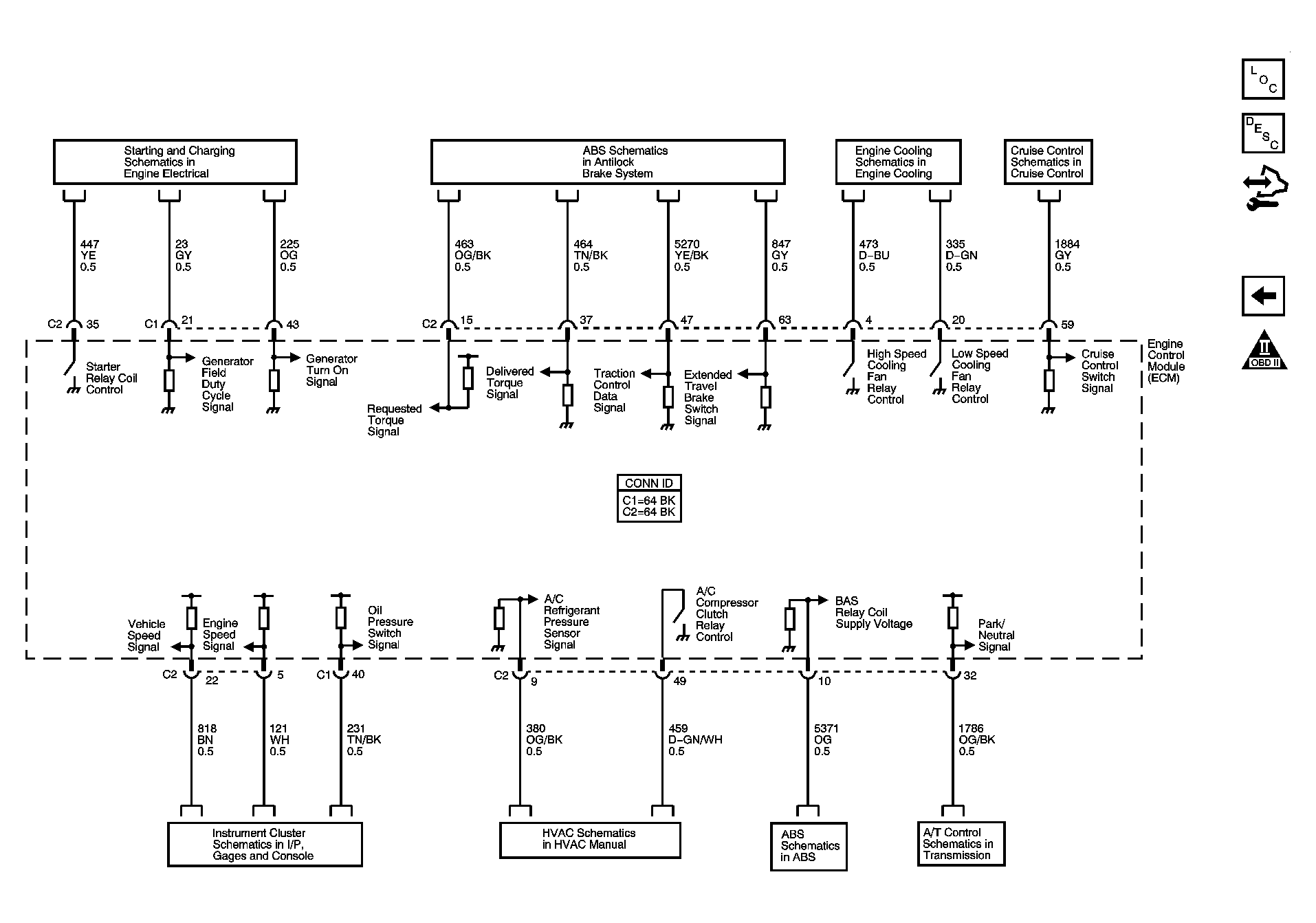

Fig 1: Controlled/Monitored Subsystem References
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
