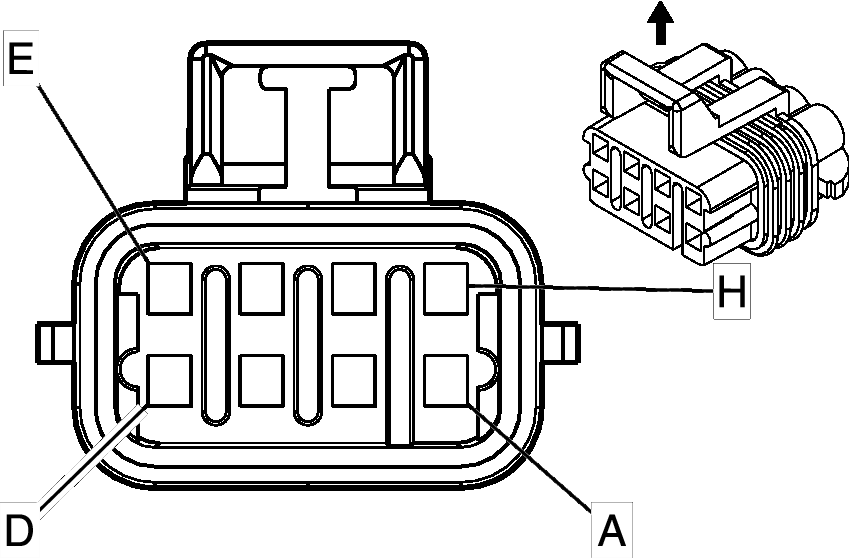

Ignition Coil/Module Even Connector End View

Ignition Coil/Module Even

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12047938 8-Way F Metri-Pack 150 Series (L-GY)
Pin	Wire Color	Circuit No.	Function
A	BK/WH	1551	Ground
B	OG/WH	2122	Ignition Control (2)
C	D-GN/WH	2124	Ignition Control (4)
D	-	-	Unavailable
E	BN/WH	2130	Ignition Control Low Reference Bank 2
F	L-BU/WH	2126	Ignition Control (6)
G	PU/WH	2128	Ignition Control (8)
H	PK/BK	5291	Powertrain Main Relay Fused Supply
