Steering Controls Component Views

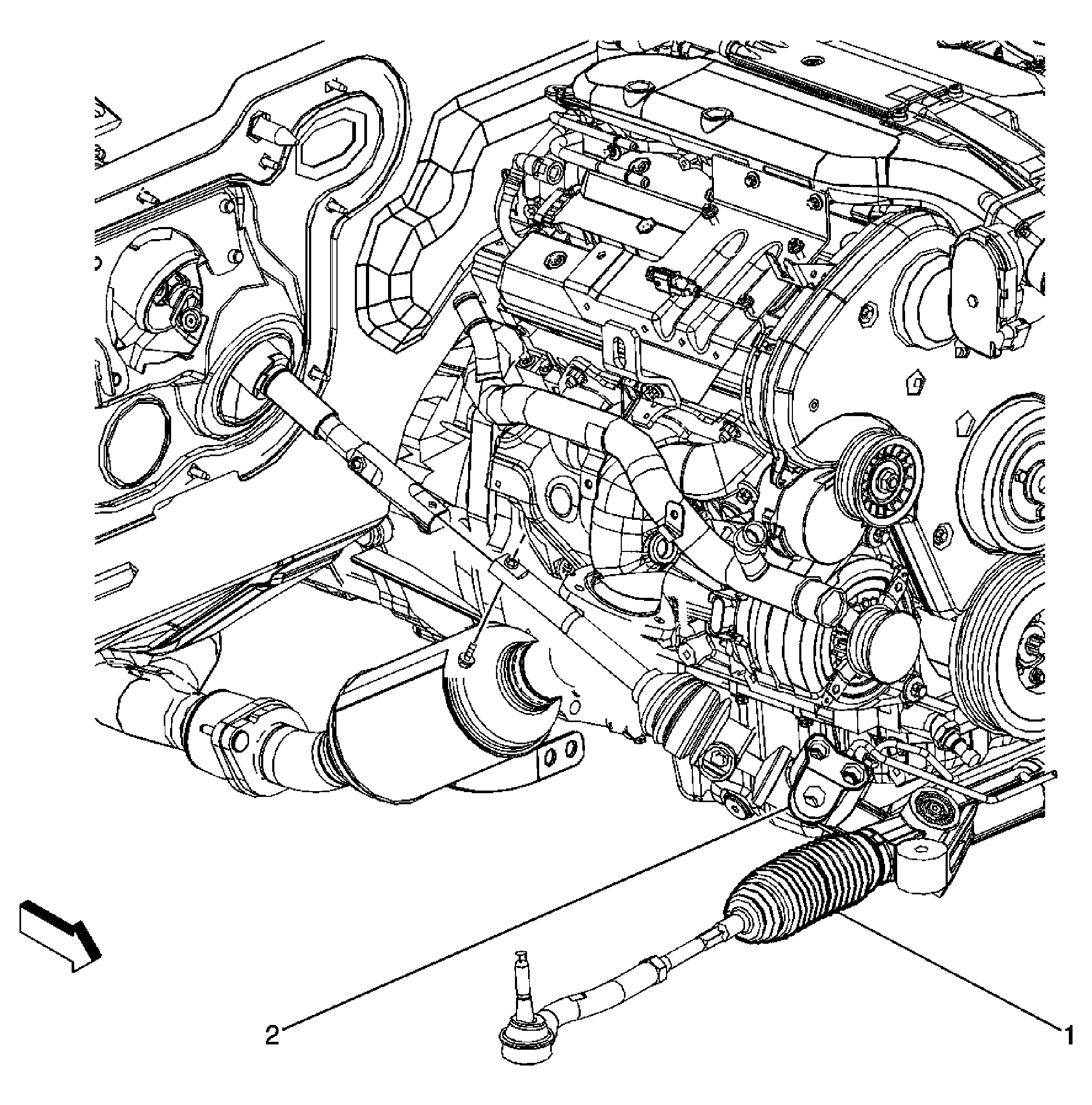

Fig 1: Lower Left Side Of Engine Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Power Steering Rack (LHD)
2	Variable Effort Steering Actuator (LHD)
3	Variable Effort Steering Actuator Wiring Harness

Fig 2: Variable Effort Steering Actuator (RHD w/FE3) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Power Steering Rack (RHD)
2	Variable Effort Steering Actuator (RHD)
