Automatic Transmission Shift Lock Control Schematics
Automatic Transmission Shift Lock Control Schematics

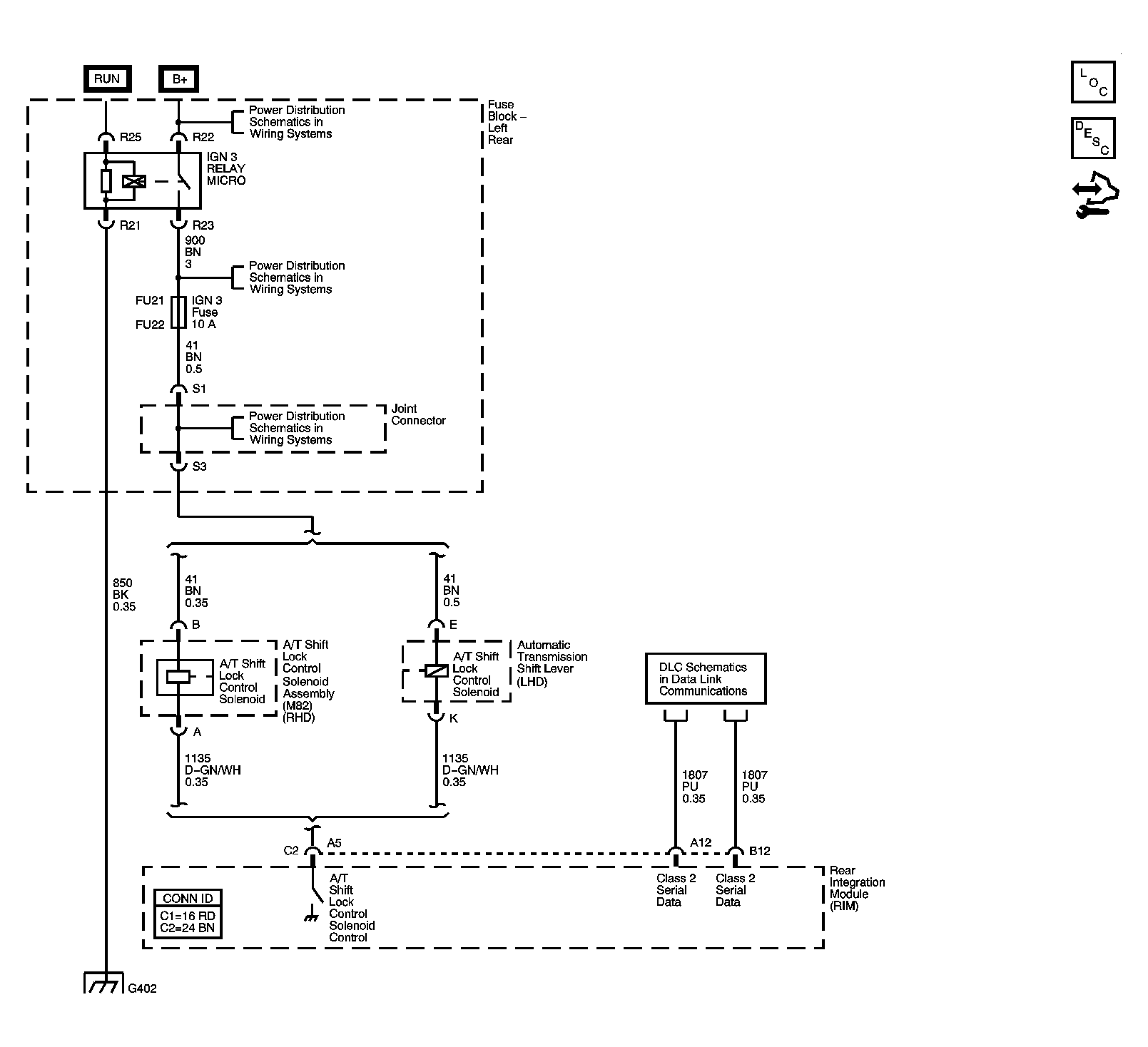

Fig 1: A/T Shift Lock Control (M82)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
