Armrest Bracket Replacement
Armrest Bracket Replacement

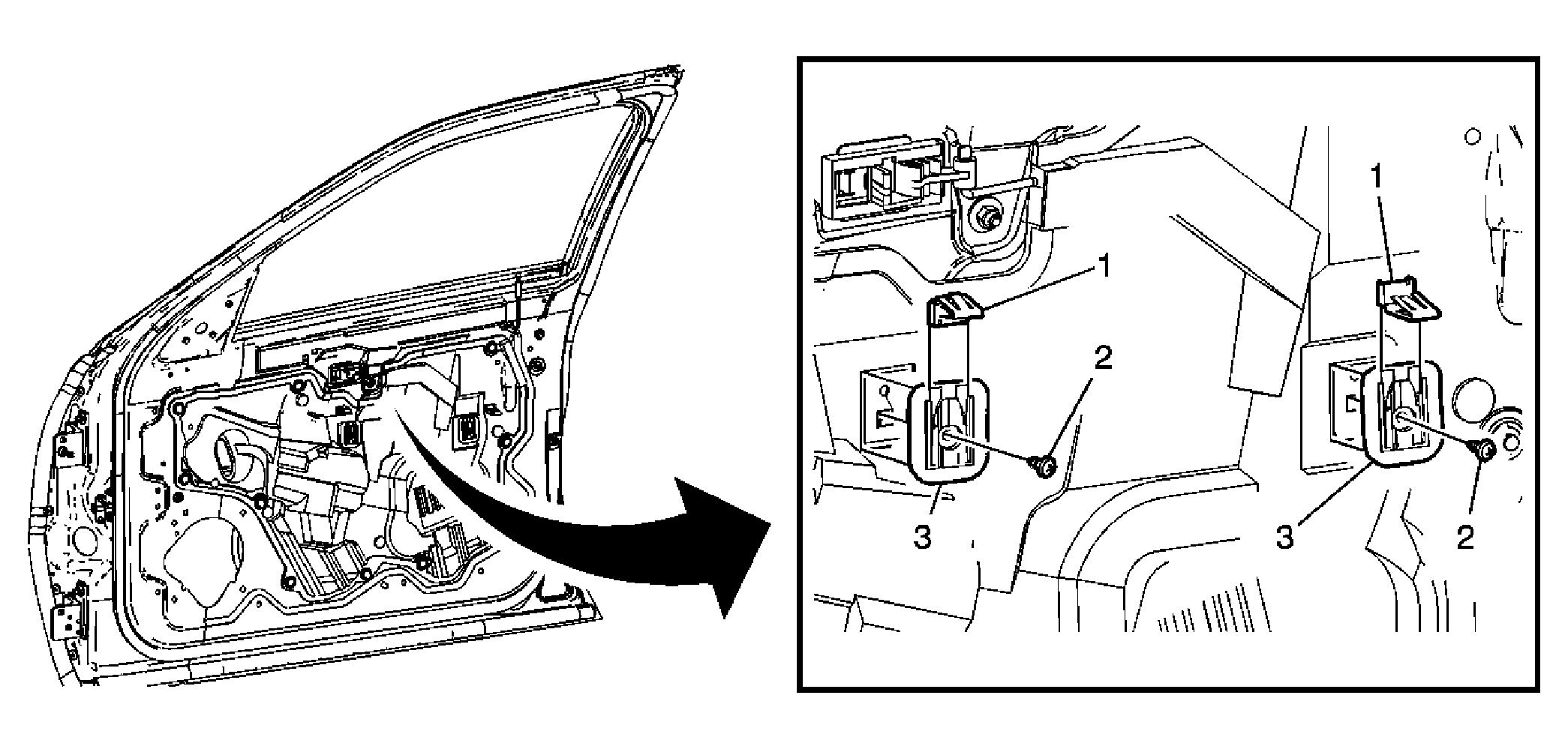

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the interior trim panel. Refer to Trim Panel Replacement - Side Front Door . |
|
| 1 | Clip, Armrest Bracket Tip: Pull the armrest bracket clip upward to remove it from the bracket. |
| 2 | Screw, Armrest Bracket Tighten: 2 N.m (18 lb in) |
| 3 | Bracket, Door Armrest |
