Rear Seat Lumbar Control Switch Replacement
WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
Lumbar Switch Replacement - Rear

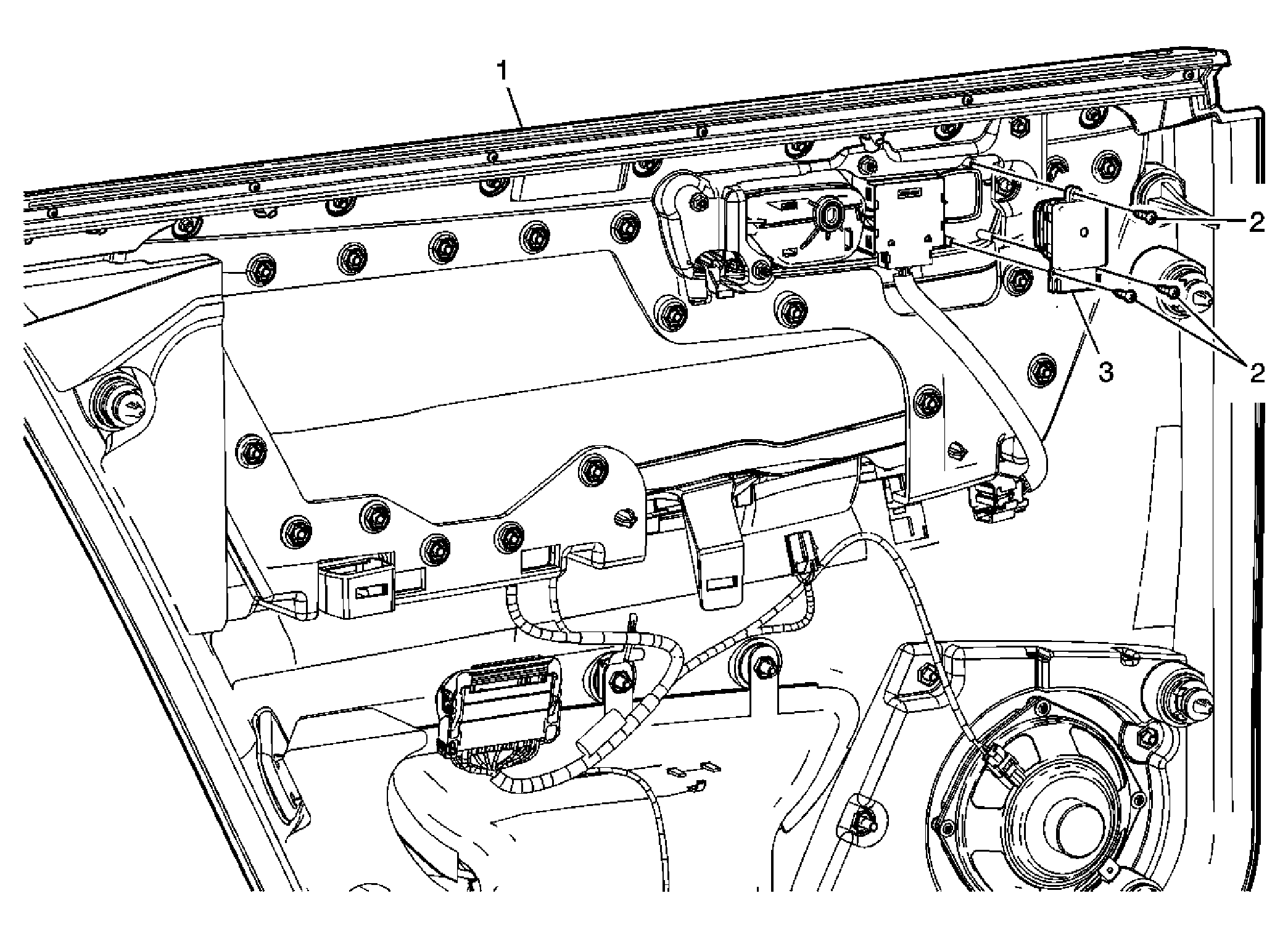

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the rear side door trim panel. Refer to Rear Side Door Trim Panel Replacement
. |
|
| 1 | Trim Assembly, Rear Side Door |
| 2 | Screw, Rear Seat Lumbar Control Switch (Qty: 3) Tighten: 2 N.m (18 lb in) |
| 3 | Switch, Rear Seat Lumbar Control Tip: Disconnect the electrical connector. |
