Object Detection Schematics

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

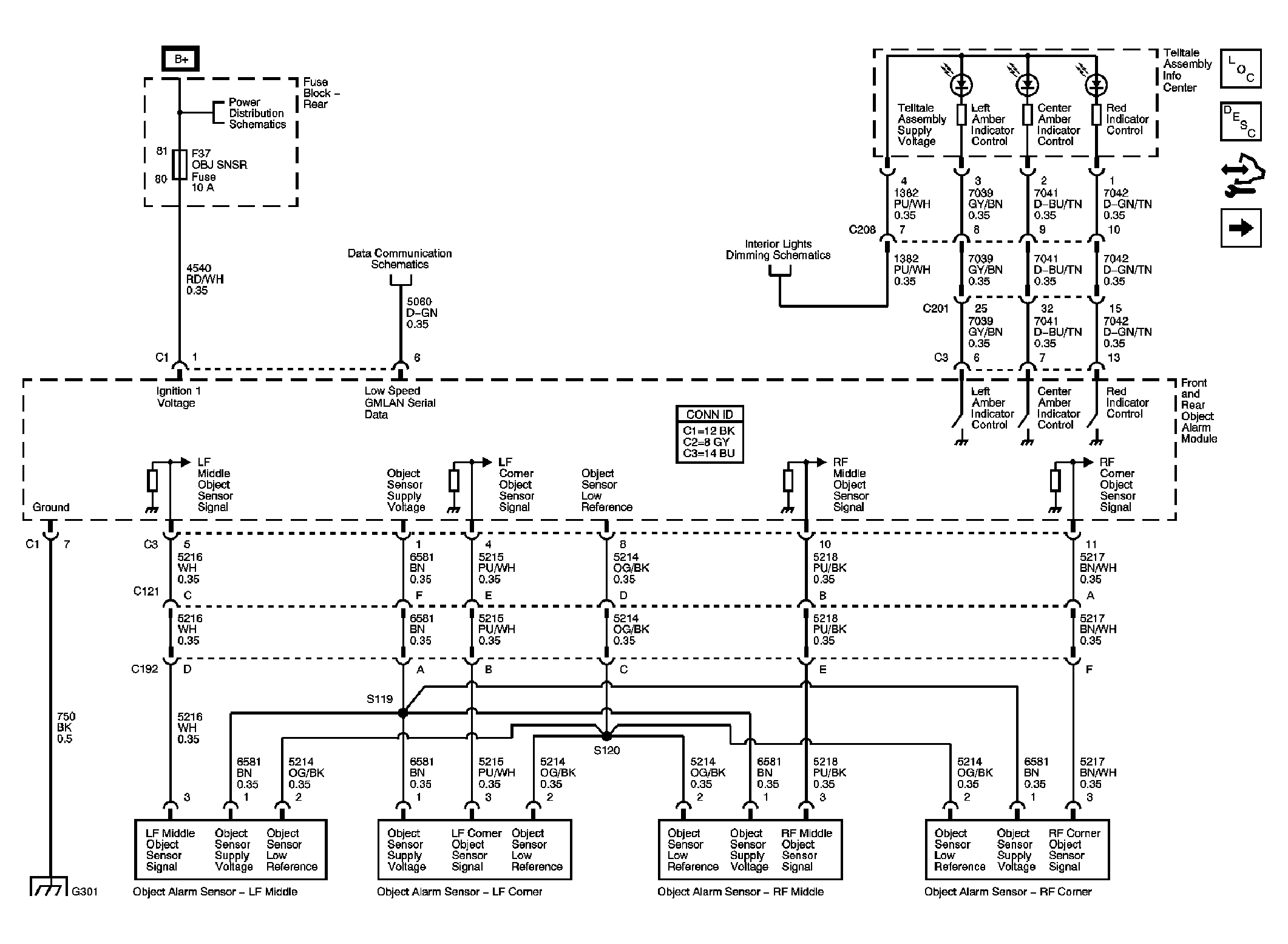

Fig 1: Front Park Assist Schematics - UFR

Courtesy of GENERAL MOTORS CORP.

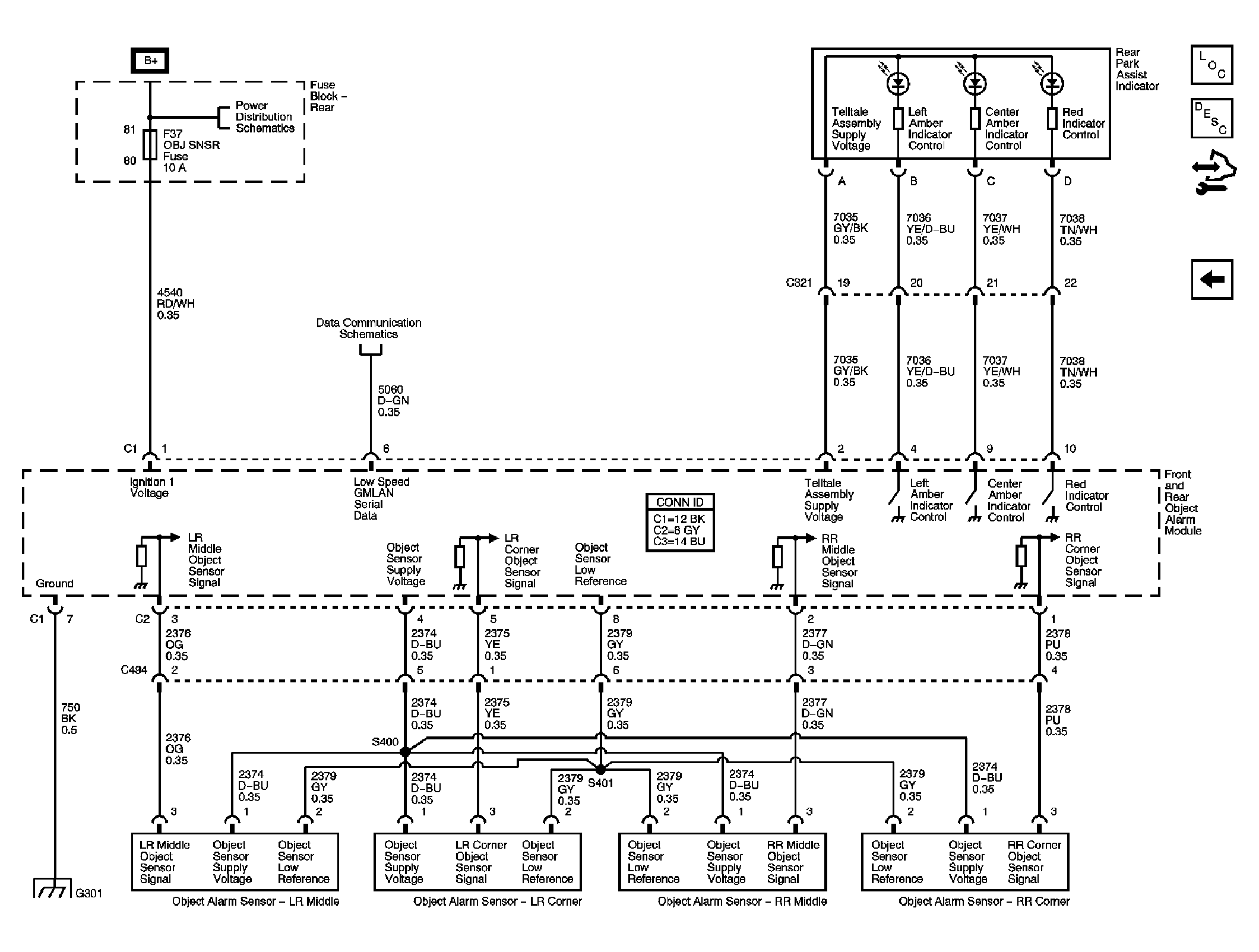

Fig 2: Rear Park Assist Schematics - UFR

Courtesy of GENERAL MOTORS CORP.
