Front and Rear Object Alarm Module (UFR) C3

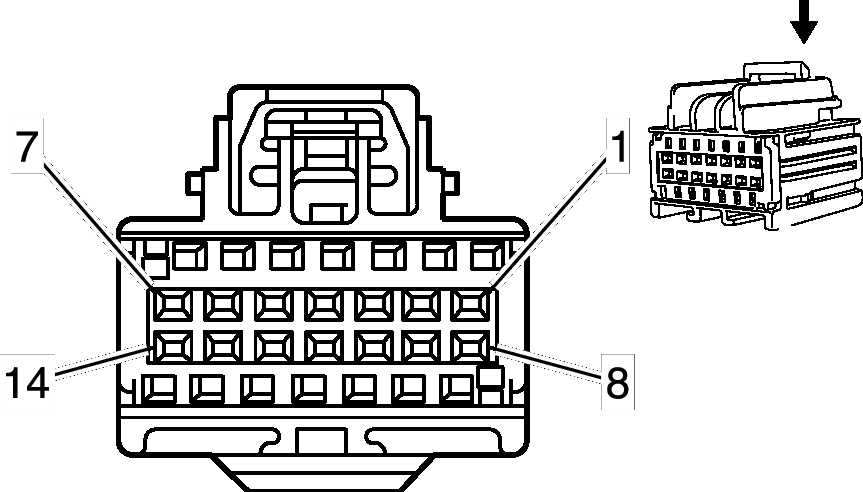

Fig 1: Front and Rear Object Alarm Module (UFR) C3 Connector

Courtesy of GENERAL MOTORS CORP.

Object Detection Connector End Views

Connector Part Information  OEM: 7283-9068-90 Service: See Catalog Description: 14-Way F (BU)

Terminal Part Information  Terminal/Tray: TBD Core/Insulation Crimp: TBD Release Tool/Test Probe: TBD

Front and Rear Object Alarm Module (UFR) C3

Pin	Wire Color	Circuit No.	Function
1	BN	6581	Front Parking Aid Display Supply Voltage
4	PU/WH	5215	Front Parking Left Corner Sensor
5	WH	5216	Front Parking Left Mid Sensor
6	GY/BN	7039	Front Parking Aid Yellow LED 1
7	D-BU/TN	7041	Front Parking Aid Yellow LED 2
8	OG/BK	5214	Front Parking Sensor Low Reference
10	PU/BK	5218	Front Parking Right Mid Sensor
11	BN/WH	5217	Front Parking Right Corner Sensor
13	D-GN/TN	7042	Front Parking Aid Red LED
