Keyless Entry Schematics

Fig 1: Remote Control Door Lock Receiver - RCDLR
GM1616377Courtesy of GENERAL MOTORS CORP.

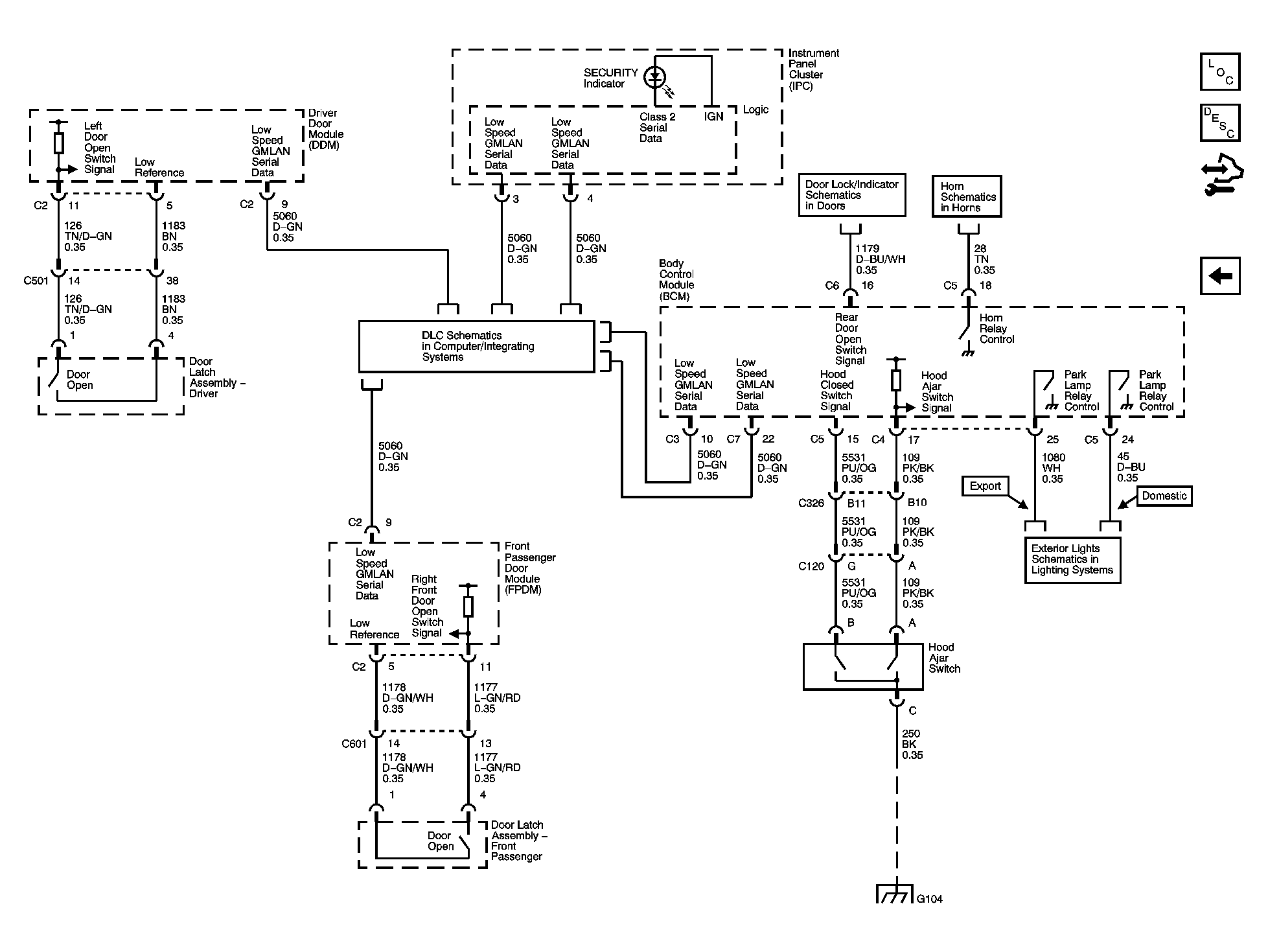

Fig 2: Door Latch Assemblies and Hood Ajar Switch
GM1616379Courtesy of GENERAL MOTORS CORP.
