Heated Seat Control Module Replacement - Rear

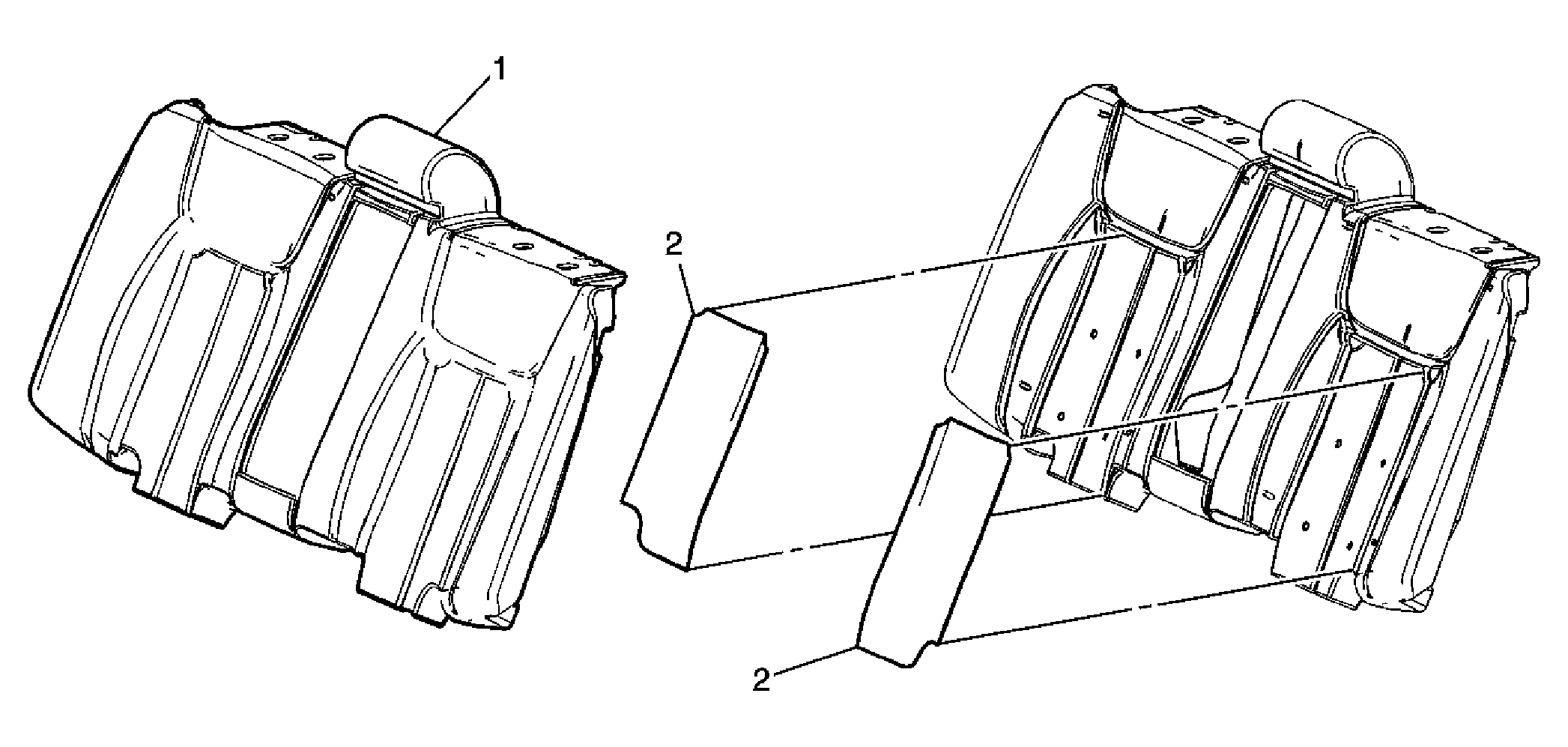

Fig 1: Heated Seat Control Module Replacement - Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the rear seat back cushion. Refer to Seat Back Replacement - Rear . Remove the rear seat armrest. Refer to Armrest Replacement - Rear Seat . Remove the rear seat back cushion cover and pad. Refer to Seat Back Cover and Pad Replacement - Rear .
1	Screws. Rear Seat Heater Control Module (Qty: 2) Tip: Remove the hog rings that secure the cover to the frame. Tighten: 2 N.m (18 lb in)
2	Module, Rear Seat Heater Control Module Tip: Disconnect the electrical connector.

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Remove the rear seat back cushion. Refer to Seat Back Replacement - Rear .
Remove the rear seat armrest. Refer to Armrest Replacement - Rear Seat .
Remove the rear seat back cushion cover and pad. Refer to Seat Back Cover and Pad Replacement - Rear .

Screws. Rear Seat Heater Control Module (Qty: 2)
Tip: Remove the hog rings that secure the cover to the frame.

Tighten: 2 N.m (18 lb in)

Module, Rear Seat Heater Control Module
Tip: Disconnect the electrical connector.
