Schematic and Routing Diagrams
›
Navigation System Schematics
Navigation System Schematics

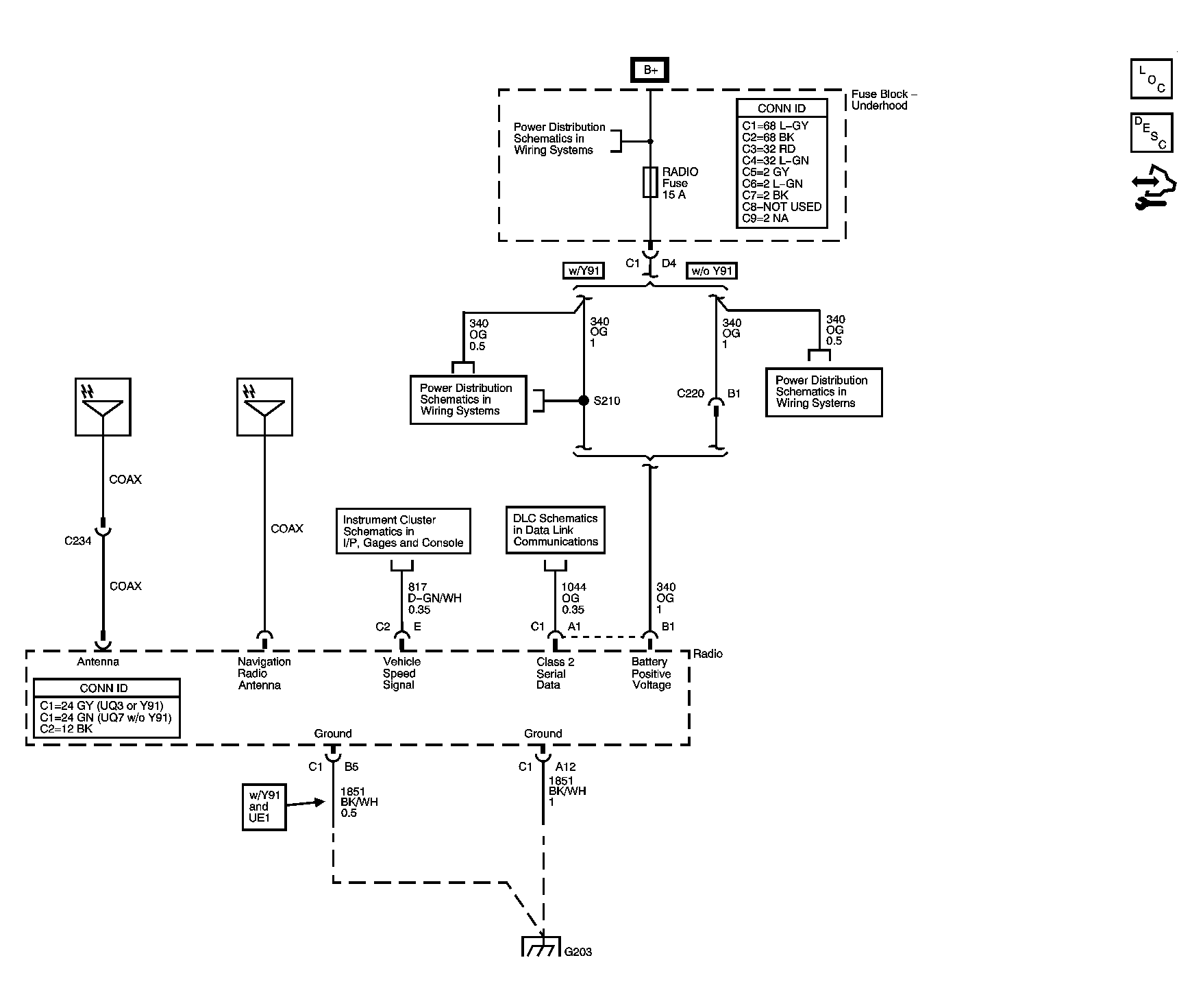

Fig 1: Navigation System Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
