Power Window Schematics

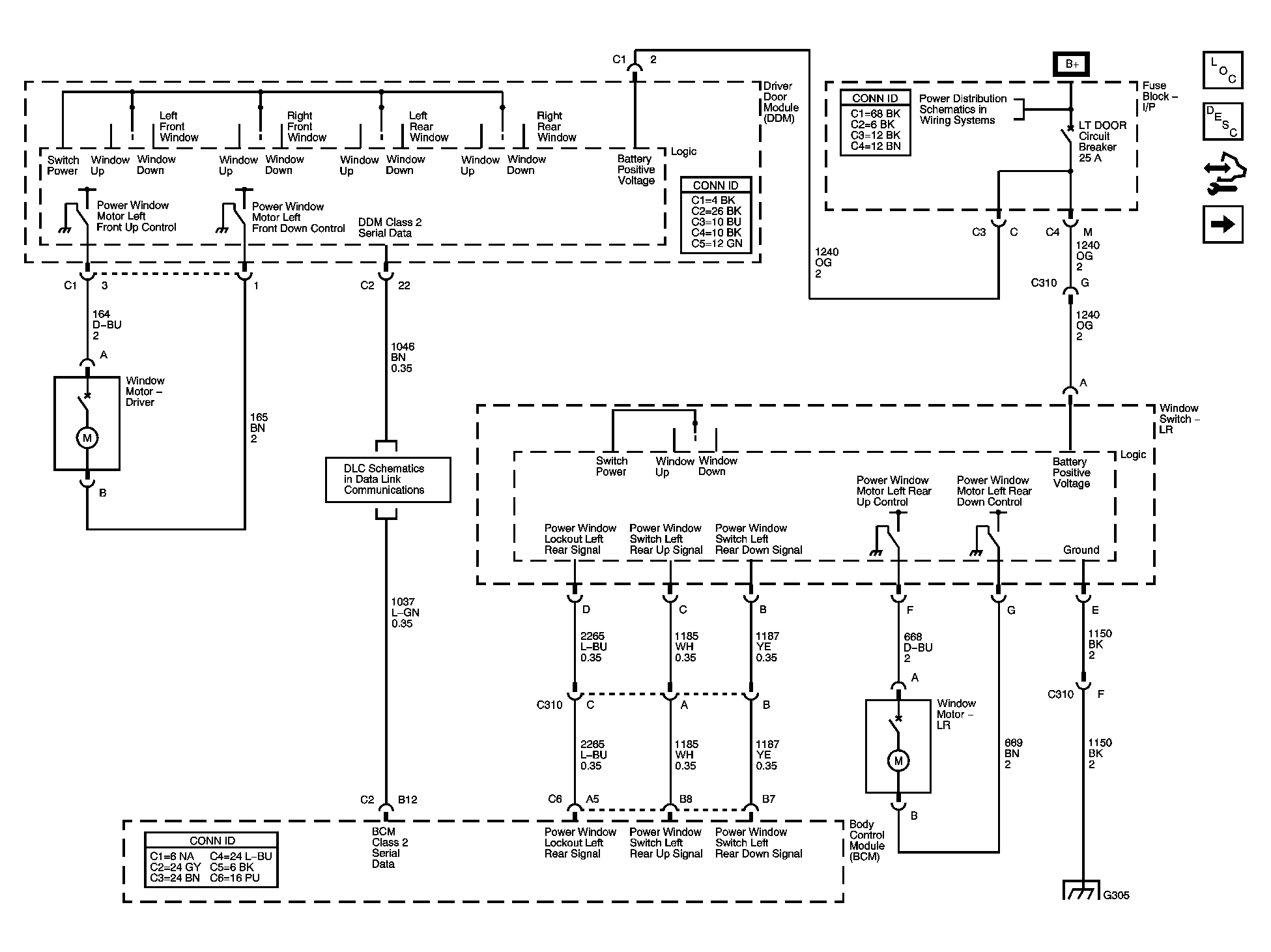

Fig 1: Left Doors
GM1608108Courtesy of GENERAL MOTORS CORP.

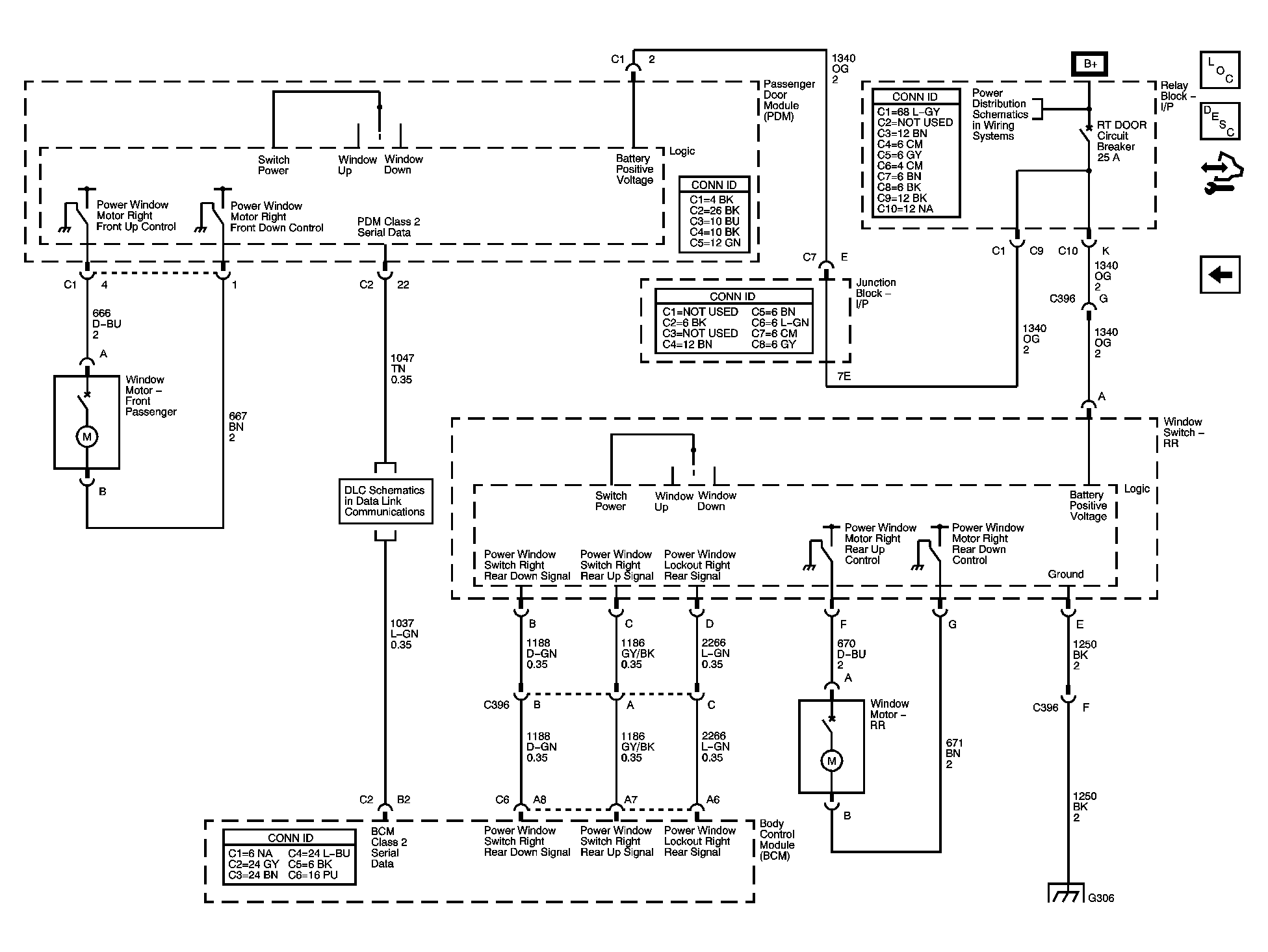

Fig 2: Right Doors
GM1608109Courtesy of GENERAL MOTORS CORP.
