ABS Wiring Schematics

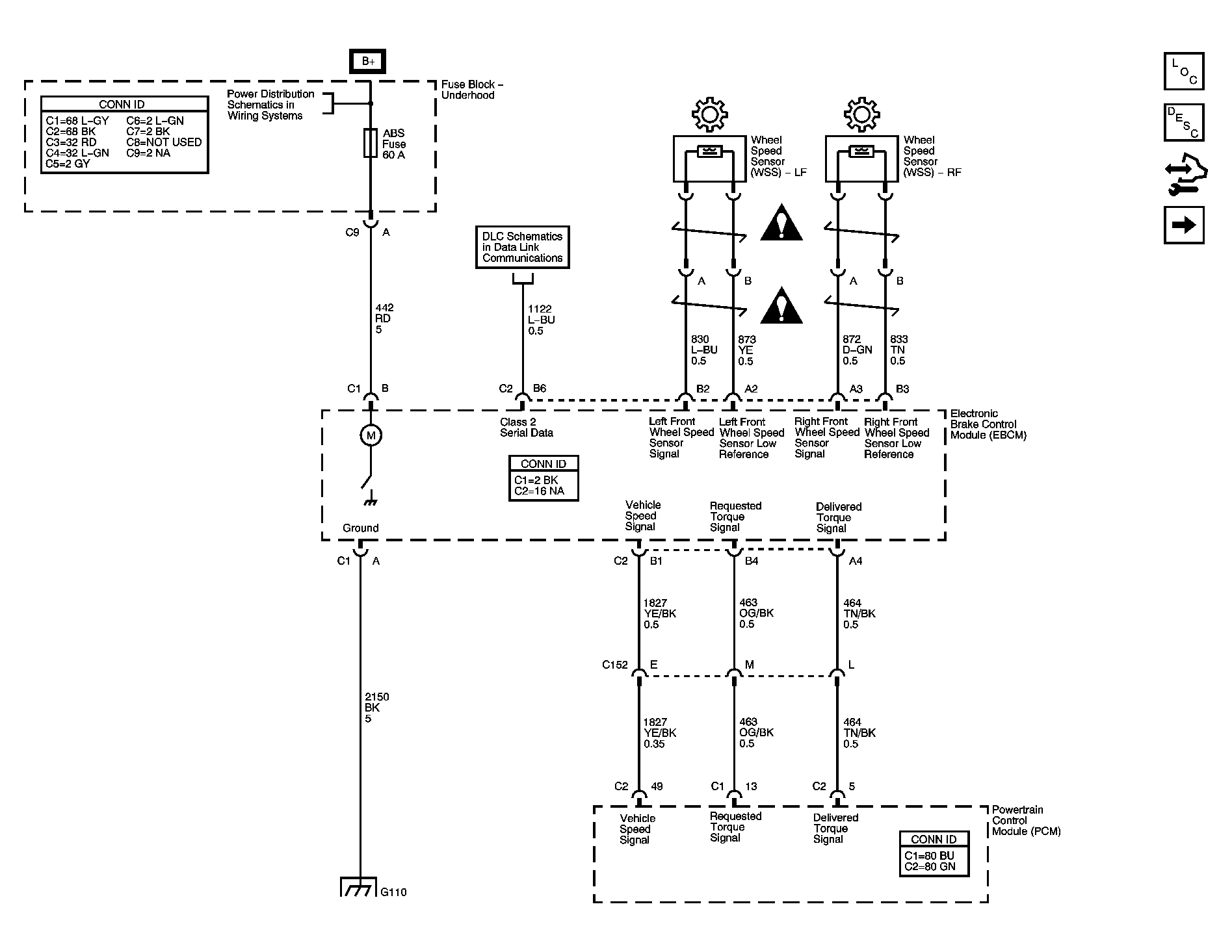

Fig 1: Power, Ground, Serial Data, and Wheel Speed Sensors - w/o JL4

Courtesy of GENERAL MOTORS CORP.

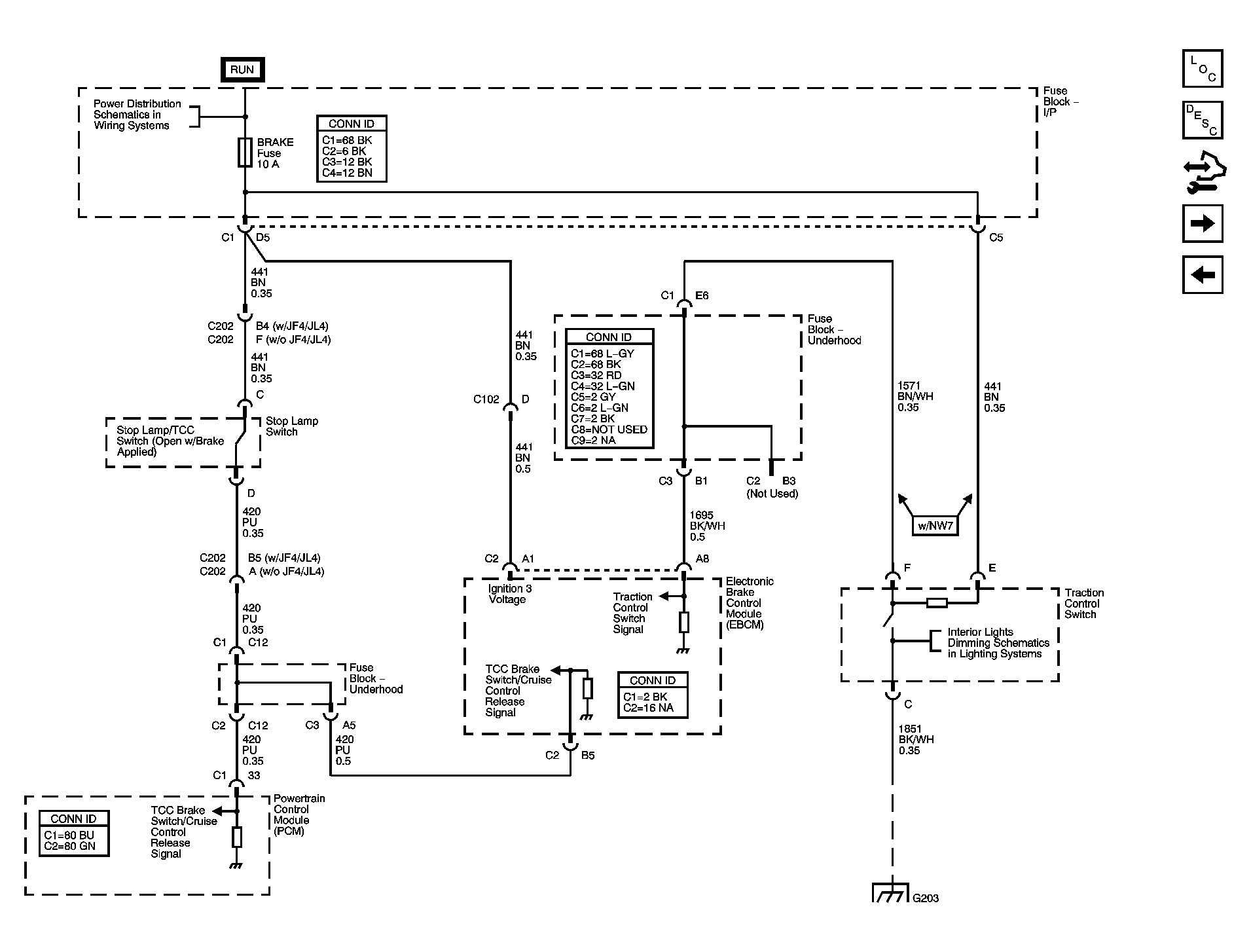

Fig 2: Stop Lamp Switch and Traction Control Switch - w/o JL4

Courtesy of GENERAL MOTORS CORP.

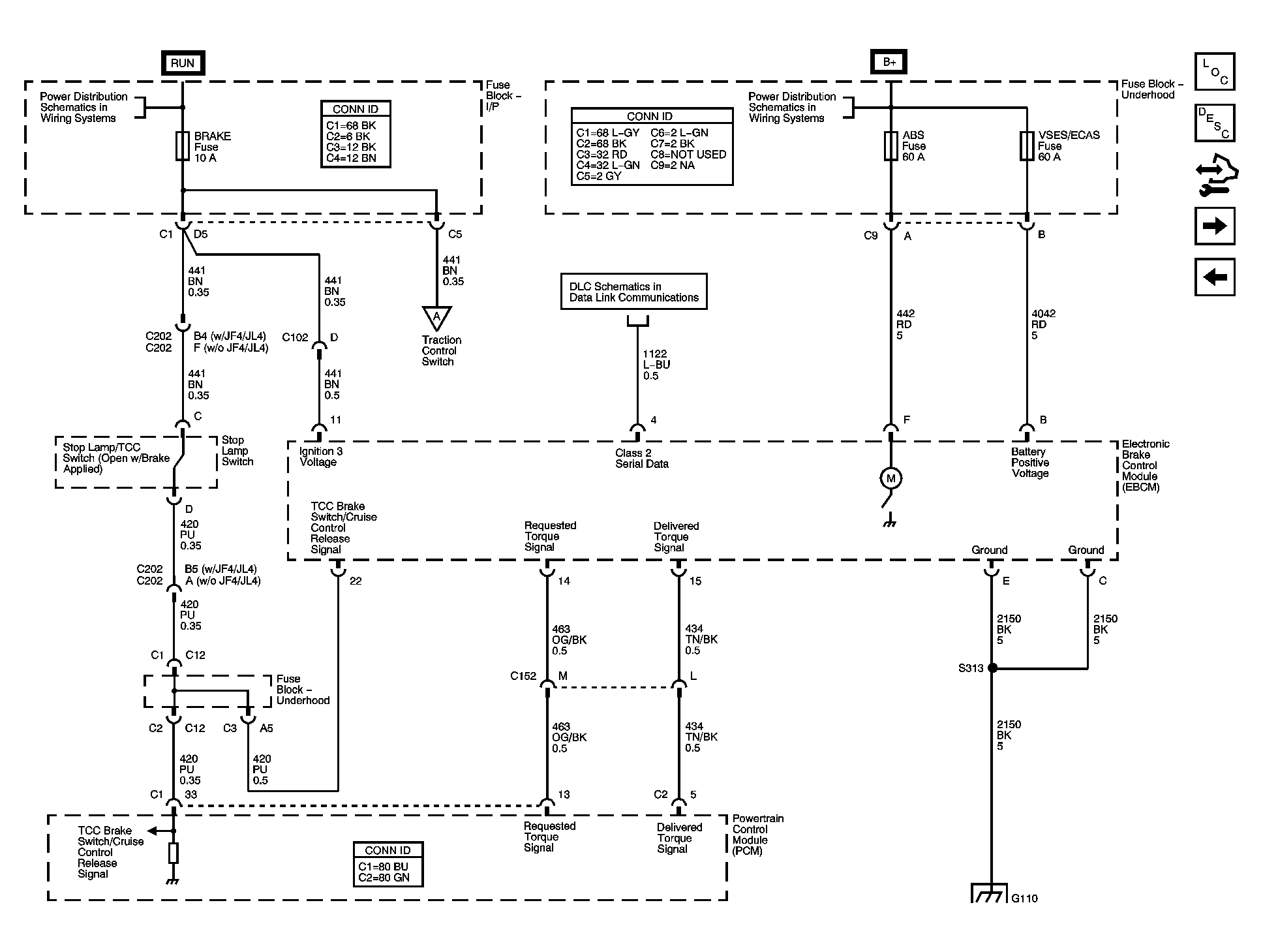

Fig 3: Power, Ground, Serial Data, and Stop Lamp Switch - w/JL4

Courtesy of GENERAL MOTORS CORP.

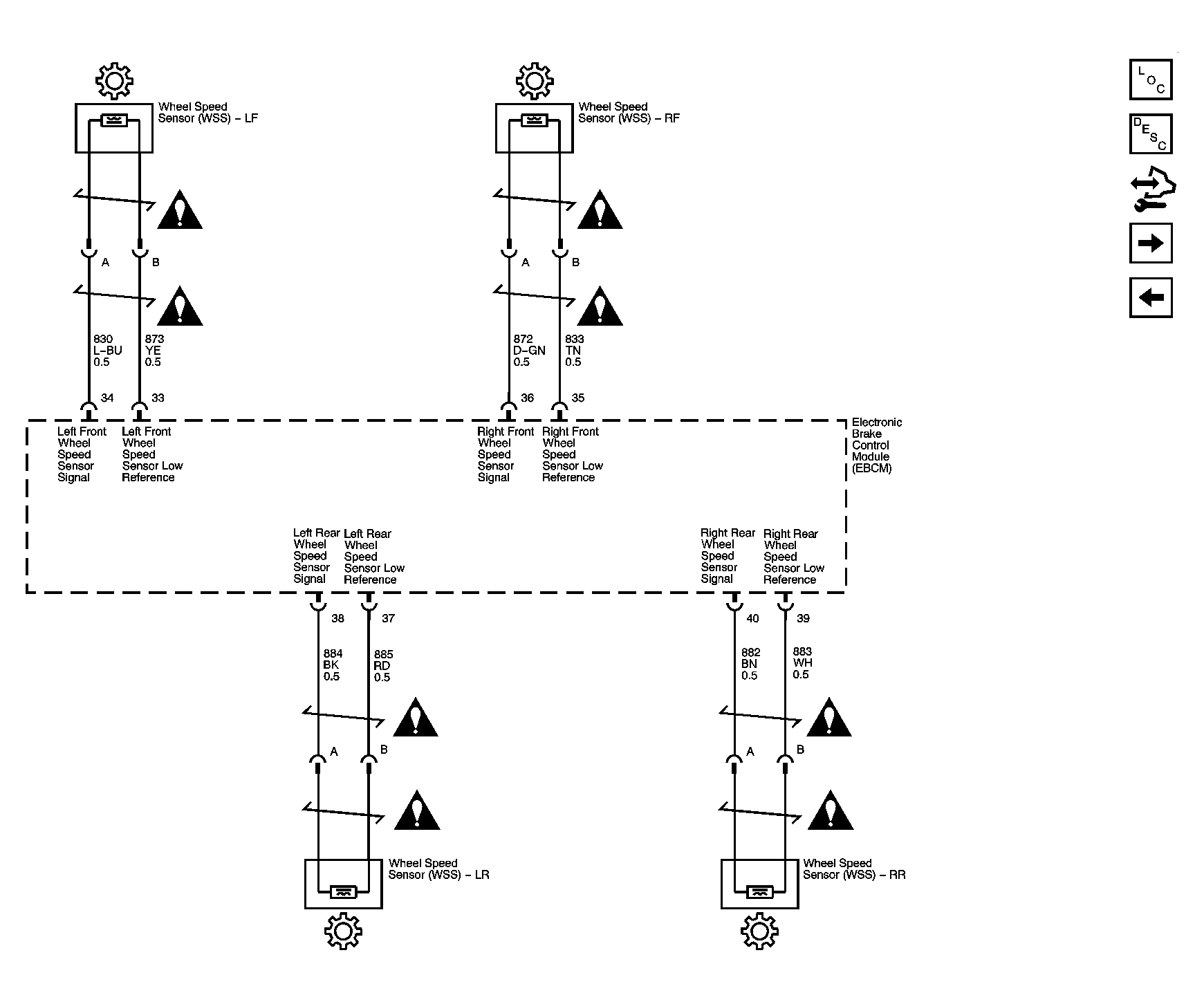

Fig 4: Wheel Speed Sensors - w/JL4

Courtesy of GENERAL MOTORS CORP.

Fig 5: Yaw and Lateral Acceleration Sensor Inputs - wJL4

Courtesy of GENERAL MOTORS CORP.

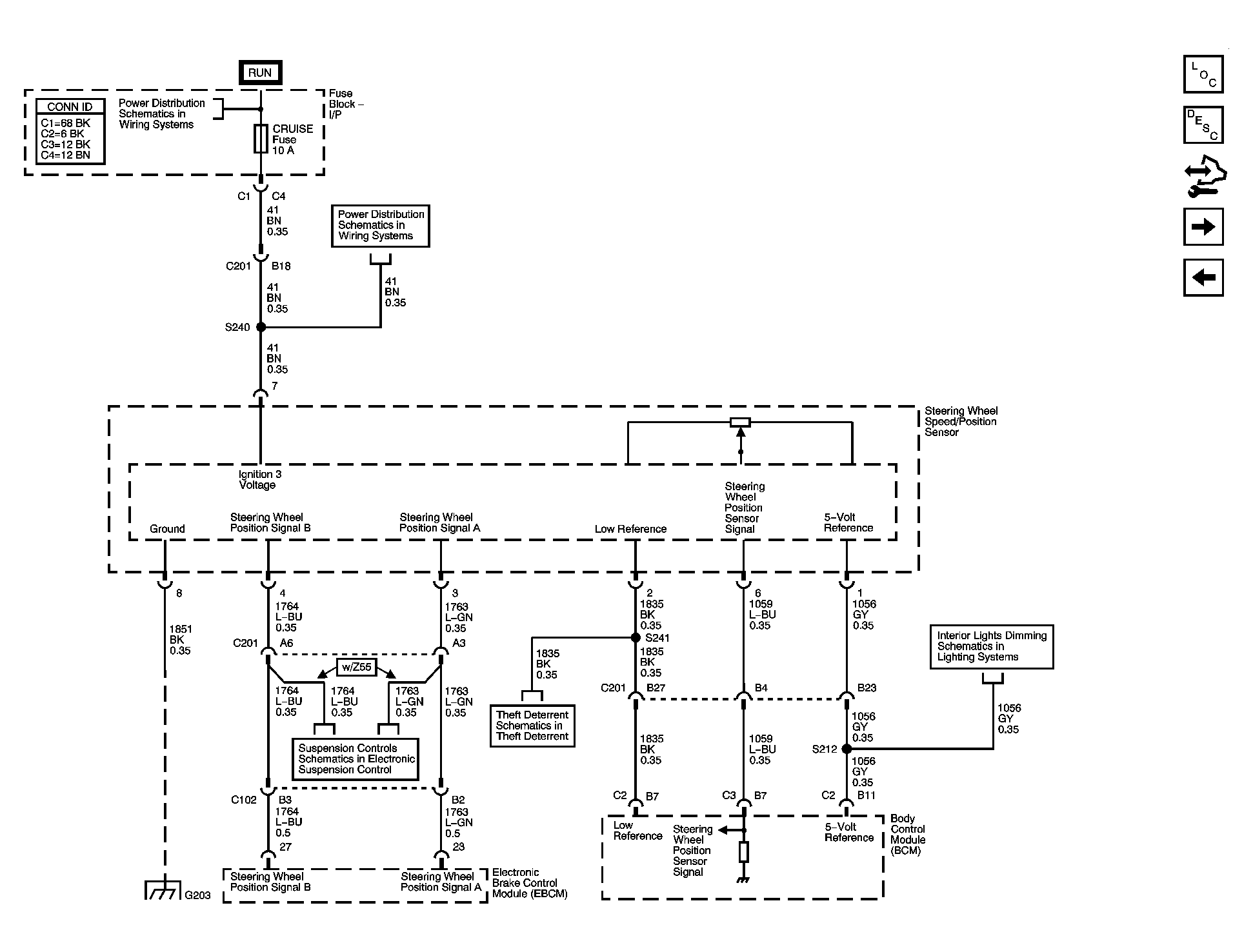

Fig 6: Steering Wheel Speed/Position Sensor Inputs - wJL4

Courtesy of GENERAL MOTORS CORP.

Fig 7: Traction Control Switch and Precharge Pump - wJL4

Courtesy of GENERAL MOTORS CORP.
