Fuse Block - Underhood Top View
Fuse Block - Underhood Top View

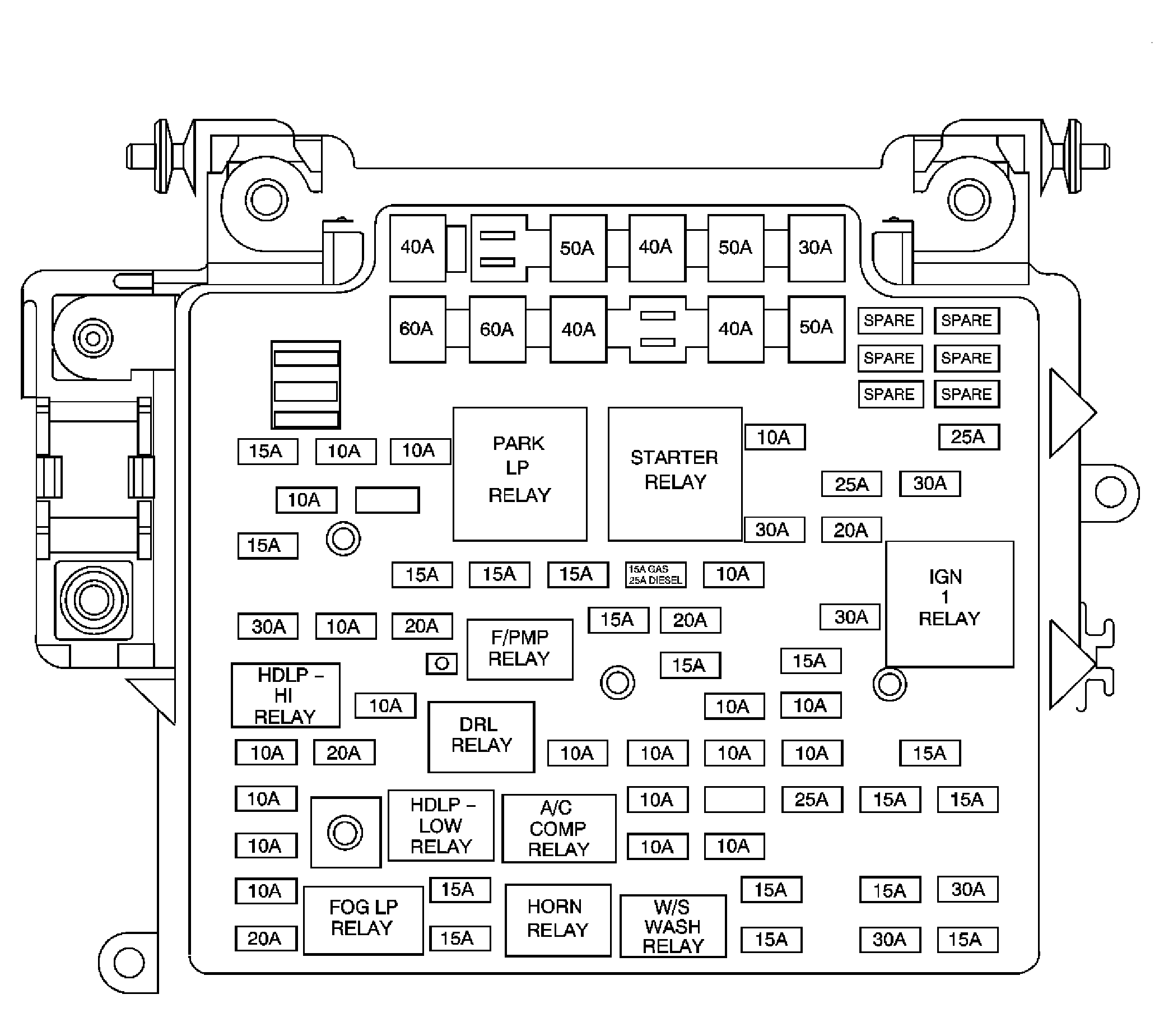

Fig 1: Fuse Block - Underhood Top View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
