Removal Procedure

NOTE: Handle the electronic throttle control components carefully. Use cleanliness in order to prevent damage. Do not drop the electronic throttle control components. Do not roughly handle the electronic throttle control components. Do not immerse the electronic throttle control components in cleaning solvents of any type.
    Fig 1: APP Sensor Electrical Connector

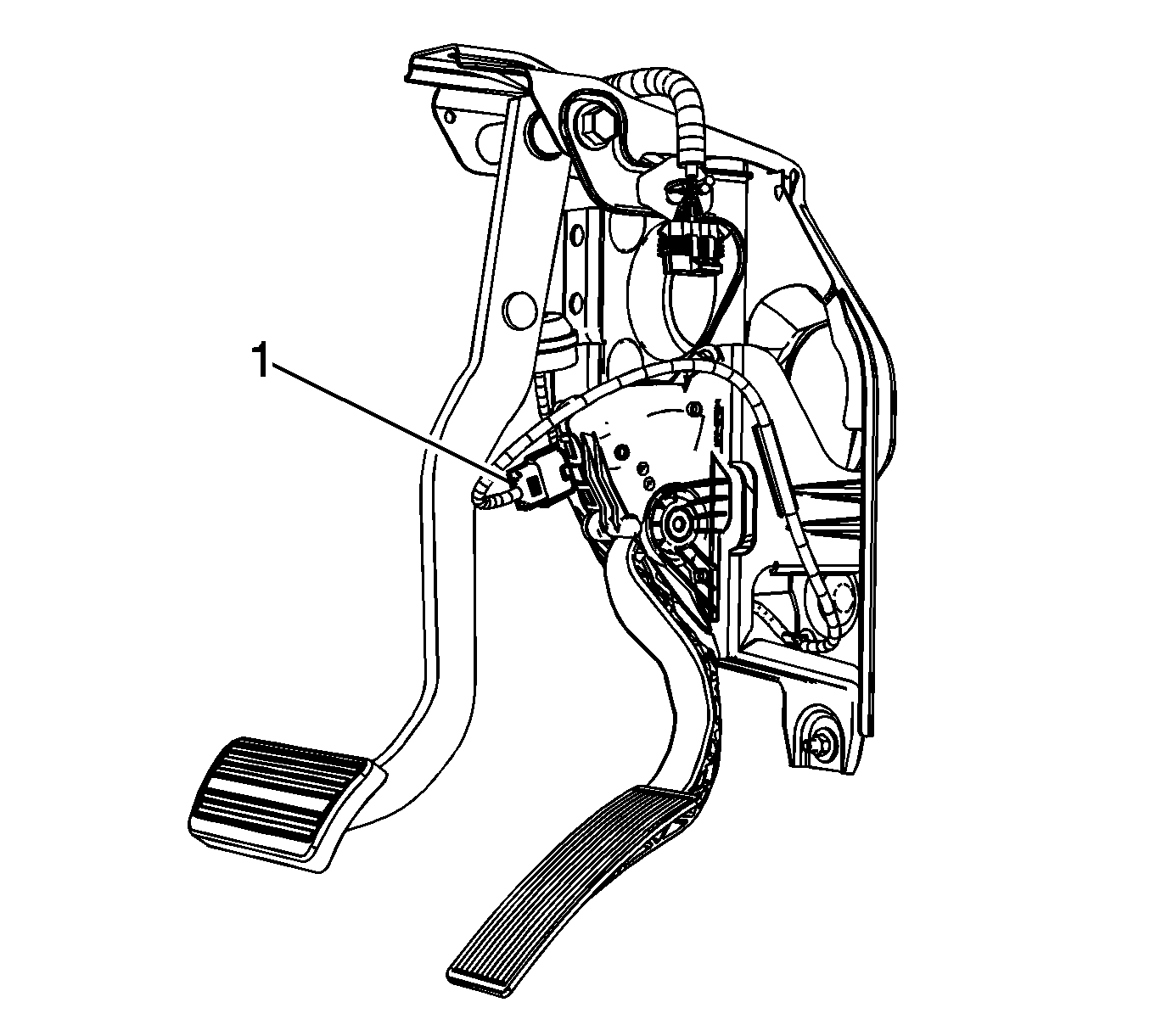

    GM1657866Courtesy of GENERAL MOTORS CORP.
  1. Remove the connector position assurance (CPA) retainer.
  2. Disconnect the accelerator pedal position (APP) sensor electrical connector (1).
    3. Fig 2: Accelerator Pedal Bolts

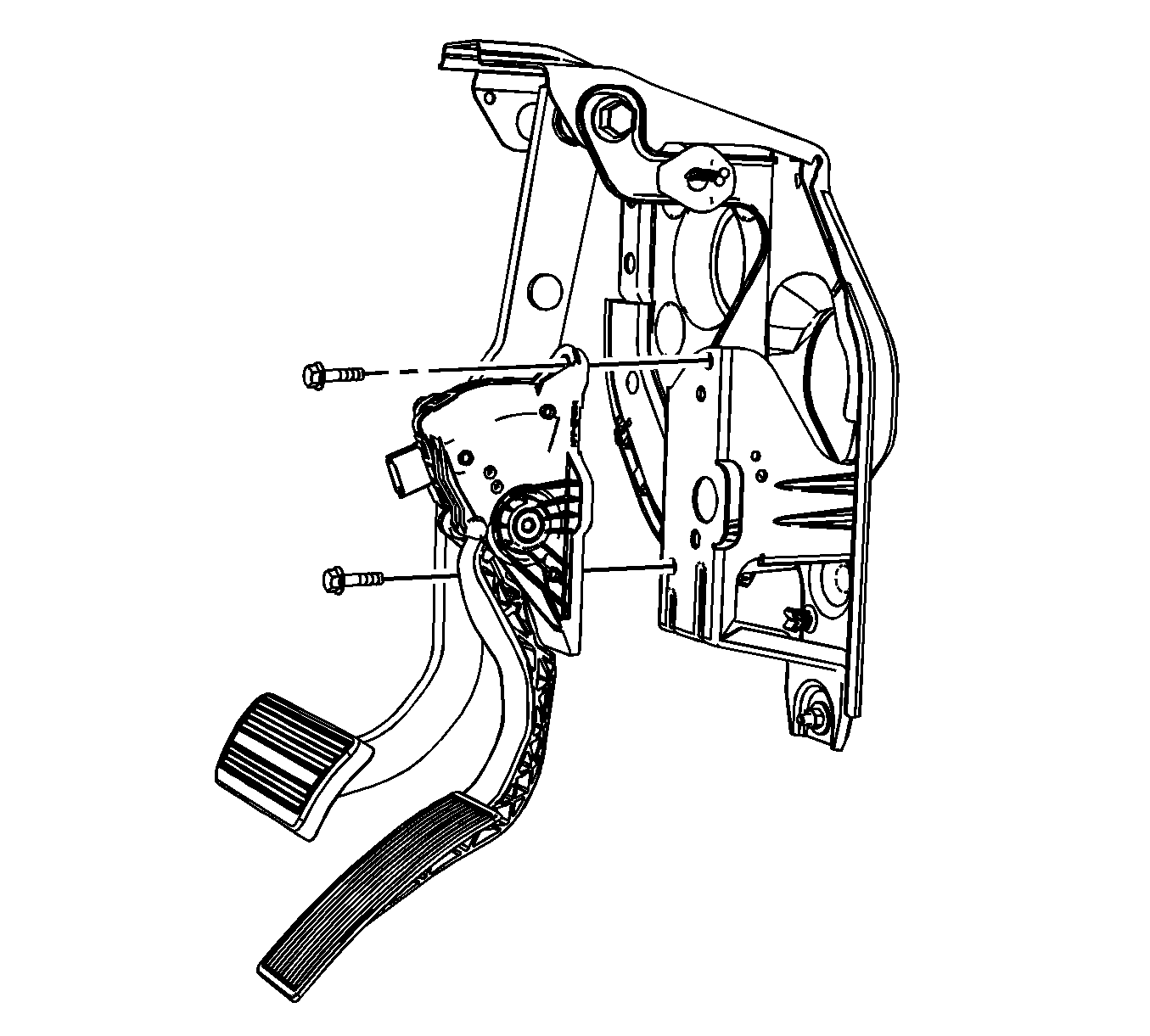

    GM1657867Courtesy of GENERAL MOTORS CORP.
  3. Remove the accelerator pedal bolts.
  4. Remove the accelerator pedal.
