Anti-Lock Brake System Schematics

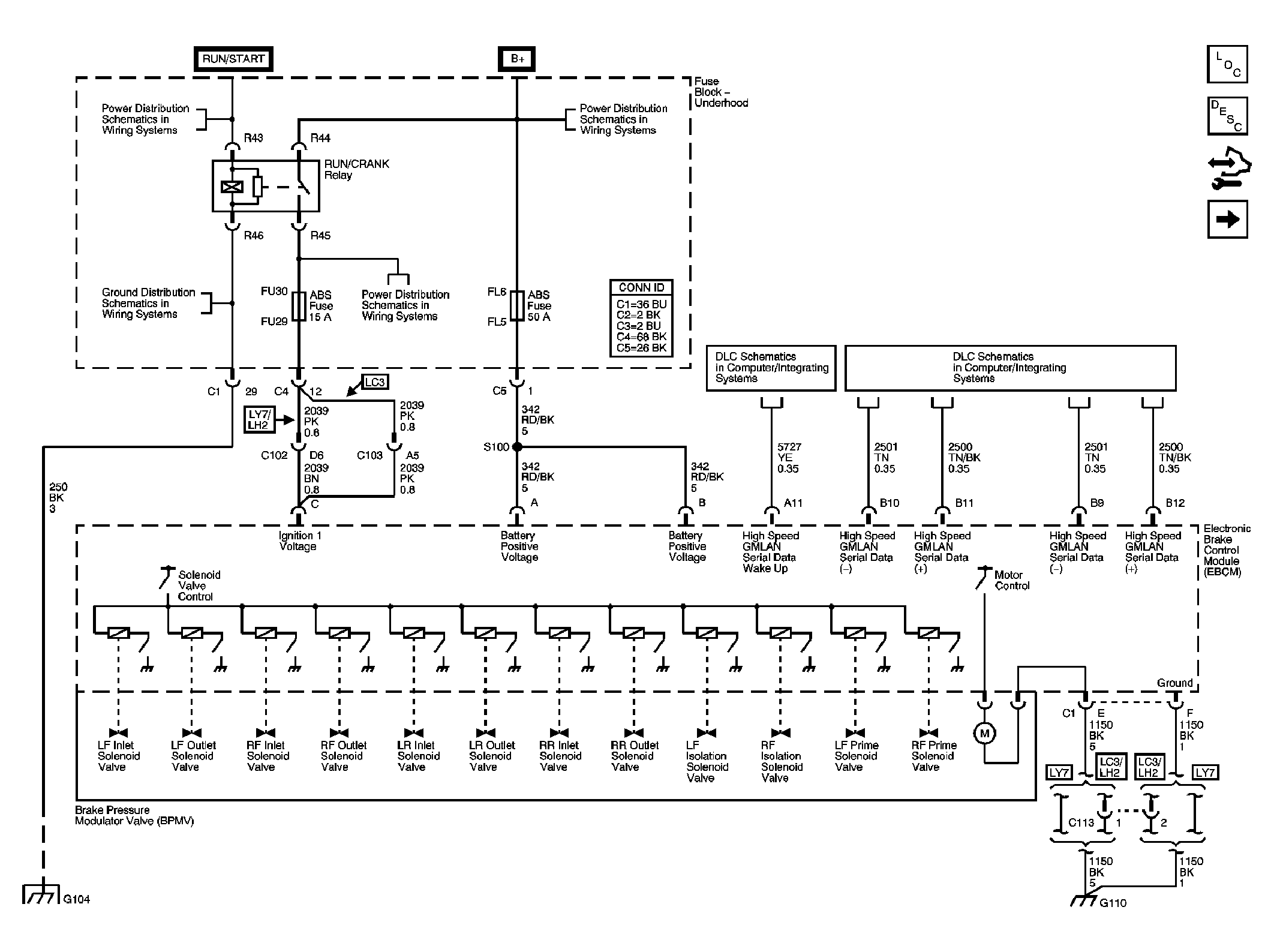

Fig 1: EBCM Module Power, Ground and DLC

Courtesy of GENERAL MOTORS CORP.

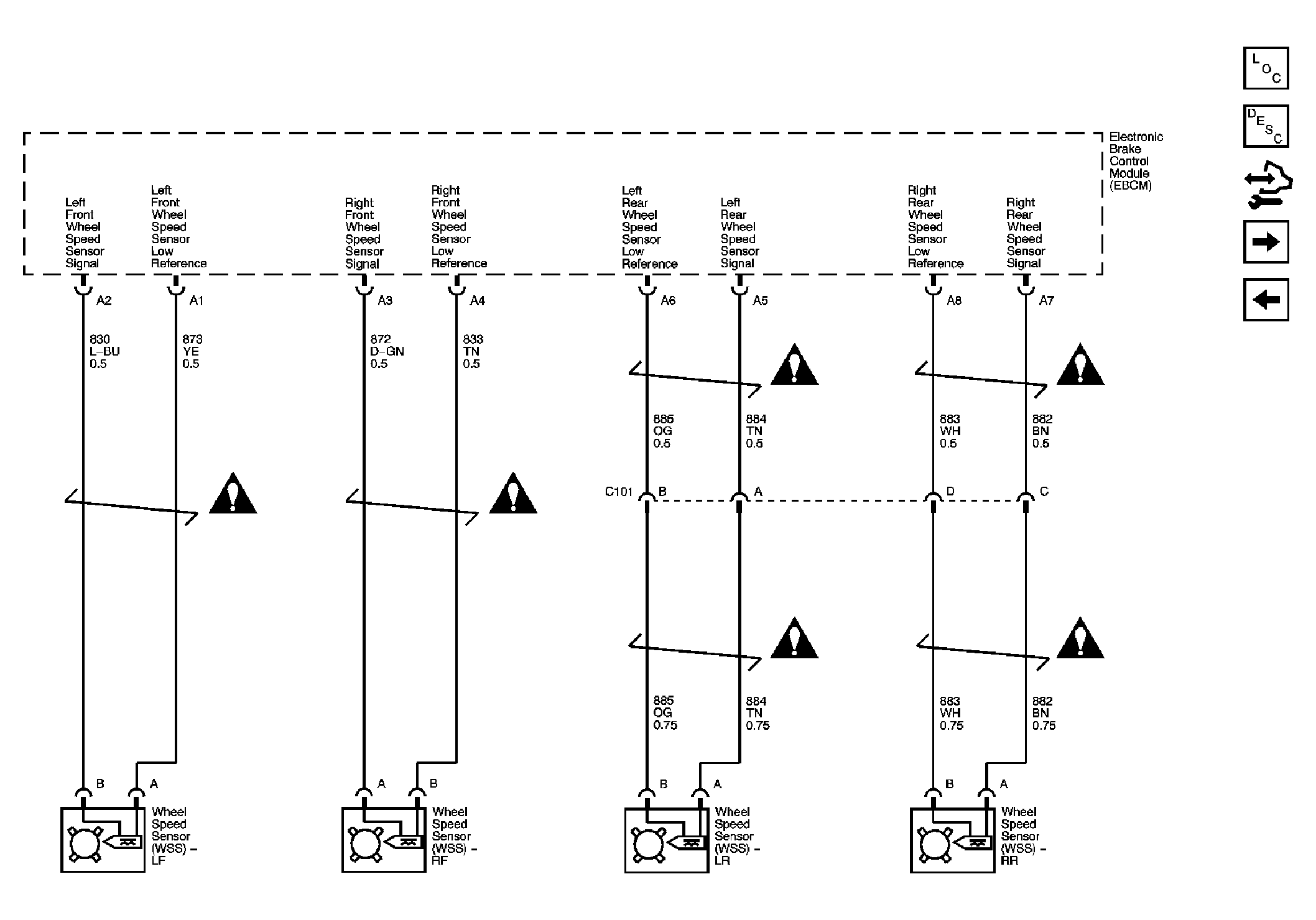

Fig 2: Wheel Speed Sensors

Courtesy of GENERAL MOTORS CORP.

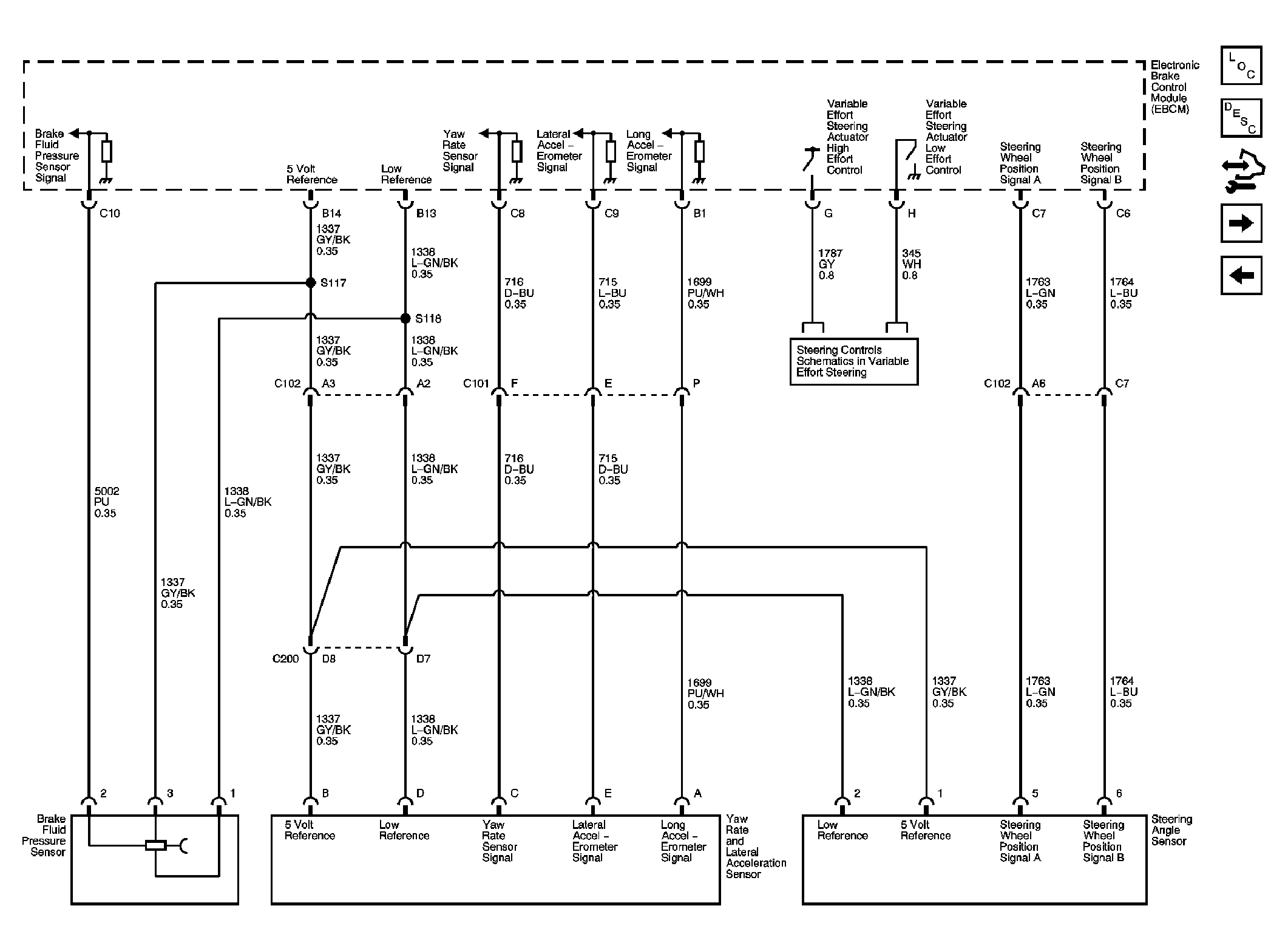

Fig 3: Stability Control System

Courtesy of GENERAL MOTORS CORP.

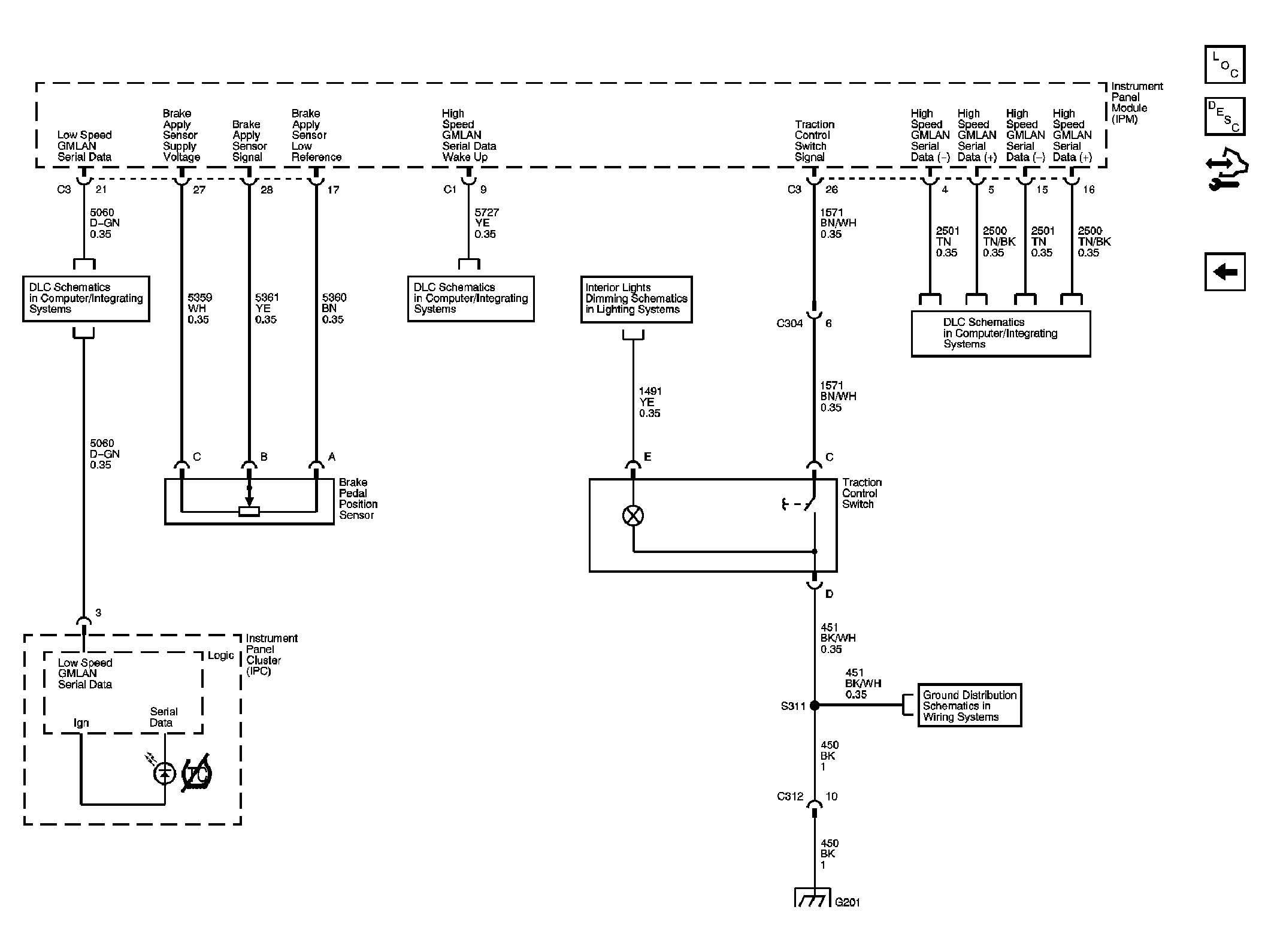

Fig 4: Indicator and Traction Control
