Rear Seat Heater Control Module Replacement

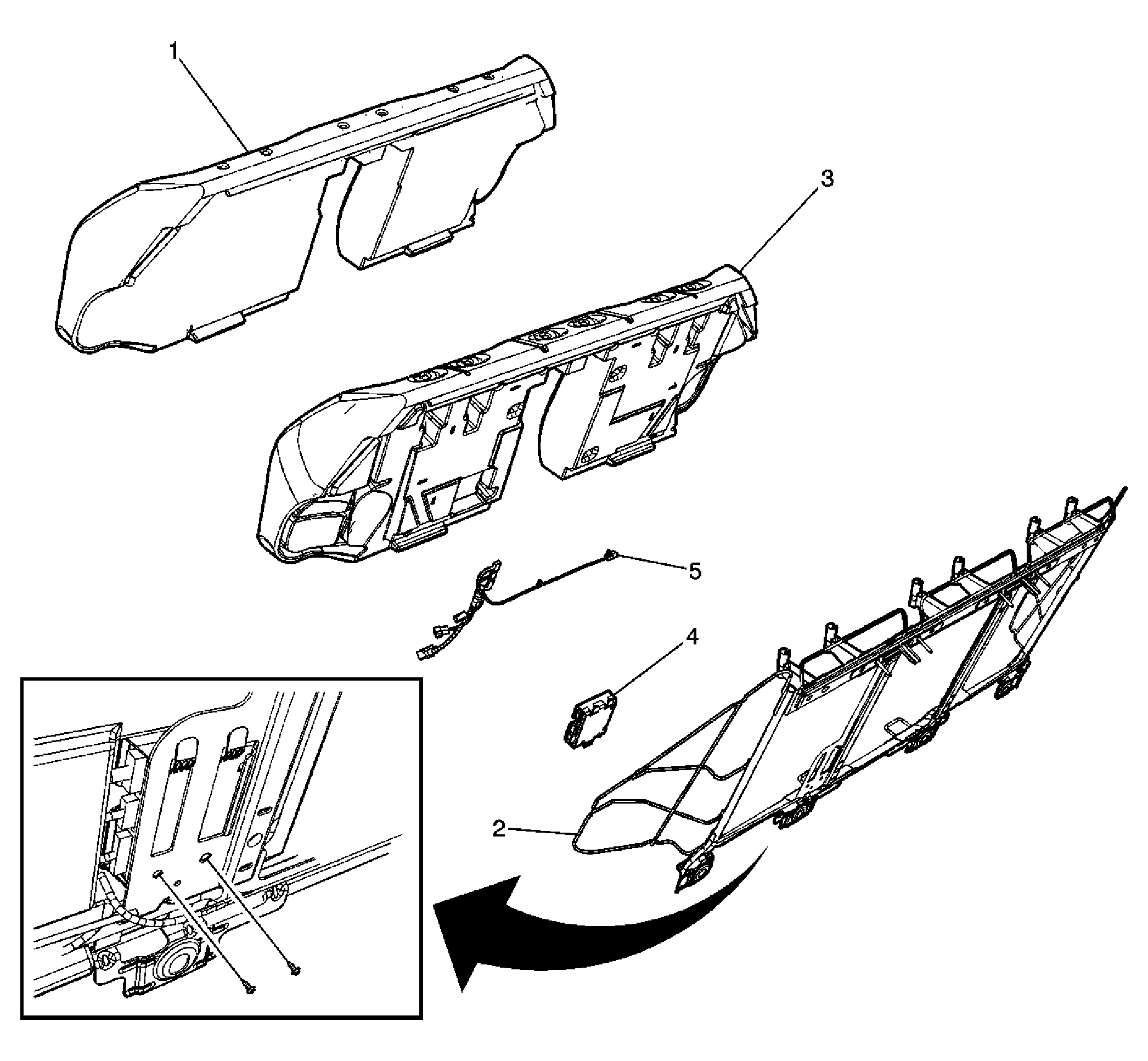

Fig 1: View Of Rear Seat Back Seat Heater Control Module, Pad, Wire Harness & Frame

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement . Remove the rear seat back. Refer to Rear Seat Back Replacement .
1	Rear Seat Back Cushion Cover Assembly Refer to Rear Seat Back Cushion Cover and Pad Replacement .
2	Rear Seat Back Wire Assembly
3	Rear Seat Back Pad Assembly Refer to Rear Seat Back Cushion Cover and Pad Replacement .
4	Rear Seat Heater Control Module Assembly Tip: Module can be removed with the seat in the vehicle.
5	Lower Rear Seat Back Harness Assembly
