Door Lock Switch Replacement

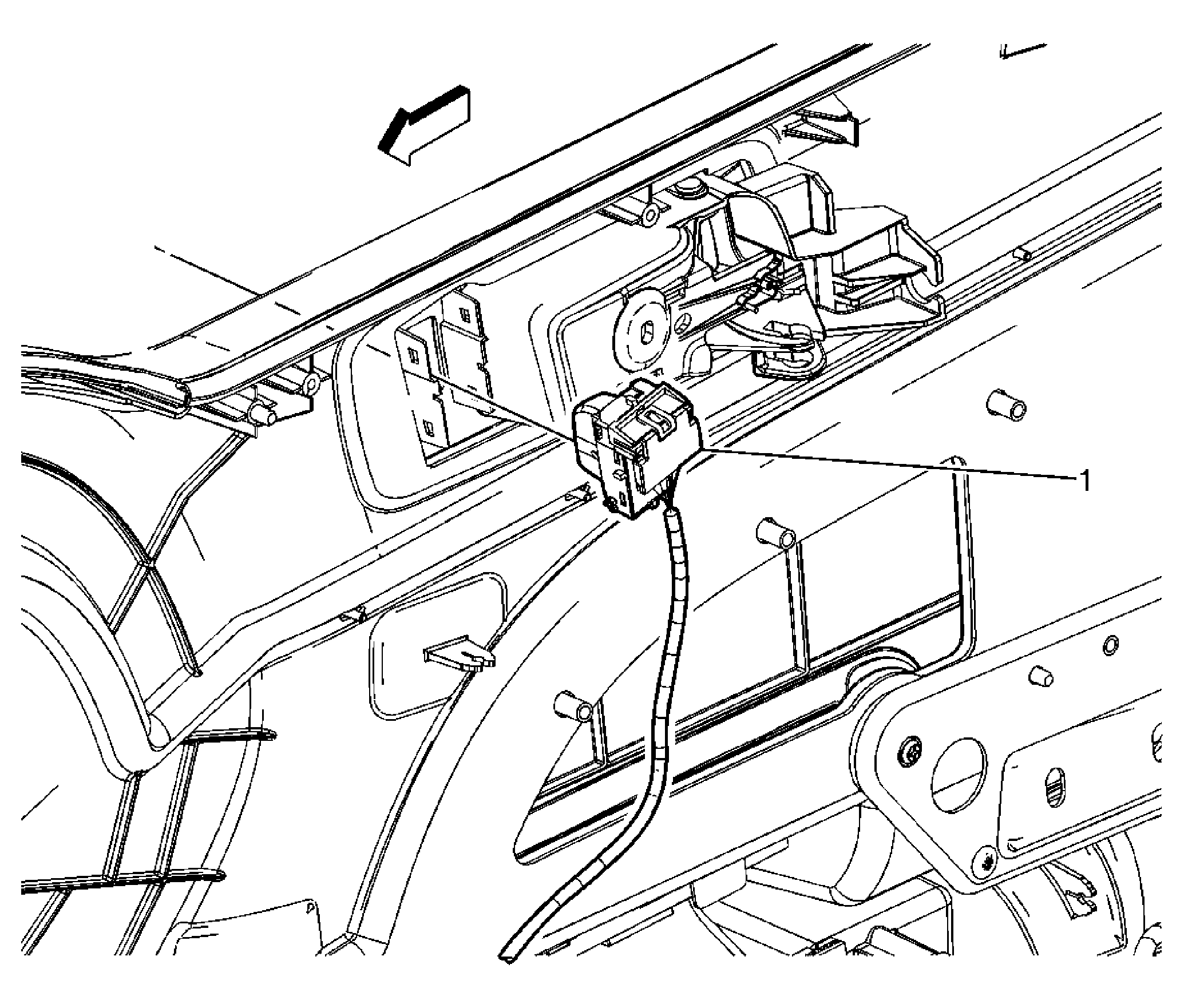

Fig 1: Door Lock Switch Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove front door trim panel. Refer to Front Side Door Trim Panel Replacement .
1	Front Side Door Locking System Switch Assembly Tip: Disconnect electrical connector. Use a flat-bladed tool to pry switch from door handle assembly.
