Front Side Door Hinge Replacement
Front Side Door Hinge Replacement

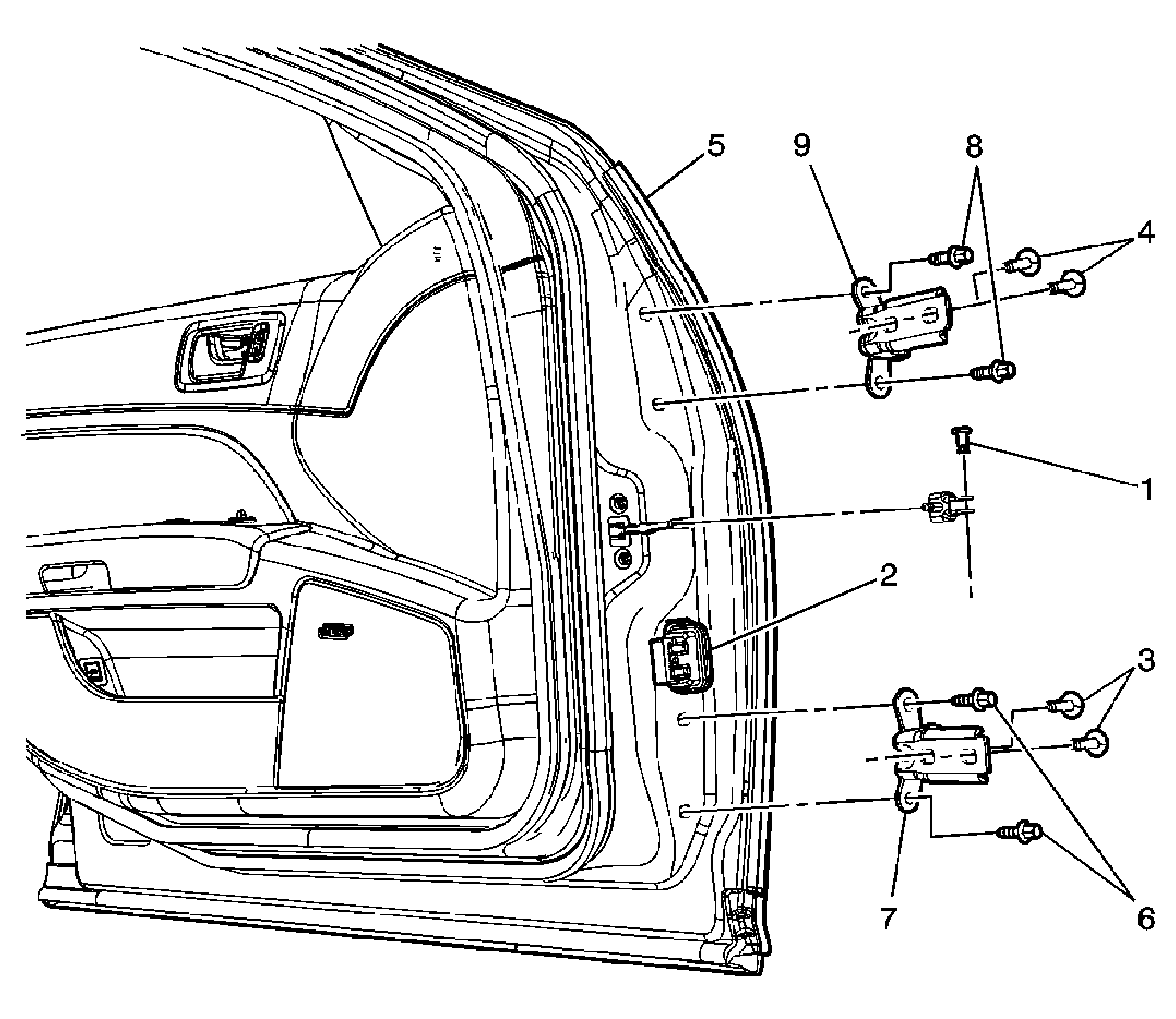

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
in Cautions and Notices. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| Front Side Door Assembly Replacement | |
| 1 | Screw, Front Side Door Check Link Tighten: 9 N.m (80 lb in) |
| 2 | Harness, Front Side Door Wiring Tip: Disconnect door wiring harness and reconnect when replacement is complete. |
| 3 | Bolt, Front Side Door Hinge Lower (Qty: 2) Tighten: 25 N.m (18 lb ft) |
| 4 | Bolt, Front Side Door Hinge Upper (Qty: 2) Tighten: 25 N.m (18 lb ft) |
| 5 | Door Assembly, Front Side
NOTE:
Striker alignment is a crucial part of door latch operation. Do not use the door striker to adjust the door to the vehicle. Failure to properly adjust the striker can result in damage to the door latch and the striker. Tip: Check the door for proper alignment, adjust as necessary. Refer to Door Adjustment . |
| Front Side Door Lower Hinge Assembly Replacement
IMPORTANT:
Replace only one hinge at a time.
|
|
| 3 | Bolt, Front Side Door Hinge Lower (Qty: 2) Tighten: 25 N.m (18 lb ft) |
| 6 | Bolt, Front Side Door Hinge Lower (Qty: 2) Tighten: 25 N.m (18 lb ft) |
| 7 | Hinge Assembly, Front Side Door Lower
NOTE:
Striker alignment is a crucial part of door latch operation. Do not use the door striker to adjust the door to the vehicle. Failure to properly adjust the striker can result in damage to the door latch and the striker. Tip: Check the door for proper alignment, adjust as necessary. Refer to Door Adjustment . |
| Front Side Door Upper Hinge Assembly Replacement
IMPORTANT:
Replace only one hinge at a time.
|
|
| 4 | Bolt, Front Side Door Hinge Upper (Qty: 2) Tighten: 25 N.m (18 lb ft) |
| 8 | Bolt, Front Side Door Hinge Upper (Qty: 2) Tighten: 25 N.m (18 lb ft) |
| 9 | Hinge Assembly, Front Side Door Upper
NOTE:
Striker alignment is a crucial part of door latch operation. Do not use the door striker to adjust the door to the vehicle. Failure to properly adjust the striker can result in damage to the door latch and the striker. Tip: Check the door for proper alignment, adjust as necessary. Refer to Door Adjustment . |
