Door Lock/Indicator Schematics

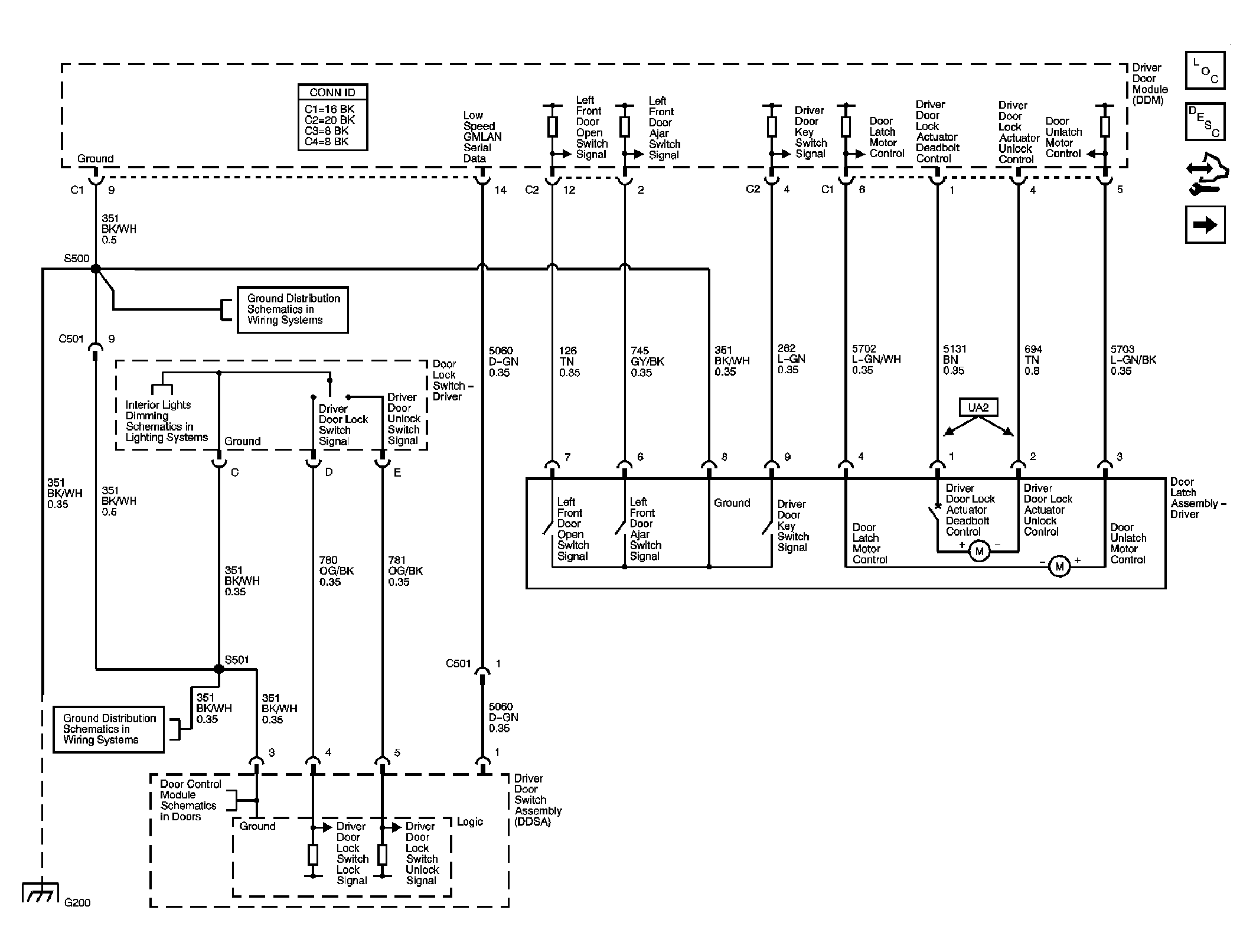

Fig 1: Driver Door Lock

Courtesy of GENERAL MOTORS CORP.

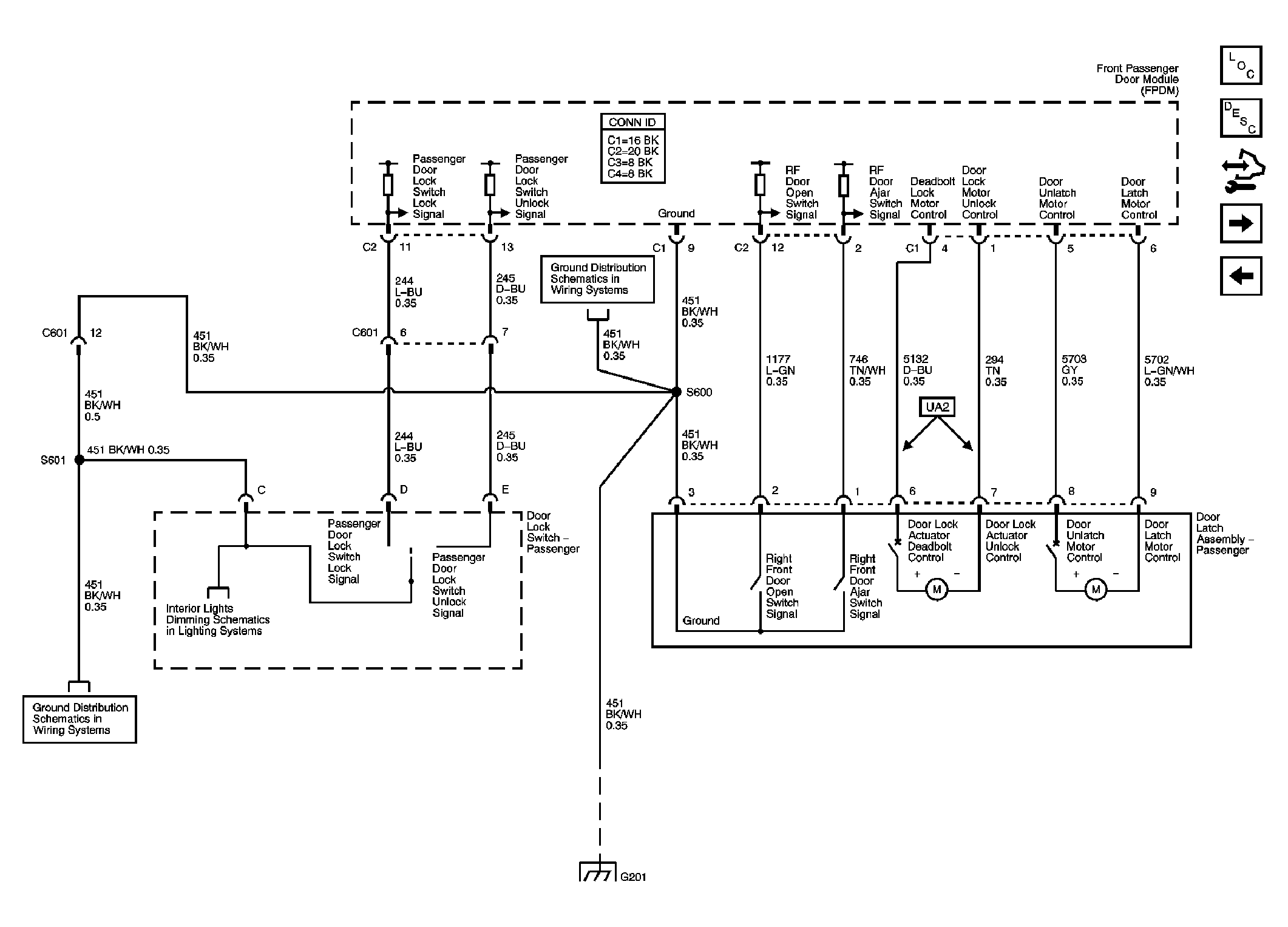

Fig 2: Front Passenger Door Lock

Courtesy of GENERAL MOTORS CORP.

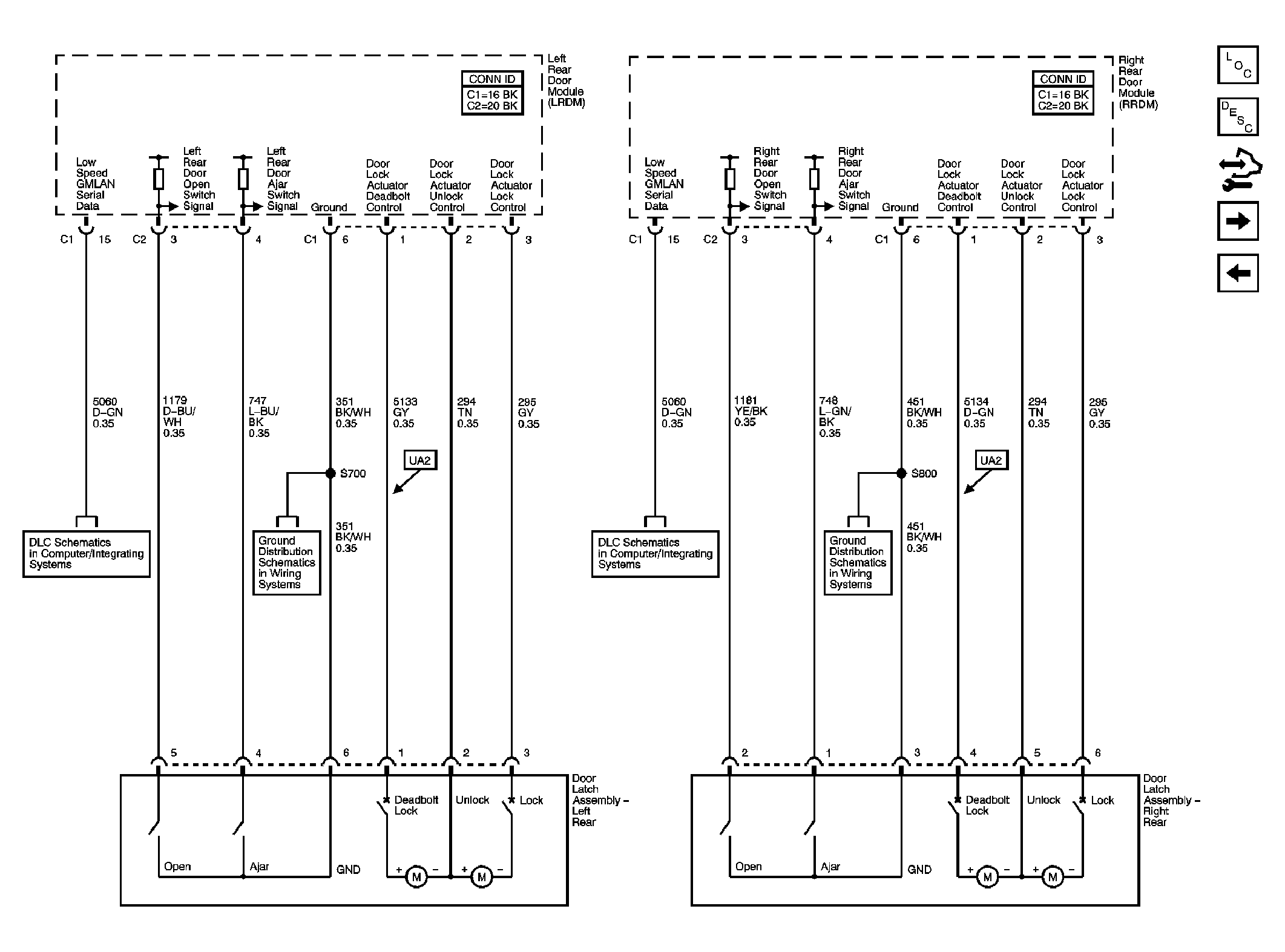

Fig 3: Left Rear and Right Rear Door Lock

Courtesy of GENERAL MOTORS CORP.

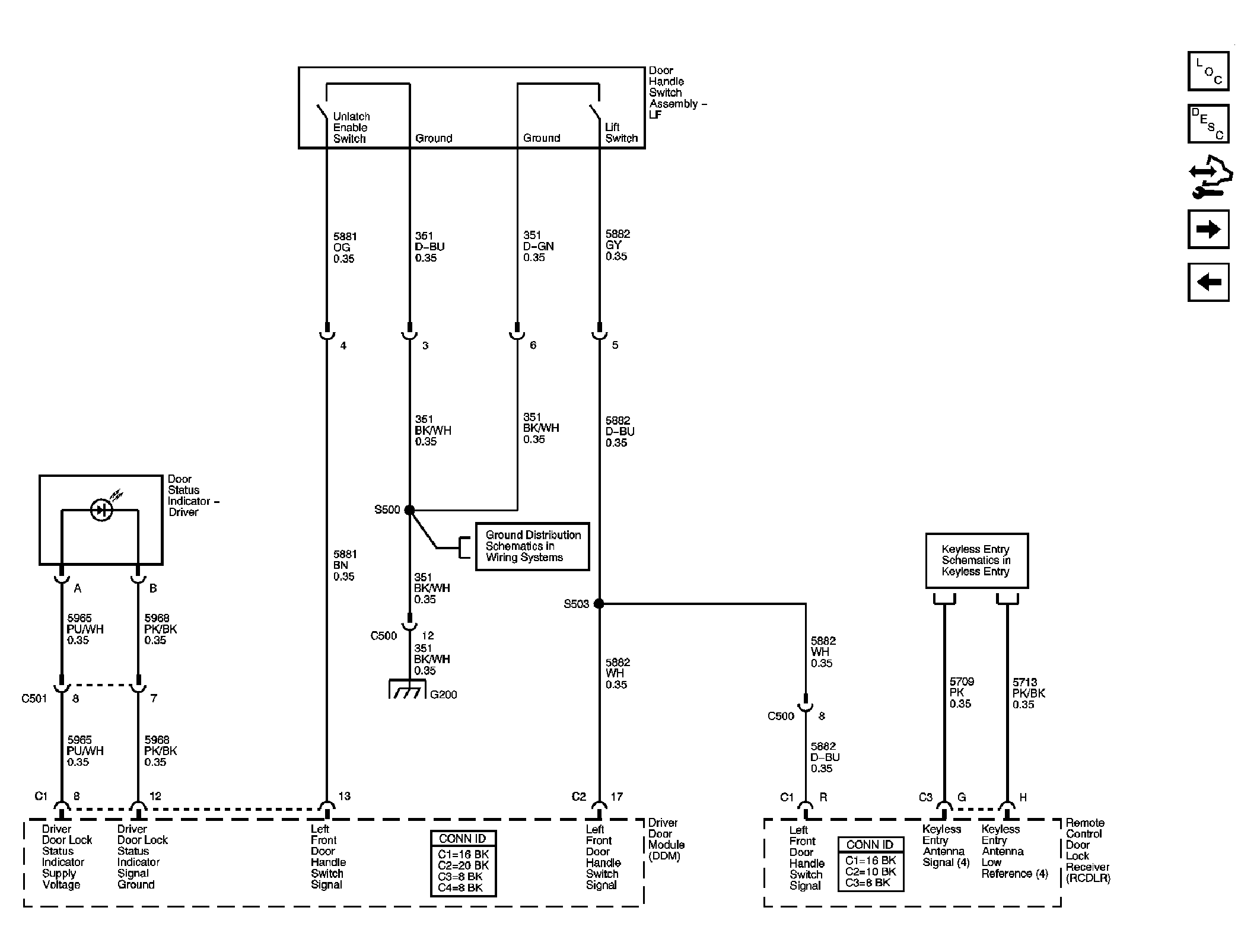

Fig 4: Left Front Door Handle Assembly, Door Status Indicator - Driver

Courtesy of GENERAL MOTORS CORP.

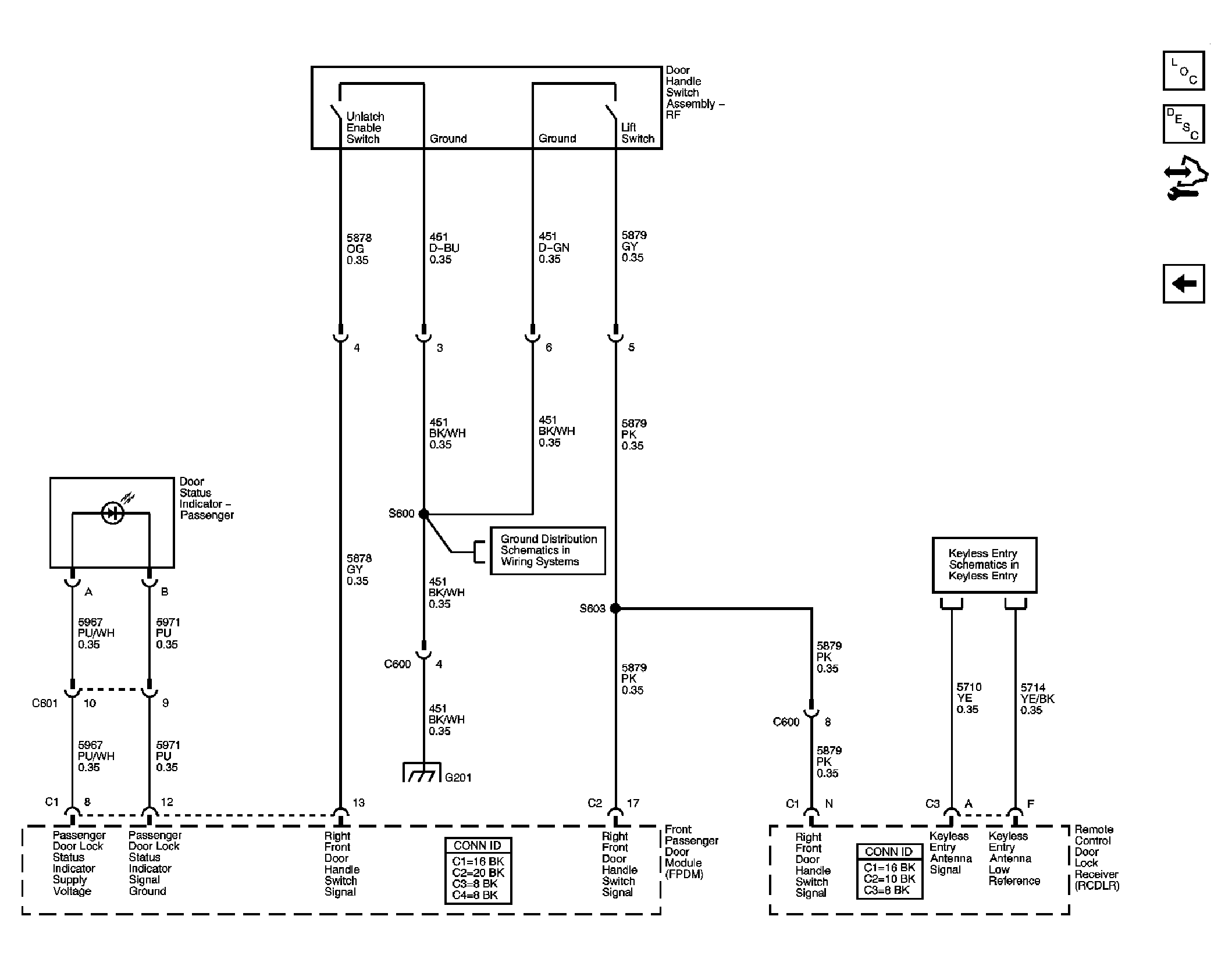

Fig 5: Right Front Door Handle Assembly, Door Status Indicator - Passenger

Courtesy of GENERAL MOTORS CORP.
