Power Window Schematics

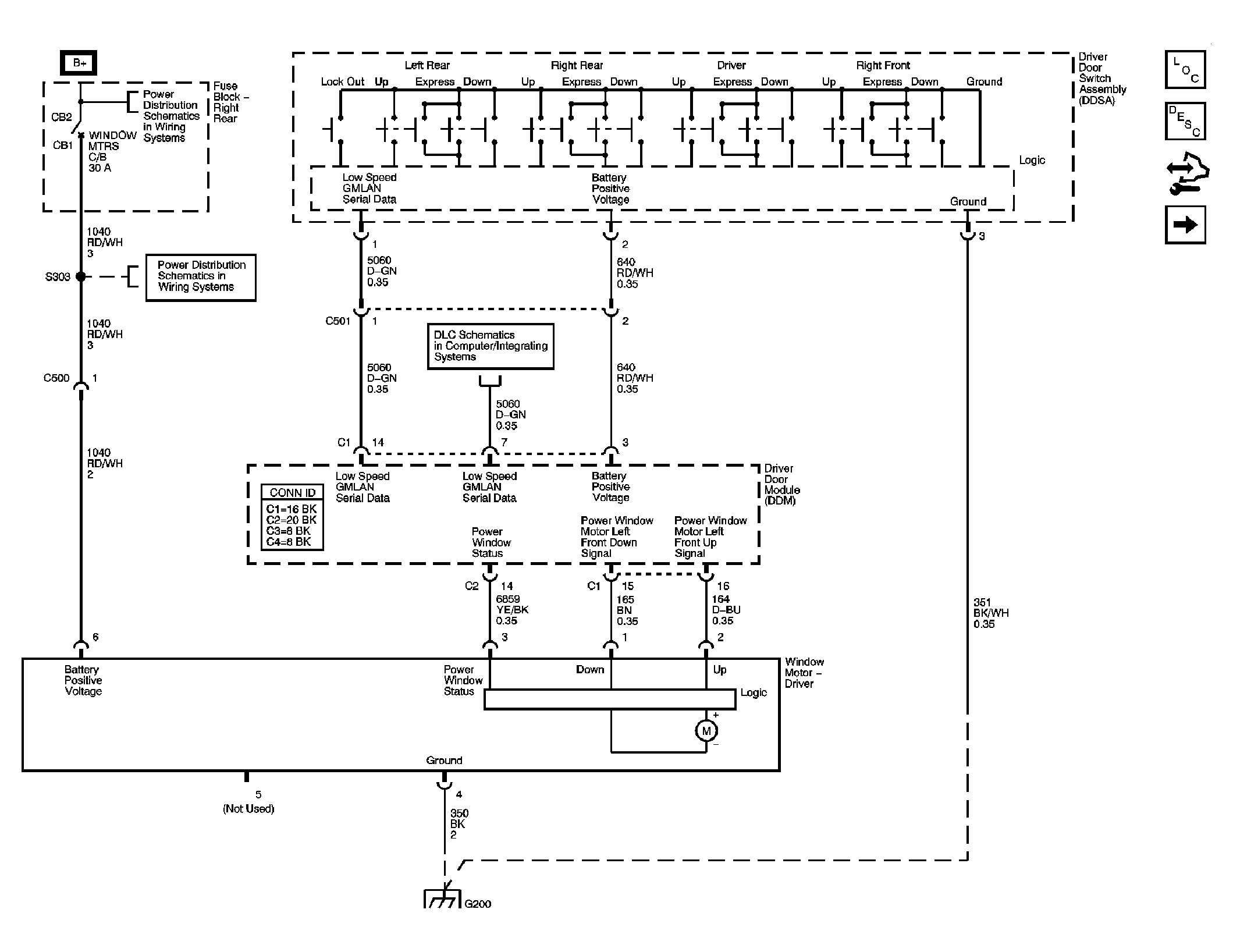

Fig 1: Driver Window Switches, Motor
GM1618730Courtesy of GENERAL MOTORS CORP.

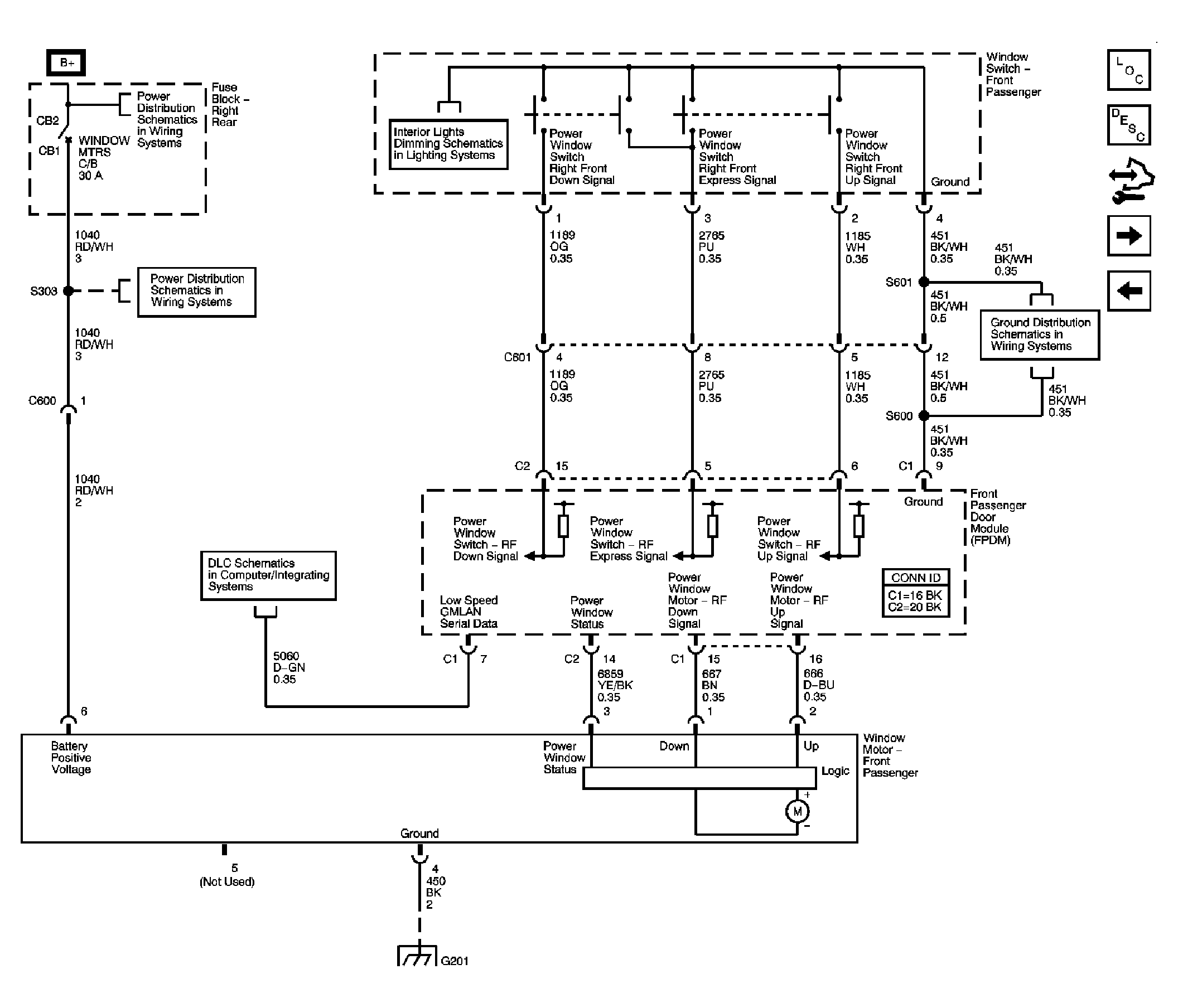

Fig 2: Front Passenger Window Switch, Motor
GM1618729Courtesy of GENERAL MOTORS CORP.

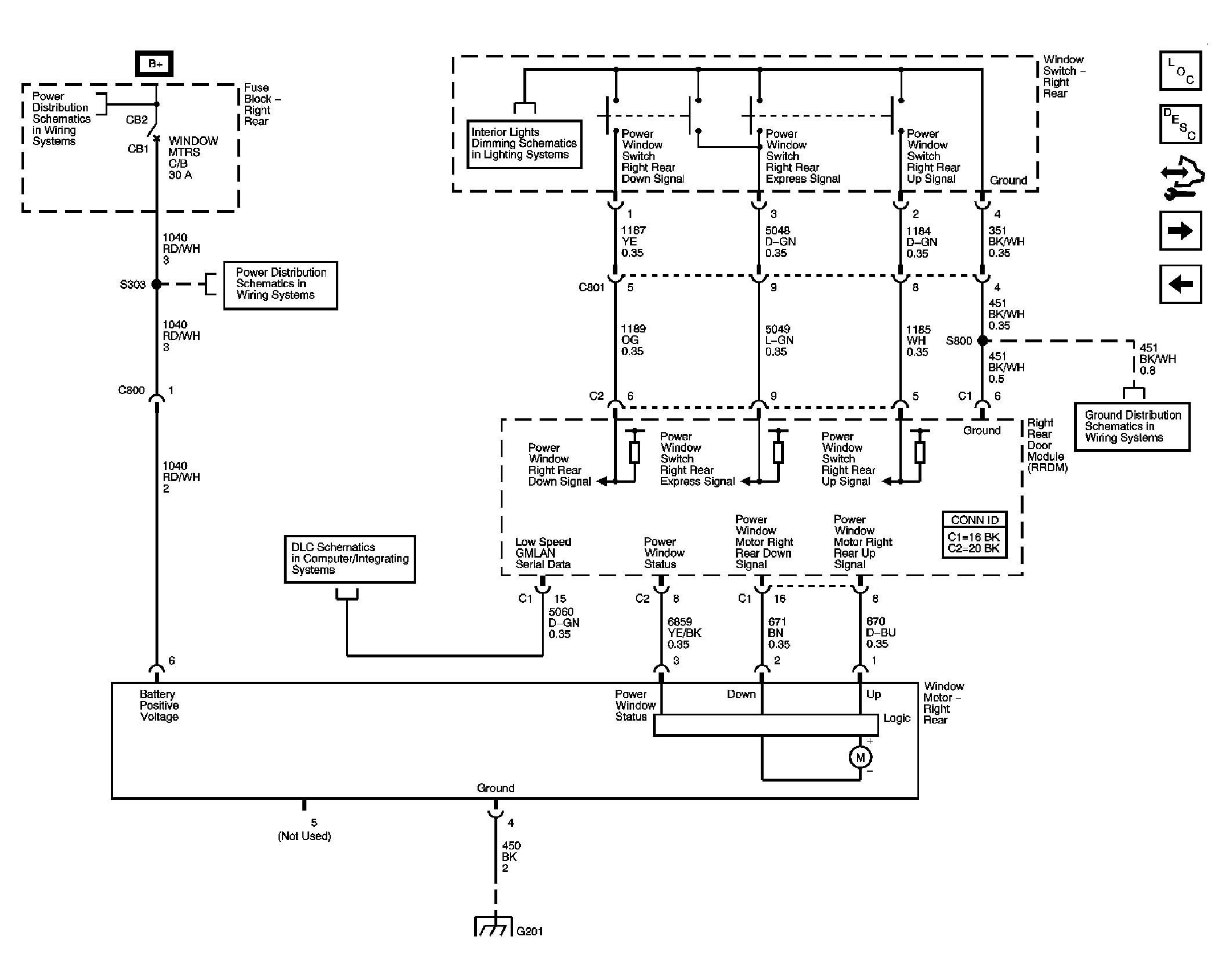

Fig 3: Right Rear Window Switch, Motor
GM1618727Courtesy of GENERAL MOTORS CORP.

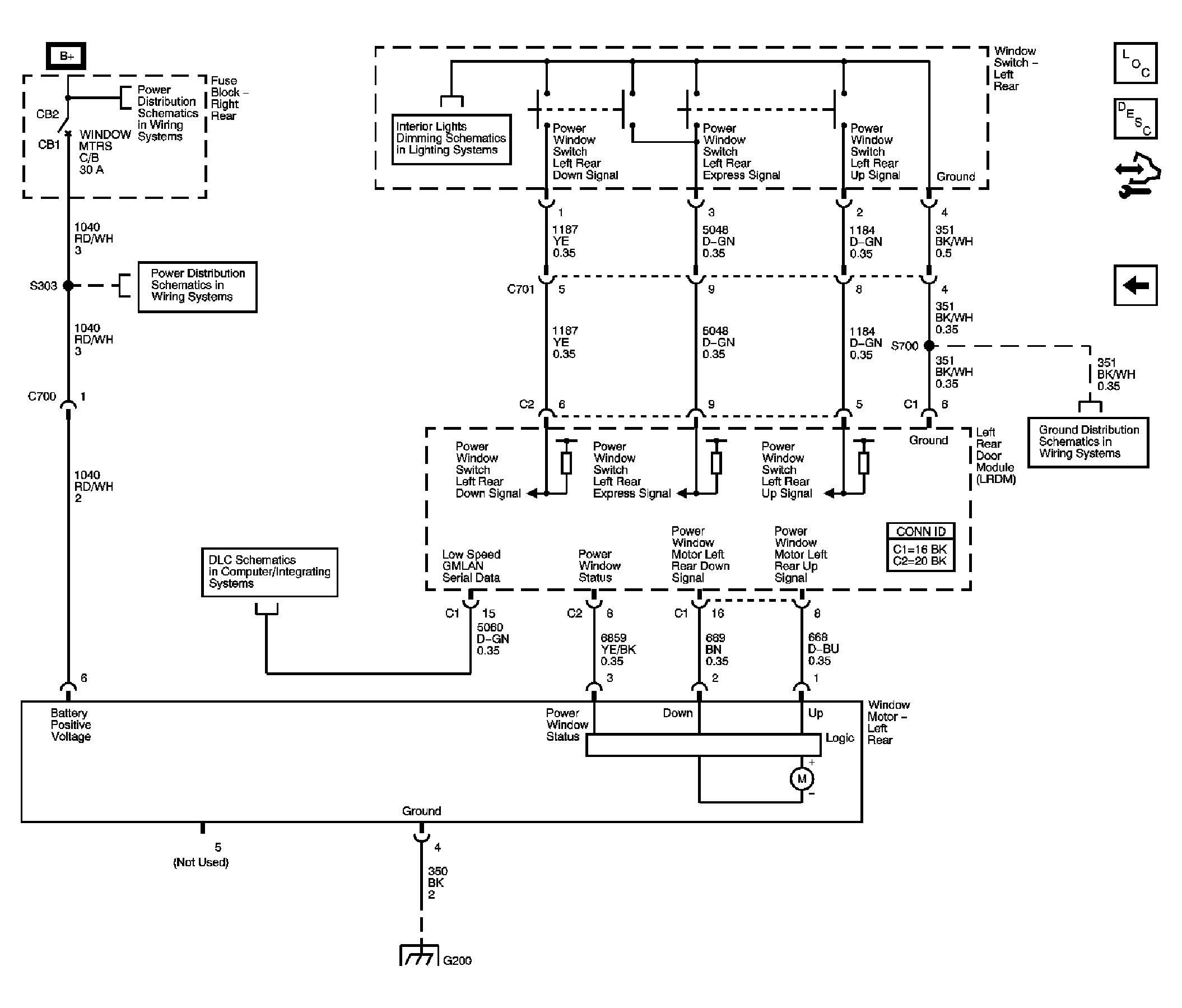

Fig 4: Left Rear Window Switch, Motor
GM1618726Courtesy of GENERAL MOTORS CORP.
