Installation Procedure

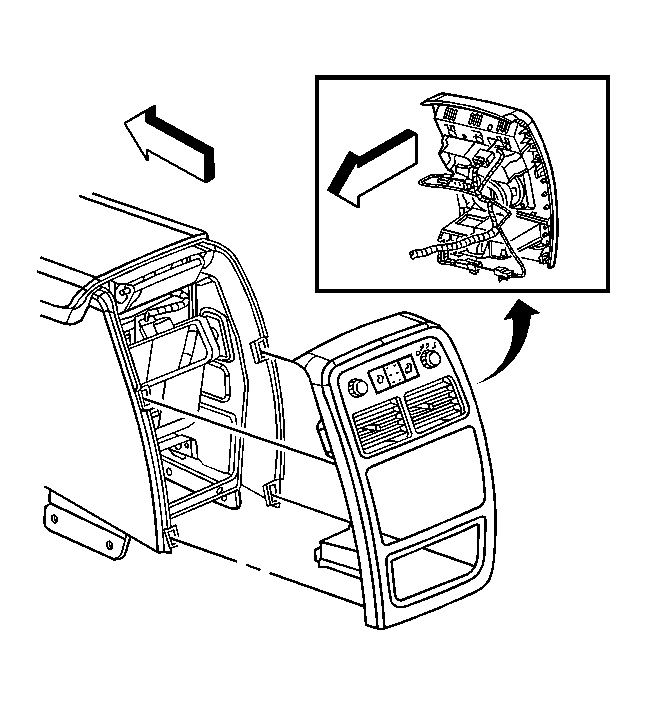

    Fig 1: View Of Center Console End Panel
    GM1442978Courtesy of GENERAL MOTORS CORP.
  1. Connect the wire harness connectors.
  2. Locate the end panel to the console.
  3. Push on the end panel in order to secure the retaining clips.
