Sunroof Component Views

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

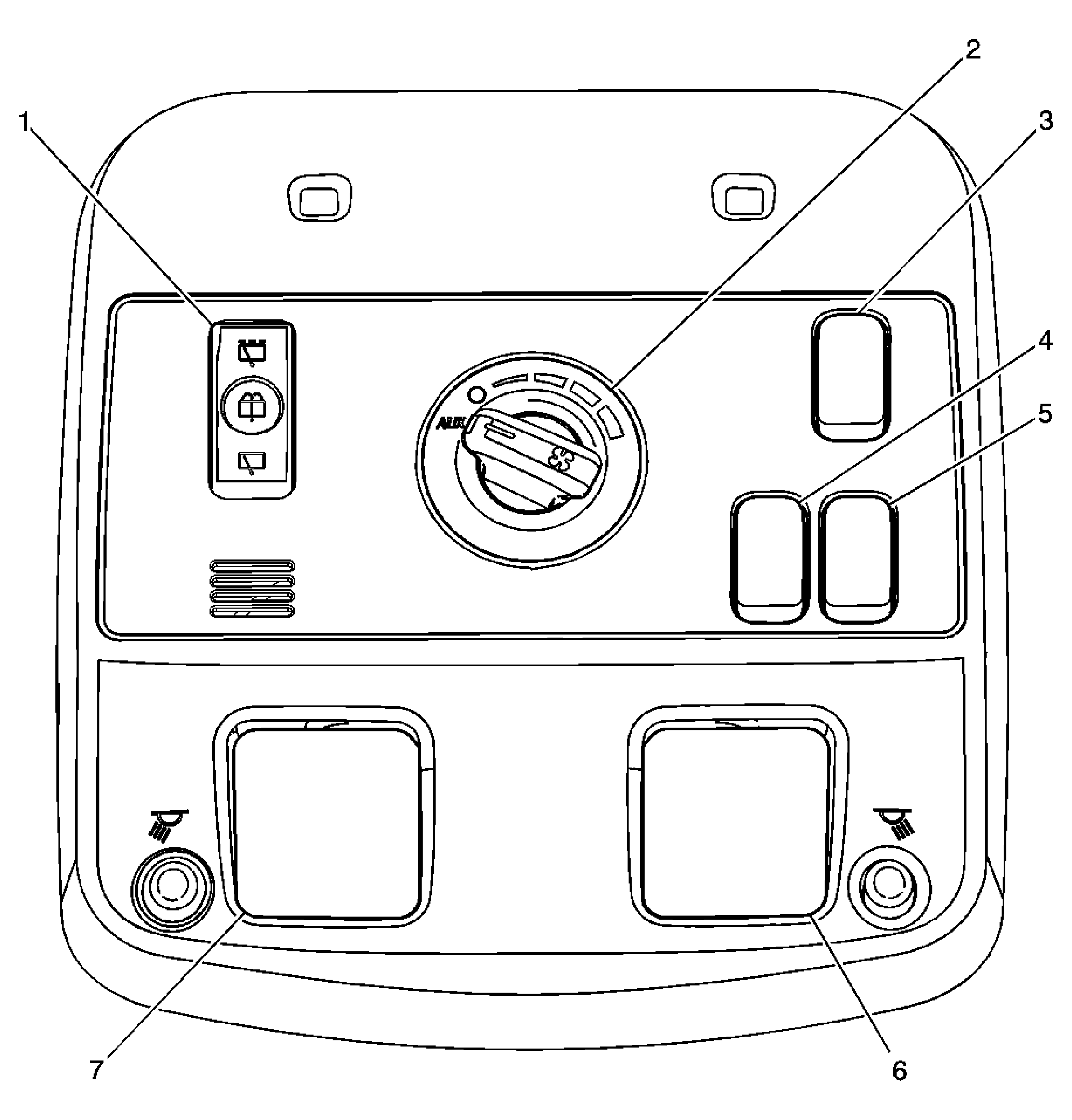

Fig 1: Overhead Console Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wiper/Washer Switch - Rear
2	Blower Motor Switch - Auxiliary (C57)
3	Rear Sunshade Switch (C3B)
4	Sunroof Switch (CF5/C3B)
5	Front Sunshade Switch (CF5/C3B)
6	Courtesy/Reading Lamp - Front
7	Courtesy/Reading Lamp - Front

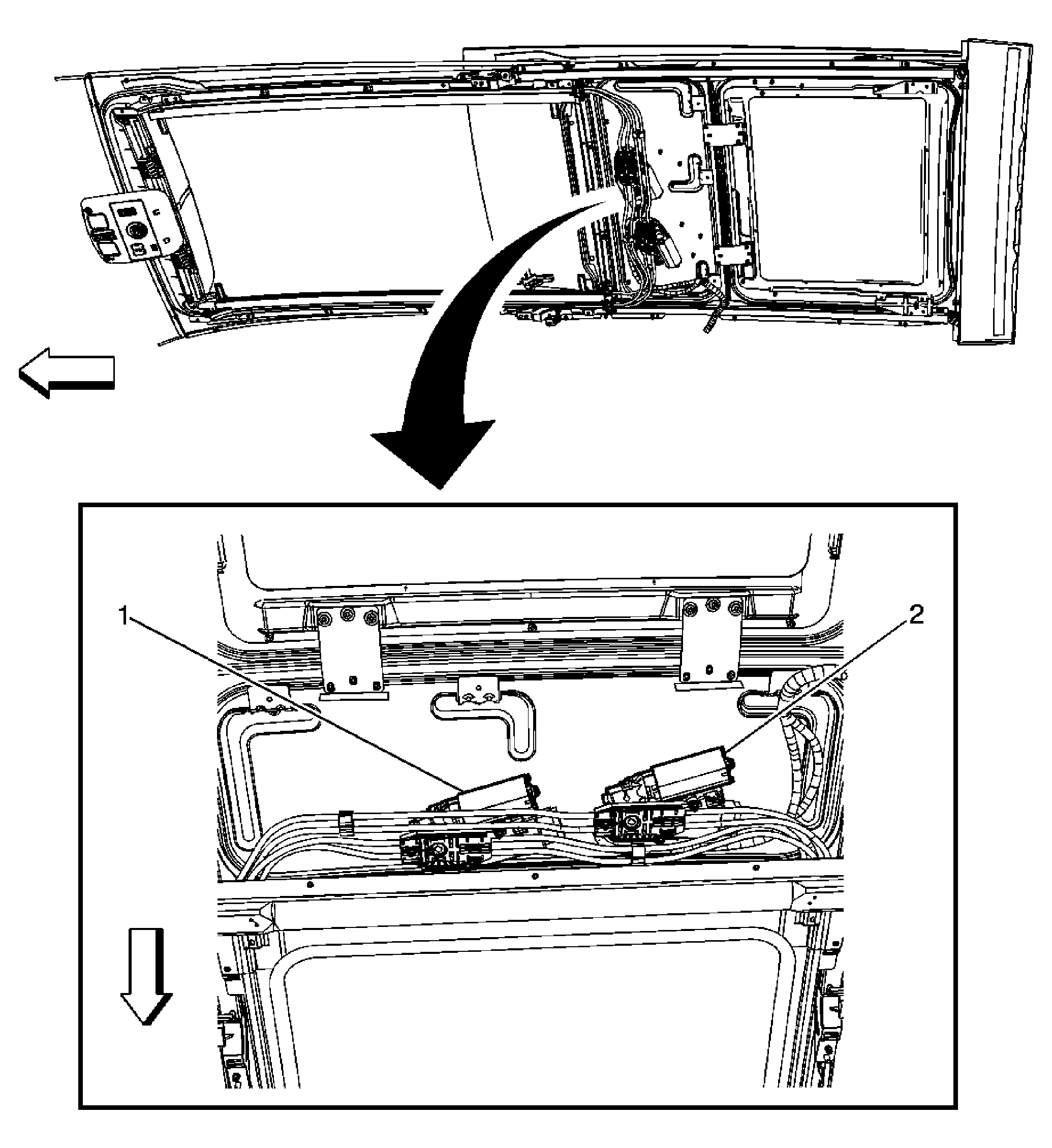

Fig 2: Sunroof Components - Mini (CF5) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Control Module
2	Front Sunshade Control Module

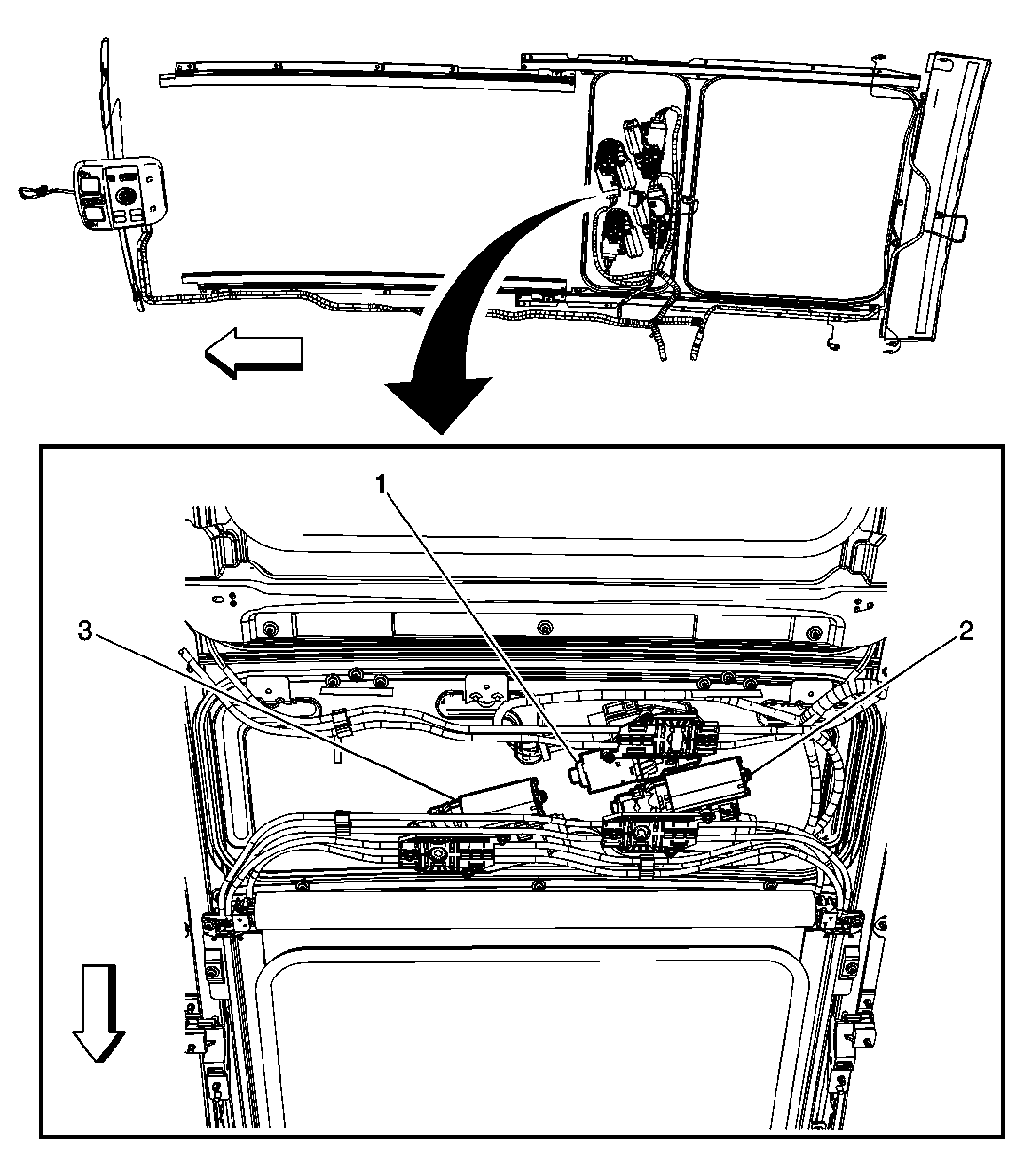

Fig 3: Sunroof Components - Mega (C3B) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Sunshade Control Module (C3B)
2	Front Sunshade Control Module (C3B)
