Automatic Level Control Component Views

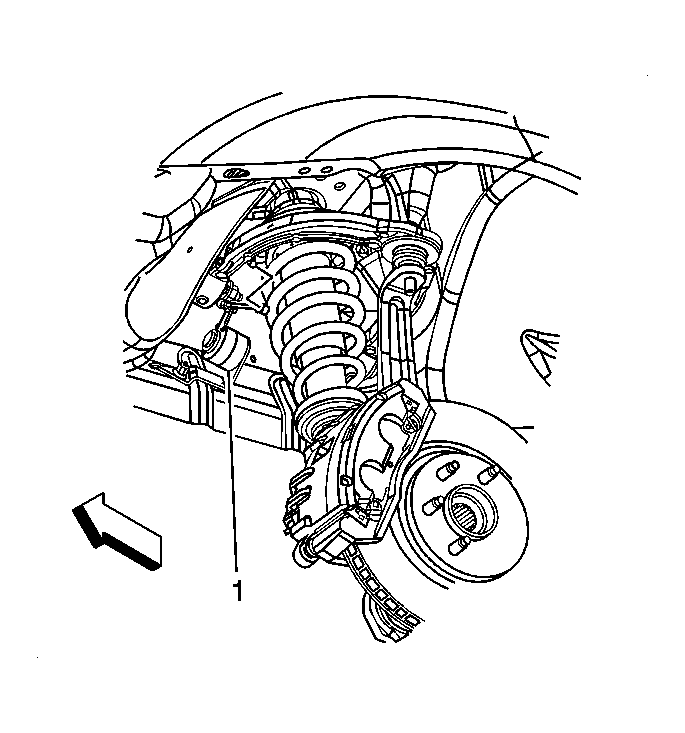

Fig 1: Locating Automatic Level Control Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Level Control Sensor

Fig 2: Front Brake and Suspension Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wheel Speed Sensor (WSS) - RF
2	Suspension Damper - RF
3	Suspension Position Sensor - RF
4	Suspension Position Sensor - LF
5	Suspension Damper - LF
6	Wheel Speed Sensor (WSS) - LF
7	Brake Fluid Pressure Sensor
8	Electronic Brake Control Module (EBCM)

Fig 3: Front Position Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Position Sensor Left/Right

Fig 4: Rear Brakes and Suspension Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Automatic Level Control (ALC) Compressor
2	Automatic Level Control (ALC) Exhaust Solenoid
3	Suspension Damper - LR
4	Wheel Speed Sensor (WSS) - LR
5	Suspension Position Sensor - LR
6	Suspension Position Sensor - RR
7	Wheel Speed Sensor (WSS) - RR
8	Suspension Damper - RR

Fig 5: Locating Automatic Level Control Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Position Sensor
