Shift Lock Control Component Views

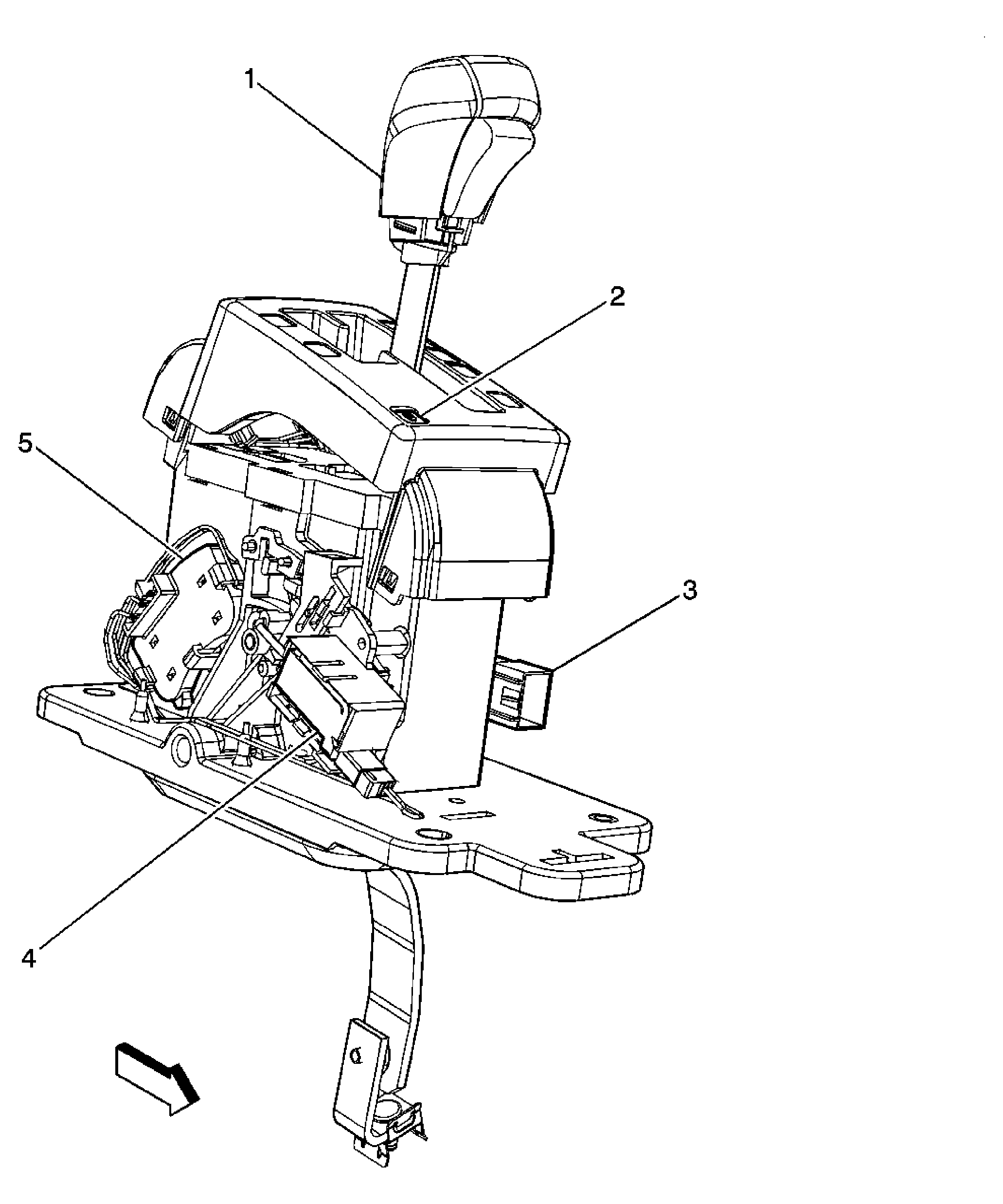

Fig 1: Shift Lever Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Automatic Transmission Shifter Control
2	Tap Up/Tap Down Trans Enable Switch
3	Automatic Transmission Shift Control Connector
4	A/T Shift Lock Control Solenoid
5	Tap Up/Tap Down Switch
