Anti-Lock Brake System Schematics

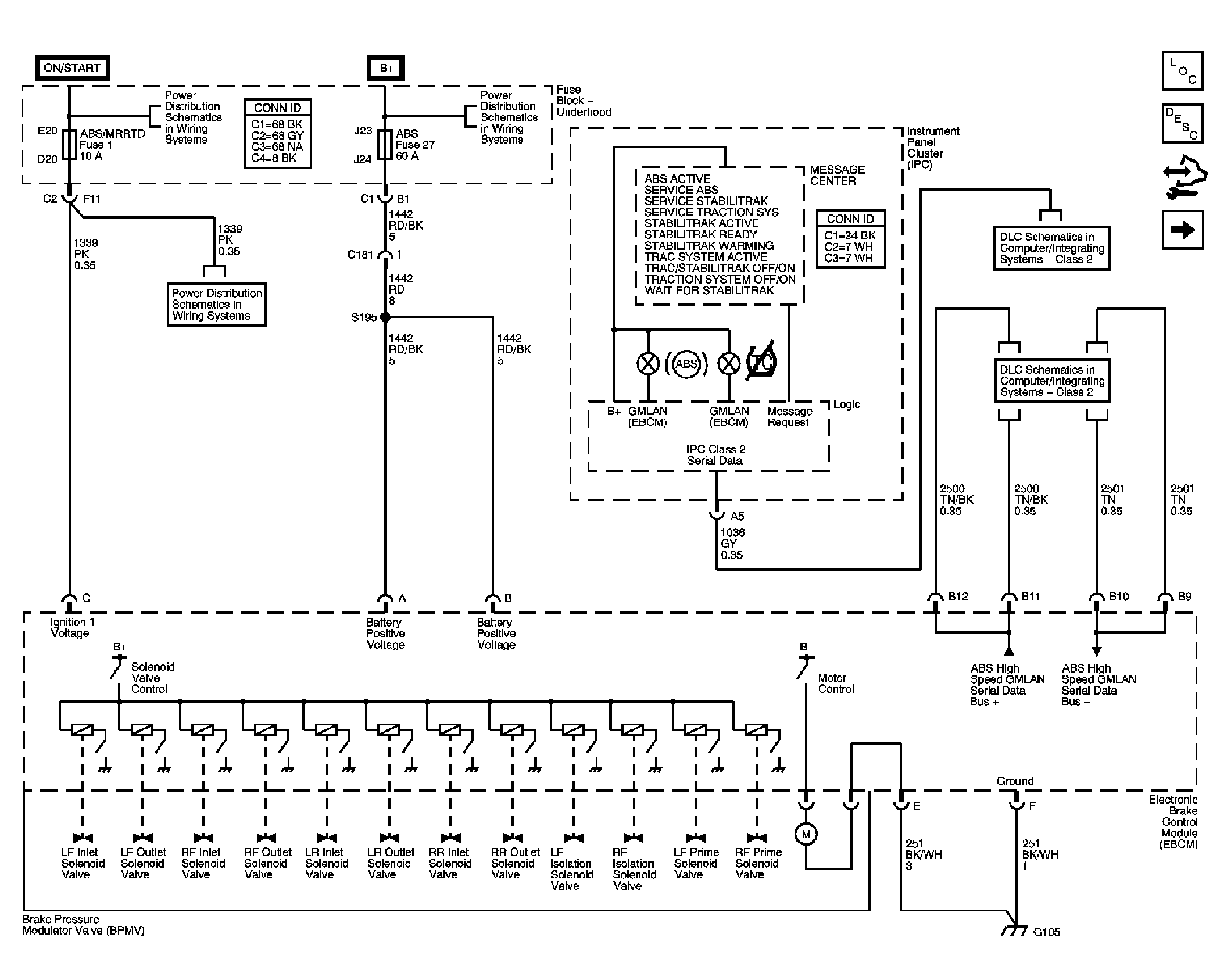

Fig 1: Ground, Indicators, Messages, and Power

Courtesy of GENERAL MOTORS CORP.

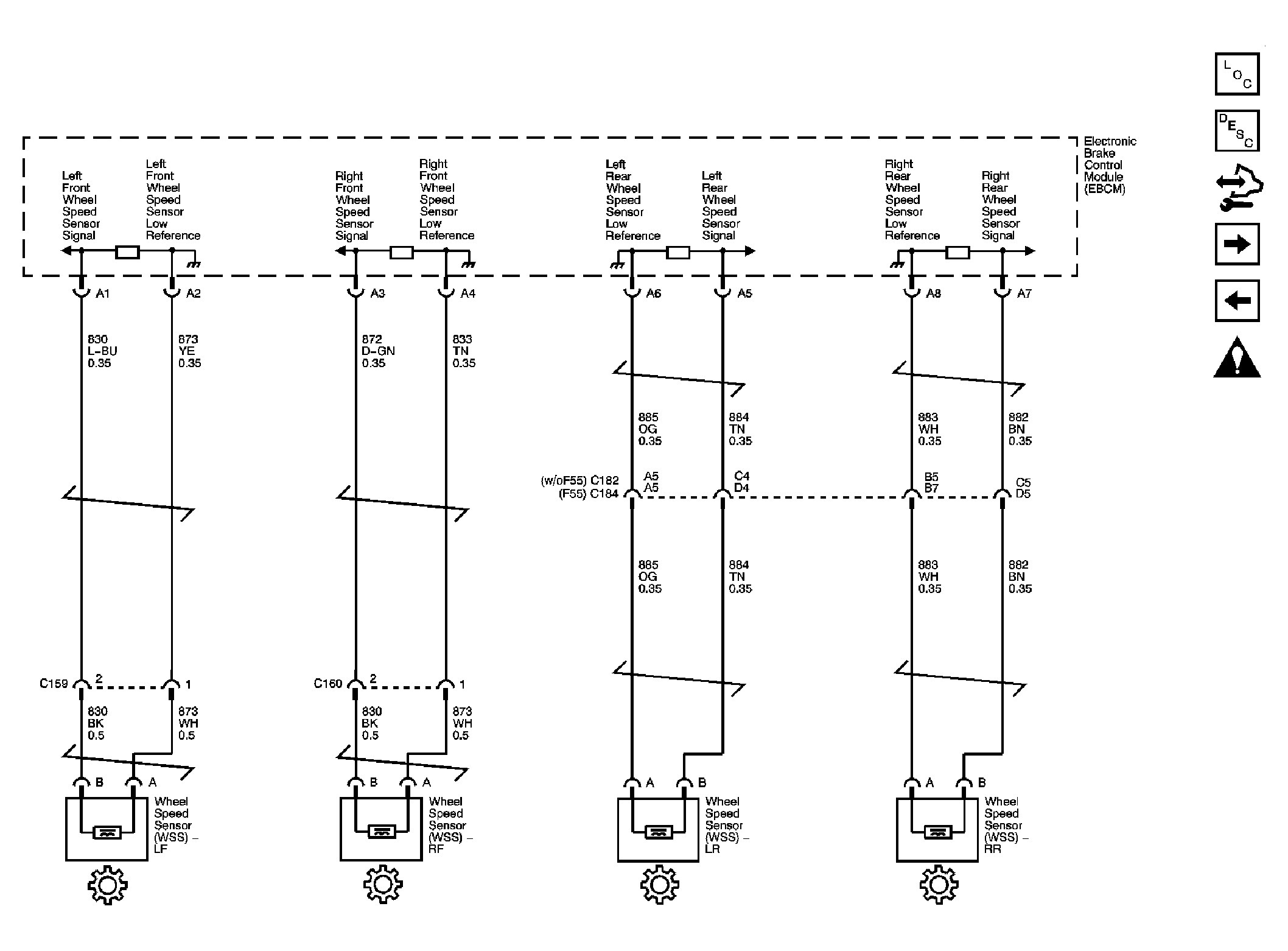

Fig 2: Wheel Speed Sensors

Courtesy of GENERAL MOTORS CORP.

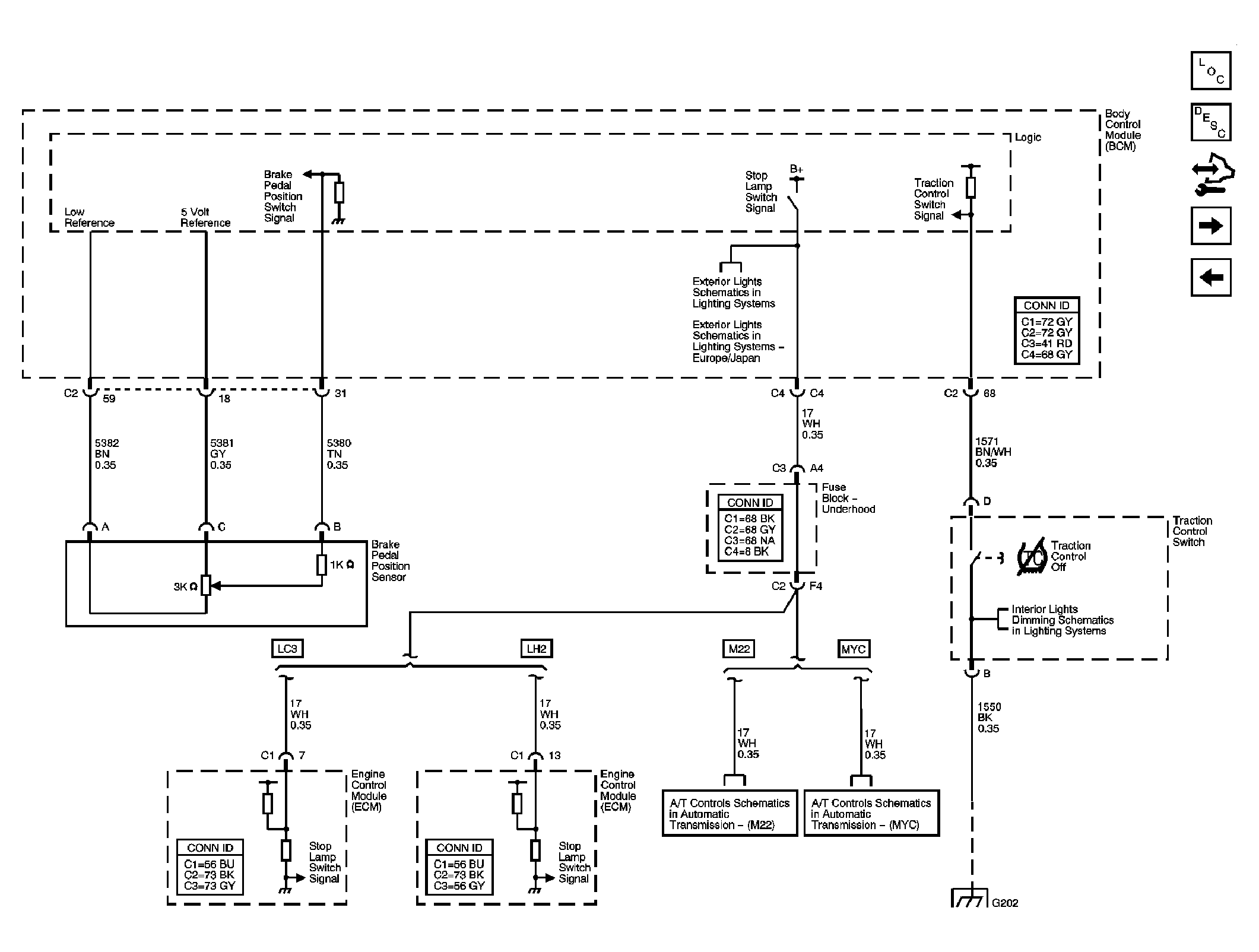

Fig 3: Brake Pedal Signal and Traction Control Switch

Courtesy of GENERAL MOTORS CORP.

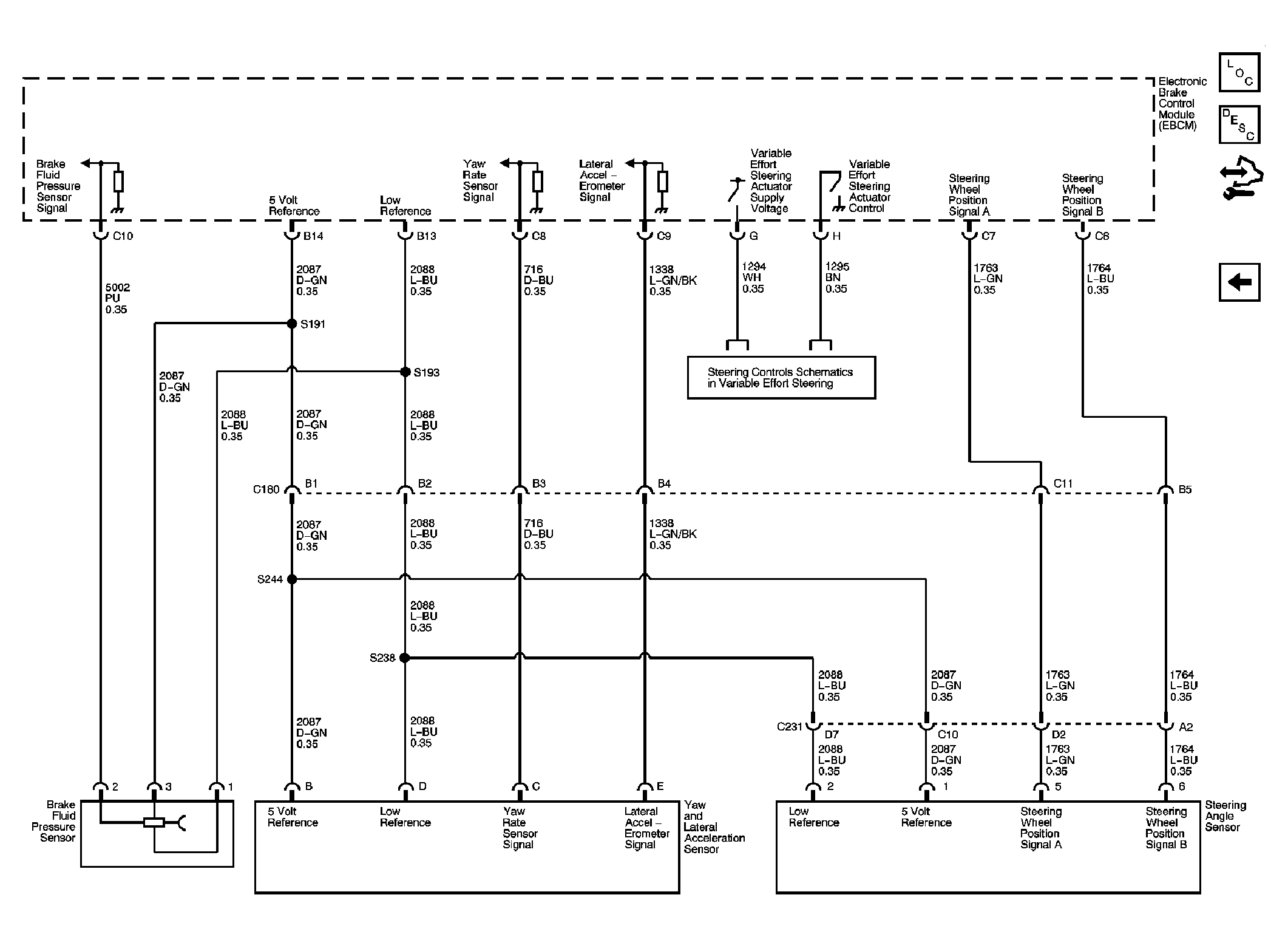

Fig 4: Stability Control Sensors

Courtesy of GENERAL MOTORS CORP.
