Removal Procedure

    CAUTION: Refer to SIR Inflator Module Handling and Storage Caution in Cautions and Notices.
  1. Disable the SIR system. Refer to the following procedures in SIR:
  2. Remove the console. Refer to Console Replacement .
  3. Remove the I/P carrier. Refer to Instrument Panel Carrier Replacement .
  4. Remove the outlet duct from the right side window defogger.

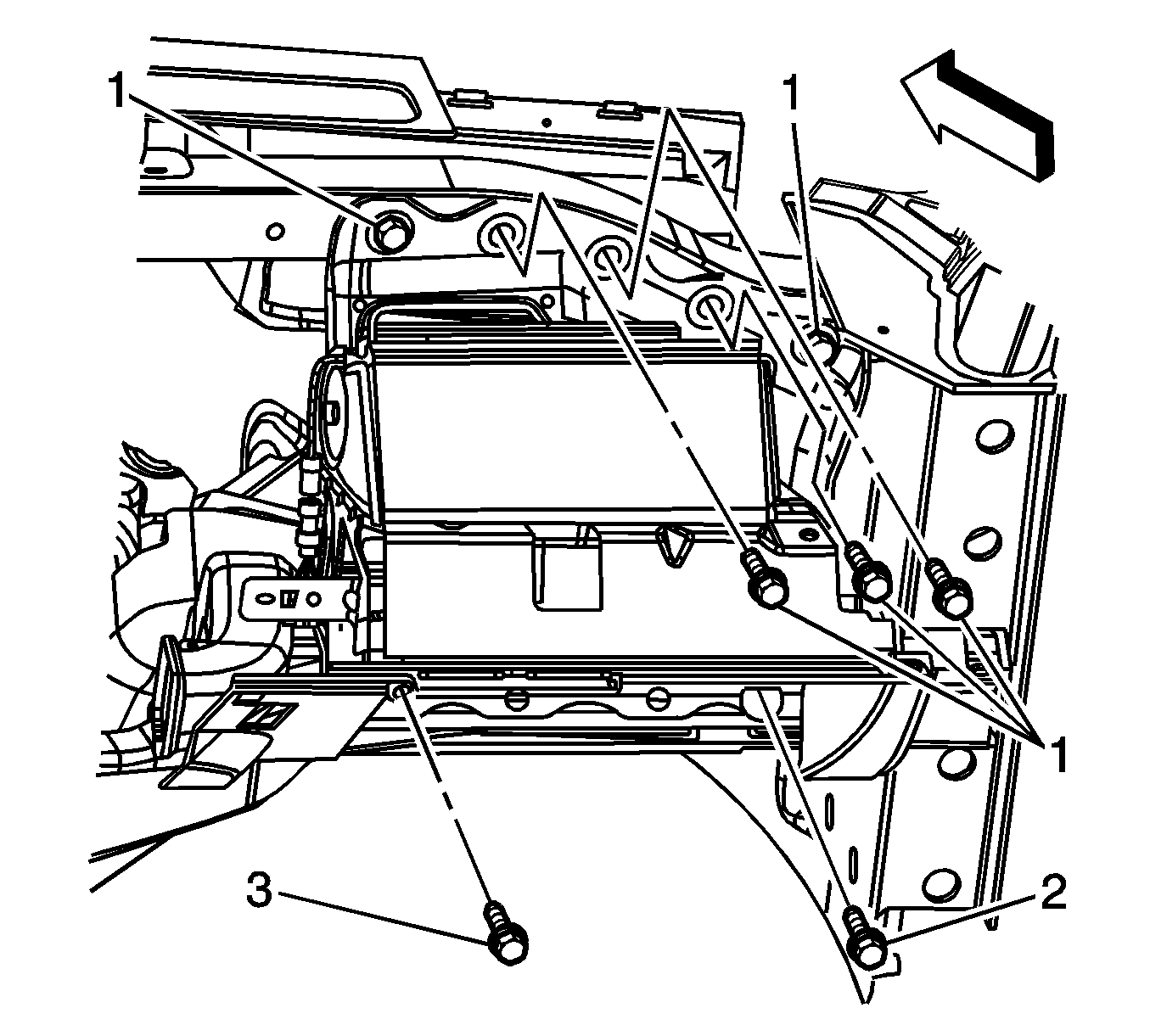

    5. Fig 1: View Of SIR Bracket Bolts
    GM1246852Courtesy of GENERAL MOTORS CORP.
  5. Release the I/P harness retainer from the passenger SIR bracket.
  6. Remove the connector position assurance (CPA) from the SIR module electrical connector.
  7. Release the electrical connector retainer from the SIR bracket.
  8. Disconnect the SIR module electrical connector.
    9. IMPORTANT: The following steps are important to assure proper trim fit during installation.
  9. Mark the location of the knee bolster bracket.
  10. Remove the bolts (3) retaining the knee bolster bracket to the center support bracket.
  11. Mark the location of the SIR bracket.
  12. Remove the bolts (2) mounting the SIR bracket to the I/P lower support beam.
  13. Remove the bolts (1) mounting the SIR bracket to the I/P upper support beam.
  14. Remove the SIR bracket.
    15. Fig 2: View Of SIR Module, Bracket & Retaining Nuts
    GM1226225Courtesy of GENERAL MOTORS CORP.
  15. Mark the location of the SIR module in the SIR bracket.
  16. Remove the SIR module retaining nuts (3).
  17. Remove the SIR module (1) from the SIR bracket (2).

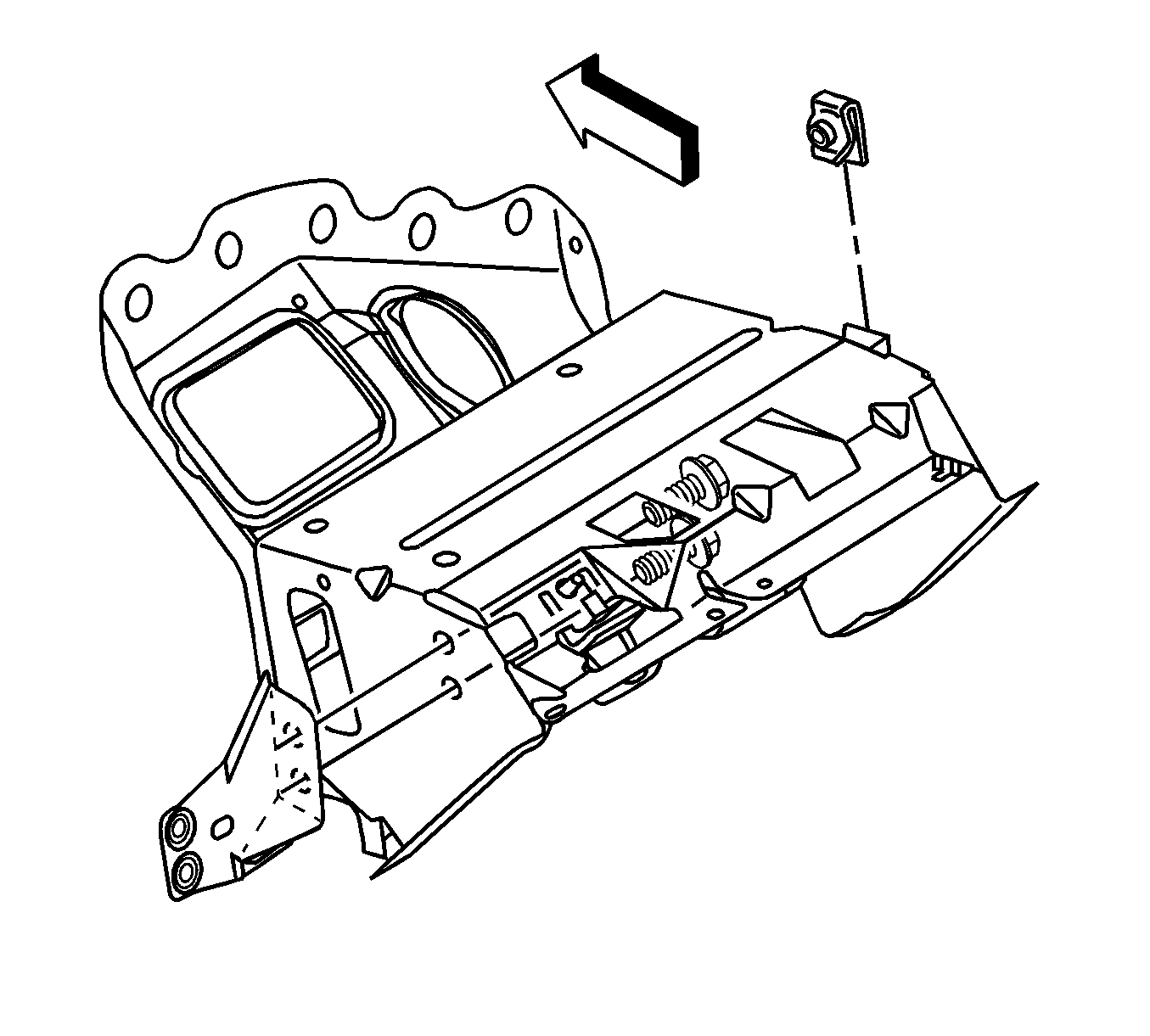

    18. Fig 3: View Of Knee Bolster Bracket
    GM1224662Courtesy of GENERAL MOTORS CORP.
  18. Remove the mounting bolts from the knee bolster bracket.
  19. Remove the knee bolster bracket.
