Horns Component Views
WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

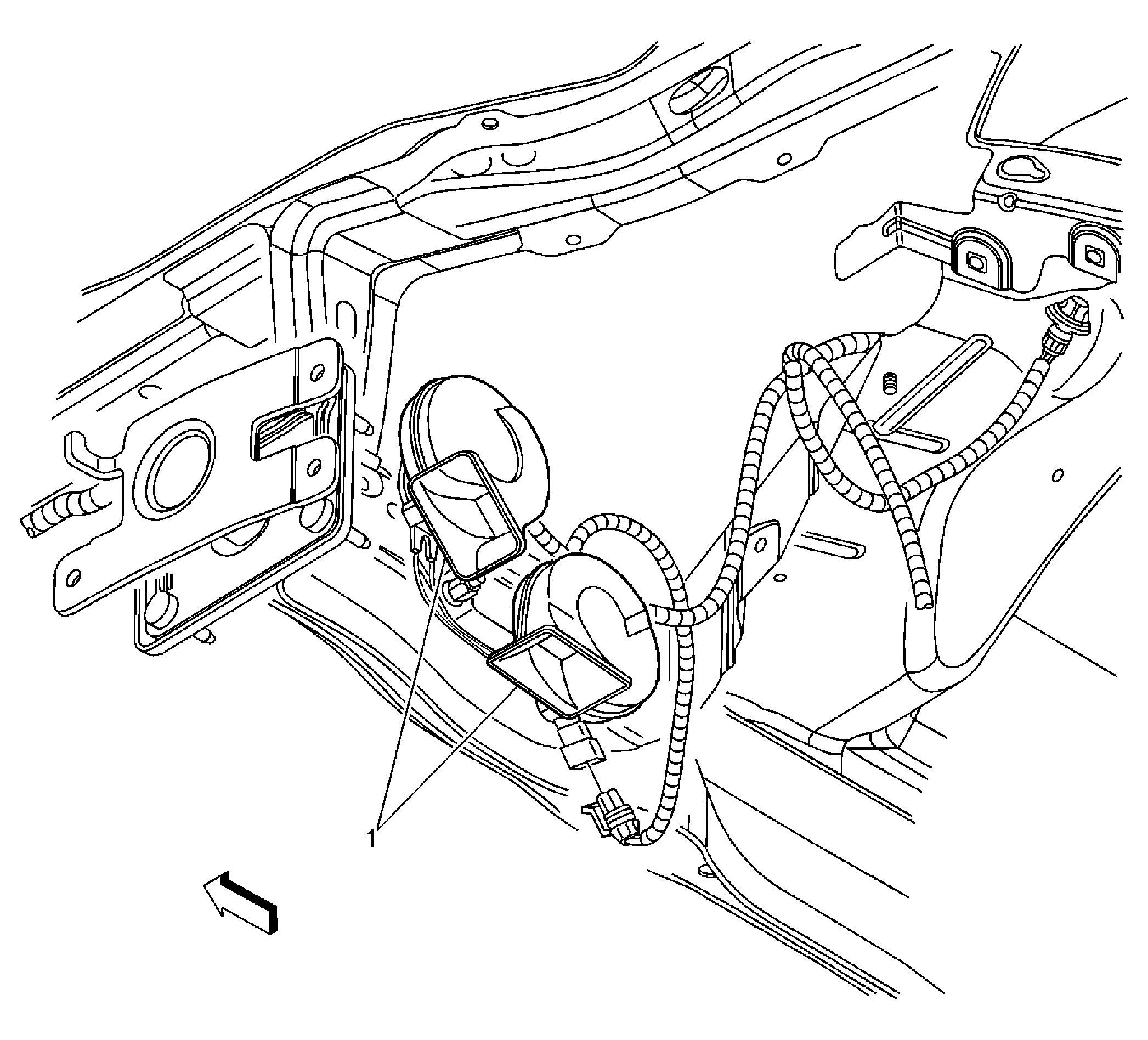

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Horns |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Inflatable Restraint Steering Wheel Module/Horn Switch |
| 2 |
Steering Wheel Controls - Left |
| 3 |
Steering Wheel Controls - Right |
| 4 |
Steering Wheel Controls - Left Connector |
| 5 |
C208 |
| 6 |
Steering Wheel |
| 7 |
Steering Column |
| 8 |
Inflatable Restraint Steering Wheel Module Coil |
| 9 |
Inflatable Restraint Steering Wheel Module Connector C1 |
| 10 |
Inflatable Restraint Steering Wheel Module Connector C2 |
| 11 |
C208 |
| 12 |
Steering Wheel Controls - Right Connector |
